vertical bandsaw / wood bandsaw
- Category: >>>
- Supplier: Weihai Zhongqiao Machinery Co. Ltd.
Share on (1390436035):
Product Overview
Description
wood band saw machine/vertical bandsaw/woodworking band saw/wood bandsaw/band saw machine/wood bndsaw/band saw/wood bandsaw

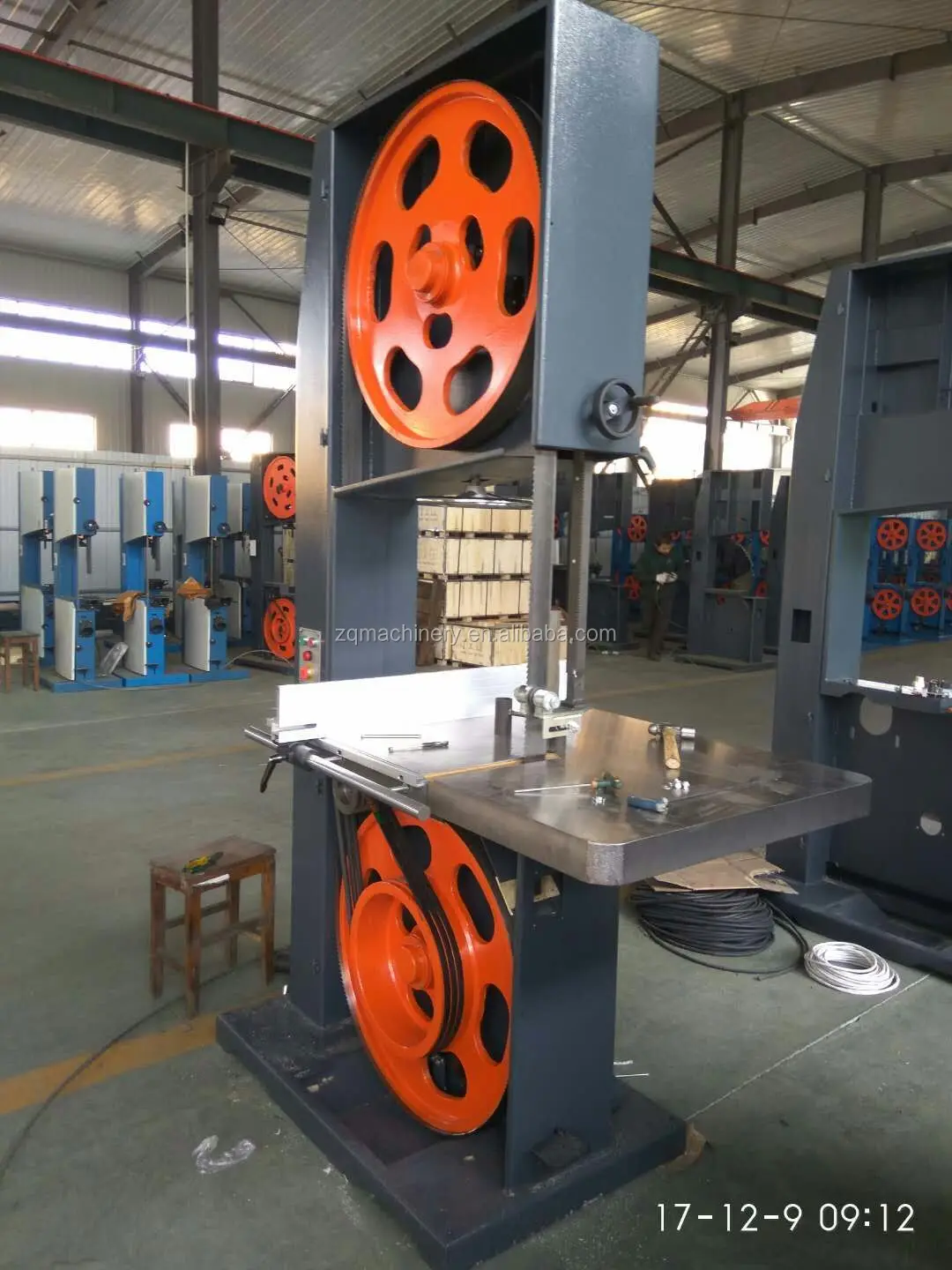

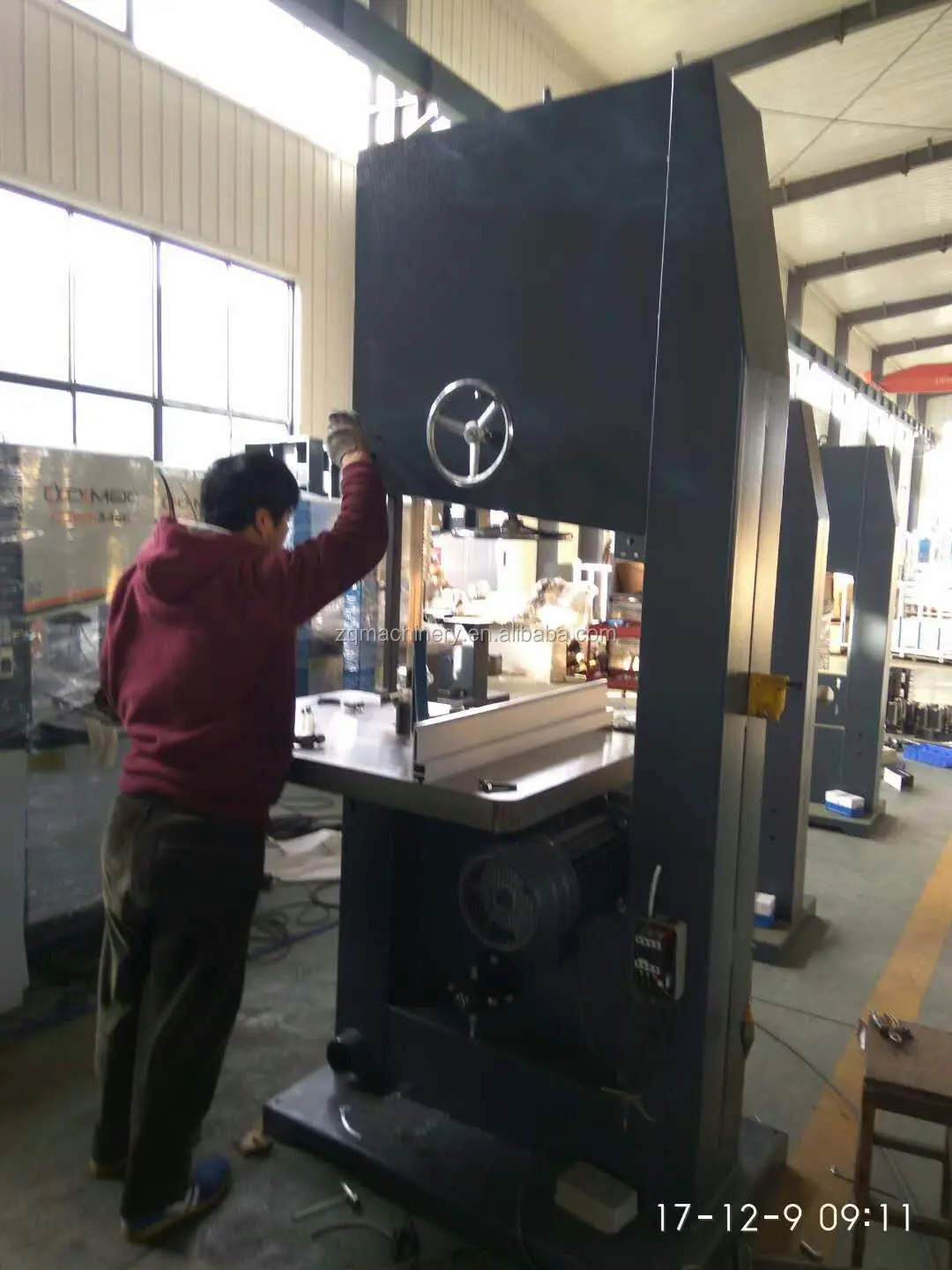

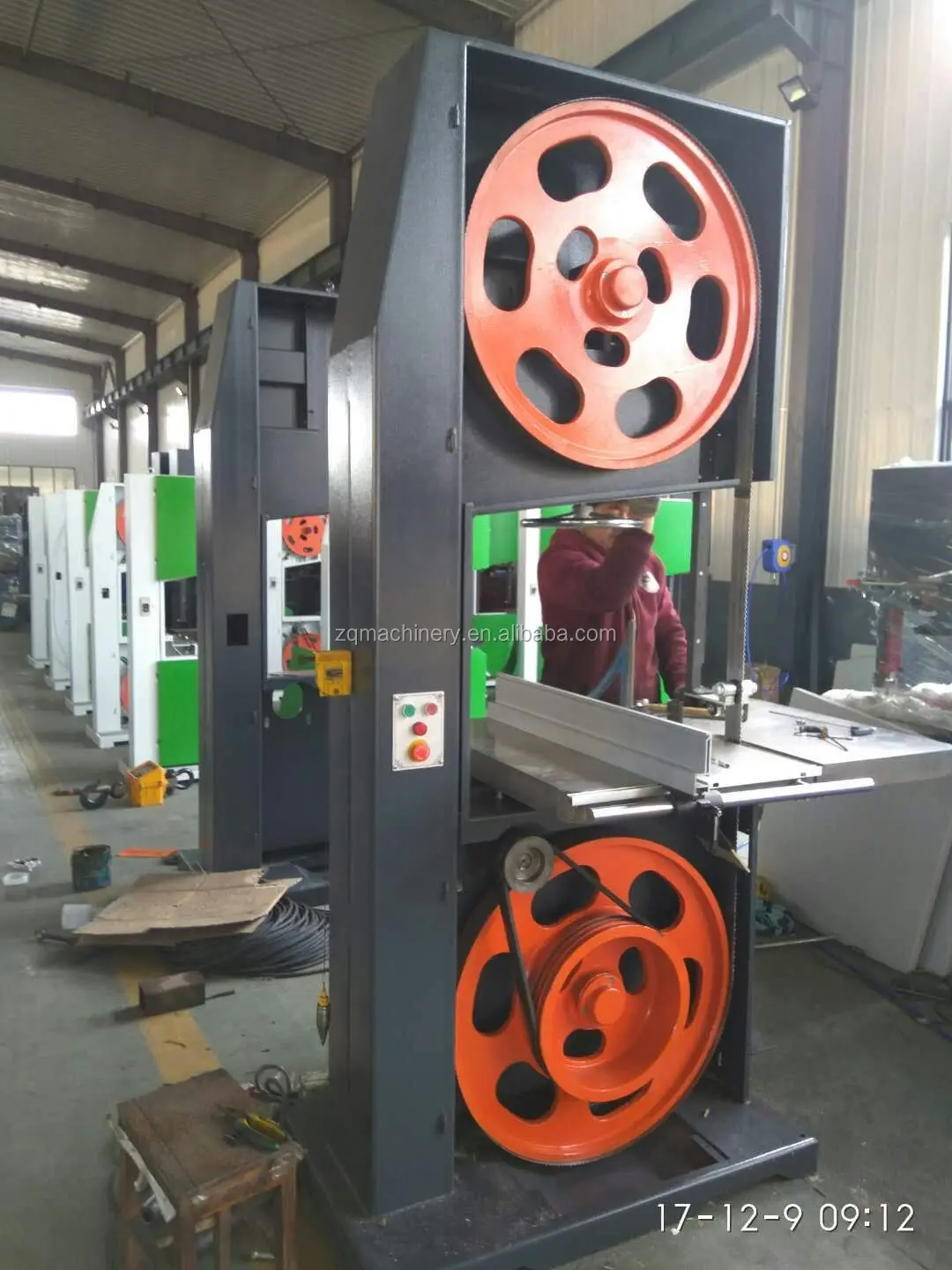

MJ347 WOOD BANDSAW
WOOD BANDSAW FEATURE
1. Bearing guide and blade supporting device

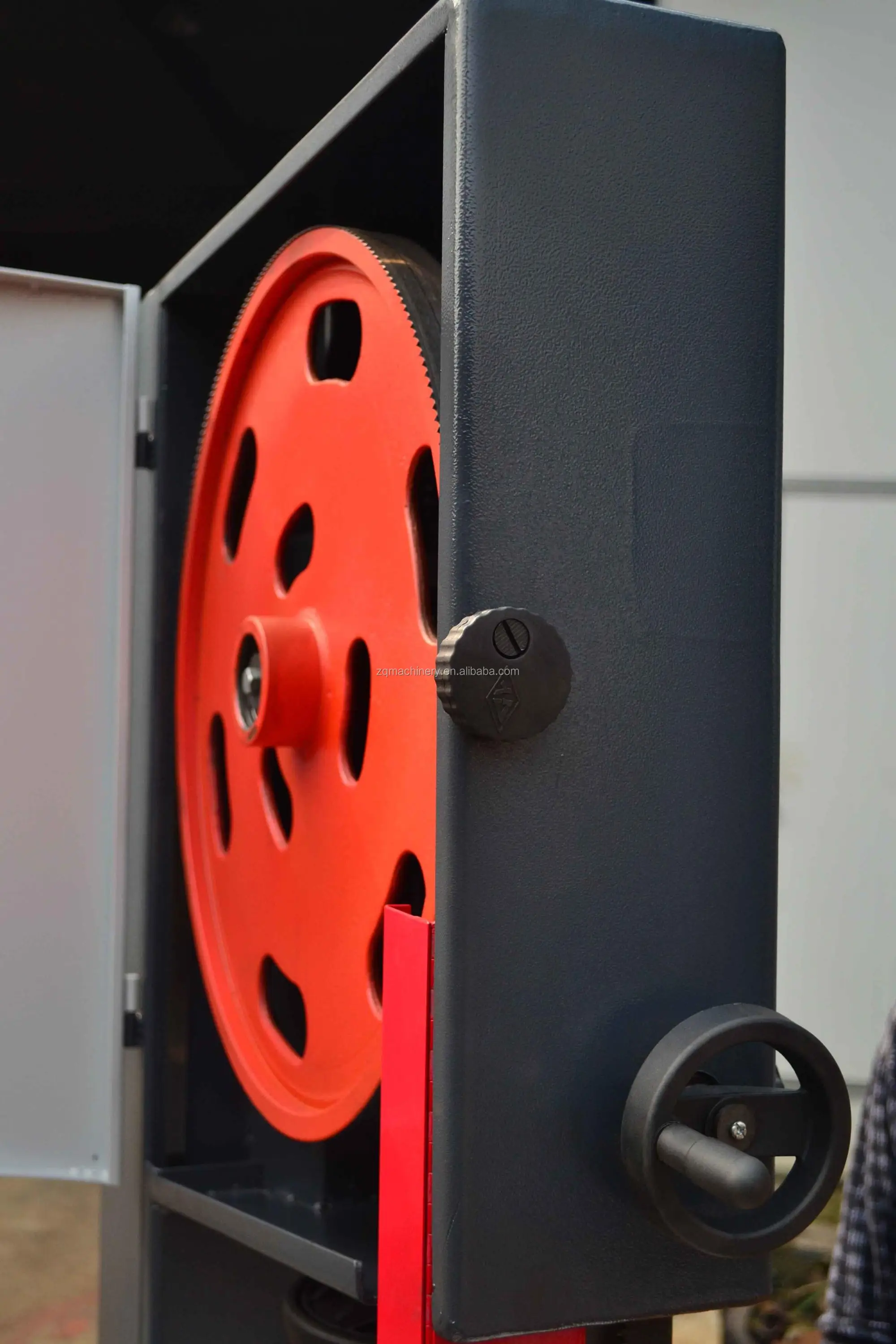

2. Hand wheel adjusting the blade tension.
3. Cast iron rip fence.
4. Saw workbench tilt from 0-30 degree.
WOOD BANDSAW SPECIFICATIONS
Model | MJ347 (27’’) |
Max. Cutting thickness:mm | 420 |
Cutting speed:m/min | 1476 |
Length of blade: mm | 5200 |
Wheel diameter: mm | 700 |
Throat: mm | 680 |
Motor power: kw | 4 |
Overall dimension :mm | 1350*800*2290 |
Net weight: kg | 470 |
Model | MJ344 (16”) | MJ345C (19”) | MJ345D (20”) | MJ396 (24”) |
Max. Cutting thickness:mm | 250 | 260/370 | 280 | 400 |
Cutting speed:m/min | 988 | 1230 | 960 | 1090 |
Length of blade: mm | 2910 | 4000 | 3470 | 4500 |
Wheel diameter: mm | 400 | 480 | 500 | 600 |
Throat: mm | 380 | 460 | 450 | 575 |
Motor power: kw | 1.5 | 2.2 | 2.0 | 4 |
Overall dimension :mm | 740*610*1640 | 960*750*1870 | 1120*660*1845 | 1330*700*2060 |
Net weight: kg | 206 | 275 | 275 | 456 |

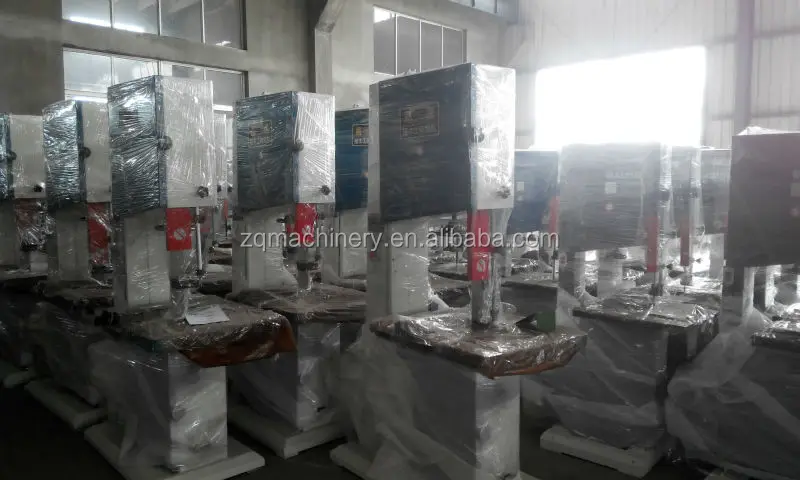

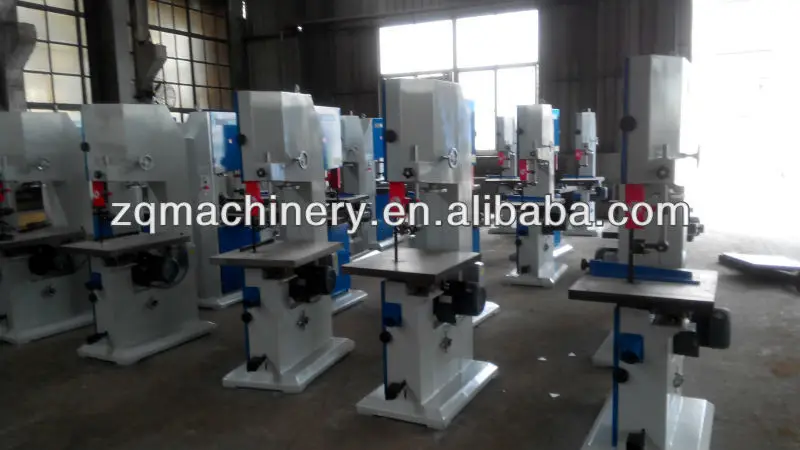

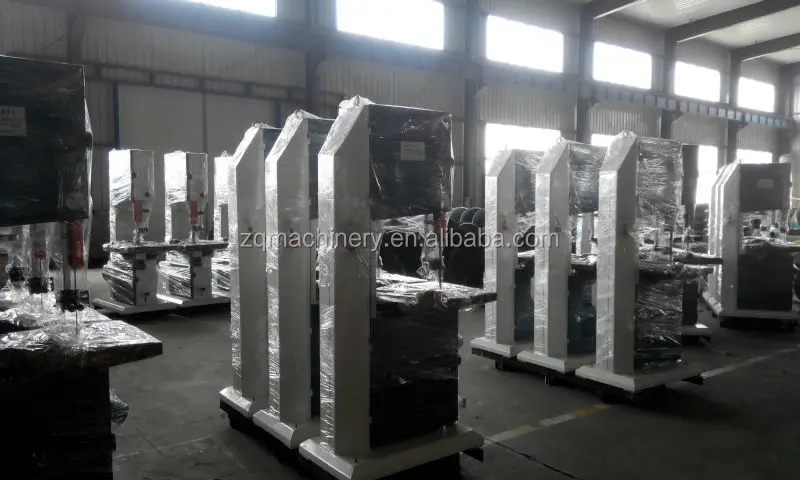

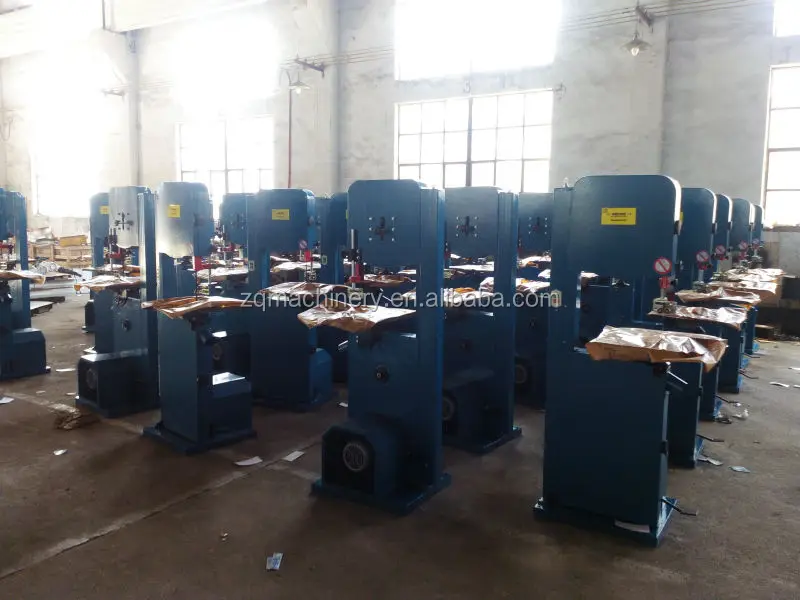

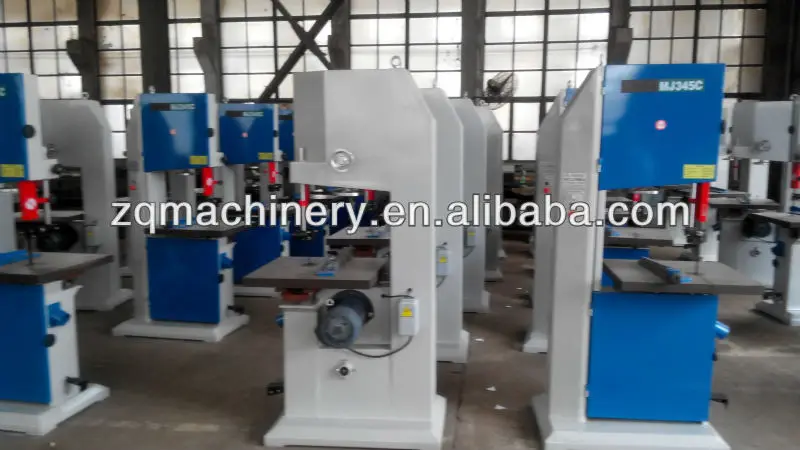

WOOD BANDSAW WORKSHOP

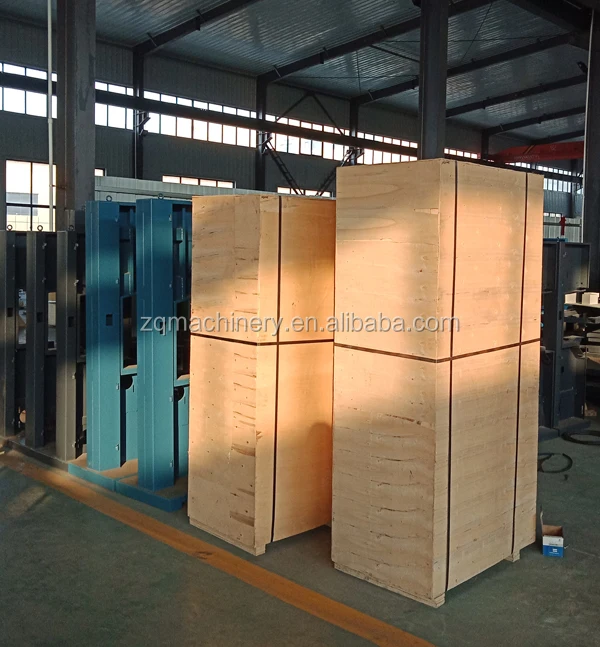

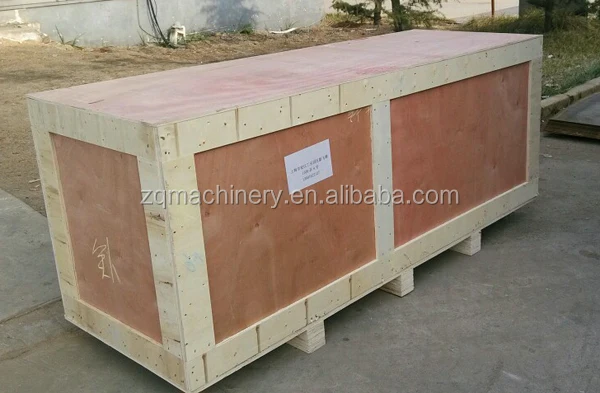

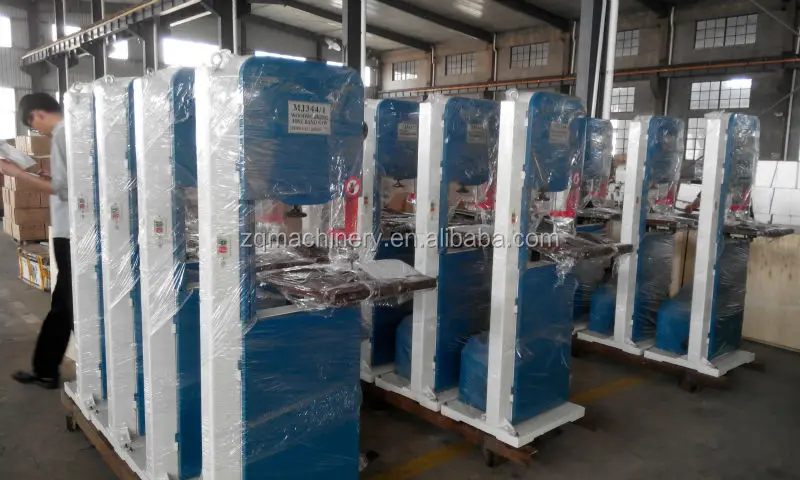

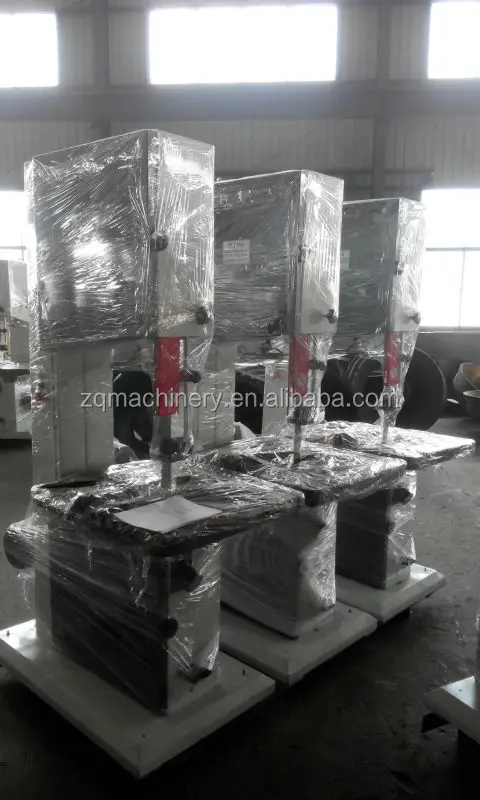

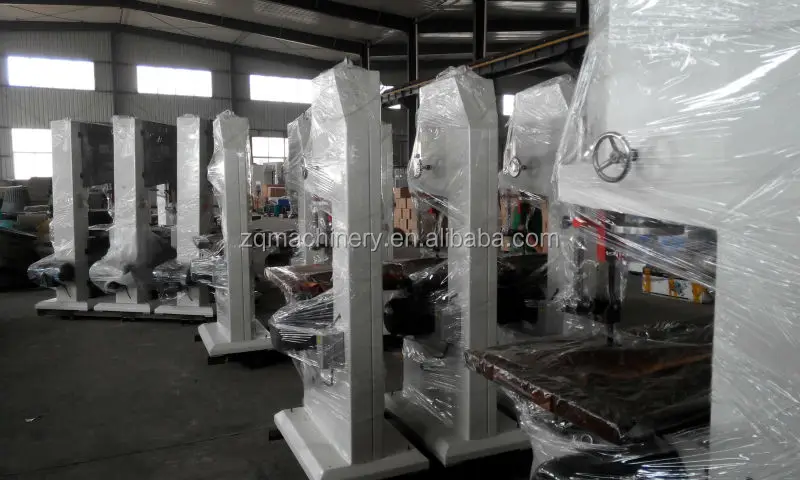

Packaging & Shipping
IF ANY QUESTIONS, PLS FEEL FREE TO CONTACT WITH ME.
