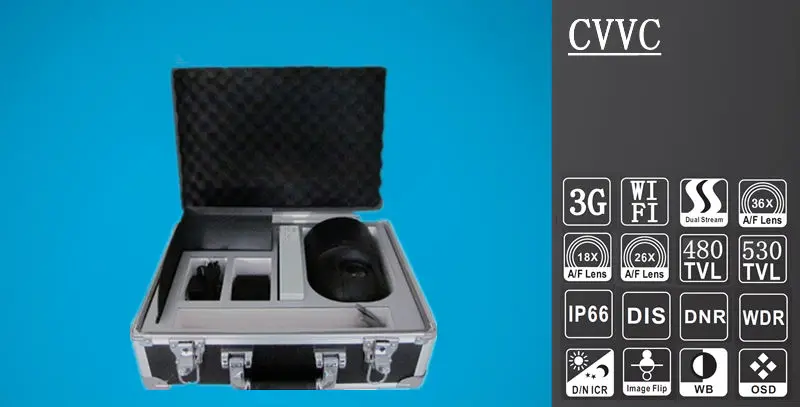

CVVC Portable 3G wireless CCTV digital dome web security camera 530TVL 36X

Product Overview

Description



CVVC Portable 3G wireless CCTV digital dome web security camera 530TVL 36X







  HOT SALE PRODUCTINFORMATION ,don't miss !!













· Integrated design: dome, concise brace, removable cradle head, shortage. Concise,

  beautiful, convenient, practical;

· Information double backup: front end memory card storage(extend to 32G at most, continuous store for 8*24 hours) and remote video receiving end storage;

·  Dual stream technology: main code stream(D1) is used for locate shortage, for future inspection; auxiliary code stream(CIF/D1) is for remote transmission, saving the cost of remote date transmission;

· Efficient video compression encoding of H.164/AVC, network bandwidth transmission of clear video is

 easily realized;

·  Remote control of video transmission, transmission cost can be minimum, no notable flux is produced

if the client side does check;

· Computer remote control, data display is diversified;

·  Support for wireless and wired connector client, connection type is diversified;

· Image fps is mainly stable at 25 frames/sec, time delay is less than 3 sec;

· Transmission channel is guaranteed, China Unicom, China Telecom and others 3G network are available,

special-purpose transmission channel of operators is also usable.









Technical Specifications
Model  (CVVC)	45	48	480		490	980		990	1010
Horizontal Resolution	480TVL	480TVL	480TVL		530TVL	480TVL		530TVL	530TVL
Optical Zoom	18×	18×	18×		18×	26×		26×	36×
Digital Zoom	12×
Min. Illumination	0.5Lux	0.001Lux	0.002Lux		0.05Lux	0.002Lux			0.005Lux
Lens	f=4.1mm-73.8mm F=1.4-3.0					f=3.5mm-91.0mm F=1.6-3.8			f=3.4mm- 122.4mm F=1.6-4.5
Image Sensor	1/4'' color CCD
Signal Format	PAL/NTSC			Location Precision			0.05
Rotation Speed	During 0.7°~120°/sec the speed can be adjusted
Signal Noise Ratio	≥50dB
Brightness Identification Level	9
Pan/tilt Range	Pan :0°~360°continuous; Tilt -15°~90°auto flip
Network Type	WCDMA/EVDO			Channel			1 channel
Radio Interface	1SMA female,50Ω			SIM/UIM Interface			Draw card
Cable network Interface	Ethernet 0/100 Base-TX,RJ-45 connector
Support Protocol	TCP/IP
Safety	CHAP protocol approve,DES encrypt,data protection
Compression Format	H.264/AVC
Video Input	1-channel video input,BNC interface(female),characteristic impedance 75Ω
Resolution Rate	D1,CIF			Input Voltage			DC8.4V
Frame Rate	25 frames/sec,actual frame rate is according to the net
Battery	Working time:3~4 hours
Consumption	< 5(W) (varies according to different wireless modules)
Dustproof and  Waterproof Level	Ip66			Working Temperature			-25~70°C
Working Humidity	5~96%			Working  Pressure			86~106kpa
Dimension(mm)   (H*W*D)	163X130X116			Net weight			2KG
Application	Outdoor / Vehicle
