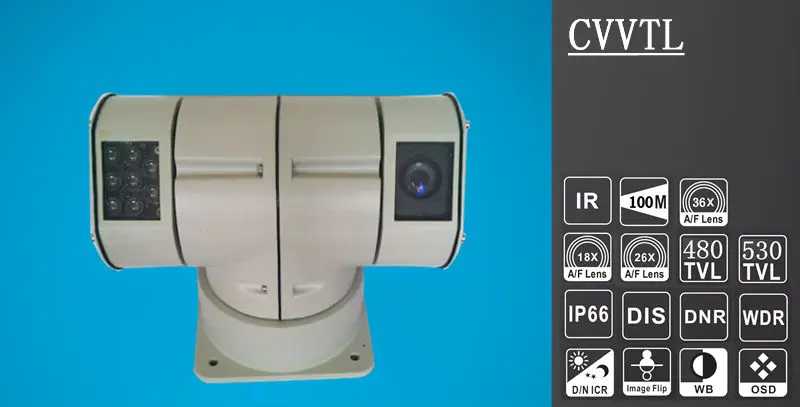

CVVTL IR High speed Laser Cradle Head CCTV digital dome PTZ camera 530TVL 36X

Product Overview

Description



CVVTL IR (INFRARED) High speed Laser Cradle Head CCTV digital dome PTZ camera

530TVL 36X







  HOT SALE PRODUCTINFORMATION ,don't miss !!















l The max valid distance of laser lamp is 100 meters, catch object rapidly in night conditions without illumination;

l Precise motor drive, smoothly operate, sensitive response;

l Function of modifying soft address code, 3D positioning click to enlarge, click or region the object to be enlarged by mouse,

the object would be placed in the middle of screen, and enlarged;

l Chinese OSD menu, Chinese headline edit, temperature and coordinate display, function of clean by the wiper

and detect fault information;

l Function of automatic activation function, setting and adjust for preset points, automatic cruise, sector scan and display area;

l Multi-protocols supported with adjustable baud rate;

l Automatic activation at fixed time, function of  guarding position and presets, cruise route, pattern scan, swing scan,

Up to 256 high precision presets programmable;

l Backlight compensation, it can see everything in intense lighting condition;

l Automatic operation when power on, back to the last position and move before power failure, function of  guarding position and presets,

cruise route, pattern scan, swing scan;

l Designed for all weather, high strength aluminum alloy shell by elaborately cast, shock resistance, anti-corrosion, protection level is IP66 with strong anti-seismic character, especially for vehicle-mounted monitoring.









Technical Specifications
Model  (CVVTL)	45	48	480		490	980		990	1010
Horizontal Resolution	480TVL	480TVL	480TVL		530TVL	480TVL		530TVL	530TVL
Optical Zoom	18×	18×	18×		18×	26×		26×	36×
Digital Zoom	12×
Min. Illumination	0.5Lux	0.001Lux	0.002Lux		0.05Lux	0.002Lux			0.005Lux
Lens	f=4.1mm-73.8mm F=1.4-3.0					f=3.5mm-91.0mm F=1.6-3.8			f=3.4mm- 122.4mm F=1.6-4.5
Image Sensor	1/4'' Ex-view HAD CCD
Signal Format	PAL/NTSC
Video Output	VBS 1.0Vp-p/75Ω
Pan/Tilt Speed	Pan: preset:100°/sec,manual:0°~80°/sec; Tile:preset:100°/sec, manual:0°~80°/sec
Signal Noise Ratio	≥50dB
Image Flip	Yes
Switching Mode	Day/Night
Electronic Shutter	1/1~1/10,000s
Synchronous System	Internal synchronization or external synchronization
Scanning System	15.625KHz(H) 50Hz(V)
Number of Preset	256
Auto Cruise	Auto switch from 0 to 54 preset position sequentially
Pan/Tilt Range	Pan: 0°~ 360°continuous, no limit; Tilt:90°~-90°
Positioning Accuracy	0.05
Baud Rate	2400bps to 19200bps
Control Model	RS485,Multi-protocol
Spectra Address	0-255
Voltage Input	DC10.5V~DC18V(3.5A vehicle-mounted);AC24V(2.5A ordinary)
Shock Resistance	≥4G
Working Temperature	-35°C~+55°C			Application			Outdoor / Vehicle
Dimension(mm) (H*W*D)	220X300X180			Net Weight			2KG
