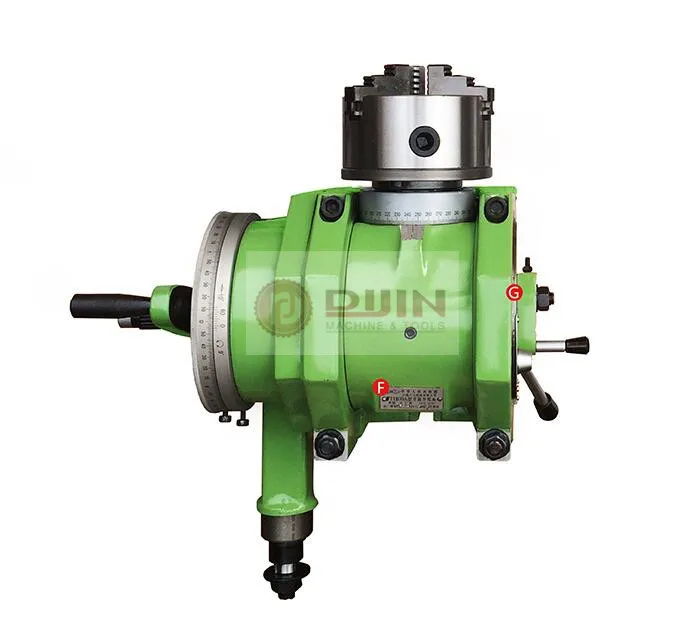

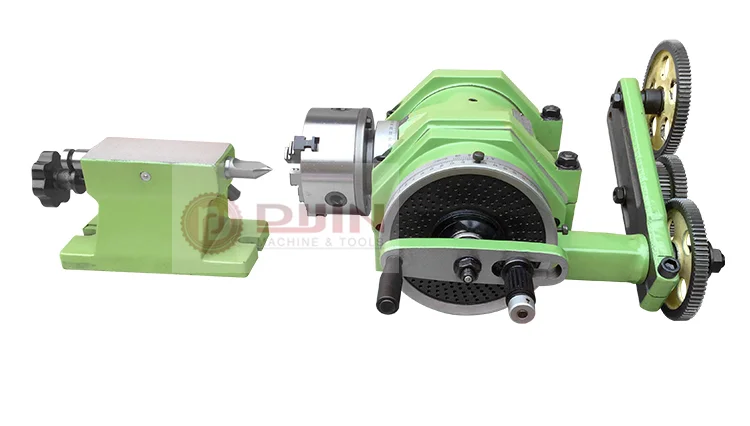

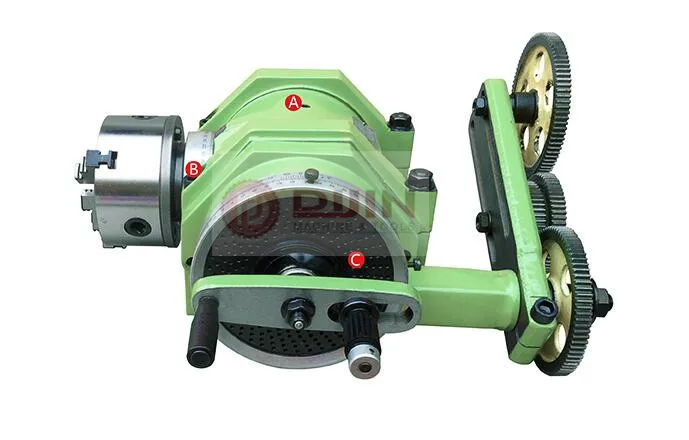

Universal dividing head F11 type

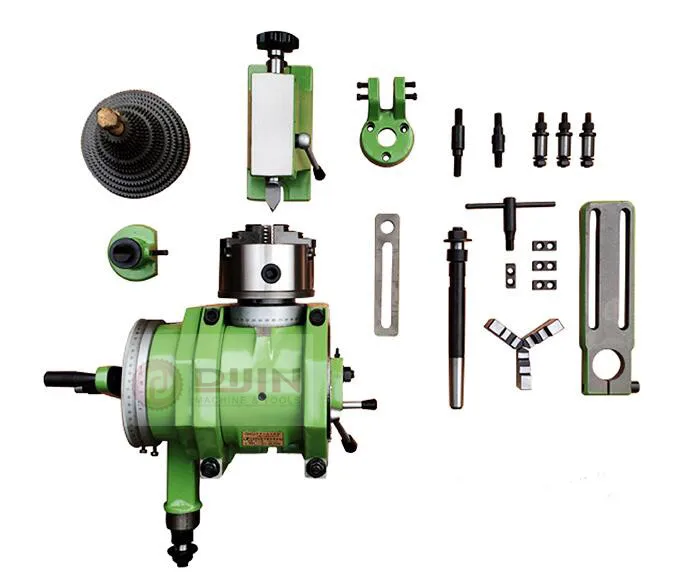

The all-powerful cent degree head of the F11-80 A type is one of the main enclosures of miller, the degree which makes use of a cent engraves one degree wreath and cursor, the fixed position sells dish and commutation wheel gear with cent degree, the ability will pack card in the peak occasionally the work piece of card dish is arbitrarily divided into angle, can be divided into circumference to wait arbitrarily, lending support to the knife that the tool machine makes use of various different shape carry on various groove  positive wheel gear  spiral and positive wheel gear  an Archimedes spiral line cam to wait of process a work.That product still has a work set fully, the work piece is directly tightly solid Be working on the stage, can also make use of and pack Be working the tongs of on the stage is tightly solid, completing a work piece in many ways and processing.

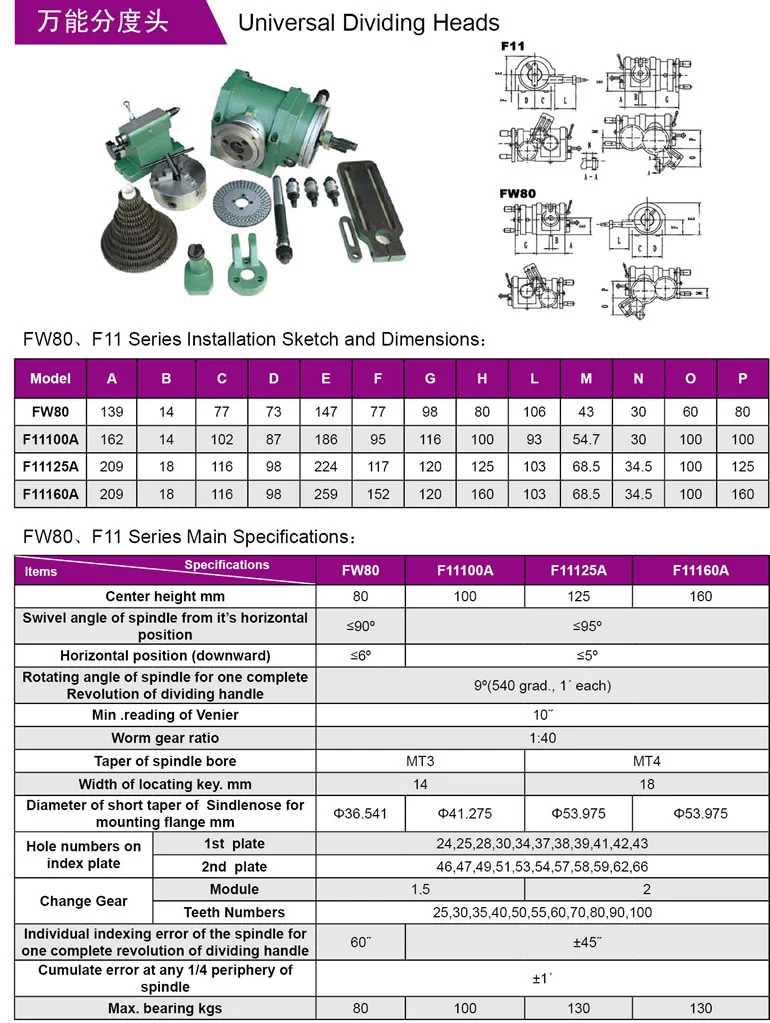

Specification		FW80	F11 100A		F11 125A	F11 160A
Swivel Hight  mm		80	100		125	160
Swivel angle of sindle from it's horizontal position (upward)		≤90°	≤95°
Horizontal position(downward)		≤6°	≤5°
Rotaing angle of spindle for one complete revolution of dividing handle		9°(540 GRAD;1'each
Min. reading of vernier		10"
Worm gear ratio		1:40
Taper of spindle bore		MT3			MT4
Width of locating key mm		14			18
Dia. Of short taper of spindle nose for mounting flage  (mm)		36.541	41.275		53.975	53.975
Hole numbers on index  plate		1st plate		24,25,28,30,34,37,38,39,41,42,43
		2nd plate		46,47,49,51,53,54,57,58,59,62,66
Change gear		Module		1.5		2
		teeth numbers		25,30,35,40,50,55,60,70,80,90,100
Individual indexing error of the spindle for one complete revolution of dividing handle		60 "				±45"
Cumulate error at any 1/4 periphery of spindle		±1'
Max.Bearing KG		80	100		130	130
Net weight		36	67		110	130
Gross weight		45	79		126	149
Case dimensions MM		542*403*220	616*465*265		635*530*310	710*532*342
