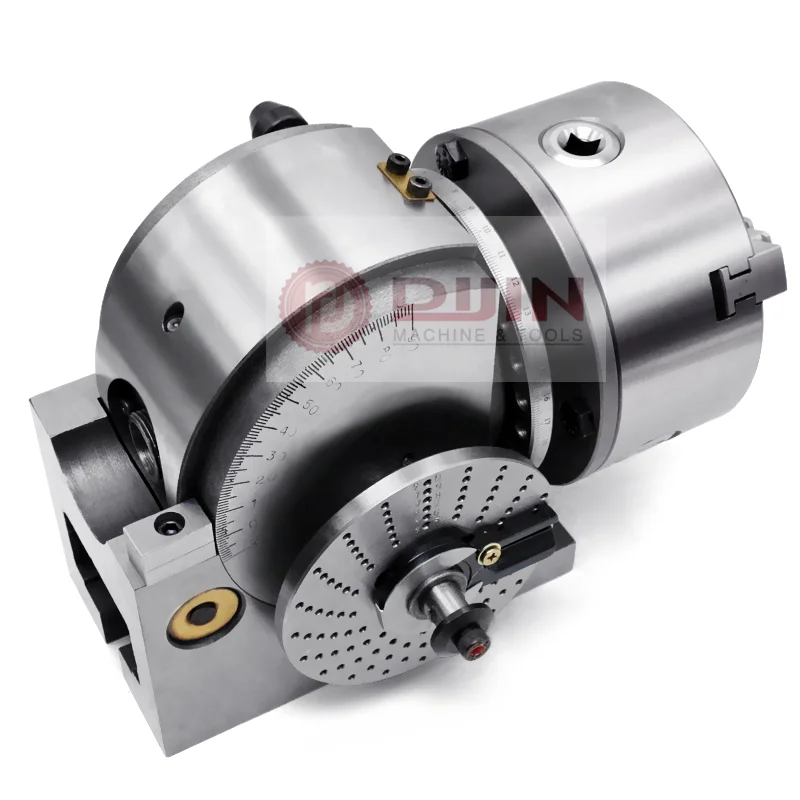

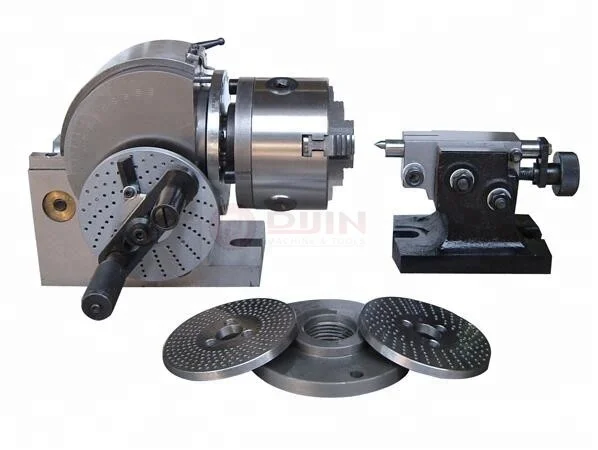

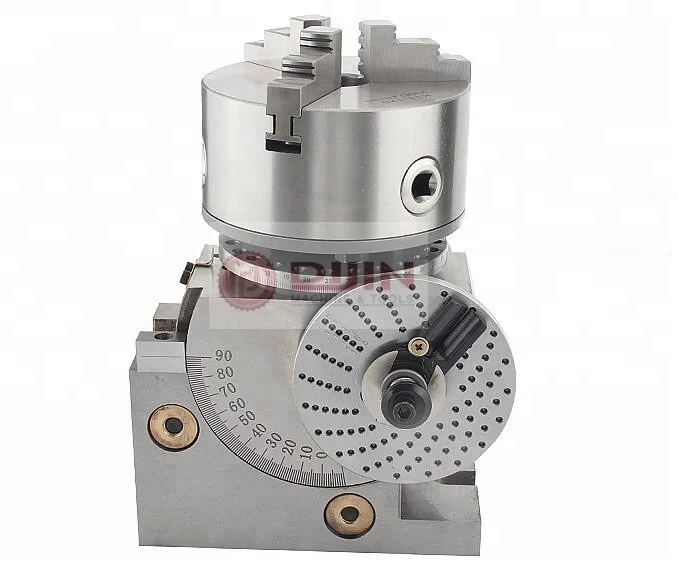

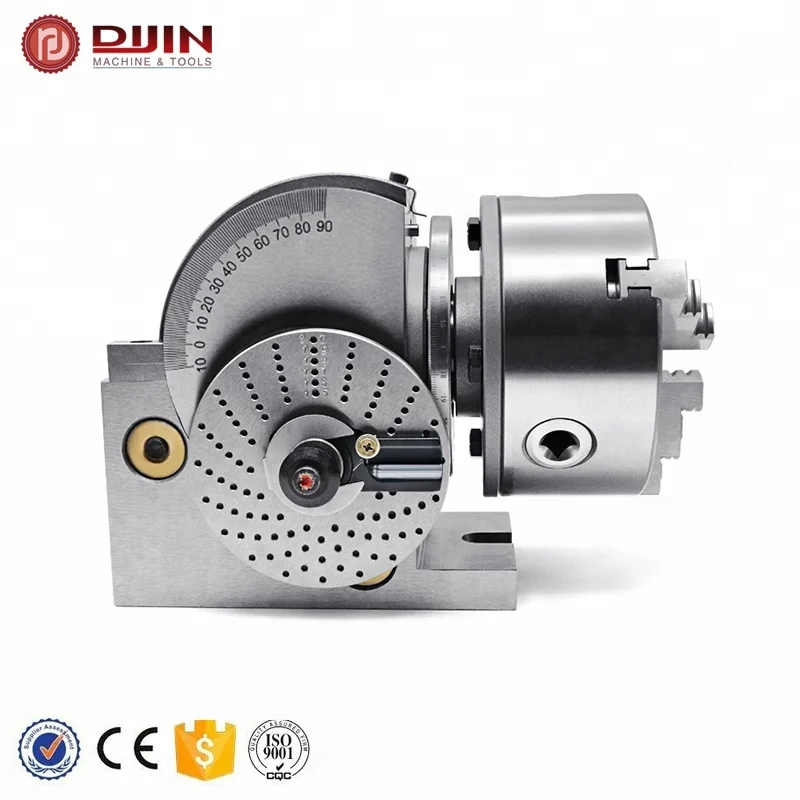

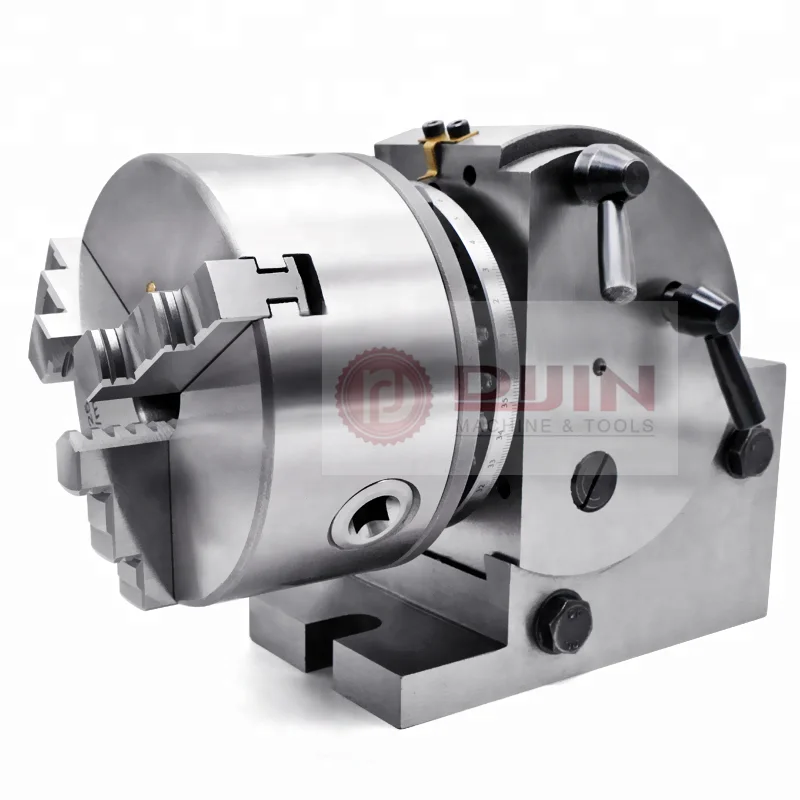

Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck
Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck
Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck
Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck
Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck
Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck
Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck

Dividing Head BS0 Milling Machine accessory BS Semi universal dividing heads with 125mm lathe chuck

Share on (1391674412):


Price:RUB 20,068.32

Quantity:


Product Overview

Description

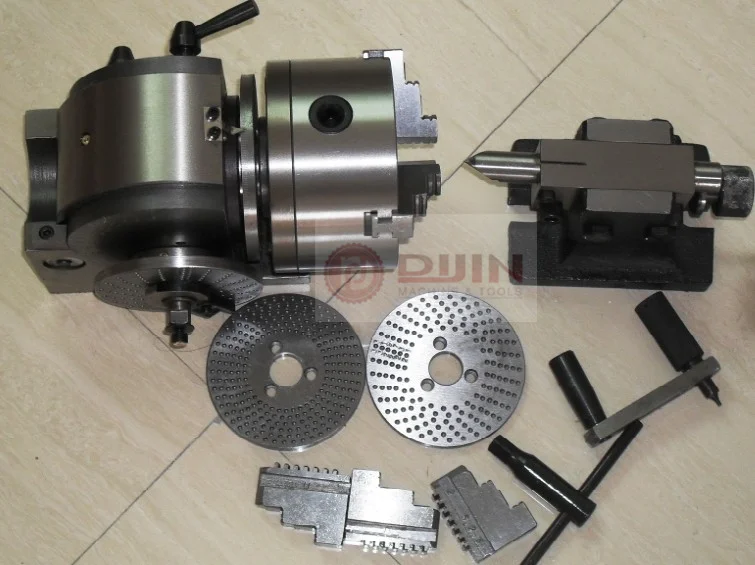

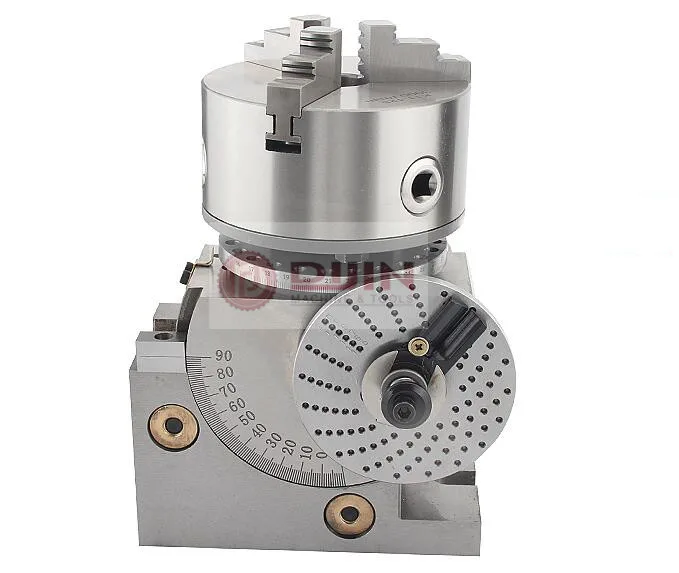

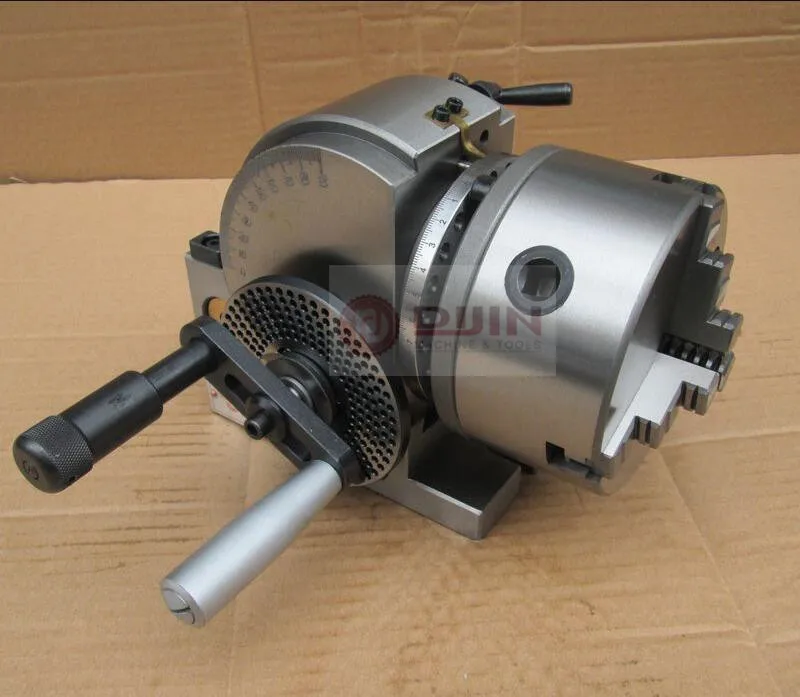

Semi-universal dividing head BS0-4 chuck size 125mm type



BS12BS09_BS10_BS13_BS03_BS05_BS04_BS06_15

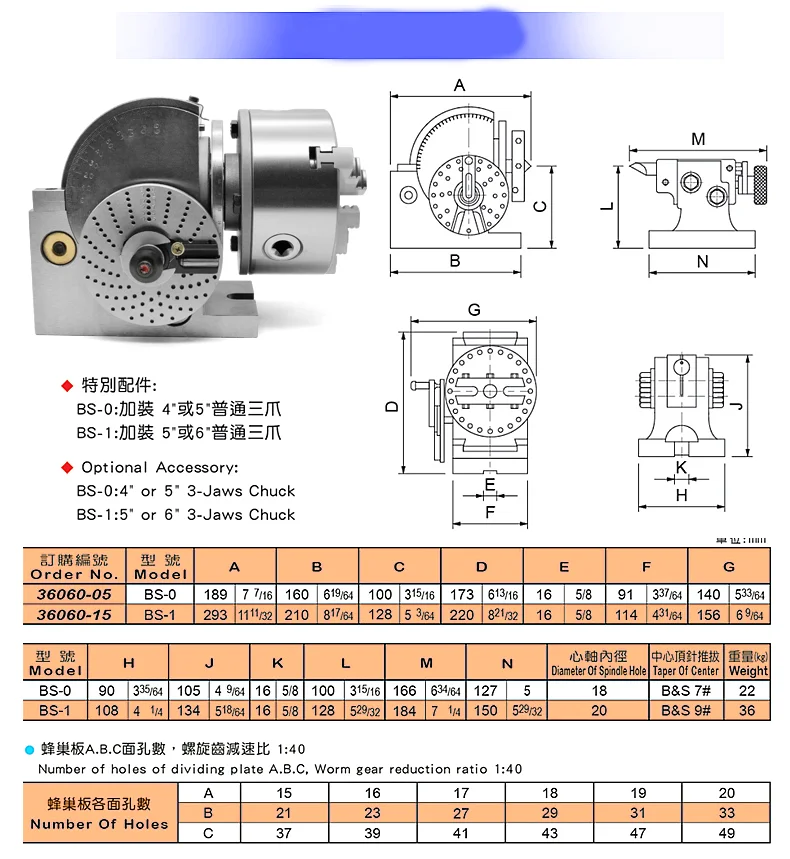

Model

A

B

H

h

a

b

g

Taper of center

Diameter of spindle hole

N.W(KG)

BS-0

193

140

173

100

166

90

16

MT2

18

23.8

7.59

5.51

6.81

3.93

6.53

3.54

0.63

B&S NO.7

BS-1

242

168

220

128

206

113

16

Mt3

20

35.8

9.52

6.61

8.66

5.04

8.11

4.45

0.63

B&S NO.9



SEMI-UNIVERSAL INDEX CENTER B&S TYPE NO.0,NO.1(TAIL-STOCK)

Unit: mm/in



Model

A1

B1

H1

h

a1

b1

g1

Mueasurement m3

BS-0

175

87

107

100

130

92

16

Packed with the Dividing head

6.89

3.42

4.21

3.93

5.12

3.62

0.63

BS-1

183

87

137

128

158

110

16

Packed with the Dividing head

7.20

3.42

5.39

5.04

6.22

4.33

0.63

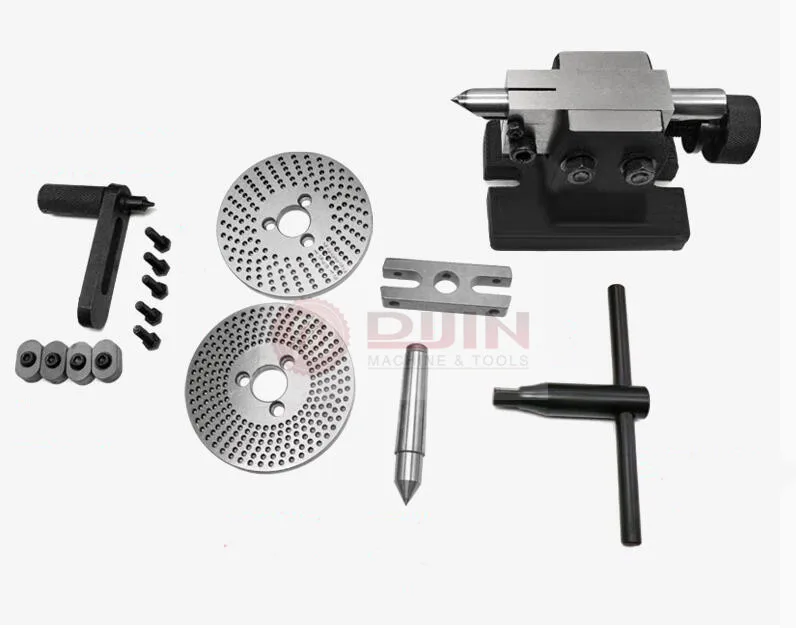

STANDARD ACCESSORIES

Dividing plate A,B,C

Numbers of holes of dividing plate (worm gear reduction ratio 1:40

Unit: mm/in

Numbers of hole

Plate A

15

16

17

18

19

20

Plate B

21

23

27

29

31

33

Plate C

37

39

41

43

47

49
