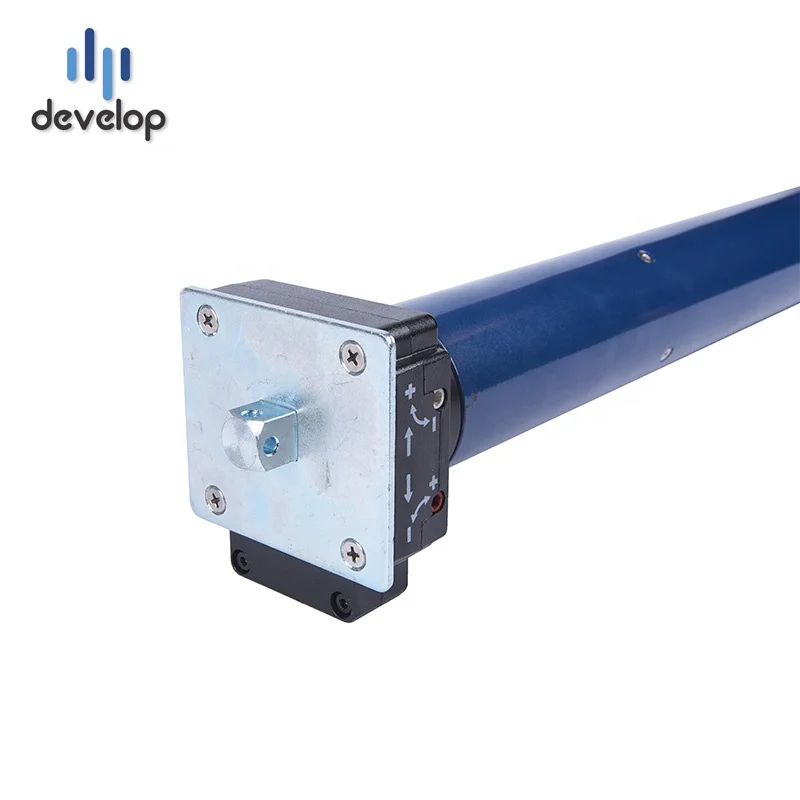

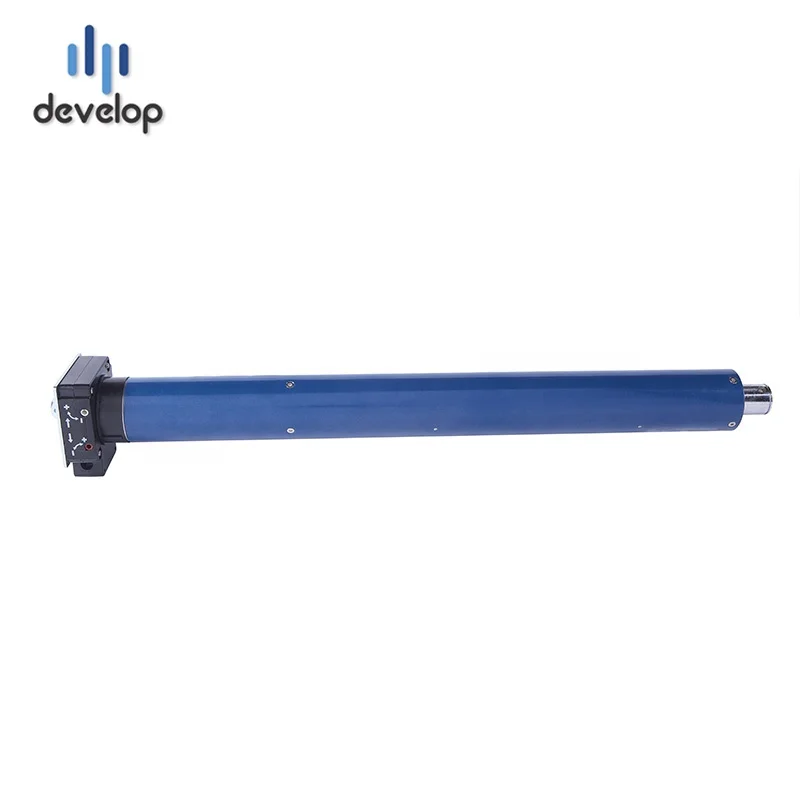

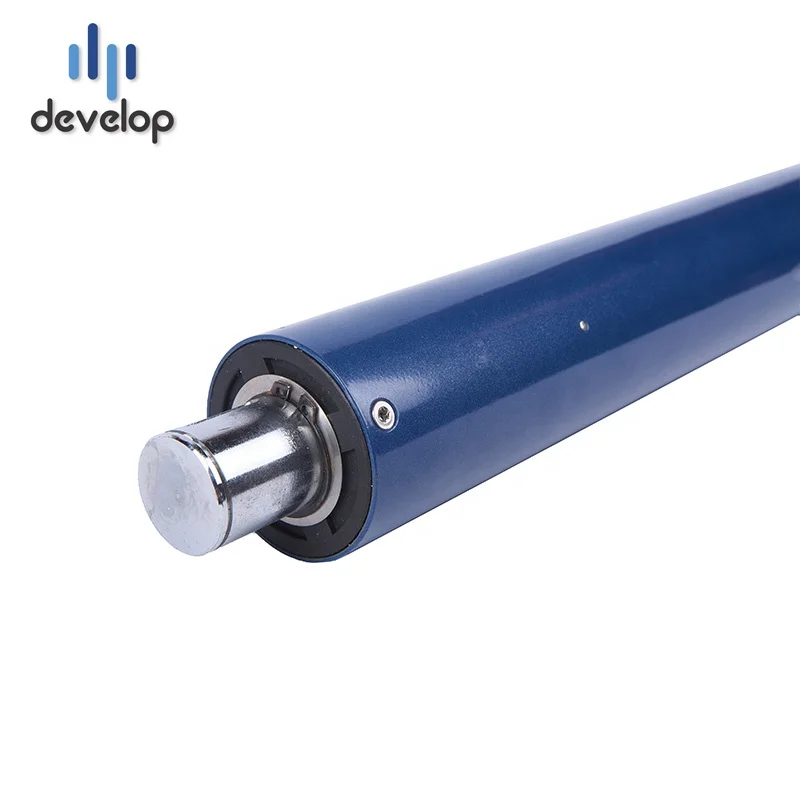

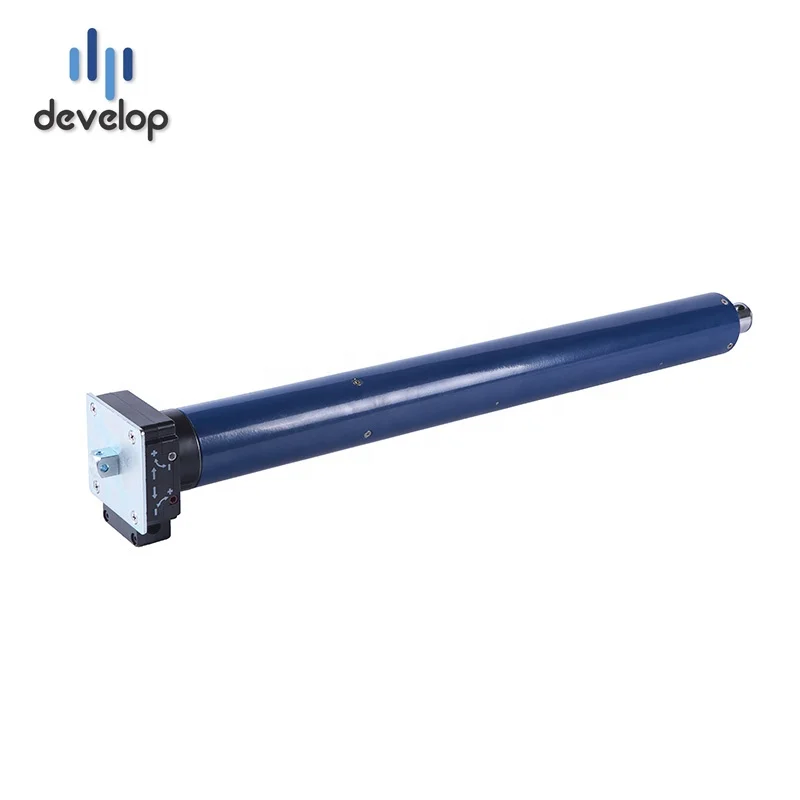

59mm Tubular Motor for Roller Shutter Manual Type

Product Overview

Description





59mm tubular motor for roller shutter manual type

Tubular motor / tüp motor / moteur tubulaire / motore tubolare



Tubular motor XP59 series(Manual Type) Features:

Discount Type with HOT sale!!!



1. Manual override type;

2. Easier for installation;

3. Lower noise;

4. Stable quality;

5. Used for roller shutter, garage door and so on.

6. We Provide a 5-year warranty for our motors.









	Torque (N.m)	Voltage (v)	Frequency (hz)	power input (w)	diameter (mm)	current (A)	Running time (min)	speed (rpm)	protection index (IP)	Insulation class
XP59M Manual	60N.m	230	50	310	59	1.40	S2 4min	15	IP44	Class H
	80N.m	230	50	330	59	1.45	S2 4min	12	IP44	Class H
	100N.m	230	50	350	59	1.55	S2 4min	12	IP44	Class H
	120N.m	230	50	365	59	1.60	S2 4min	12	IP44	Class H
	140N.m	230	50	380	59	1.74	S2 4min	9	IP44	Class H
	150N.m	230	50	395	59	1.78	S2 4min	9	IP44	Class H
