2022 sell hot Horizontal and vertical rotary table HV12 machine tool accessory

Product Overview

Description

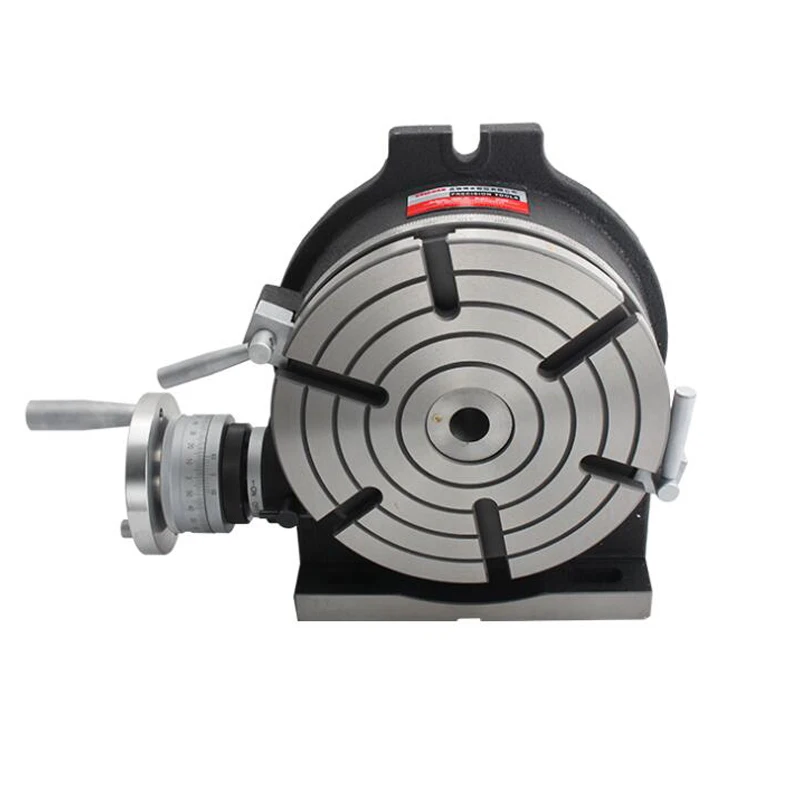

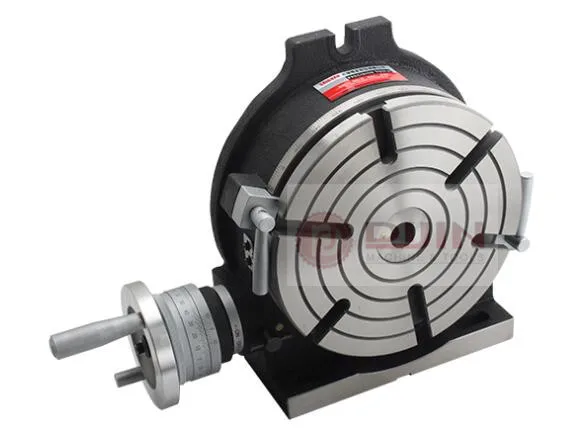

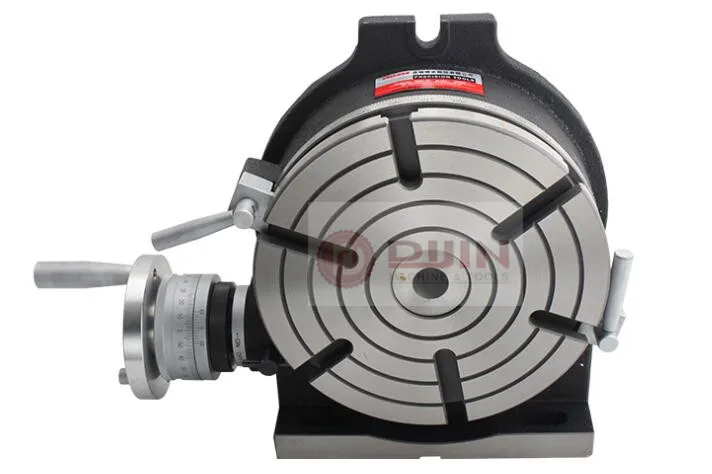

Horizontal and vertical rotary table HV12

1.TSLvertical&horizontal rotary table is one of the main accessory of milling machine,it is used for index boring ,milling .

circle cutting,spot facing and boring hole etc on milling machine,Rotary table in vertival with working together,it can used on complex work for circle index boring and milling .

2.B section is to improve on the basis of paragraph A,and computer Control CNC indexing,and CNC machine tools online,Section B rotary table that retained A paragraph added to the NC Functionality for users to reduce costs.

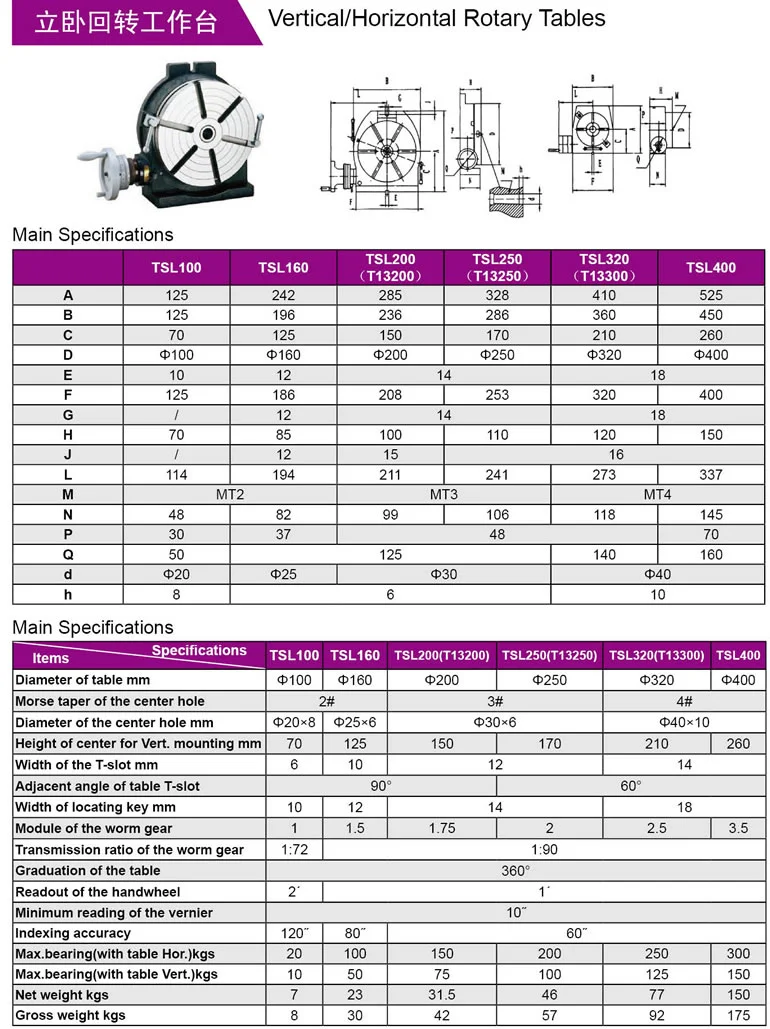

Model	TSL100(4)	TSL160(6)	TSL200(8)	TSL250(10)	TSL320(12)		TSL400(14)
A	125	242	285	328	410		525
B	125	196	236	286	360		450
C	70	125	150	170	210		260
D	Φ100	Φ160	Φ200	Φ250	Φ320		Φ400
E	10	12	14		18
F	125	186	208	253	320		400
G	/	12	14		18
H	70	85	100	110	120		150
J	/	12	15	16
L	114	194	211	241	273		337
M	MT2		MT3		MT4
N	48	82	99	106	118	145
P	30	37	48			70
Q	50	125			140	160
d	Φ20	Φ25	Φ30		Φ40
h	8	6			10
