Galvanized metal profile/Drywall stud track

Product Overview

Description

                         Galvanized metal profile/Drywall stud track

1.Type: Ceiling grid or drywall partition component

2.Thickness:0.4-1.2mm, size:42*25, 52*25, 72*25, 75*25, 100*34.5

3.Length: 2800mm, 3000mm, 3200mm

4.Light weight, high strength

5.Package:10pcs per bundle with plastic strip or iron wire

6.MOQ: 10 Tons, negotiable

7.Delivery time: 15-20 days.

8.Payment term: via T/T, 30% payment, balance before shipment.



New building material/ Galvanized steel keel

Application

Product used for internal constructions gypsum drywall partition such as hotels, terminal building, bus station, theatres, shopping malls, factories, office buildings, and etc.



Feature and advantage

1)Rust proof

2)Corrosio-resistance

3)Multi-roll production technology

4)Fireproof, anti-seismic

5)Environmental friendly, Pls Be Assured Use

6)Easy installation, precisely dimensioned

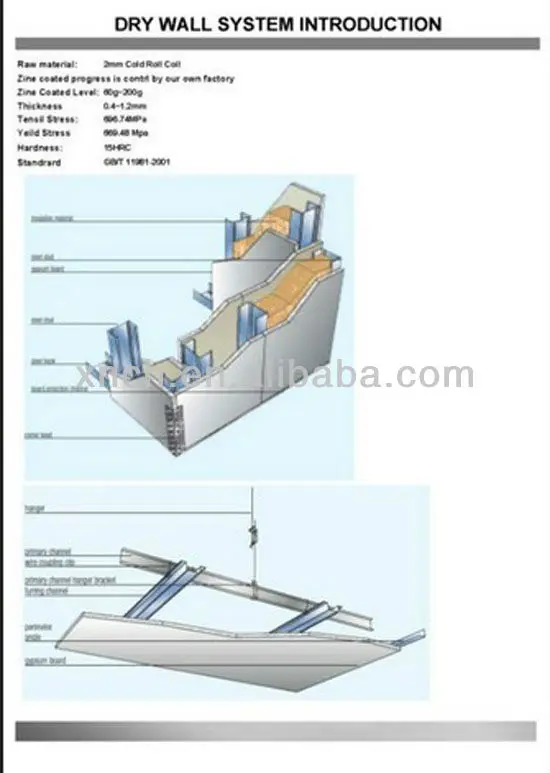

Dry wall system install

1.To fix the ceiling track and the floor track to the clear ceiling and the clear floor with the shoot-nails.



2.Install the metal stud to the ceiling track and the floor track, and use the rivets to fix them in accordance with the design space.



3.The gypsum boards should be installed to the frame with the tapping screw, when the whole frame is formed .



4.One-layer gypsum board is used , the space between two gypsum plaster boards should be staggered. And the double-gypsum board is used the space between two gypsum plaster boards should also be staggered.



5.Joint putty process the final decoration can be done.



Component name	Descrption(mm)	Thickness(mm)	Length(mm)	Remark
Main Channel	38*10	0.45,0.50,0.60,0.70,0 .80,1.0	3000	If you want to special size products, we can do it according to your requirements.
	38*12	0.50,0.6,0.7,0.8,1.0	3000
Furring Channel	35*22	0.40,0.50,0.60	3000
	35*24	0.40,0.45,0.50,0.60	3000
Card Light Steel Keel	19*25	0.6	3000
	19*28	0.8	3000
	19*32	0.9	3000
	19*38	1.0	3000
Stud	40*34.5 50*34.5 70*34.5 75*34.5 100*35*32	0.40, 0.45, 0.50, 0.60, 0.70, 0.80	3000, 3200
Track	42*25 52*25 72*25 75*25 100*25	0.40, 0.45, 0.50, 0.60, 0.70, 0.80	3000, 3200



 They are popular used in domestic and all over the world for its excellent quality and reasonable price.







About us

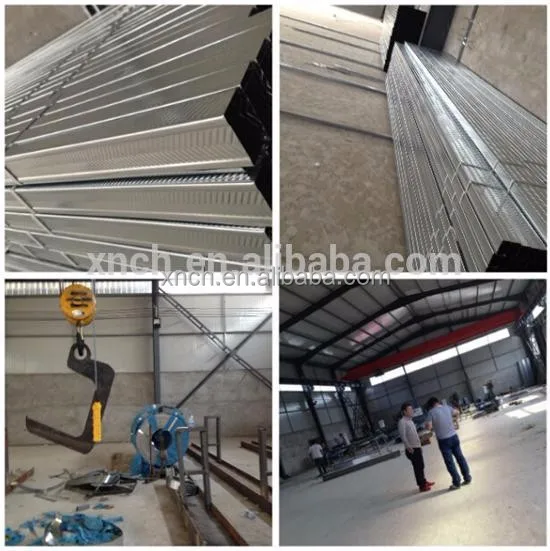

Wen'an Xinchang Building Materials Co.,Ltd. establish in 2004, we are spacifical manufacture galvnaized light steel keel. The company has an advanced production line with high-degree automation, the "guangsheng" brand equipment, 21 production lines, 3200 tons per month.

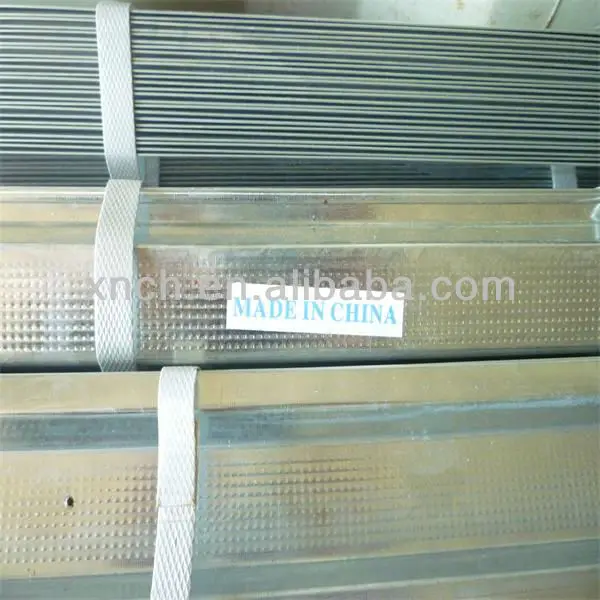

Package
