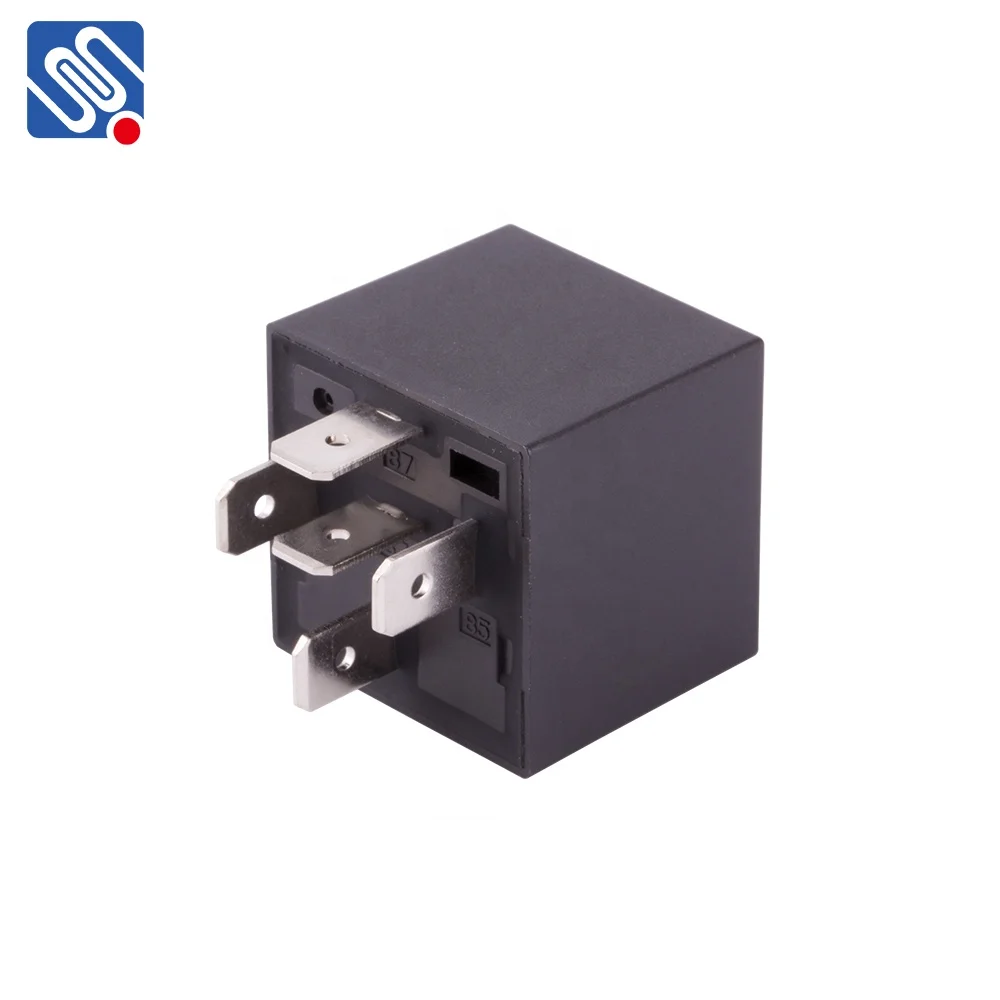

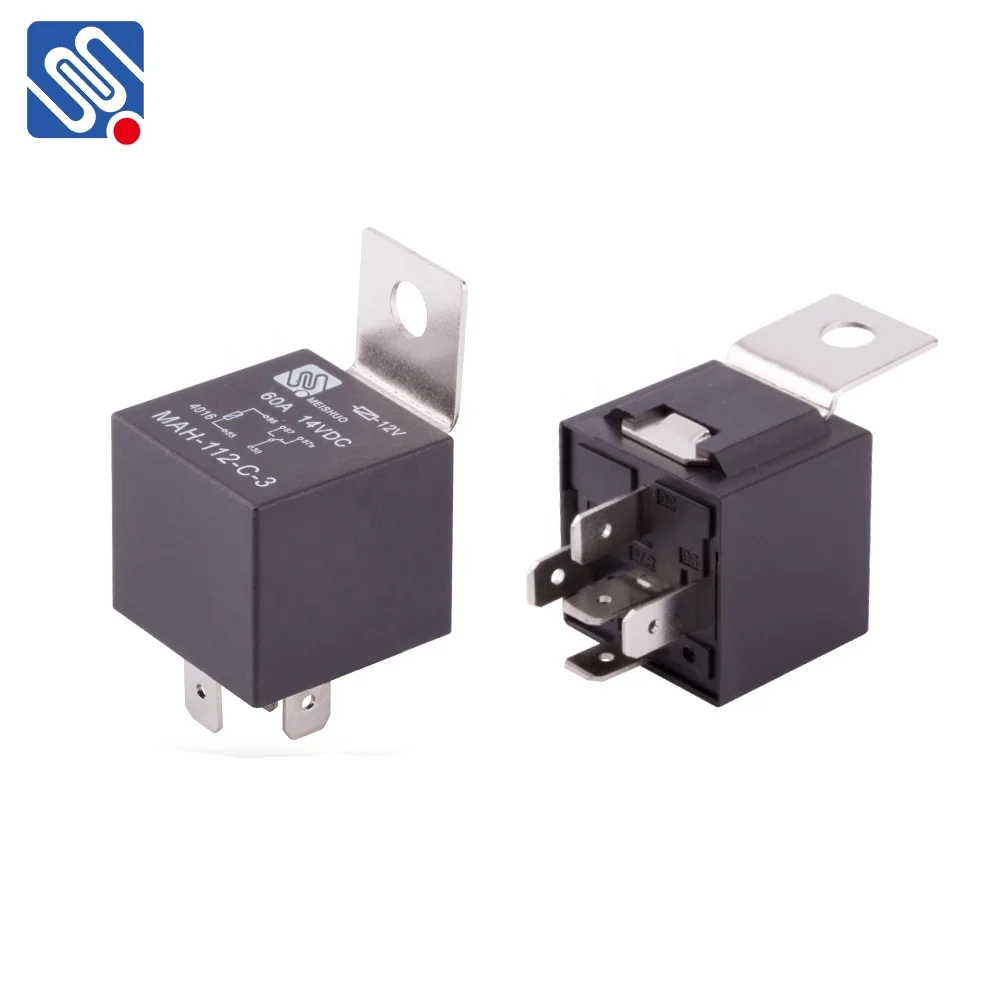

Meishuo 12V 24V 30A 40A with Diode with Resistor Automotive relay

Product Overview

Description



12V 40A Automotive relay











F1	Relay feature:



-Small size and light weight

-Heavy contact load (40A)

-1 form A, 1 form B, 1 form C and 2 form A contact

-arrangement available

-Suitable for automobile and lamp accessories application

-Outline dimension: 28.0*28.0*25.0mm

Automotive relay

F2	Specification:



characteristics
Contact Form				1A 1B 1C 2A
Contact material				Silver Alloy
Max.Switching Current				NO/NC:120A/45A
Max.Switching voltage				60VDC
Min.Contact Load				1A 6VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				500MΩ
Dielectric strength				500VAC
Operate Time				10ms
Release Time				5ms
Ambient temperature				-40°C~+85°C
Storage Temperature				-40°C~+85°C
Termination				PCB, QC
Construction				Sealed, Dust cover
Unit Weight				35g

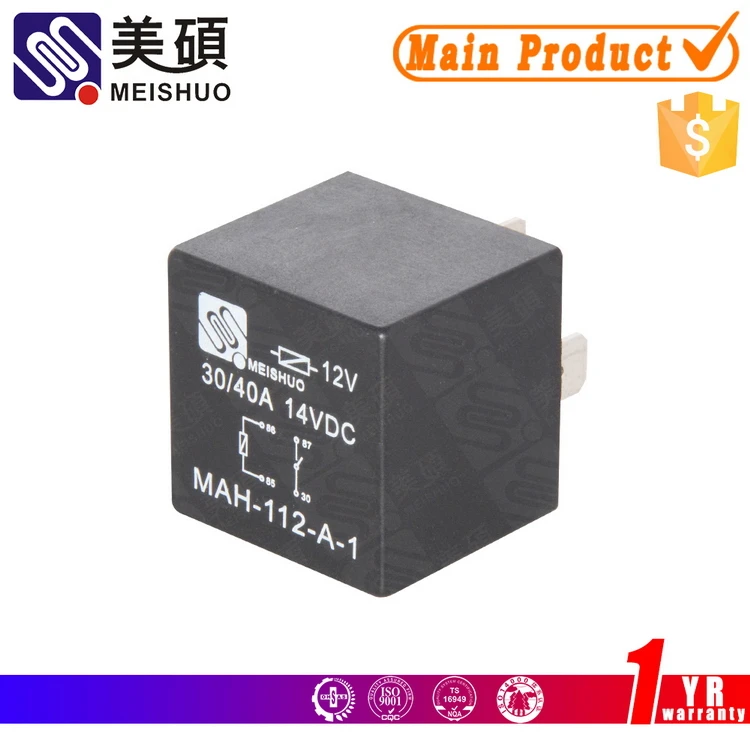

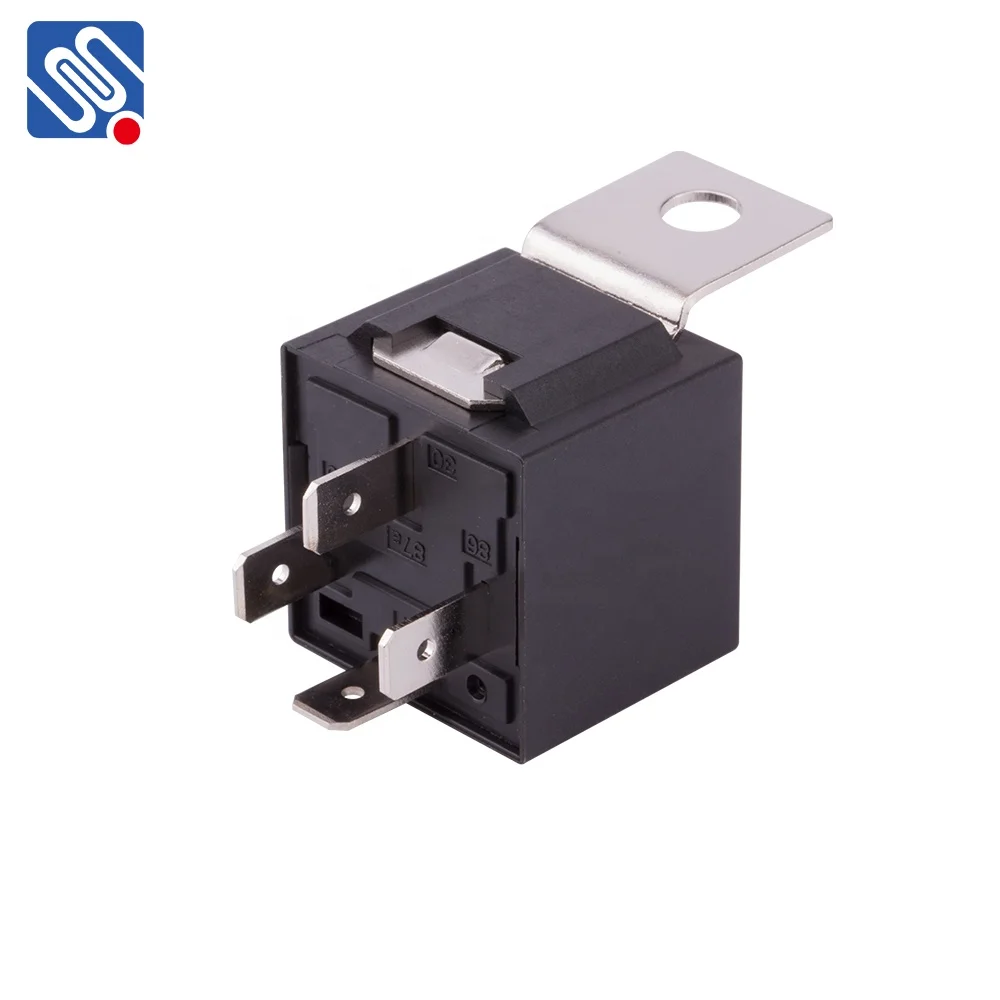

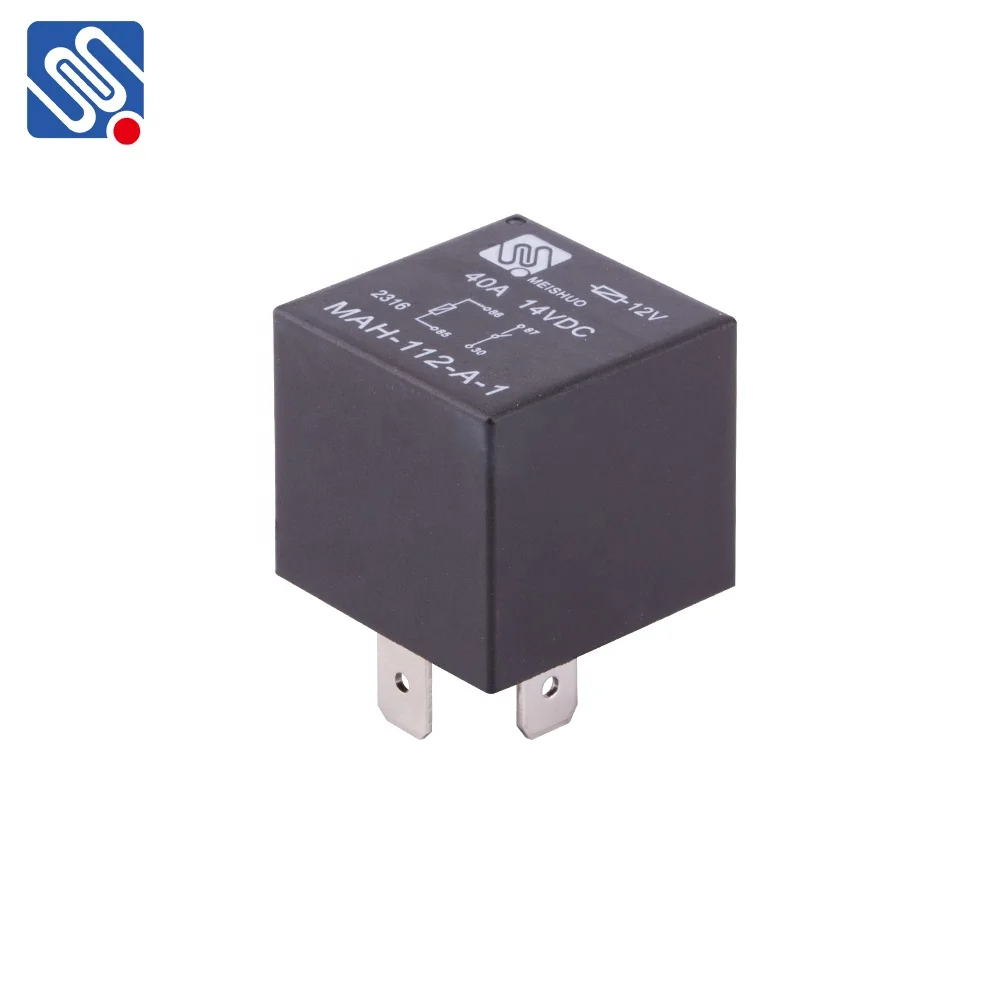

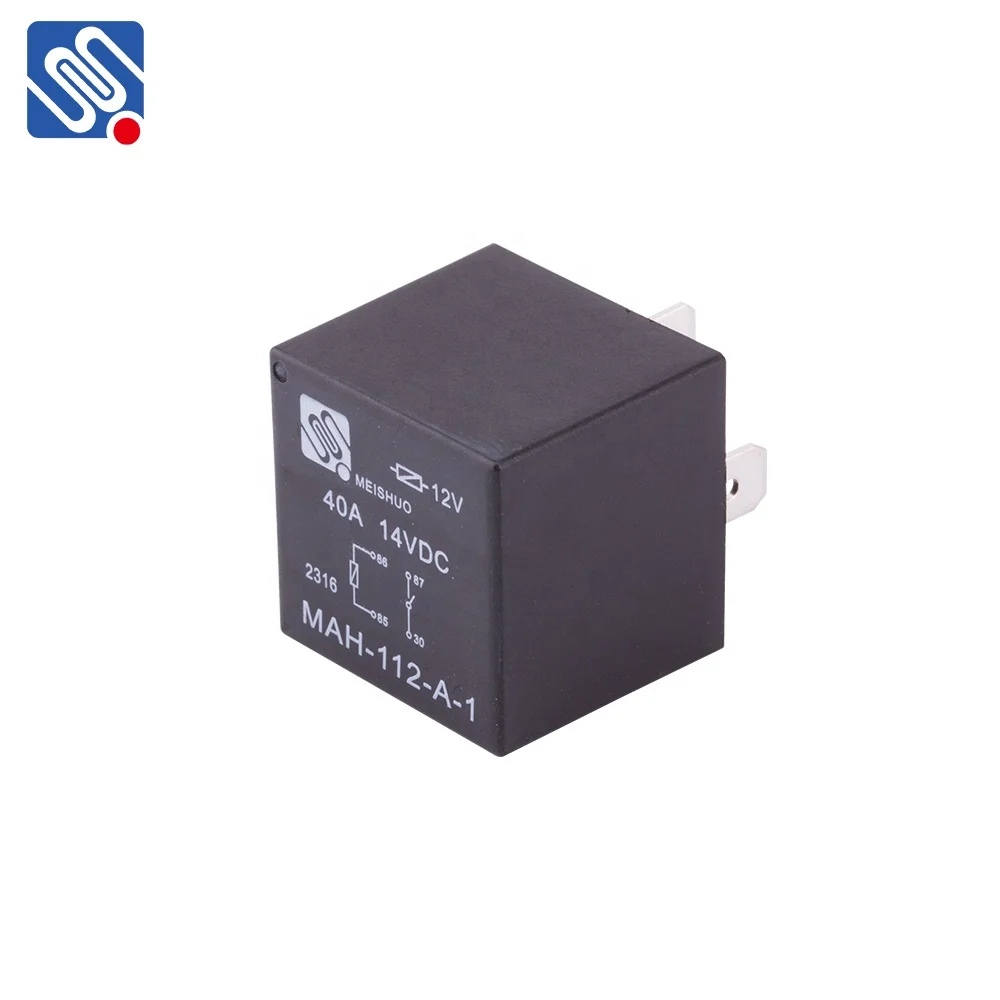

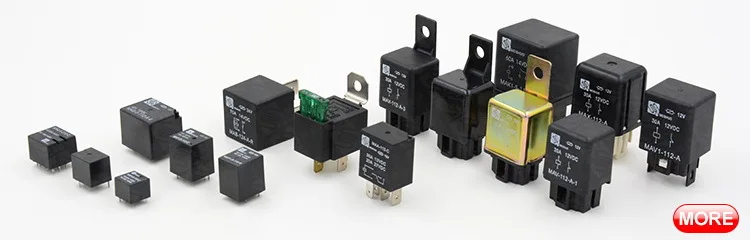

F3	Relay Photo:





F4	Drawing:

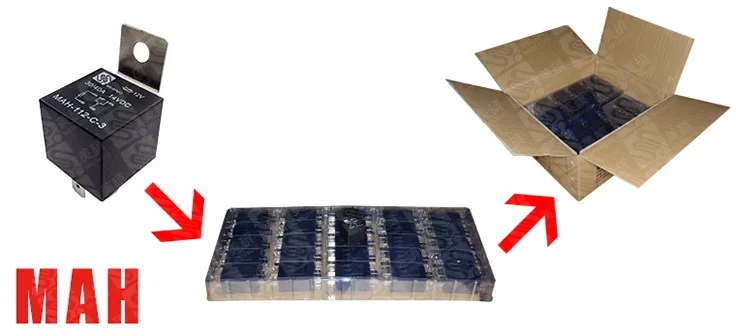

F5	Package:



-50pcs/plastic tray
-500pcs/carton
-G.W.: 19KGS
-Meas: 45*40*22cm



F6	Applications:



-  fog light, head light, battery control, oil pumb control, fan control, air conditioner, harness -



F7	Meishuo Certificates:



Automotive relay

F8	Material testers









F9	Relay testers



Each relay have to passed 5 times testing before shipping.



1. First testing after assemble

2. Second testing after relay housing closed

3. Third testing after sealing

4. Fourth testing after packing

5. Fifth testing relay when leave Meishuo warehouse

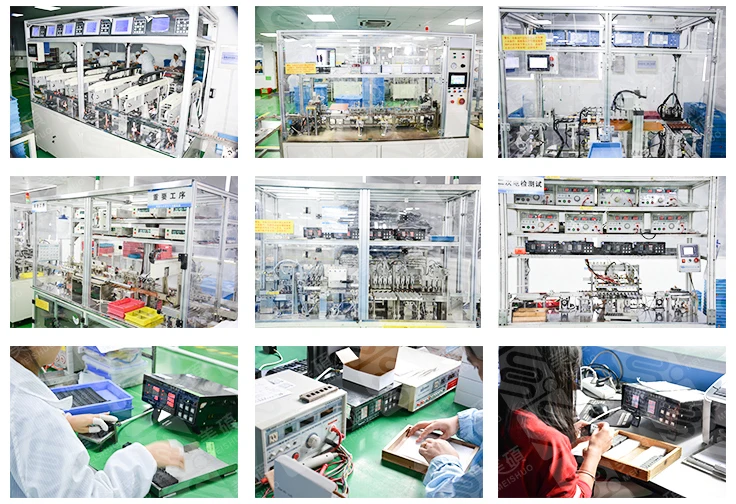

F10	Equipments:







F11	Meishuo Customers:







F12	Something About Meishuo:



1) It's a factory, built in Feb.2007

2) Now, employs more than 400 people, enjoyee 12, quality person 22

3) Main products: relays, sockets, connectors, harness, auto parts

4) Production lines: 15 lines

5) Capacity: 400000 pcs per day

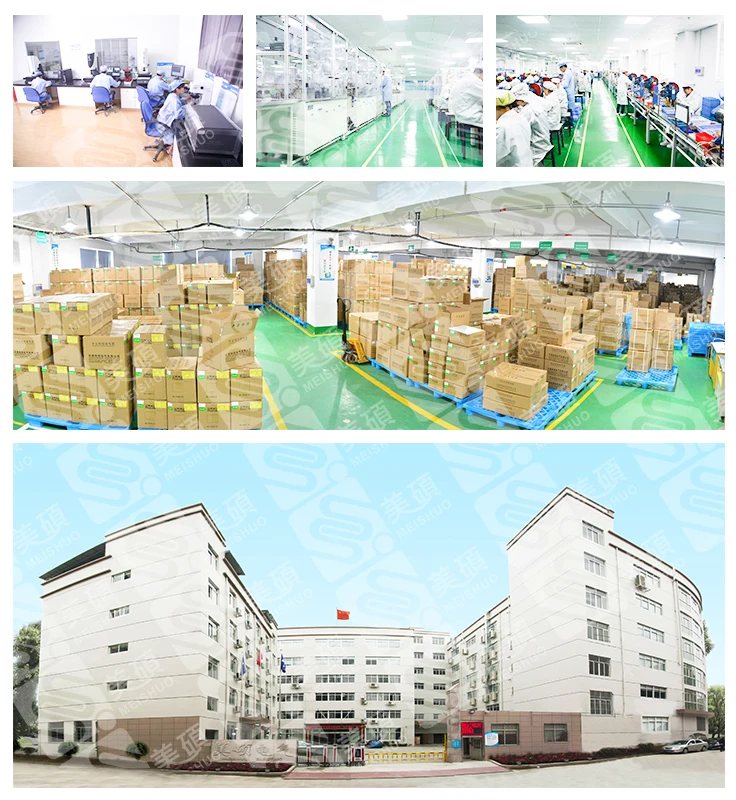

F13	Meishuo Factory:





F14	Meishuo Management:





F15	What do we serve after sales:



Punctual delivery time:

•We carry out your order into our well-organized production schedule, ensure your punctual delivery time.

•Production report before your order packed.

•Shipping notice and photos sent to you as soon as your order is shipped.



After sales service:

•We pay high attention to your feed back after receive the goods.

•We provide 12 months warranty after goods arrive.

•We promise all parts available in lifetime use.

•We positively revert your complain within 48hours.



Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We cooperate with customer to bid tenders. Provide all necessary documents.

•We are a sales team, with all technical support from engineer team.





Welcome inquiry Us!
