Diesel engine driven centrifugal dewatering pump for ash residue slurry suction pump

Product Overview

Description

Diesel engine driven centrifugal dewatering pump for ash residue slurry suction pump 100ZJ



Description:

Slurry Pump ZJ(L) series are designed as single-stage, single-suction double-casing centrifugal slurry pumps. The pumps are classified into vertical(ZJL) and horizontal(ZJ) version according to mode of construction. The ZJ(L) series pumps used international advanced solid-liquid two-phase flow theory and designed using the Minimum-Wear principle. Slurry Pump ZJ(L) series are suitable for handling abrasive and corrosive solids-bearing slurry with maximum density, which are widely used in power, metallurgical, mining, coal and building materials.



Typical Application:

  ·   Concentrate and tailing processing in concentration plant

  ·   Ash and slag removal in power plant

  ·    Coal slurry delivery and heavy media coal preparation

  ·    Transferring slurry in mining operations

  ·    Heavy media coal preparation

  ·    Main auxiliary products in thermal power unit





Technological Characteristic :

Slurry Pump ZJ series are designed as single-stage, single-suction centrifugal slurry pumps.



The wear resistant layer and bearing layer can be separated.

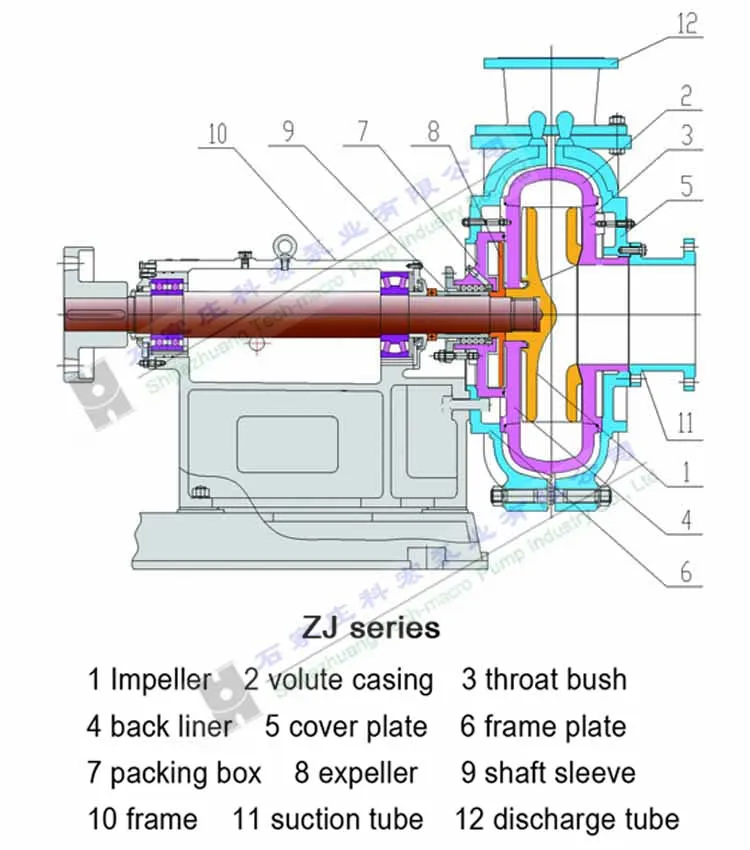

It is designed with double volute that pump body and cover has been fitted with metal liner (included impeller, liner insert, insert plate).



The discharge outlet of the centrifugal slurry pump can be adjusted with rotation interval of 45 degrees.



Inlet is on the horizontal direction and pump should rotate clockwise in view of driving direction.



It also can be used in certain corrosive slurries.



Features:

Energy- saving, high efficiency, little vibration, low noise, long service, lightweight, high wear-resistance, reliable operation and easy maintenance.



Type notation:



200ZJ - II - A60

200----------outlet diameter(mm)

ZJ-----------slurry pump

II-------------pump applicable level number

A-------------impeller blade number

60------------impeller diameter(cm)

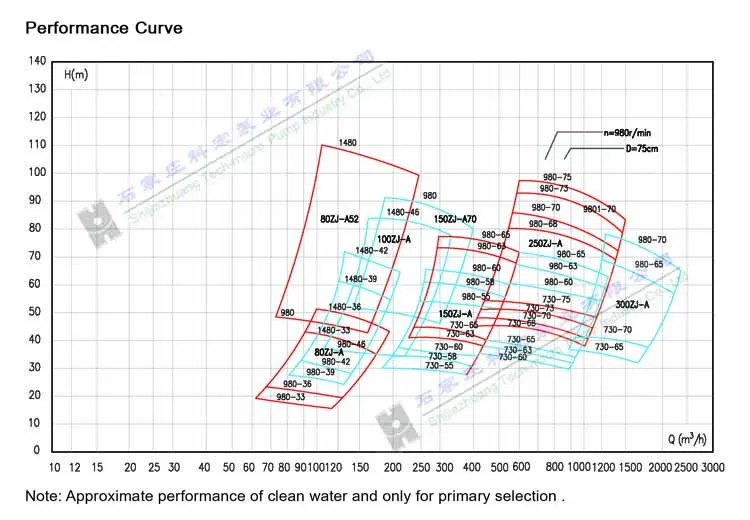

Performance parameters:

Diameter: 40-300mm

Flow capacity Q: 8-1826 m3/h

Head: 2-135 m

Performance table
