Automatic Desiccant Filling Machine For Making Insulating Glass

Product Overview

Description

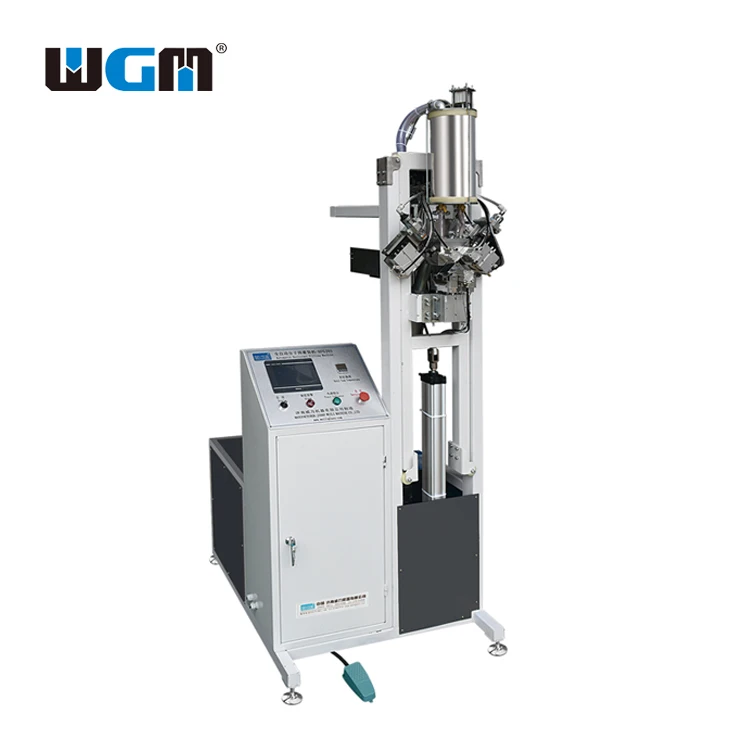

BFGJ01 Automatic Molecular sieve Filling Machine



Main Features

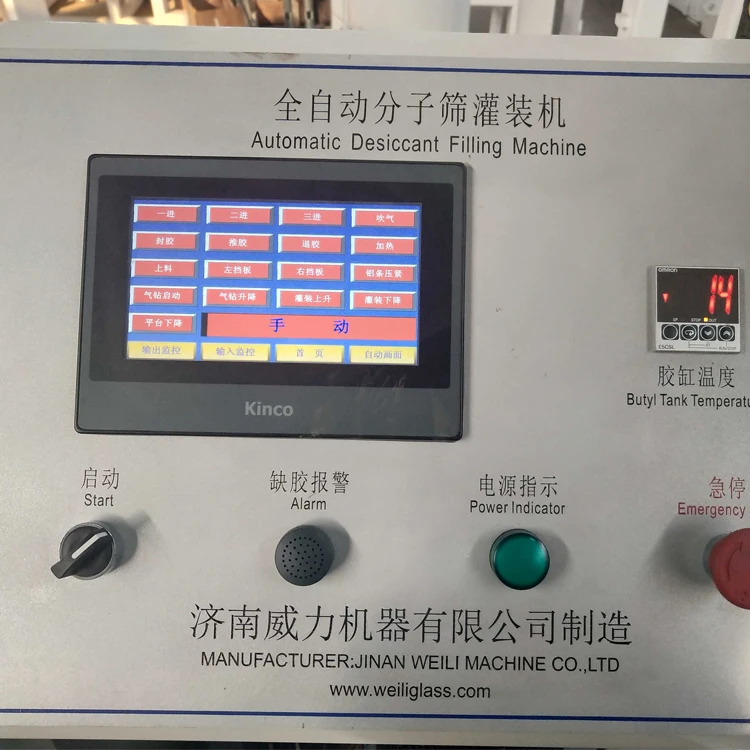

1. Controlled by Siemens PLC. The contact screen is Taiwan EASYVIEW brand. The operation interface is visual and succinct.

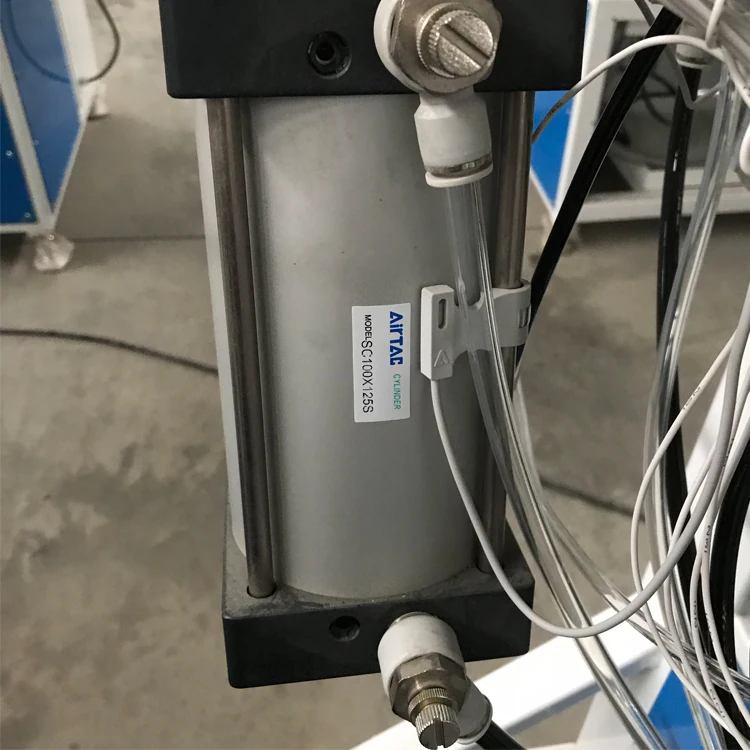

2. The pneumatic components adopt Taiwan AIRTAC brand.

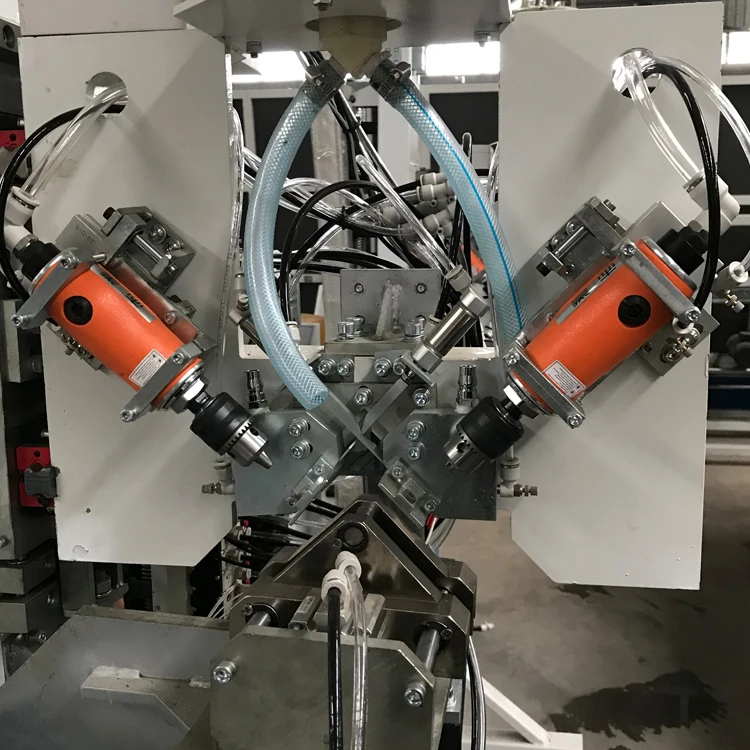

3. Automatically drill the holes, fill the desiccant and seal the sealant.


4. It is available to fill the bended spacer bars and the ordinary corner connected ones.


5. It owns the unique and advanced feeding device.


6. The filling height can be adjusted according to the size of the spacer bar.

 Main Technical Parameter



Diameter of the desiccant	0.5-0.8mm
Width of the spacer bar	5.5-24mm
Max processable size	2400*2400mm
Air Pressure	0.6~0.8MPA
Power Supply	220V 50HZ 1KW
Dimension	1100*1080*3050mm

















Main picture about our mchine and customer
