low friction & vibration CNC linear motion guide, circular llinear motion guide BRH45A

Product Overview

Description

linear guide rail, slide block, linear motion, linear guideway, linear module, linear actuator

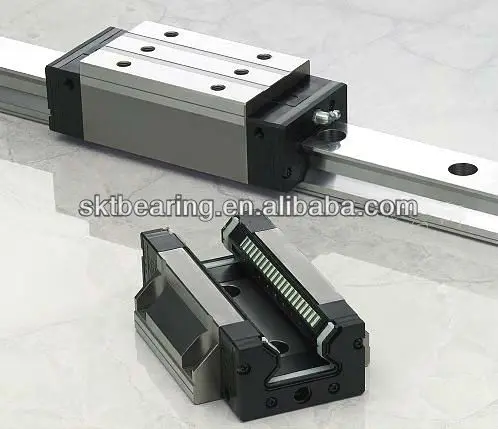

Linear slide rail as a type of rolling guide, run by the power between infinite scroll circulation steel ball in the slider and slippery course, along the slippery course load platform can easily do high precision linear movement

Compared with the traditional sliding guide, rolling guided friction coefficient can drop to as low as 1/50 of the original, greatly decrease relatively less invalid movement, therefore, it can easily achieve μ m class feed and positioning.

Plus bound unit design between the slider and slippery course, making the linear slide rail withstand the load from up and down and other directions, above displayed characteristics traditional sliding guide can't match, then if the machine can cooperate with ball screw, use linear slide rail for guidance, will greatly improve the accuracy and efficiency of the mechanical equipment.



Linear Guide features:

Heavy load radial linear guides
high rigidity
small volume

Smooth running
High speed and accuracy

low friction & vibration

low noise and non-pollution

easy setting up



Linear Guide application:

Linear guides are widely used in: Grinding machine, milling machines, lathes, drilling machine, and comprehensive processing machines, discharge manufacturing machine, boring machine, line cutting machine, precise measurement instrument, woodworking machinery, handling machine, and the shipping device,linear motor, linear cause (electric push rod), the position measurement system (magnetic bashan), DDmotor, General machine tools, plastic, printing, paper making, textile, food, carpentry, electronic machinery, semiconductor machinery, mechanical arm, x-y platform, measurement equipment, medical equipment move, transportation send machinery, construction equipment etc.



Linear Guide types:

There are BRH-A/AL, BRH-B/BL, BRS-B/BS/BL, BRH-C/CL, BRS-A/AS, BRS-C/CS, BCH-A/AL, BCH-B/BL, BCN-A/AL, BCN-B/BL, BCS-B/BL, BMC.





Details:
Name	linear guide rail, slide block, linear motion, linear guideway, linear module, linear actuator
Brand	ABBA, HIWIN, THK, PMI, IKO
size:	following list
Minimum quantity:	1 piece
Precision:	N, H, P, SP, UP
Pre-pressing	ZF, Z0, Z1, Z2, Z3
Lubrication:	grease
Seal Types	open or sealed
Material:	steel
Flange type:	A, B, C, BS, AL, BL, CL

Shipment	For small orders,we send by express UPS,DHL,FEDEX, or EMS with Thracking number. For big quantity, we will ship by air or by sea.
Delivery date	Normally ready goods and stock within 4-15 days. Bulk quantity within 30-45days.
Payment terms	1. We can accept PAYMENT terms: T/T  L/C
	2. For small amount, we accept Western Union
Samples Policy :	sample cost needed and freight collected. We will reduct this part expense from the total value when place order.

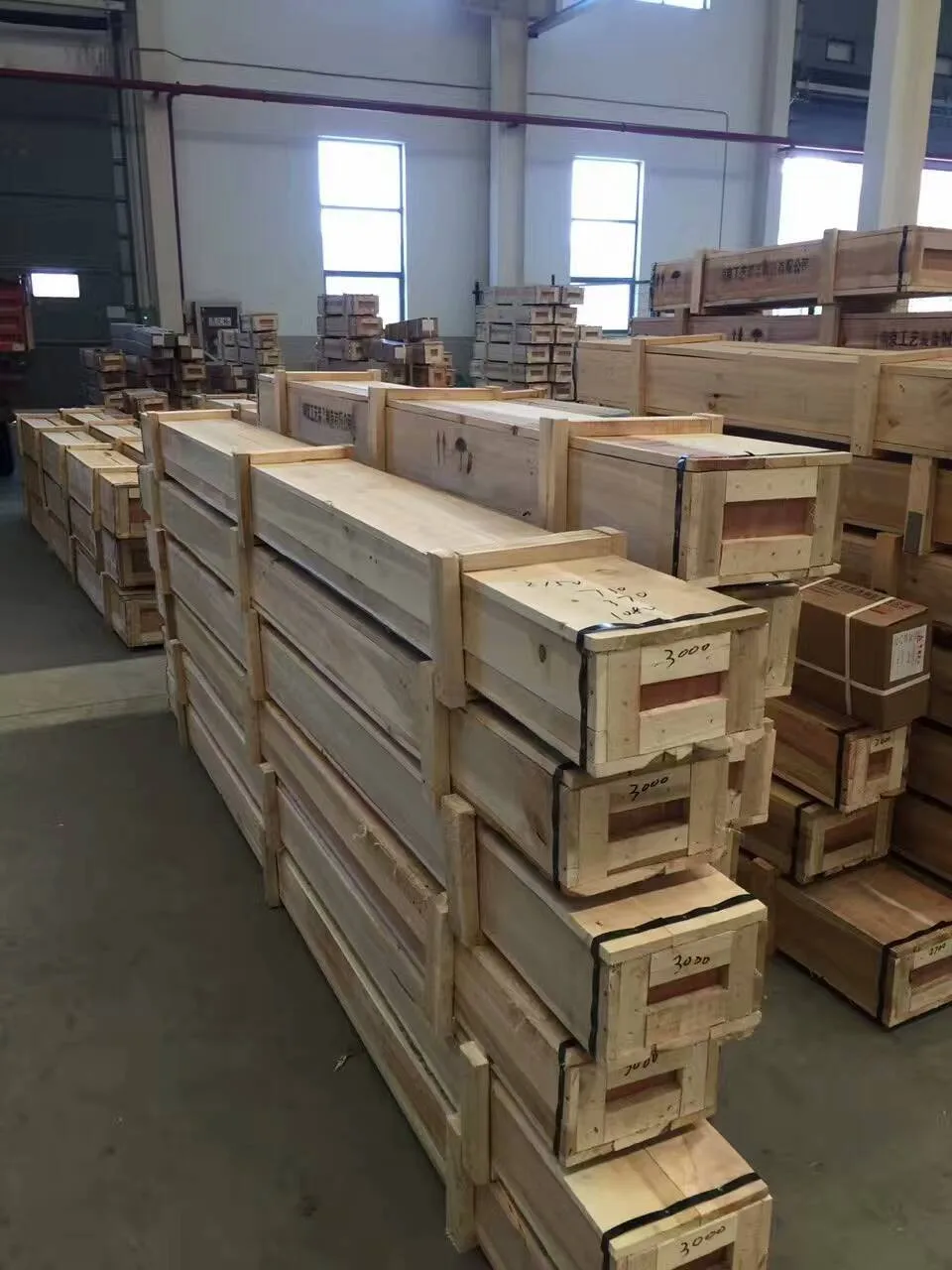

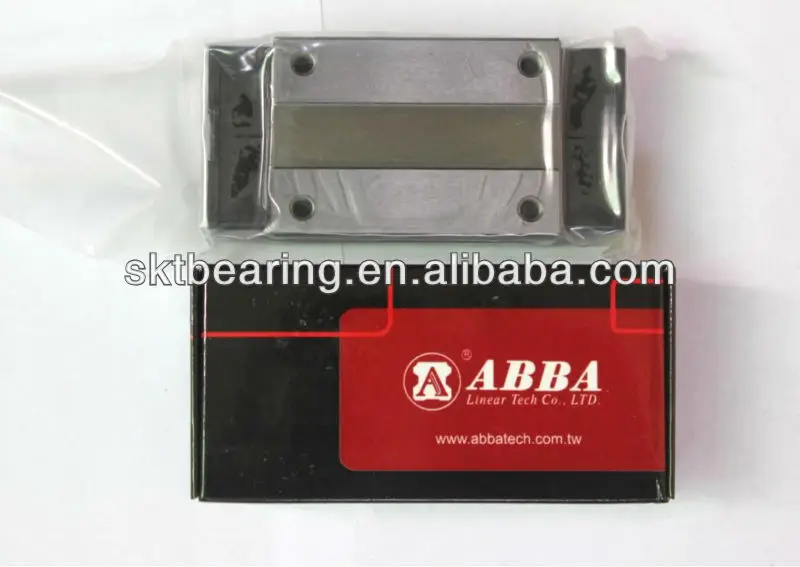

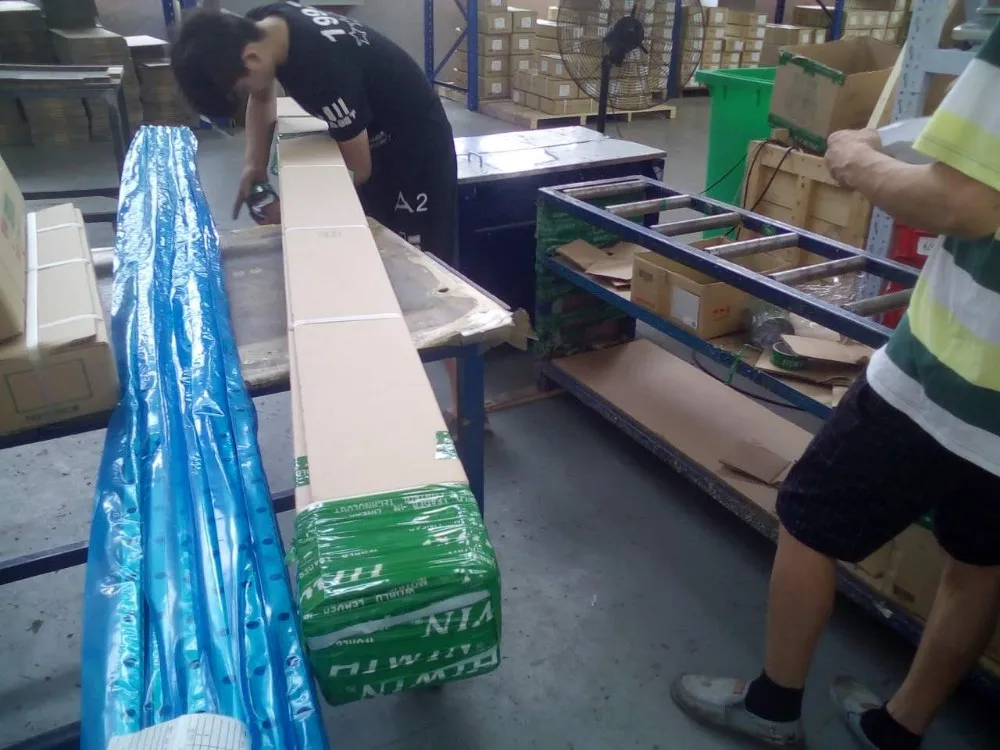

Package	1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton
	2. Commercial packing: 1pc/plastic bag + color box + carton
	3. As the clients' requirement
Service:	We are 100% manufacture. We can supply you technical support.
	We have strict quality control processes. We supply high quality bearings with fair price.
	We accept small quantity.
	We may supply other globle brand bearings and offer buyer labels.
	We can manufacture any bearings according to customer's drawings and samples.

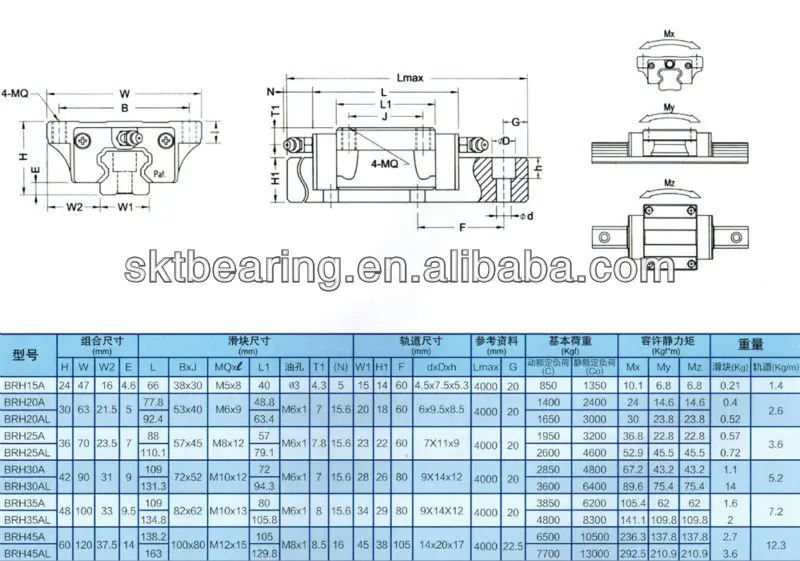

SIZE:











Why choose us?

1.  Low MOQ: It can meet your promotional business very well.

2.  OEM Accepted: We can produce any your design.

3.  Good Service: We treat clients as friend.

4.  Good Quality: We have strict quality control system. Good reputation in the market.

5.   Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).



We are a 100% professional Manufacturer









Thanks for your Trust, Any questions conta
