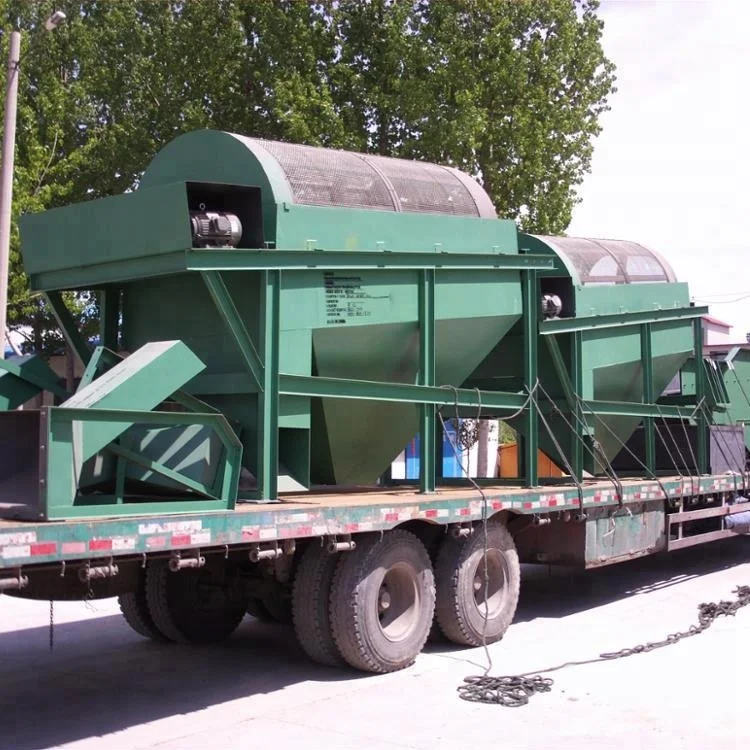

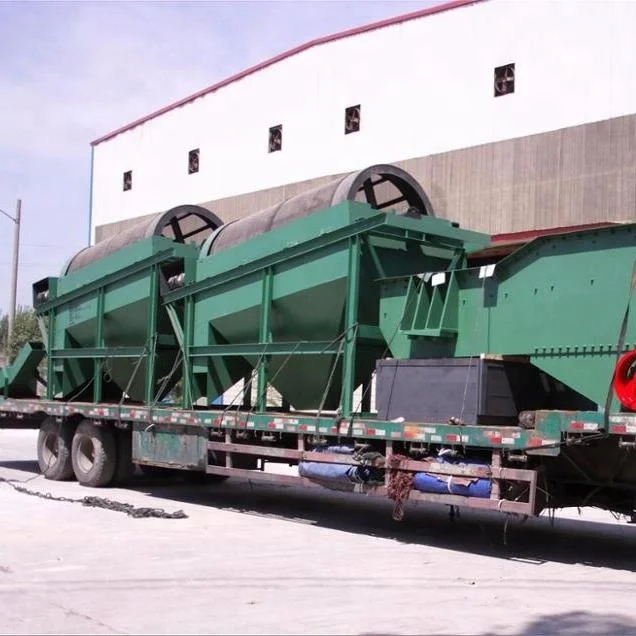

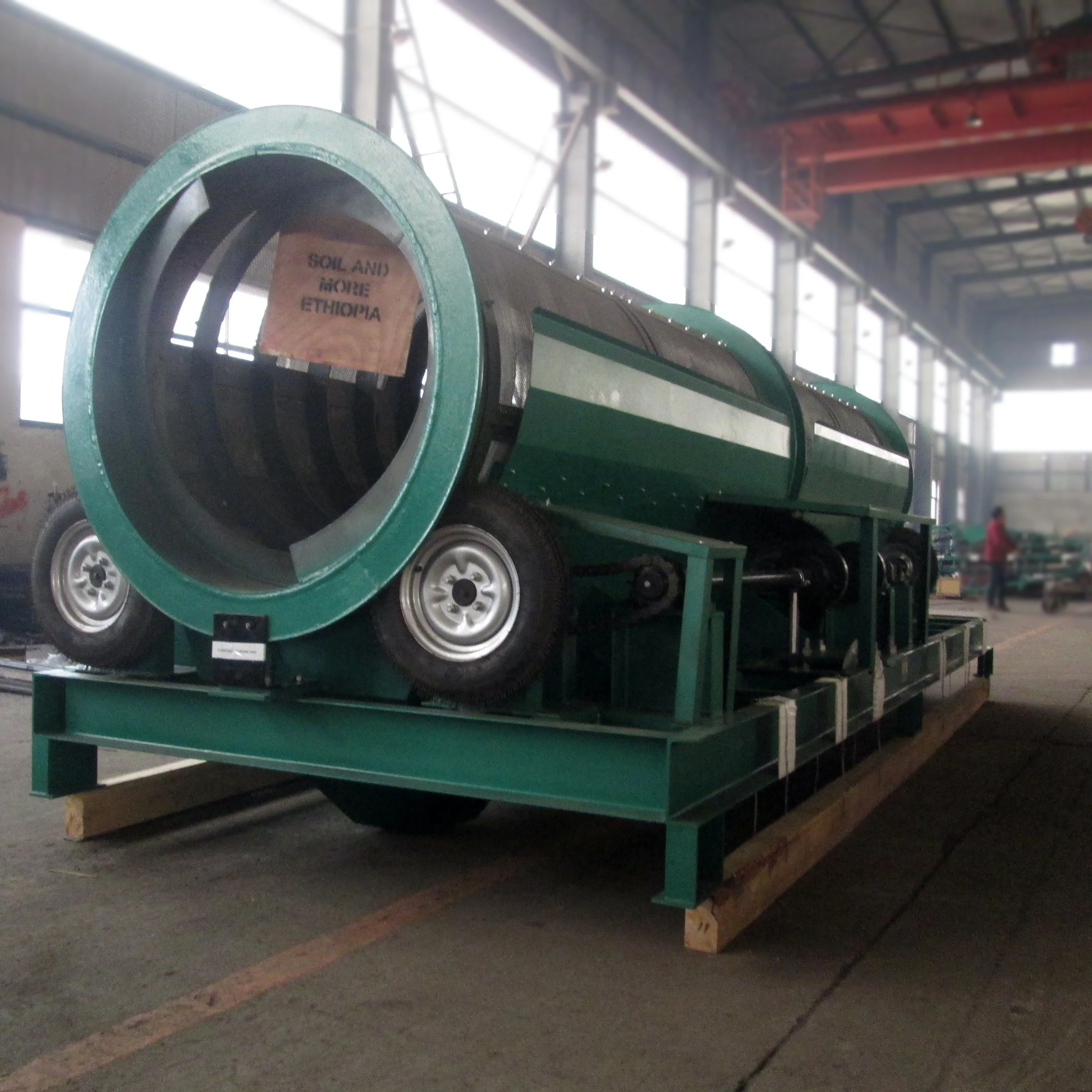

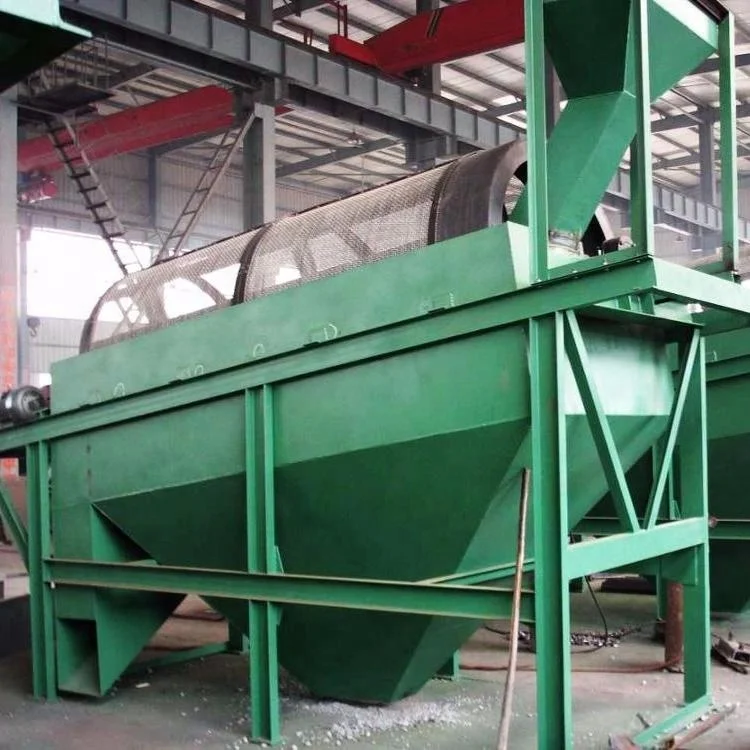

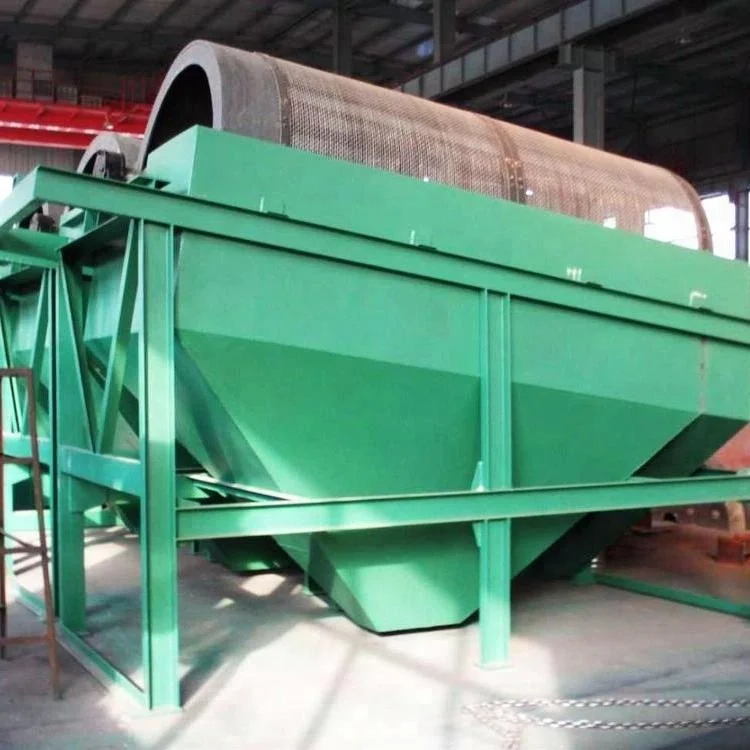

Rotary sieving machine Rotating Drum Sand Rotary Sieve in Mining Industry
- Category: >>>
- Supplier: Henan Pingyuan Mining Machinery Co. Ltd.
Share on (1394530211):
Product Overview
Description
Specification
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Gearbox, Motor |
Condition | New |
Type | Circular |
Application | chemicals,ore,food processing and so on |
Place of Origin | China |
Brand Name | PK |
Voltage | Customized according to different needs |
Dimension(L*W*H) | Customized according to different needs |
Weight | 6000KG |
Warranty | 1 Year |
Keyword | Vibrating Screen |
drum diameter | 800~2000mm |
slop angle | Max.30° |
Max.capacity | 200t/h |
Screen Scope | 1-3&1-4 |
Length | 2m-4m |
Application | metallurgy,constraction industary and chemical industary ect. |
Driving Device | Electric motor + Reducer |
Screening area | 4.71~44.90m2 |
Frequency | 0~25rpm |
Product Description

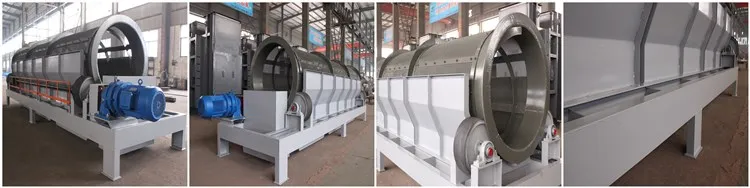

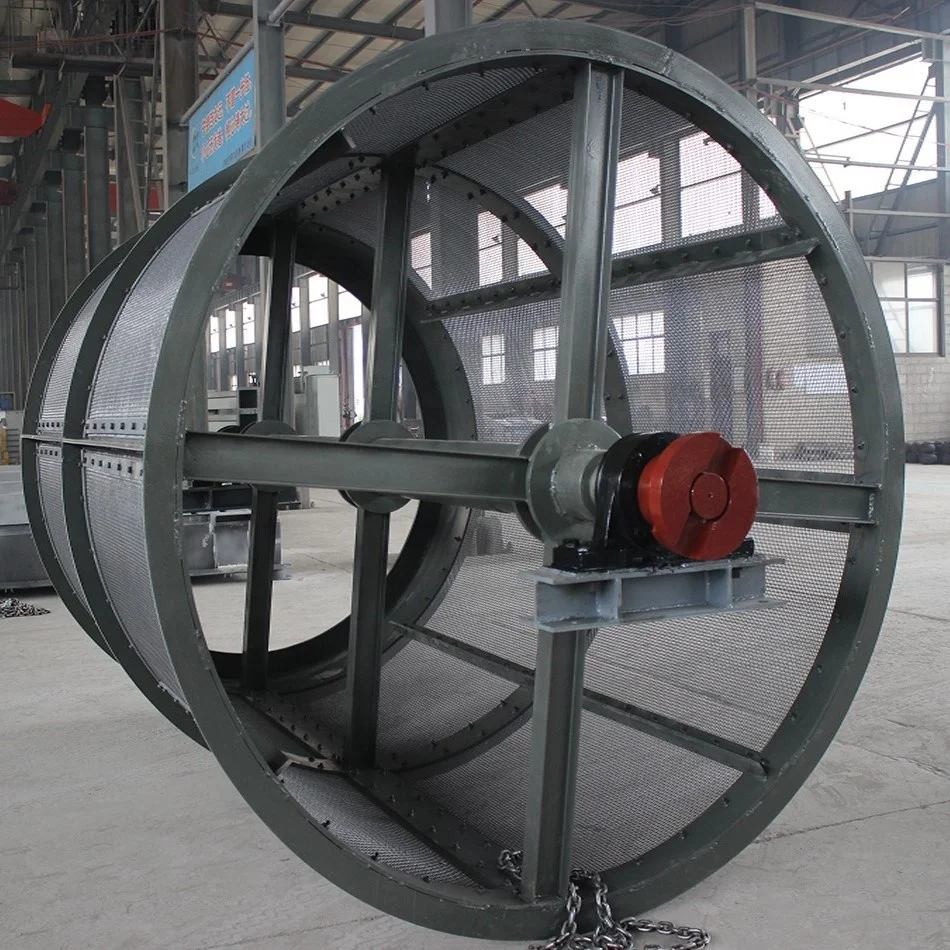

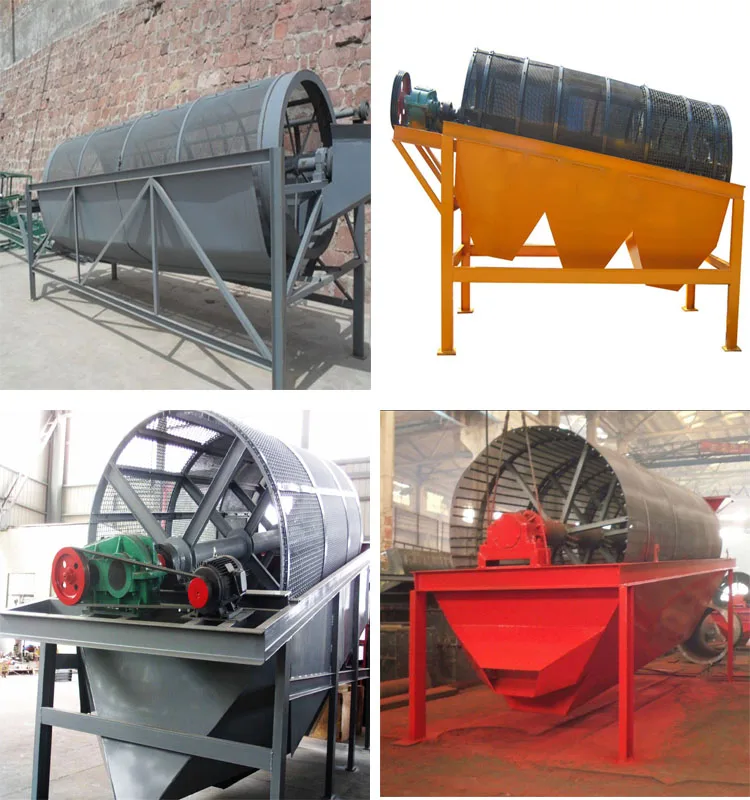

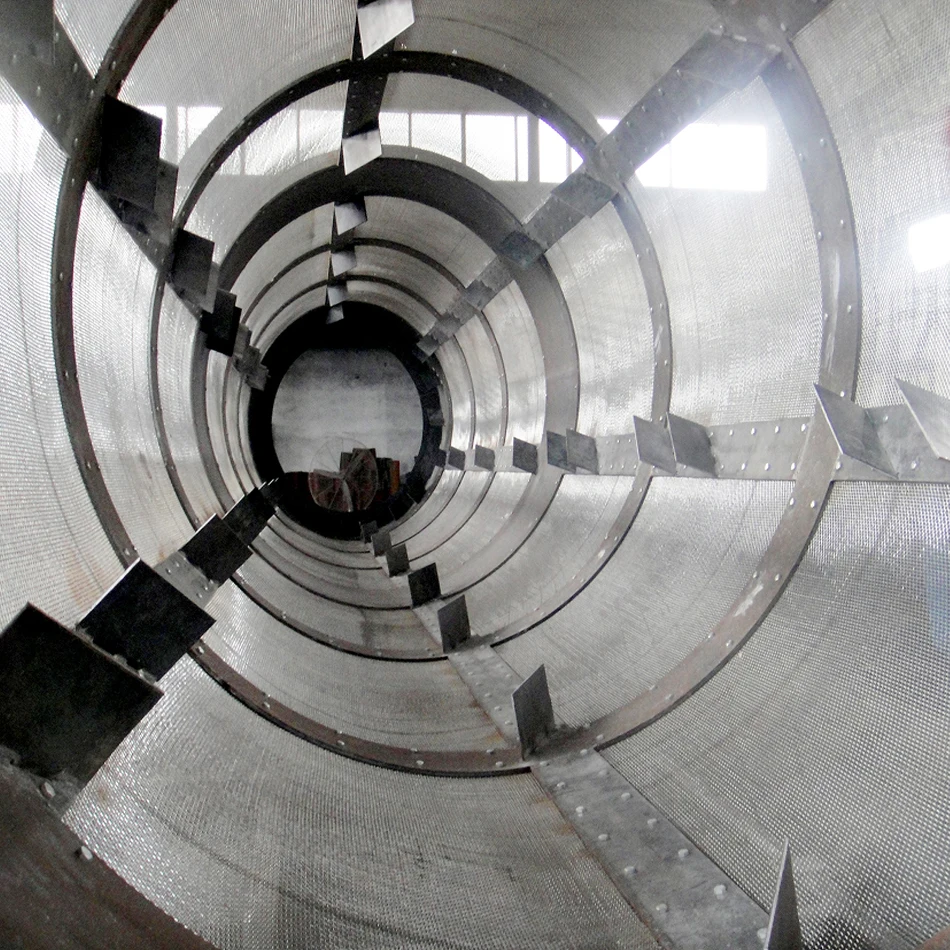

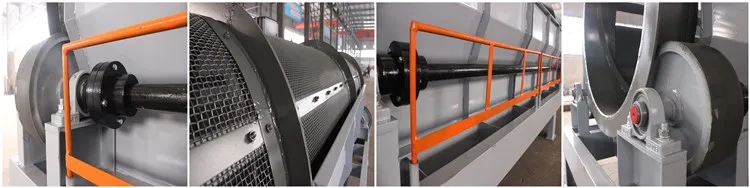

Trommel screen has wide range of sizes and capacities,it is a mechanical screening machine used to separate materials.It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Product features
2.Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3.Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4.Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5.Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6.Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.
5.Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6.Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.
Product Paramenters
Model | Length Range | Segment No. | Aperture Size | Power (Kw) | Inclined Angle | Max. Material Size | Rotating Speed(rpm) |
GTSφ600 | 2-4m | 1-2 | 5-35mm | 2.2-3 | 0-7° | 50mm | 15-18 |
GTSφ800 | 2-5m | 1-3 | 5-40mm | 3-5.5 | 0-7° | 60mm | 15-18 |
GTSφ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5 | 0-7° | 80mm | 15-18 |
GTSφ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11 | 0-7° | 100mm | 15-18 |
GTSφ1500 | 3-10m | 1-5 | 5-60mm | 7.5-1 5 | 0-7° | 150mm | 15-18 |
GTSφ2000 | 4-12m | 1-5 | 5-75mm | 7.5-l 8.5 | 0-7° | 180mm | 15-18 |
GTSφ2500 | 5-12m | 1-6 | 5-90mm | 11-l 8.5 | 0-7° | 200mm | 15-18 |
Note: the parameter above is just for reference,it can be customized by different requirment.
Henan Pingyuan Mining Machinery Co., Ltd.
Established in 1960, Henan Pingyuan Mining Machinery Co., Ltd. Has enjoyed more than 50 steady years of successful growth to become an international company employing over 200 directemployees with annual sales exceeding $1,200 million.lt is located at 289 yellow river road of Xinxiang, China with an area of 88,400 m2 which includes 16,200 m2 of standard heavy duty industrial workshop.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.
Q1：Are you factory or trade company?
A: We are factory
Q2：Where your products have been exported before?
A: Our products have been sold to South Asia, Africa, South America, middle East and so
on.
on.
Q3：How will you help the customer to install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initialproduction at
Q4：How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. lf there are problemsyoucould not handle, we will send our technicians to your place and you are therefore.responsible for all thecost involved.
Q5：What about the payment method?
A: T/T, L/C Paypal is available
Q6：What about after-sale service?
A:12 months warranty for all kinds of products
