Product Overview
Description
I.Name: SS304 boiler/power station bimetal thermometer
II. Bimetal Thermometer Detail Specification:
♥.Name:Bimetal Thermometer
♥. Type:Bimetal Thermometer
♥. Connection:Back connection
♥. Bezel:crimped bezel
♥. Material:All stainless steel 304
♥. Thread:1/4"NPT,etc
♥. Dial Size:63mm
♥. Stem Diameter:6.35mm
♥. Stem Length:150mm(between 50-1200mm)
♥. Temperature Range:0-500C&F(costomized)
♥. Accuracy:±1.5-1-1.5%
♥. Lens:Glass
♥. Waterproof:IP55
♥. Field:Household,hotel,industrial,oil,chemical,power station,marine,etc.
III. bimetal thermometer Data sheet
Dial Size: | 2.5",3", 4" 5", 6" |
Stem diameter: | Φ6.3, Φ8, Φ10 |
Stem length: | 65mm, 100mm, 150mm, 200mm, 300mmn |
Connection thread: | 304SS with 1/4”, 1/2”, 3/4” NPT , BSP, BSPT |
Case: | 304 stainless steel |
Bezel: | 304 stainless steel ring |
Range: | -40ºC / ºF to 500ºC / ºF |
Window (lens): | Polycarbonate lens, tempered glass available |
Accuracy: | 1.6% full scale |
Option Info: | Other materials, ranges, connections are available upon request |
Bimetal Thermometer

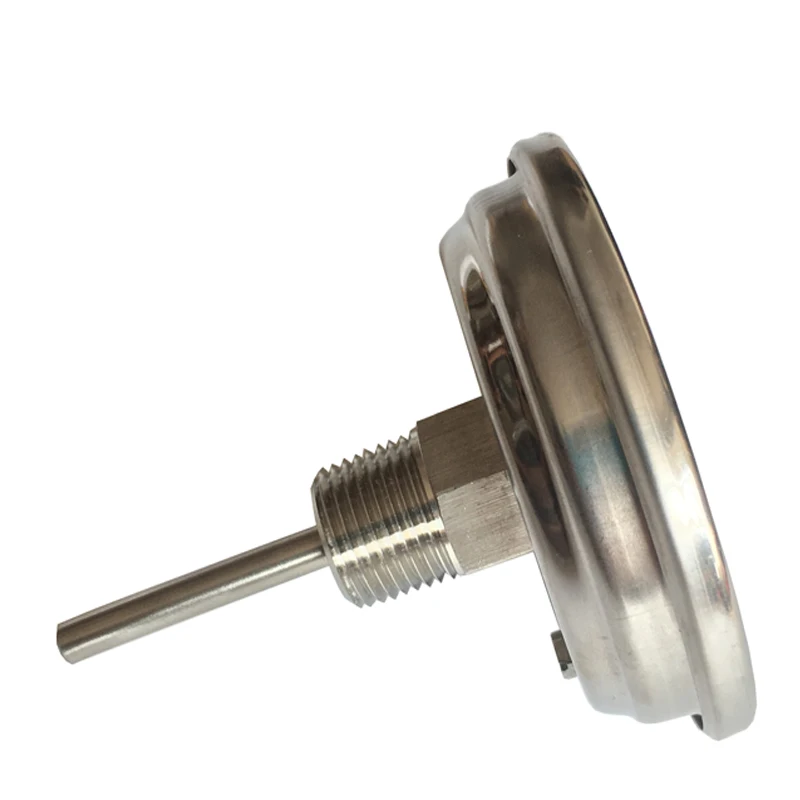

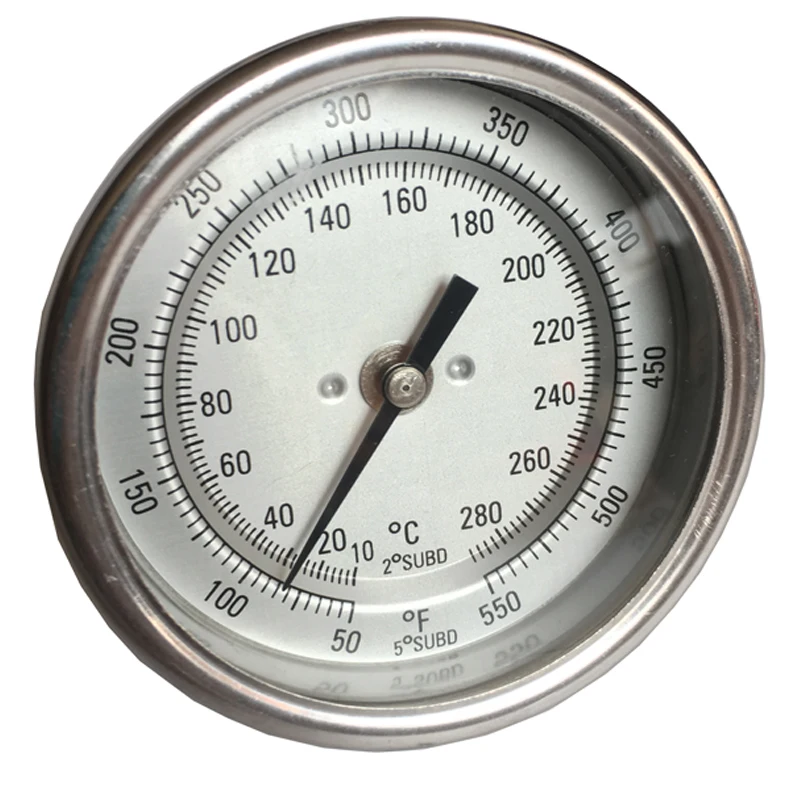

IV. bimetal thermometer Show
