Water flow confirmation pipe fitting Visibility Joint

Product Overview

Description

 ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ

Water flow confirmation pipe

fitting  Visibility Joint

 ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ

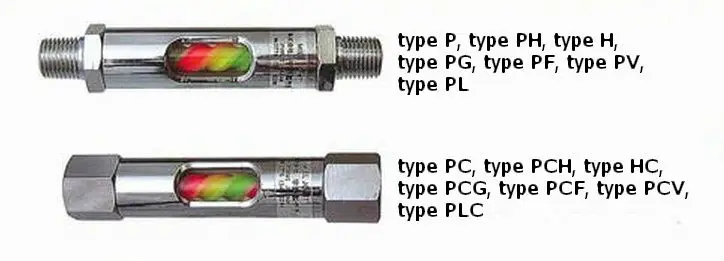

Both ends function as coupler joints that can be connected to other pipes,

and in the center there is an imitation solid of revolution,

which turns to show the fluid pressure.

The area around it is colored with fluorescent paint,

so you can see the direction of flow, and get a sense of the volume as well.



This joint can be set up anywhere in the middle of your plumbing systems,

allowing you to check the flow rate at any position.

It can even be used inside machinery, in tight spaces,

or by remote control for observation of elevated areas that can't be seen directly.

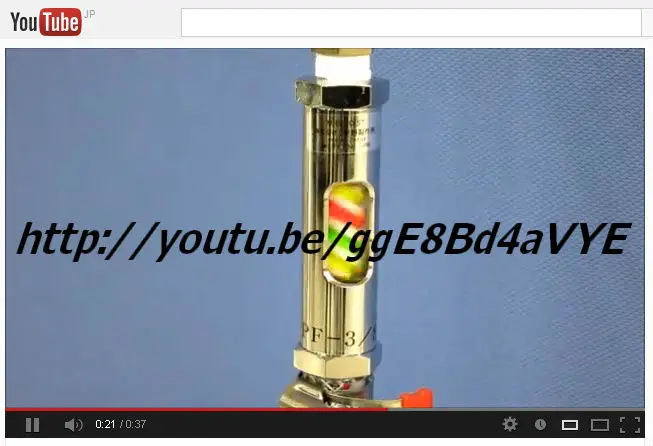

 If you'd like to see a real-life video of our product in action, please input this address.

//youtu.be/ggE8Bd4aVYE

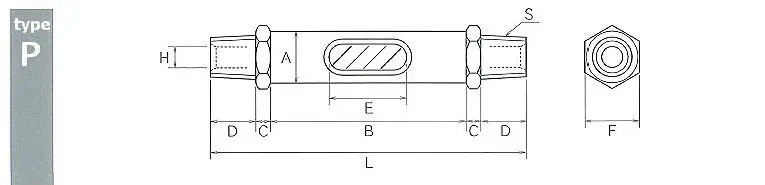

 Type P







Model	S	A	B	C	D	L	E	F	H	minimum flow requirement (except PCV model)	Pb	PH	PG	PF	PCV model minimum flow requirement
P-1/8	PT1/8"	19	65	6	10	97	26	19	5	0.7L/min	Yes	No	Yes	Yes	Yes 3L/min
P-1/4	PT1/4"	19	65	6	14	105	26	19	6.5	0.7L/min	Yes	No	Yes	Yes	Yes 3L/min
P-3/8S	PT3/8"	22	70	7	16	116	28	23	8	2L/min	Yes	No	Yes	Yes	Yes 5L/min
P-3/8L	PT3/8"	25	80	8	16	128	32	26	8	2L/min	Yes	Yes	Yes	Yes	Yes 5L/min
P-1/2	PT1/2"	32	90	9	19	146	36	32	10	3L/min	Yes	Yes	Yes	Yes	Yes 8L/min
P-3/4	PT4/3"	38	100	10	21	162	40	38	15	5L/min	Yes	Yes	Yes	Yes	Yes 10L/min
P-1	PT1"	44	115	11	23	183	46	46	20	9L/min	No	No	Yes	Yes	Yes 15L/min
P-11/4	PT11/4"	50	130	12	27	208	50	50	25	13L/min	No	No	Yes	Yes	Yes 20L/min
P-11/2	PT11/2"	50	130	12	27	208	50	50	25	13L/min	No	No	Yes	Yes	Yes 20L/min



 Pb Type
The same size as the P Type, with a minimum flow requirement that is 80% of that model's.



 PH Type
The same size as the P Type, but made from clear polycarbonate piping,

for use with high temperatures of up to 104°C and high pressures up to 1.5MPa.



 PG Type
The same size as the P Type, but made from clear glass piping,

for use with high temperatures up to 104°C.



 PF Type
The same size as the P Type, but made from clear glass piping with fluorine resin in the seams

and fluorine gum packing. For use with high temperatures up to 200°C.



 PV Type
The same size as the P Type, but features stainless steel bearings,

making it usable for large volumes of fluids and durable for long periods of time.

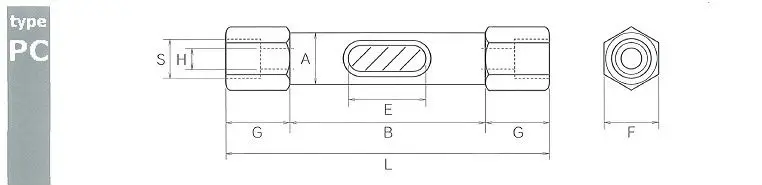

 Type PC









Model	S	A	B	G	L	E	F	H	minimum flow requirement (except PCV model)	PCb	PCH	PCG	PCF	PCV model minimum flow requirement
PC-1/8	Rc1/8"	19	65	17	99	26	19	6.5	0.7L/min	Yes	No	Yes	Yes	Yes  3L/min
PC-1/4	Rc1/4"	19	65	17	99	26	19	6.5	0.7L/min	Yes	No	Yes	Yes	Yes  3L/min
PC-3/8S	Rc3/8"	22	70	20	110	28	23	8	2L/min	Yes	No	Yes	Yes	Yes  5L/min
PC-3/8L	Rc3/8"	25	80	20	120	32	26	8	2L/min	Yes	Yes	Yes	Yes	Yes  5L/min
PC-1/2	Rc1/2"	32	90	24	138	36	32	10	3L/min	Yes	Yes	Yes	Yes	Yes  8L/min
PC-3/4	Rc4/3"	38	100	26	152	40	38	15	5L/min	Yes	Yes	Yes	Yes	Yes  10L/mn
PC-1	Rc1"	44	115	30	175	46	46	20	9L/min	No	No	Yes	Yes	Yes  15L/mn
PC-11/4	Rc11/4"	50	130	35	200	50	50	25	13L/min	No	No	Yes	Yes	Yes  20L/mn
PC-11/2	Rc11/2"	50	130	35	200	50	50	25	13L/min	No	No	Yes	Yes	Yes  20L/mn



 PCb Type
The same size as the PC Type, with a minimum flow requirement that is 80% of that model's.



 PCH Type
The same size as the PC Type, but made from clear polycarbonate piping,

for use with high temperatures of up to 104°C and high pressures up to 1.5MPa.



 PCG Type
The same size as the PC Type, but made from clear glass piping,

for use with high temperatures up to 104°C.



 PCF Type
The same size as the PC Type, but made from clear glass piping with fluorine resin in the seams

and fluorine gum packing. For use with high temperatures up to 200°C.



 PCV Type
The same size as the PC Type, but features stainless steel bearings,

making it usable for large volumes of fluids and durable for long periods of time.







Since our founding, the company has accumulated 50 years of success and experience.

We can coordinate with more than 3000 domestic manufacturers,

mainly in the field of industrial machinery parts.



Our company home page (in Japanese) also contains information about our products.
