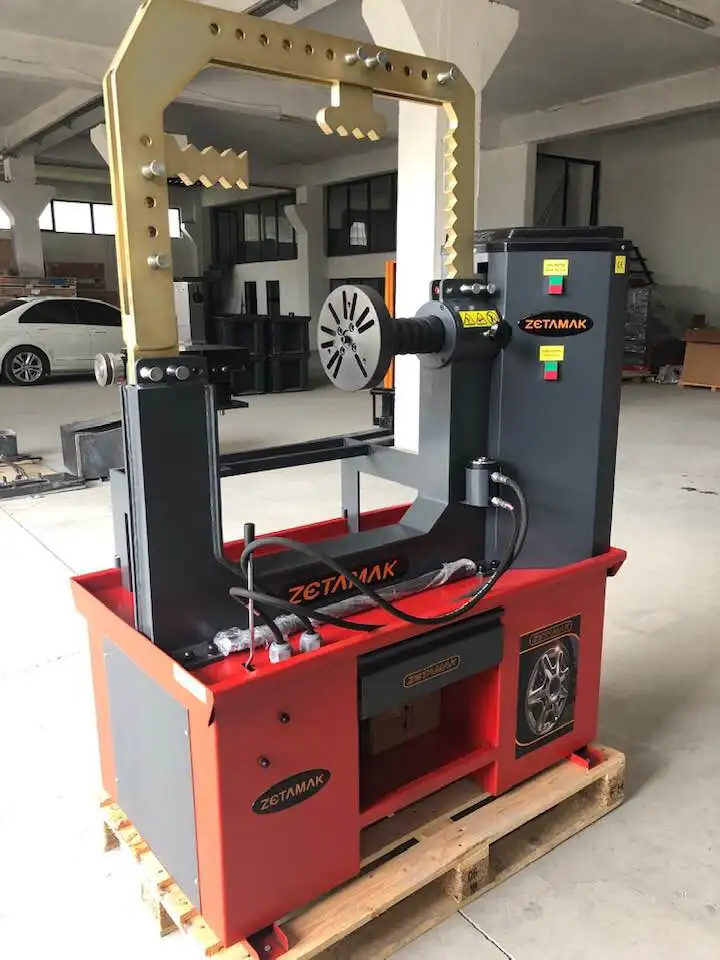

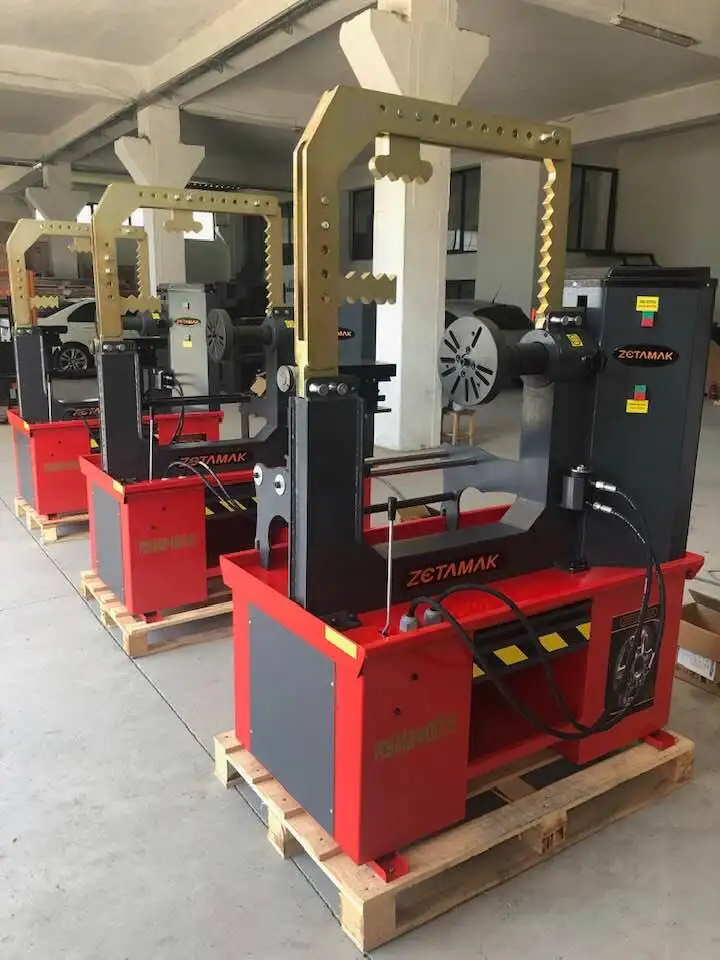

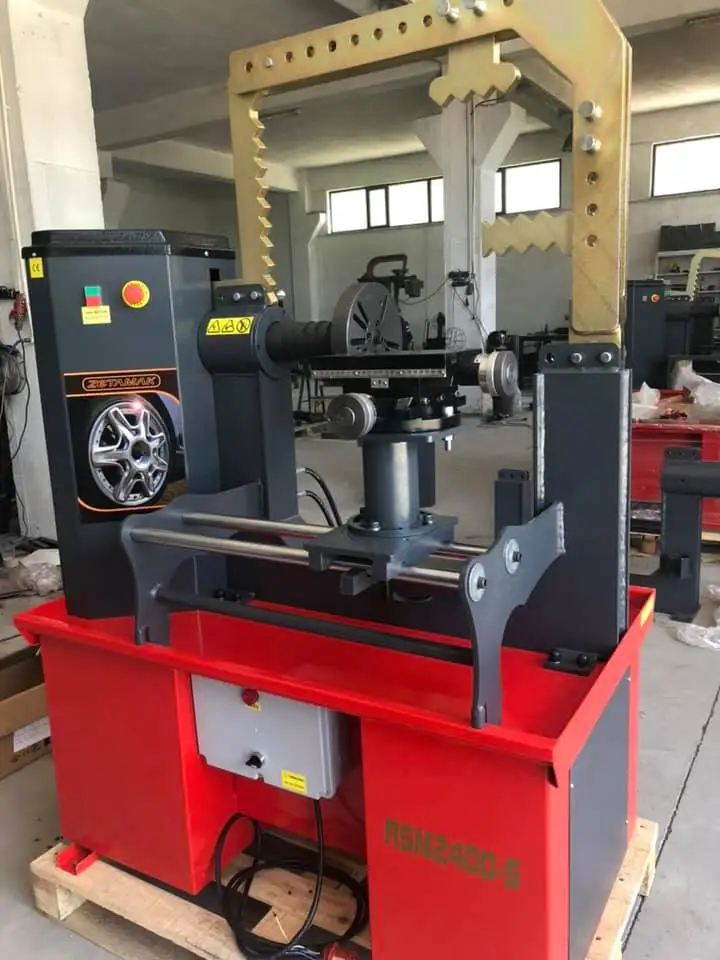

Машина для выпрямления обода zetмак с системой токарного станка синего цвета

Product Overview

Description





RSM2200 / RSM2400 /  RSM2600 / RSM1430



 RIM  STRAIGHTENING  MACHINE



With Lathe System







MOTOR SPECIFICATIONS







Mechanic Motor........................ 0,55 kw, 1400 rpm, 0,75 hp - 7,3 Ampere



3 phase - single phase // 380 V - 220 V



Hydraulic Motor........................ 0,75 kw 1400 rpm, 1 hp - 8,7 Ampere



3 Phase - single phase // 380 V - 220 V



Sound Level..............................35 db











STANDARD ACCESSORIES LIST







1. 18 pcs rim attaching center



2. 1 pc (mihengir) metal pointer



3. 6 pcs press tips (in different forms)



4. 3 pcs support axis for press tips



5. 1 pc lever



6. 1 pc lathe pen



7. 1 pc upper support



8. 1 pc lower support



9. 4 pcs Support pins



10. Flange nuts and bolts











ADVANTAGES  FOR THE USERS







ZETAMAK Rim Straightening Machines  with  5 ton power capacity of Hydraulic Pump, Molded flange, Lathe and necessary accessories / equipment  are used to straighten defected rims from 10" to 32" made up of alloy, chrome, mag and sheet iron wheels from  10" to 32".



- We have CE certified by KEMA Quality B.V. / The Netherlands.



-  All parts have 2-year warranty.



-  High quality electric box and cabling.



-  Reliable hydraulic system.



-  Free Of Charge Spare Parts.



-  If requested OEM production is also possible.
