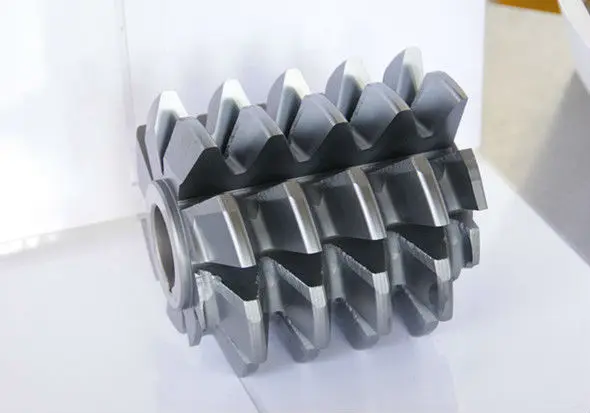

Pre shaving hobs, m3.75, gear hobbing machine, ASP 2052

Data

MODULE OUTSIDE DIAMETER LENGTH DIAMETER OF HOLE 1 50 32 22 1.25 40 1.5 63 50 27 1.75 2 2.25 71 56 2.5 63 2.75 3 80 71 32 3.25 3.5 3.75 90 80 4 4.5 90 5 100 100 5.5 112 112 40 6 6.5 118   118 7 125 8 125 132

Raw material, coating, and production line

   about material

     HSS   m2

             m35

             m42

     ASP  2030,

            2052

about coating

world advanced Balzers coating equipment

Production process

Our company

HARBIN TOOL WORKS was set up in 1990, who is a modern enterprise mainly produces gear cutting tools. For more than 20 years’ continuous development, we have acquired powerful capability and adequate production facility.

We have got 13 national patents for invention and utility model. Some important operations in the production process are completed on sophisticated foreign facilities imported from Germany, Switzerland, Italy and Japan.

We adopt advanced technology from Germany into heat treatment process according to the material and specifications of different products.

We have introduced the Swiss Balzers coating equipment, which can be used in various coatings to achieve dry cutting.

Contact us

Tell us the module, pressure angle, outside diameter, length, hole diameter, direction of turning and other specifications or send us the drawing sheet;

Tell us the material. We offer HSS m2, m35, m42, ASP 2030, 2052;

Tell us the coating: TiALN, TiN, ALCrN coating or uncoated

Tell us the accuracy level: class AA, A, B, C;

Tell us you need a standard or non-standard one.
