Air to Water Swimming Pool Heat Pump Heaters with heat exchanger
- Category: >>>
- Supplier: Foshan Blueway Electric Appliances Co. Ltd.
Share on (1398981479):
Product Overview
Description
Air to water heat pump swimming pool heaters with heat exchanger |
 |
 |
 |
 |
Product Category
Product Description
Mini/Small 2.5kW swimming pool heat pump unit
Swimming pool heat pump
Product details
|
| Name | swimming pool heat pump |
| Function | spa or pool water heater and dehumidifier |
| COP | 4.0~4.5 |
| constant temperature | 28-29℃ |
| heat exchanger | titanium heat exchanger |
| Max temperature | 40'C |
| Heating capacity | 65KW |
| Rated temperature | 28'C |
| Refrigerant | R410A |
| Warranty | 1year |
| Product Keywords | Mini swimming pool heat pump,Small swimming pool heat pump,2.5kW swimming pool heat pump |

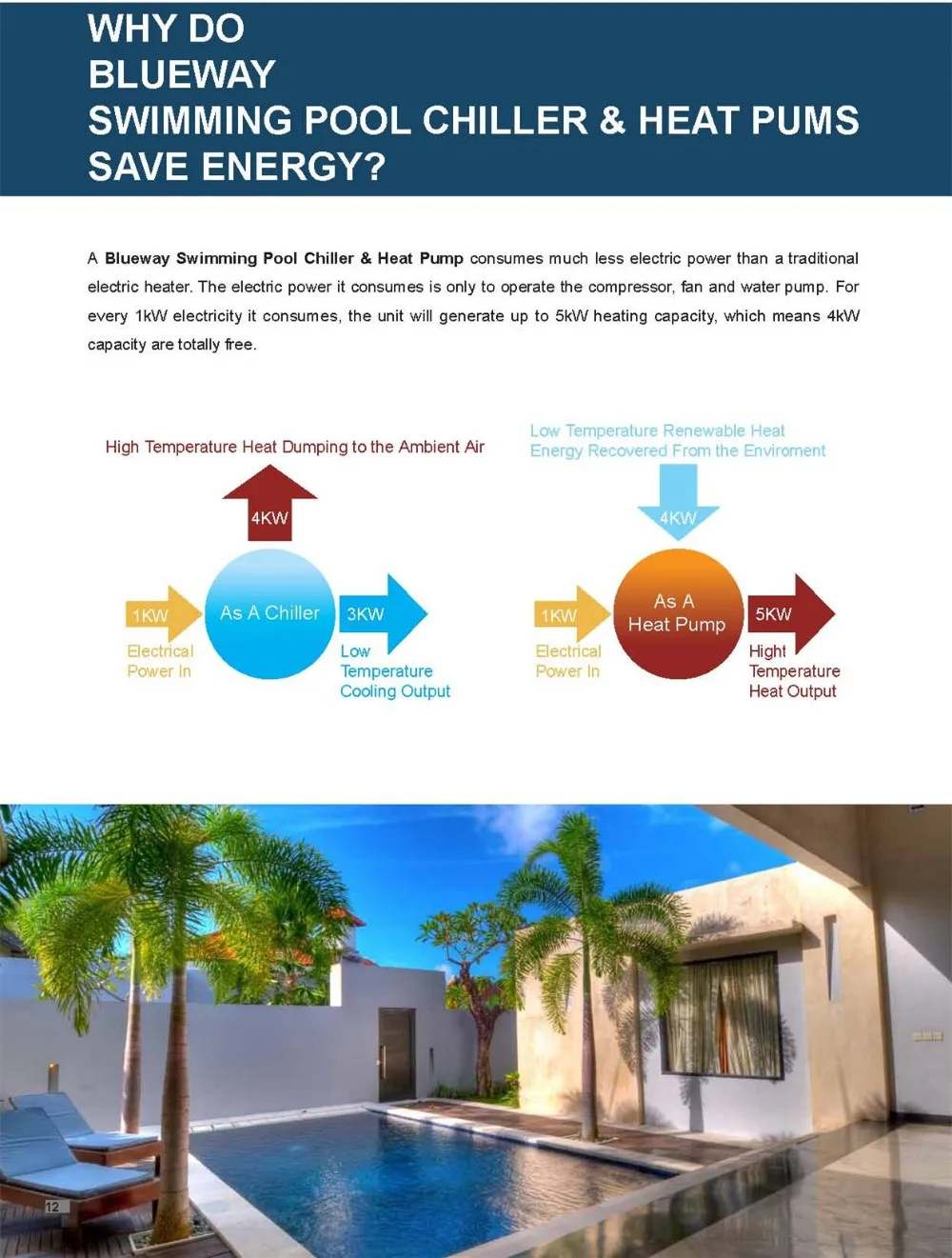

BLUEWAY Swimming Pool Heat pumps are specially designed and engineered for water temperature control of swimming pool and spa. The pool Heat Pump units can work as chillers in summer and heat pumps in other seasons, offering the most energy efficient pool & spa chilling and heating. Compared to gas, oil, or electric heaters, operation cost of swimming pool water chiller & heat pumps is up to 60%~80% less, saving your expenses in energy costs each year. Blueway Swimming Pool Heat Pump is especially suitable for the small household swimming pool Heating.
Products feature:
1) PVC Titanium heat exchanger with full resistance against corrosion, more durable.
2) Compact structure, easy demount-able for access.
3) High efficiency compressor with R410a or R32 refrigerant..
4) Flow switch for water flow protection.
5) Intelligent controller and adjustment by quick mind microprocessor.
6) Intelligent LCD display wire controller with touch screen display.
7) Air exchanger (fins-coil) with hydrophilic coating.
8) Automatic defrosting function included. (With reverse cycle valve inside)
9) General testing and operational test carried out for every unit before package in the factory.
10)50Hz and 60Hz units all available.
Products specification
| Model | BHP | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 160 | ||
| Power Suplly | V/P/Hz | 380-415/3/50 or 208-2303/60 | ||||||||||||
| Output | Cooling | kW/h | 25 | 33 | 41 | 51 | 65 | 82 | 97 | 131 | 163 | 192 | 241 | |
| Heating | kW/h | 30 | 39 | 47 | 60 | 78 | 106 | 128 | 170 | 214 | 243 | 280 | ||
| Dehumidification capacity | Kg/h | 17 | 22 | 26 | 33 | 43 | 51 | 62 | 84 | 102 | 122 | 160 | ||
| Application pool surface area | m² | 68 | 88 | 104 | 132 | 172 | 204 | 248 | 336 | 408 | 488 | 640 | ||
| Rated Airflow | m3 @300Pa | 4000 | 5000 | 6000 | 7500 | 9000 | 11000 | 13000 | 16600 | 21000 | 25000 | 32000 | ||
| Blower | Qty | Nos. | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Type | - | Centrifugal | ||||||||||||
| Static pressure range | Pa | 100-500 | 100-500 | 100-500 | 100-500 | 100-850 | 100-850 | 100-850 | 100-850 | 100-850 | 100-850 | 100-850 | ||
| Power input | KW | 1.5 | 1.5 | 2.2 | 2.2 | 3.5 | 4 | 5.5 | 6 | 7 | 7.5 | 11 | ||
| Compressor | Qty | Nos. | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 or 4 | 2 or 4 | 2 or 4 | 2 or 4 | |
| Type | Scroll | |||||||||||||
| Power input | KW | 5.5 | 7 | 8.5 | 5.4 | 7 | 8.5 | 11 | 7 or 13 | 8.5 or 16.5 | 11 or 22 | 13 or 25 | ||
| Water Heat Exchanger Condenser | Type | - | Titanium Tube in PVC Shell | |||||||||||
| Rated working pressure | Mpa | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | ||
| Max.water temp. | ℃ | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||
| Rated water flow rate | m3 | 4.7 | 6.1 | 7.2 | 9.4 | 12.2 | 14.5 | 18.8 | 24.6 | 30.6 | 37.5 | 48 | ||
| Water connection size | mm | 32 | 32 | 38 | 50 | 50 | 63 | 63 | 75 | 75 | 90 | 100 | ||
| Air Cooled Condenser | Qty | Nos. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | |
| Rated capacity | KW | 30 | 39 | 47 | 60 | 78 | 96 | 118 | 150 | 184 | 223 | 278 | ||
| Rated airflow | m3 | 10000 | 12000 | 15000 | 20000 | 24000 | 30000 | 40000 | 48000 | 60000 | 80000 | 90000 | ||
| Nos. of fan | Nos. | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | ||
| Fan motor power input | KW | 0.82 | 0.82 | 1.65 | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 | 1.1 | 1.1 | ||
| Dimension | Outdoor condenser | W | mm | 706 | 1450 | 1450 | 1450 | 1800 | 1850 | 2110 | 1800 | 1850 | 2110 | 2500 |
| D | mm | 686 | 705 | 705 | 705 | 705 | 1000 | 1100 | 1000 | 1000 | 1100 | 1200 | ||
| H | mm | 940 | 1065 | 1065 | 1065 | 1065 | 1320 | 1350 | 1320 | 1320 | 1350 | 1350 | ||
| Indoor main unit | W | mm | 3600 | 3800 | 3600 | 3800 | 4200 | 4600 | 4900 | 5400 | 5800 | 6600 | 7000 | |
| D | mm | 1370 | 1520 | 1570 | 1670 | 1670 | 1930 | 2160 | 2200 | 2200 | 2150 | 2200 | ||
| H | mm | 1160 | 1160 | 1260 | 1360 | 1450 | 1520 | 1690 | 1840 | 2150 | 2200 | 2500 | ||
| Indoor Main Unit Weight | Kg | 500 | 800 | 900 | 1200 | 1500 | 1650 | 1850 | 2200 | 2500 | 2700 | 3300 | ||
| Notes: | ||||||||||||||
