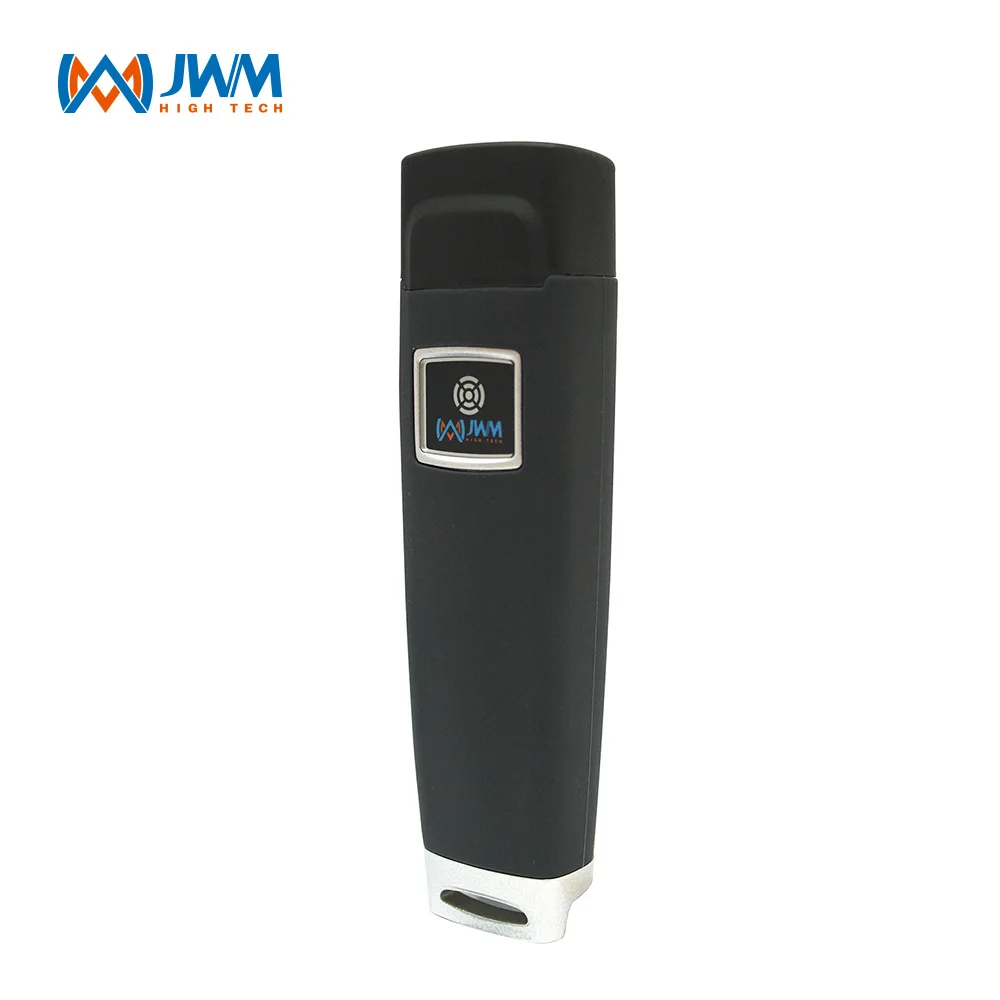

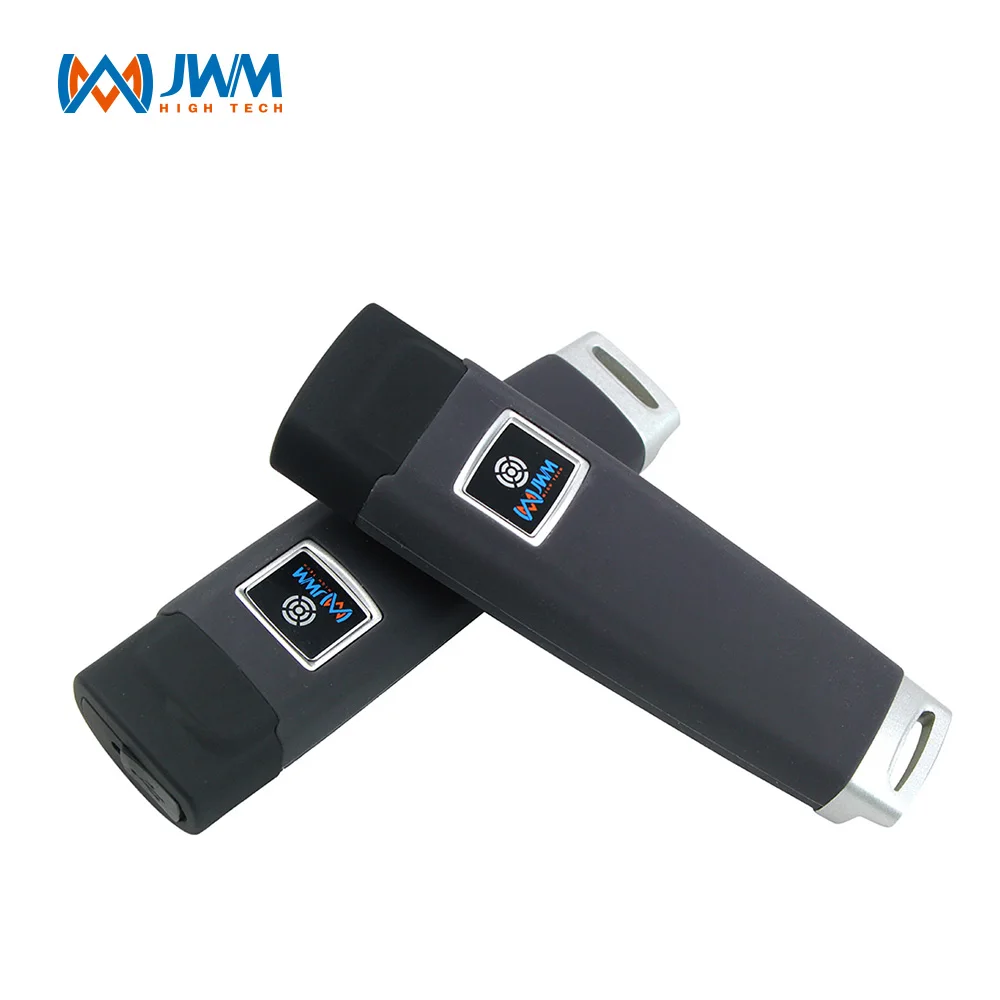

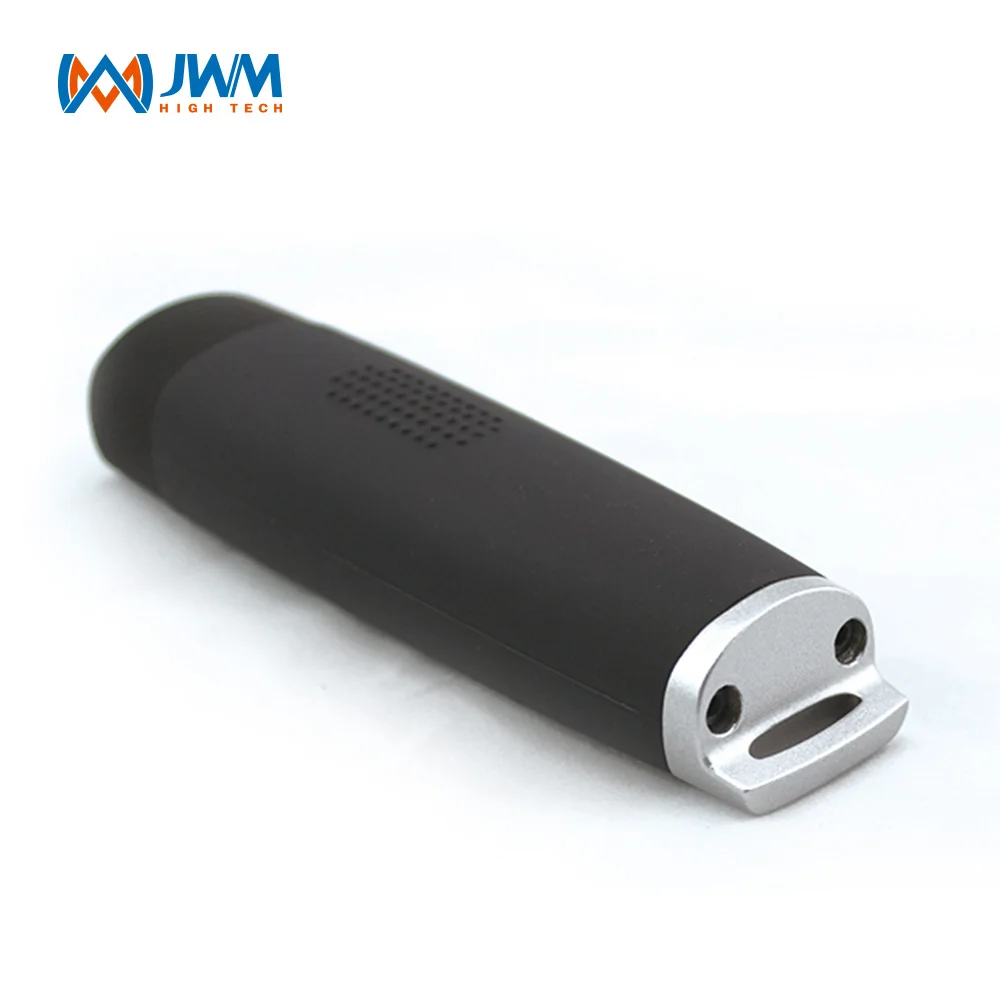

WM 5000V Checkpoint guard patrol system;RFID handheld guard tour device;RFID security patrol system

 ( checkpoint guard patrol system WM-5000V+, handheld guard tour, guard watch )

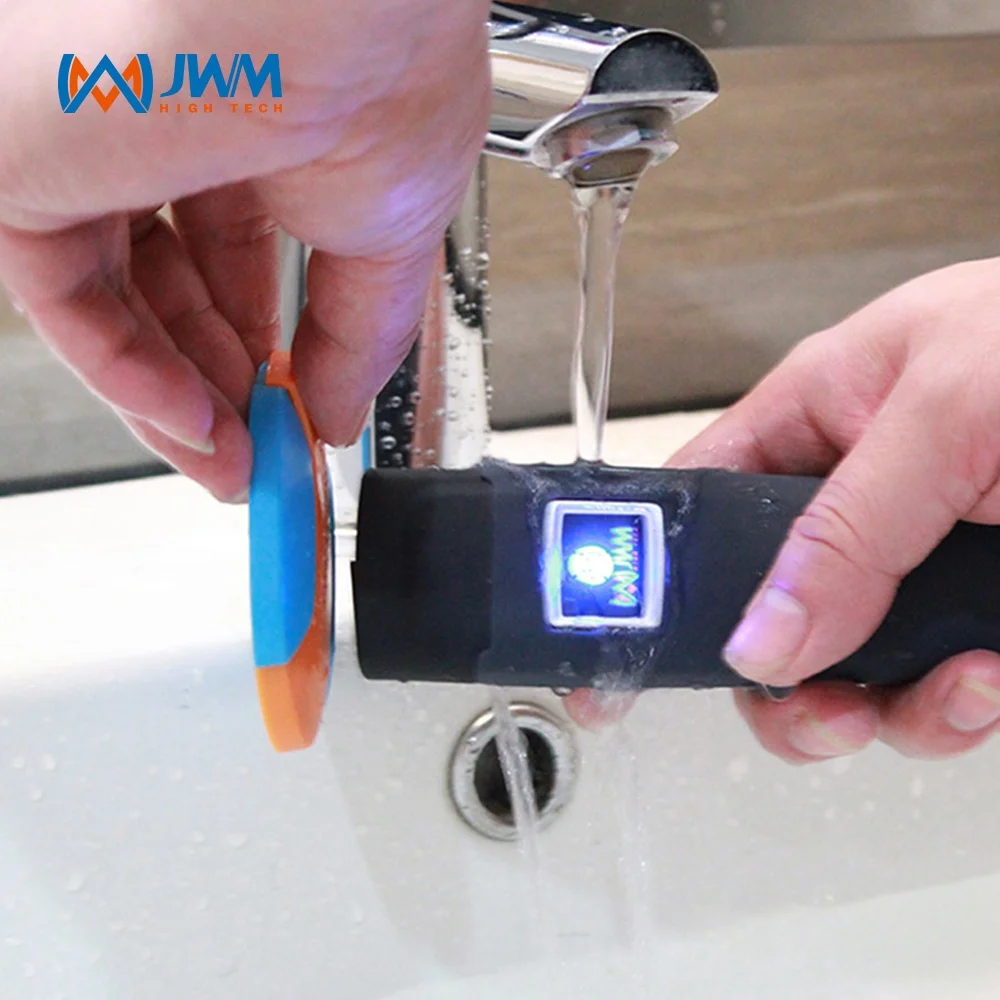

  WM-5000V+ guard tour/patrol system is designed for the harshest environments. The metal body and molded rubber shell, which protect the electronics against damage and secure the collected data, are the key points to WM-5000V+ readers extreme durability. With special waterproof pad and adhesive, the reader is so waterproof that it even can work under water. Furthermore, over 60000 reads are able to be stored before the next download of data.

Technical Information

Physical    Metal Body, Molded rubber shell

Dimensions   130mmx40mmx30mm

Working Frequency   125KHz

Operating Temperature   -45°to +85°C

Humidity   10% to 98% non-condensing

Memory   4Mb Flash ROM, 60000 pieces records

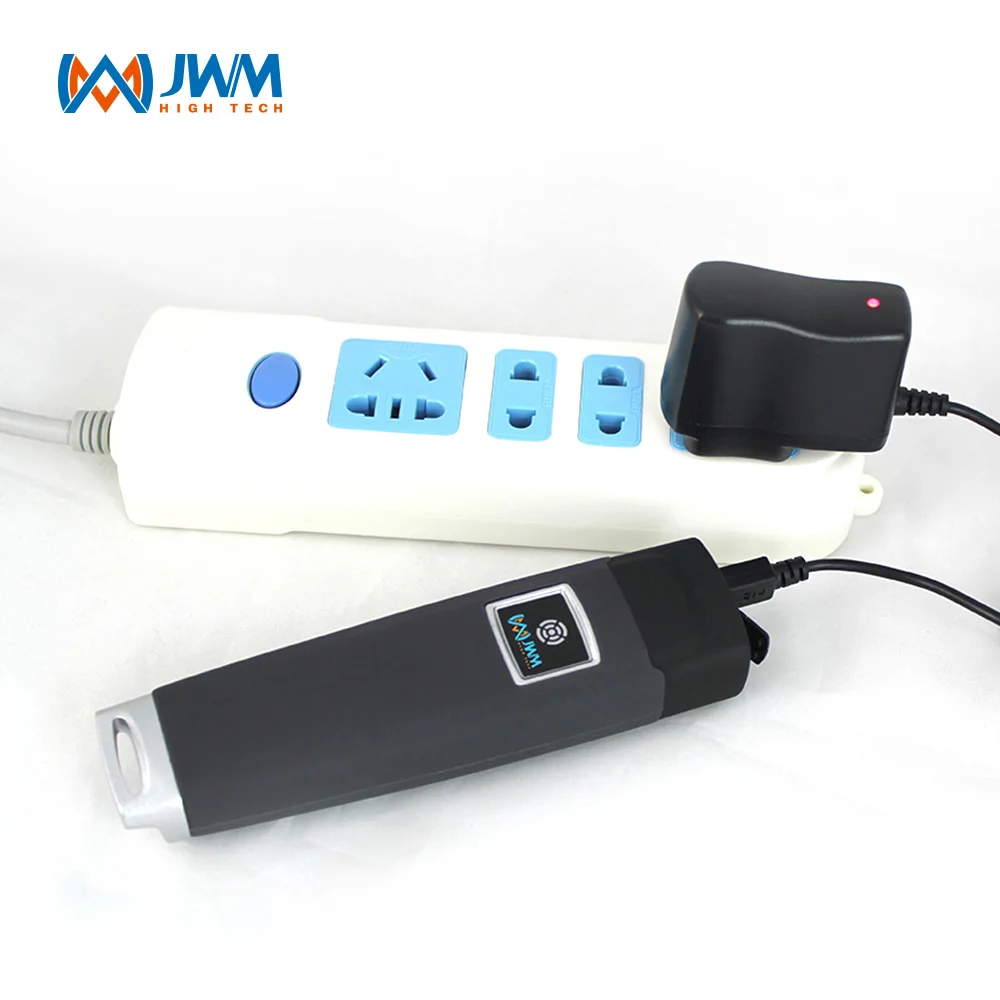

Battery   3.0 V Lithium Battery

Battery life    270 000 continuous reads

Signal Card Detection    Auto induction card-reading

Card Reading Distance    3cm-5cm

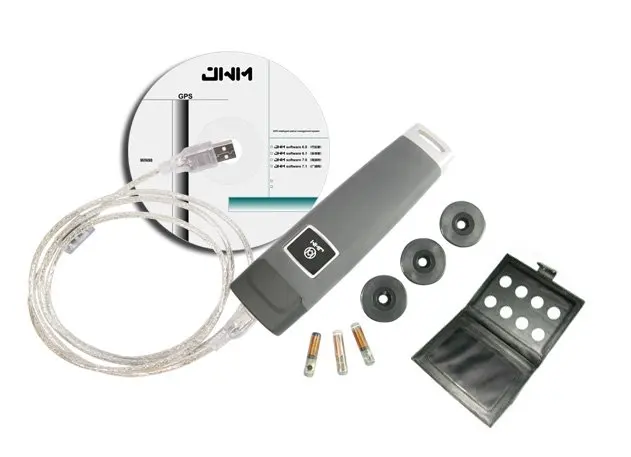

Communication   Use USB cable, 57600BPS, 4000 records per minute

Weight   196g

Applications:

- Guard patrol monitoring in shopping mall, supermarkets, hotels, buildings, factories, schools and   blocks etc.

- Nurses daily round

- Airport departure lounge and runway checking

- Forest fire control and safe patrol

- Power transmission cable checking and management

- Oil pipeline checking and management

- Patrol police tracing and management
