Product Overview
Description
Product Introduction

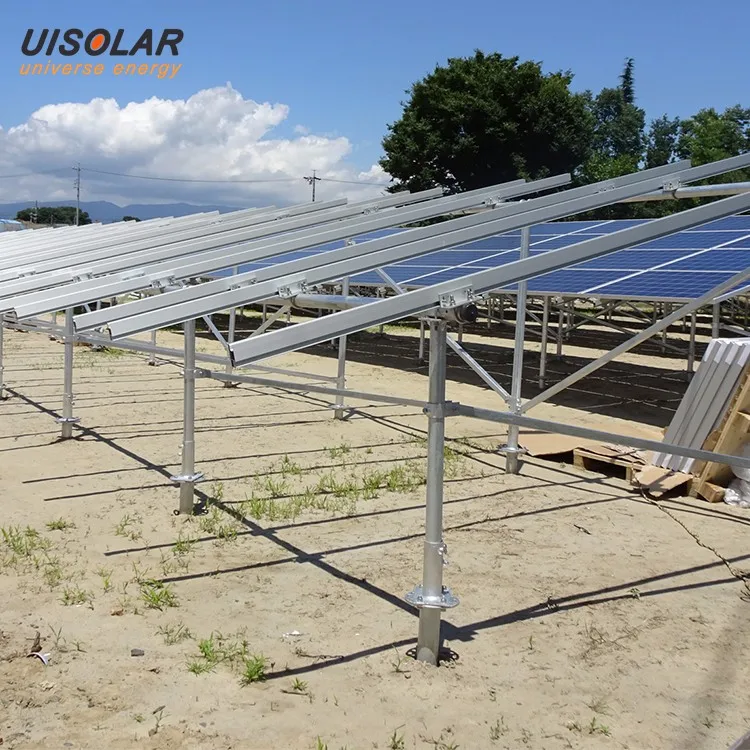

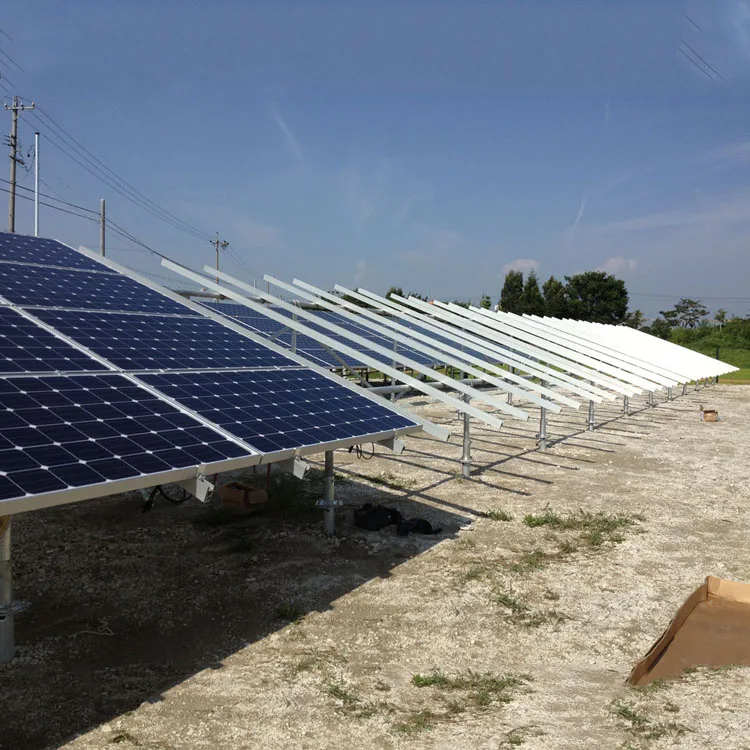

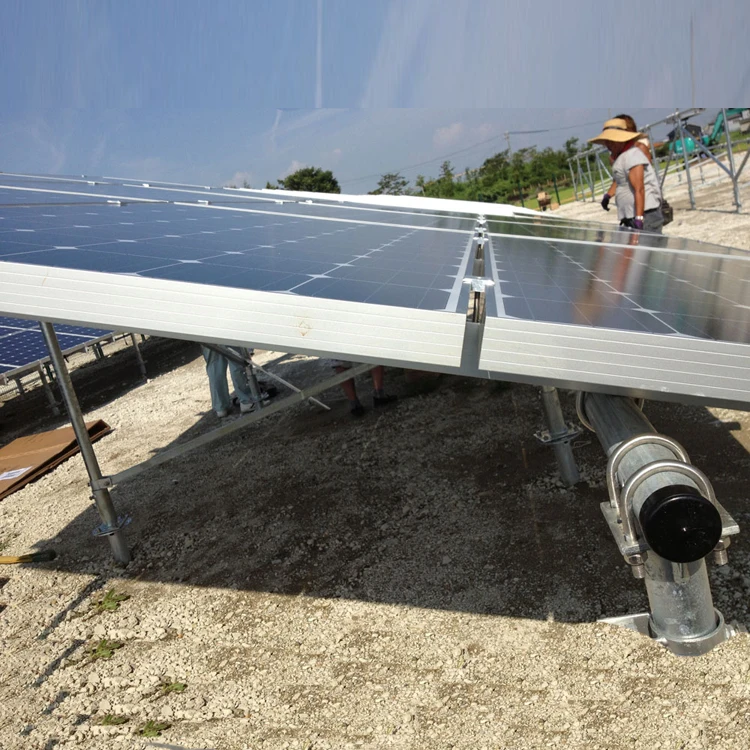

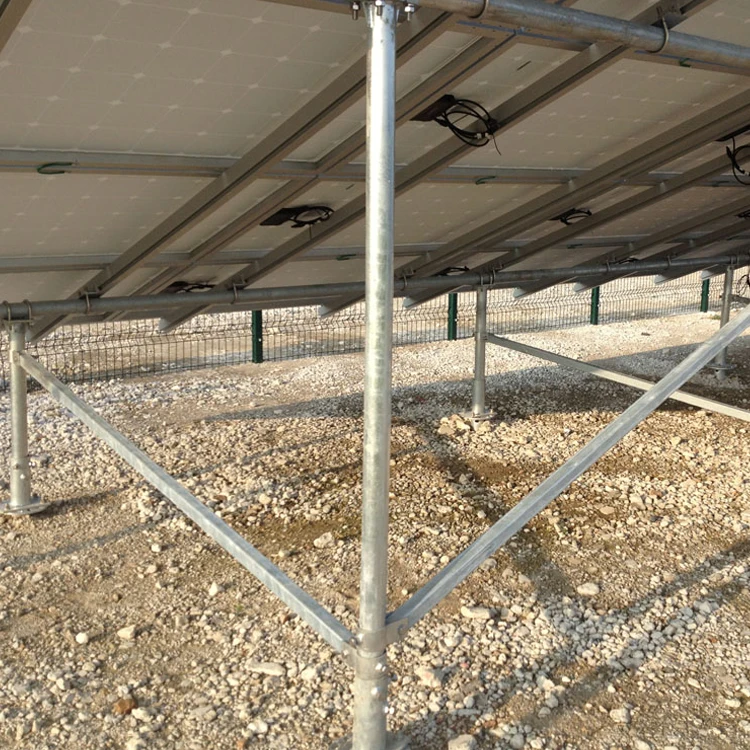

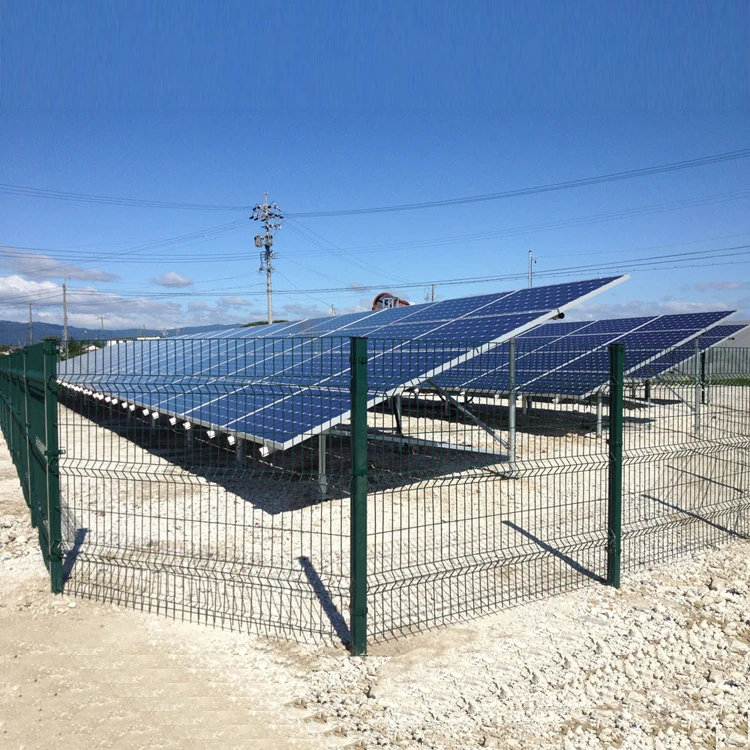

On Grid Solar Power System 100KW, Solar Ground Mounting Solar System

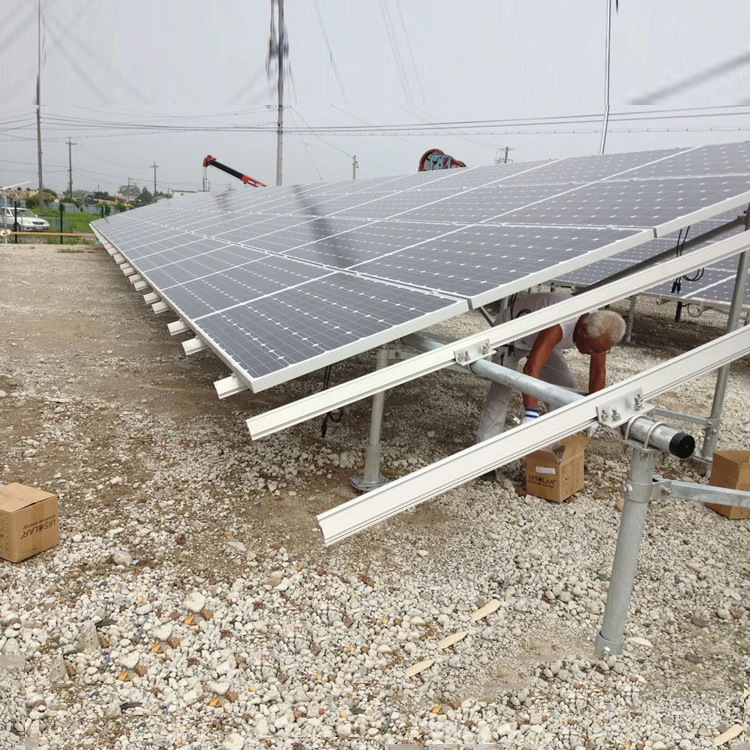

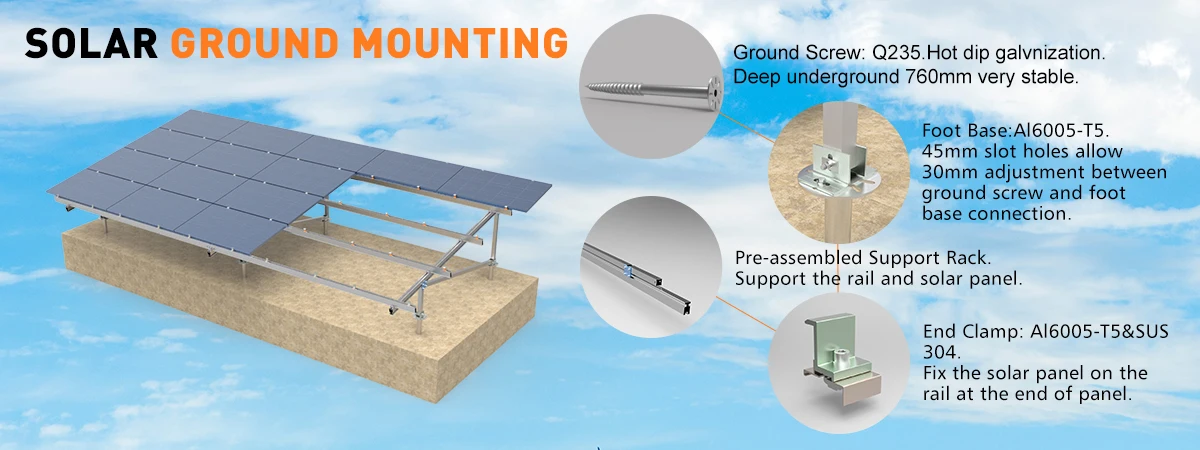

ST1 ground mounting is a solution including steel structure and aluminum rails.It is suitable for both small and large-scale solar plants,with a flexible connection,It can be installed onto the concrete base and also the earth ground,even the slope can also be workable.
Large-scale ground photovoltaic system bracket features:
§ Quick installation with large-scale ground photovoltaic system power station construction progress
§ Flexible form of adjustment to meet the complex requirements of the construction site
§ Refine the number of accessories to facilitate the identification of workers on site
Product Details Show
PK with the other suppliers

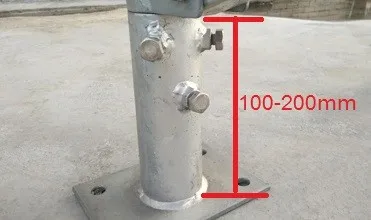

1、The Foot base Height
Other suppliers' solution:Usually 50-80mm.
UISOLAR solution:Usually 100-200mm, more adjustment height can be allowed.
2、Fasteners on Foot base
Other suppliers' solution:Fixed on different sides. The connection will be 3 points
UISOLAR solution:Fixed on same side, but different height. The connection will change from points to a whole side to make achieve a better strength.

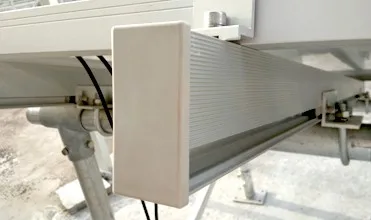

3、Rail End Caps
Other suppliers' solution:None
UISOLAR solution:Prevent workers to be hurt by the sharp material end.
Prevent rats , snake and birds from nesting inside the rails.

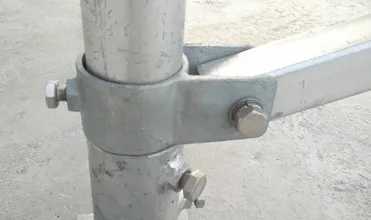

4、Fixed Ring
Other suppliers' solution:Fixed to the legs. So fixed connection point and height.
UISOLAR solution:A ring to legs. Adjustable connection point and height .

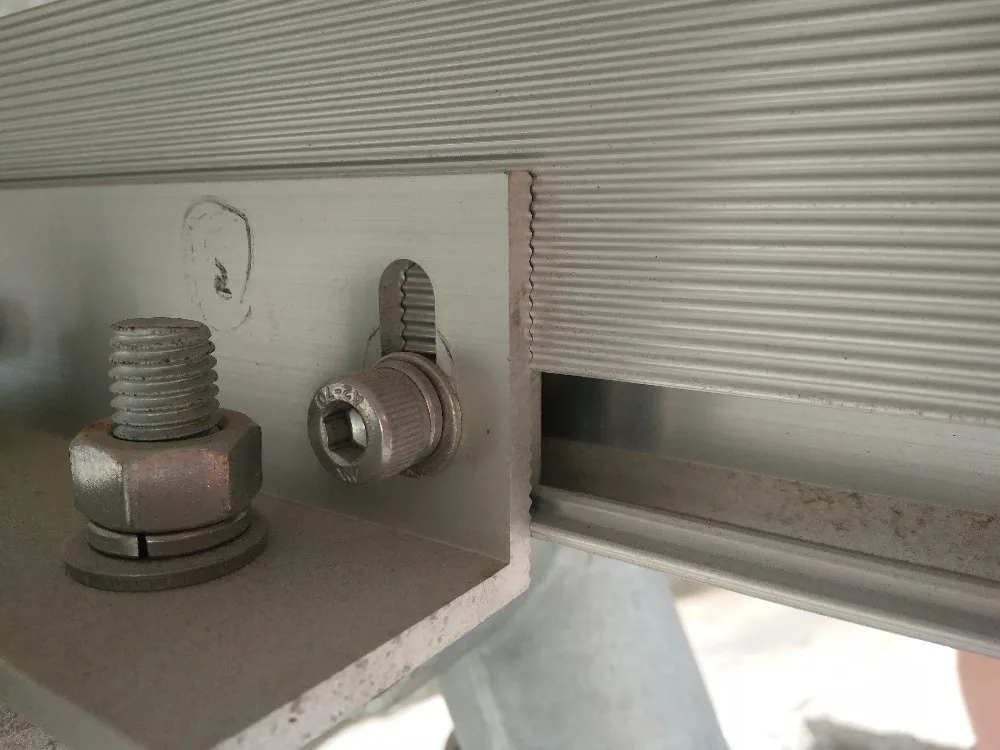

5、Withripples
Other suppliers' solution:None
UISOLAR solution:Ripples on the Rail Connection (UI-ST1-06) snap-together the ripples on the rail, which make the connection part to be stronger.

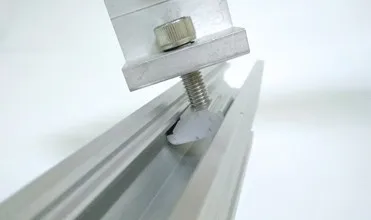

6、The Railnut Slot and the Nut
Other suppliers' solution:None
UISOLAR solution:The nut is designed to make the connection to the rail both can be ok by drop from the rail end or stick in any point of rail.
Product Parameters | ||
Product Name | Solar Ground Mounting System | |
Installation Site | Open Field/ Ground / Earth / Concrete Ground | |
Material | Steel Q235 & Aluminum 6005-T5 | |
Color | Silver Or Customized | |
Module Angle | 10-60 Degrees According to Your Requirement or Latitude | |
Standard | JIS C 8955:2011 and AS/NZS 1170.2 | |
Warranty | 10 Years | |
Service Life | 25 Years | |

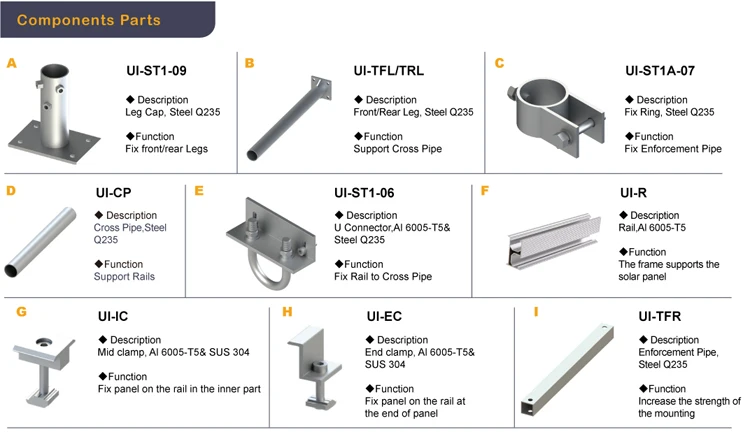

Components Parts | Leg Cap; Front / Rear Leg; Fix Ring; Cross Pipe; U Connector; Rail; Mid Clamp; End Clamp; Enforcement Pipe | |
Advantages | Easy Installation; Safety And Reliability; 10 -Year Warranty | |
Our Service | OEM；We Offer Professional Customization Services. Our Engineers Will Design the Most Suitable Solar Mounting Structure Solution Based on Local Geology, Snow Load and Wind Speed. | |
Related Products
Our Company

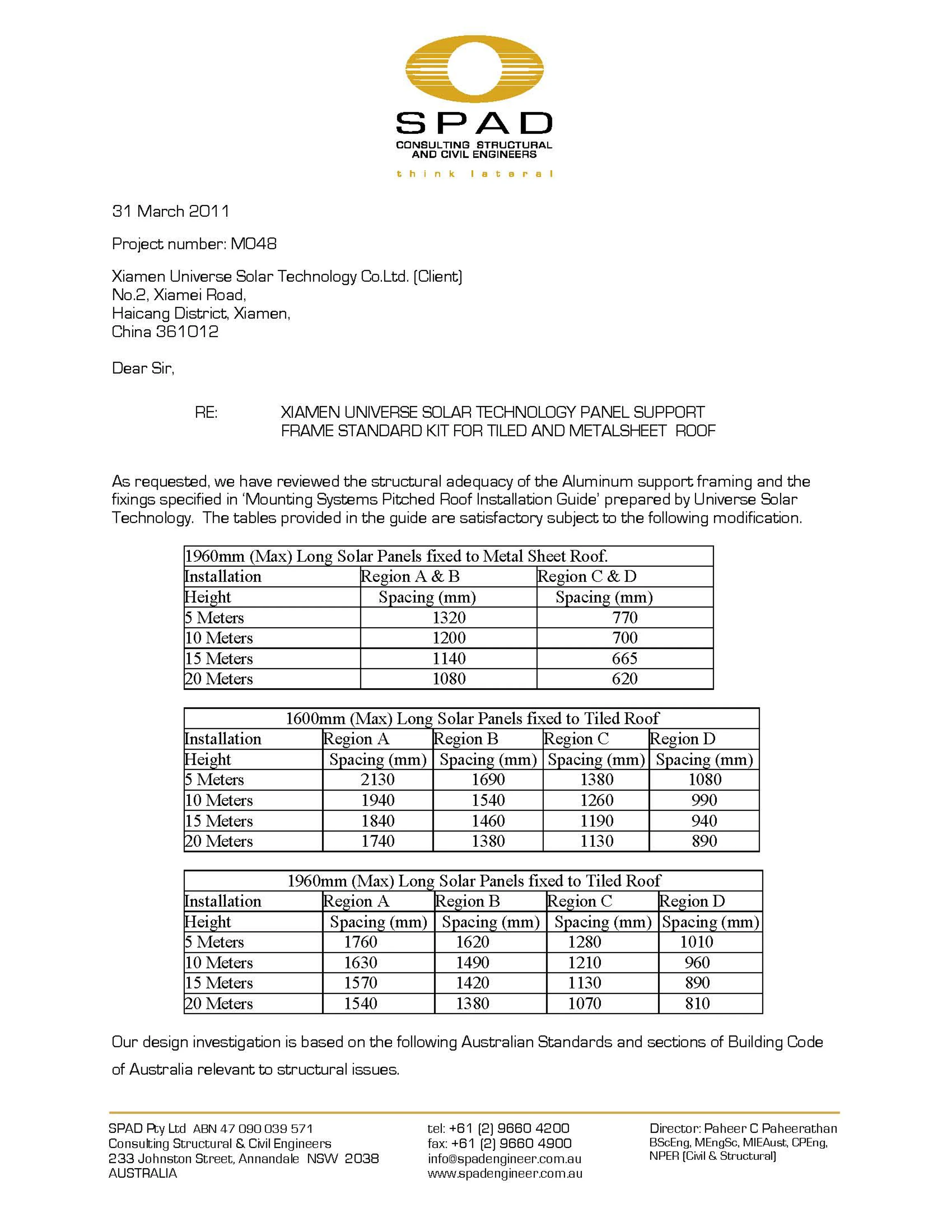

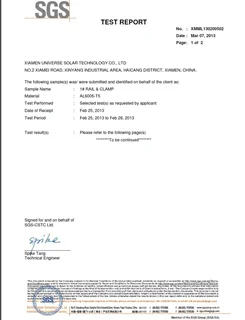

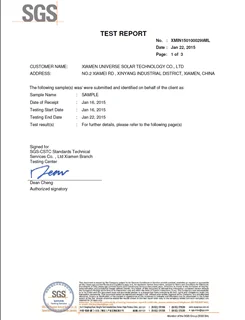

Certifications
Packing & Shipping
Exhibition & Project
Our Service & FAQ
System Scheme
UISOLAR engineers design the mounting system in personalization, and provide professional proposal for your situation. We can design the most suitable layout drawing of modules array for customers .

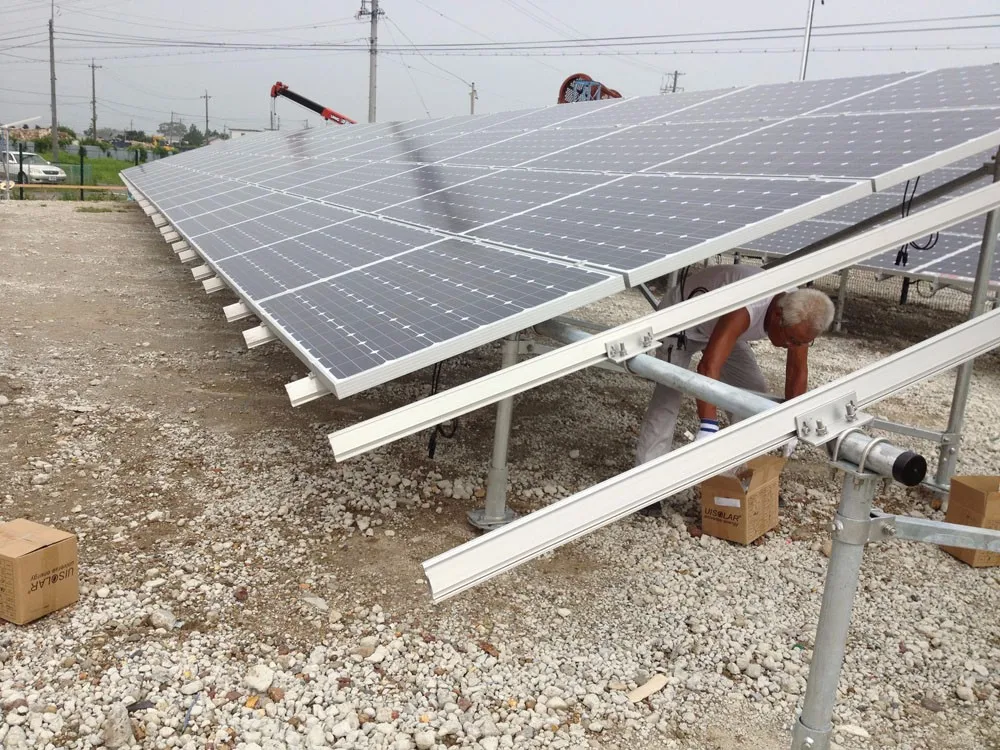

Project Installation

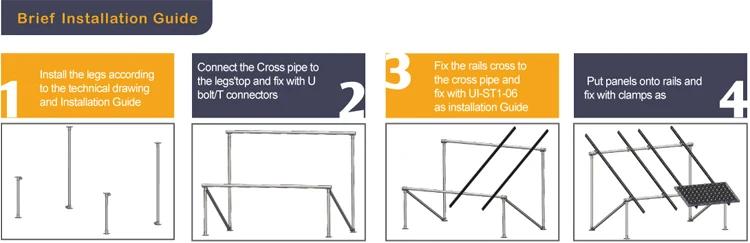

UISOLAR highly respects customer's requirements with details, our professional engineers will provide customers detailed Installation Guide to make sure the solar mounts are correctly installed.
After Sales Service
UISOLAR will stay with you forever. We will offer you timely standard after-sale service and professional guidance with ur great technique and rich experiences.
FAQ
Q:Are you a factory or trading company?
A: We are one of the biggest factories in China and specialized in producing
solar mounting system, we can supply kinds of mounting system for different
Install conditions, flat roof, pitched roof and ground.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen airport in Fujian directly, all our clients, from home or abroad,
are warmly welcome.
Q: How can I get some samples?
A: We can honored offer you samples according your inquiry.
Q: How does you factory do regarding quality control?
A: "Quality is priority" we always attach great important to quality controlling
from the beginning to the very end.
Q:What information do I need to give you?
A:For the detailed solution and quotation,we need some more details as below:
1.Panel Qty and dimension (length * width * thickness )
2.Panel tilt angle?
3.Max wind load?And snow load?
4.Lowet distance between panel and ground ?
5.Any plan of layout? If not,you can offer one units as example for us to offer solution and quotation,or how about the ground size (length * width ) then we will do the layout to you.
