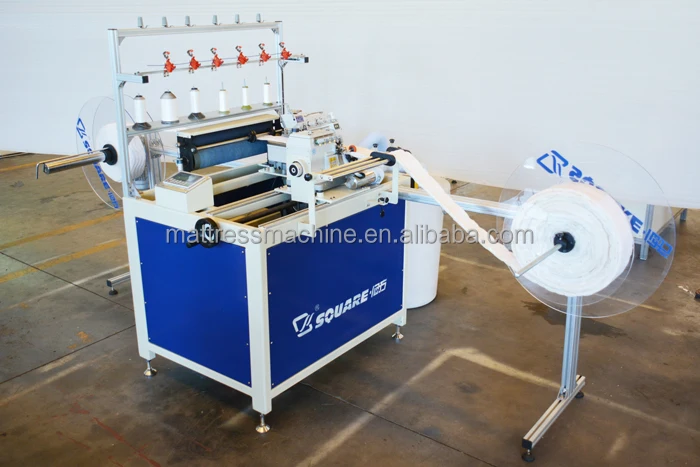

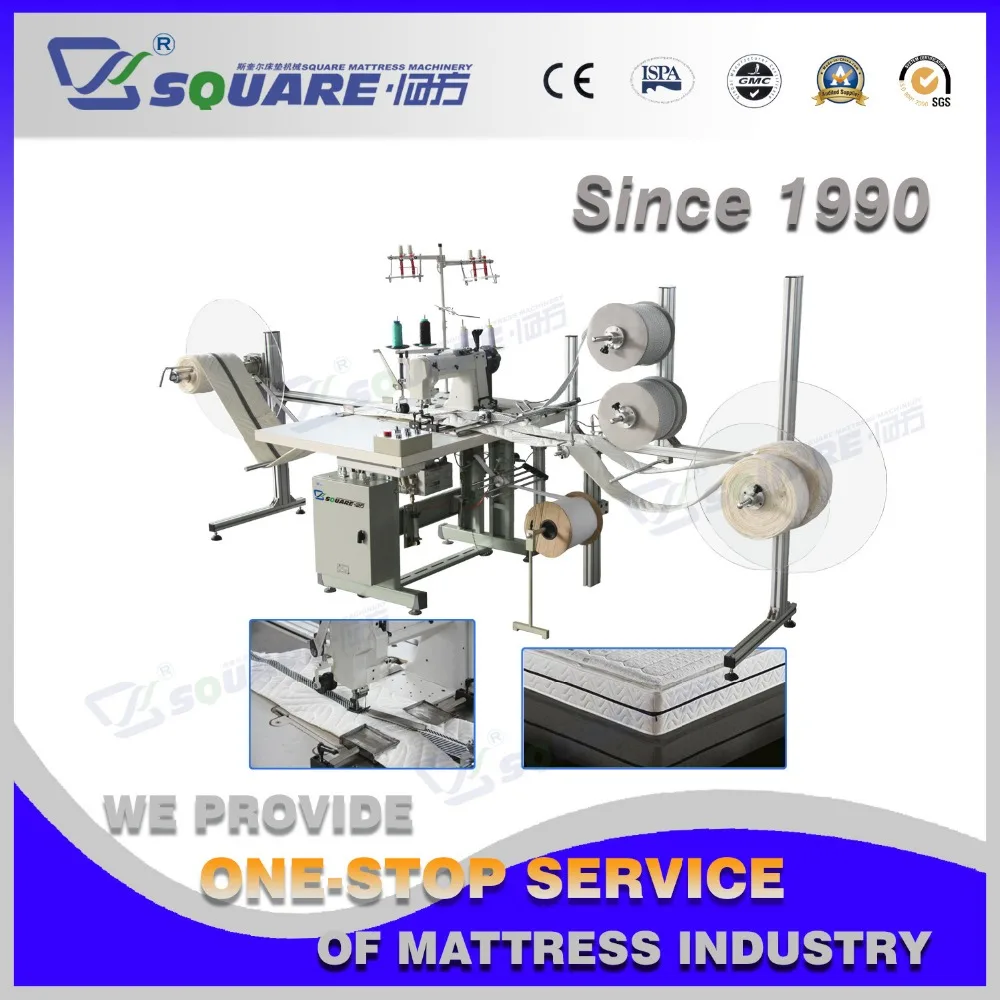

Mattress Border Double Serging Machine (SKB)

Product Overview

Description

main application & performance:

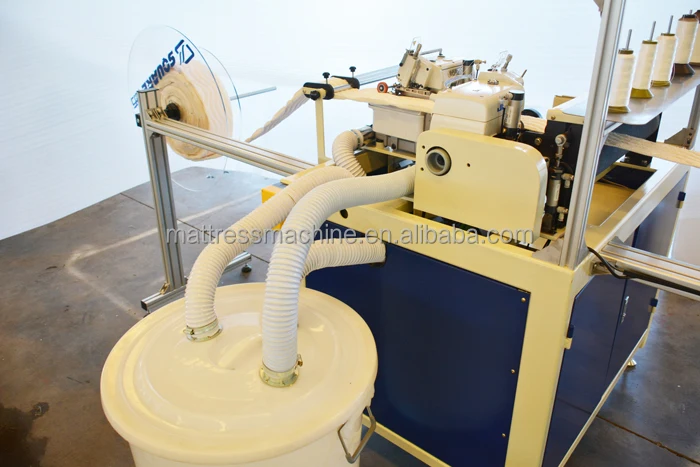

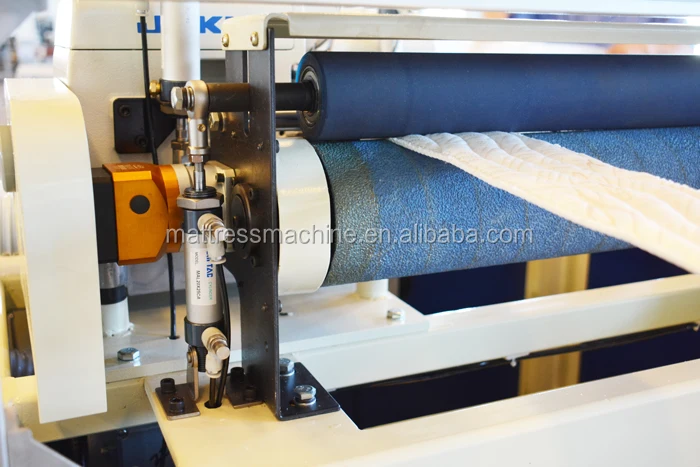

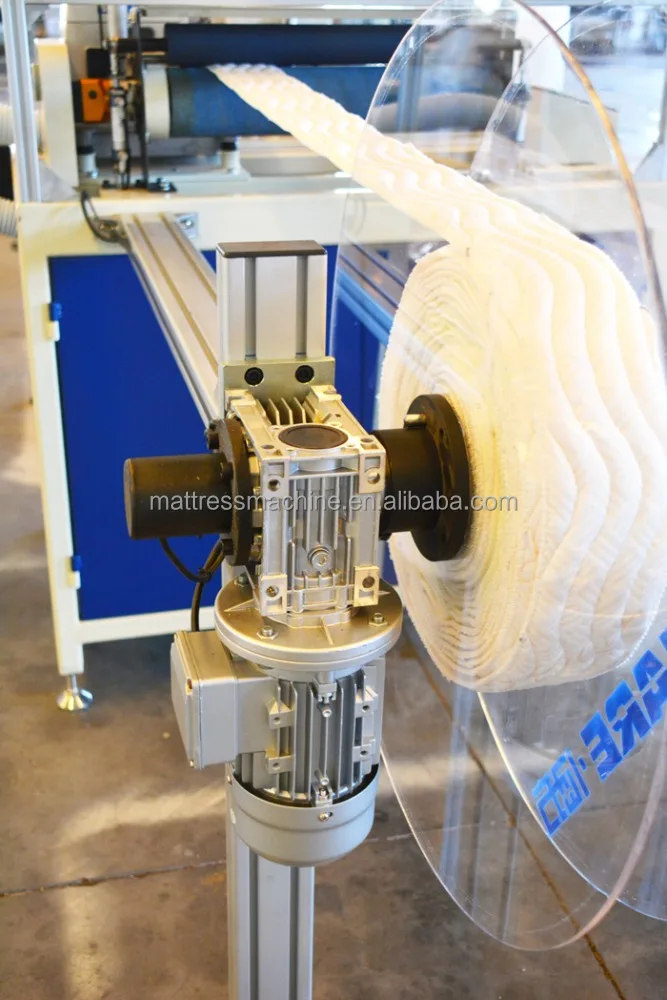

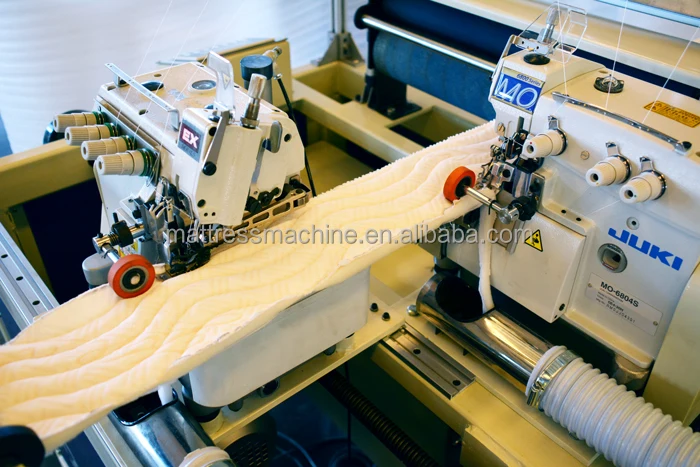

mattress side panel, The double serging mchine(border machine,mattress machine) has two independent sergers, synchronization of them is controlled by two AC motors with frequency converter velocity modulation, the mattress machine(border machine.serging machine) has two Servo drive variable speed puller with long lasting urethane rollers, material tensioning device, and rewinder. The double serging machine(border machine,mattress machine) has excessive material auto-cutting device along with a vacuum scrap-collection device. Additionally, The mattress macine(border machine, serging machine)is equipped with thread break detection device as well as material splice auto-stop device.



 Main parameter:

Serging mode:	single border, dual border
Sewing width:	6.4mm
Serging width:	180-500mm (adjustable) 100-180mm
Serging speed:	15-30M/min (adjustable)
Max. Material thickness:	≤20mm  (middle density)
Needle Pitch:	6mm
Max. Presser lift:	8mm
Rated air pressure:	0.5-0.8Mpa
Power:	2.2KW
