850VA UPS (uninterruptible power supply)
- Category: Uninterruptible Power Supplies (UPS) >>>
- Supplier: Zhongshan,Dianxing,Electrical,Appliance,Industry,Co.,Ltd.
Share on:
Product Overview
Description
| Model | UPS-850GP | |
| Power | 850VA/500W | |
| Technology | Line Interactive | |
| Input | Input Voltage Range | 145V-275Vac/90Vac-140Vac±3% |
| Nominal Input Voltage | 220/230/240/110/120Vac | |
| Input Frequency | 50/60Hz | |
| Max.Input Current | 2.6A/5.2A | |
| Output | Nominal Output Voltage | 220/230/240/110/120Vac |
| Max.Output Current | 1.8A/3.6A | |
| Output Voltage Range(Normal Mode) | 220/230/240/110/120Vac+10%-15% | |
| Output Voltage Range(Battery Mode) | 220/230/240/110/120Vac±10% | |
| Output Frequency(Normal Mode) | Synchronized(Sine Wave) | |
| Output Frequency(Battery Mode) | 50/60Hz | |
| Overload Capacity | 110-120%(60 Seconds) | |
| Wave Form | Step Wave | |
| Power Factor | 0.6 | |
| Efficiency | 90% | |
| Transfer Time | 10ms | |
| Batteries&Runtime | Battery Type | Maintenance-free Sealed Lead-Acid Battery,Leakproof |
| Included Battery Modules | 1×12V/7.0Ah | |
| Runtime | Full Load 2.0 Minutes | |
| Half Load 7.0 Minutes | ||
| Charge Time | 12 Hours(90%) | |
| LCD Status Display | Normal,Fault,Battery,Charge,Overload,Load,Battery Capacity | |
| Audible Alarm | Buzzer | AC Unusual/Battery Low Voltage/Overload/Short Circuit/PCB Failed,Beep for 60Seconds |
| Interface Port(s) | Interface | RS-232/USB |
| Control Software | UPSlion2000 | |
| Cold-start Capability | Yes | |
| Protection | Surge Protection and Filtering | High Voltage,Low Voltage,Surge,Spike |
| Overload Protection | 120%-150% | |
| Battery Low Voltage Protection | 10V | |
| Output Short Circuit Protection | Output auto cut off,Buzzer beeping | |
| EMI Filter | Yes | |
| Tel/Fax/Modem Jack | Yes | |
| Regulatory Approvals | CE/UL/CUL Listed,UL497A,UL 1778 | |
| Operating Conditions | Operating Temperature | 0-40 |
| Storage Temperature | -15-45 | |
| Operating Relative Humidity | 10%RH-95%RH,Non-condensing | |
| Dimension | Inner Box(mm) | 357*132*250 |
| Unit Weight(kgs) | 6.8 | |

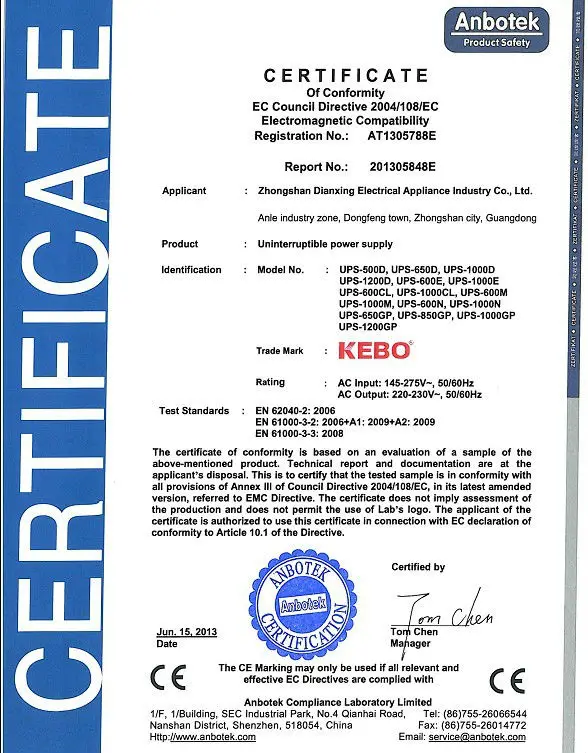

Product Certification:
WHO KEBO?
KEBO Electrical Company Limited, was established in 1984, a professional manufacturer of Uninterruptible Power Supply(UPS) ranging from 500VA to 100KVA single phase and three phase, off line and Online, AC Automatic Voltage Regulators(Voltage Stabilizer) ranging from 500VA to 200KVA, single phase and three phase, relay type and servo motor type, DC to AC inverters, including car inverter, modified sine wave and pure sine wave, ranging from 70VA to 5000VA, emergency Lights, Battery Chargers and Automatic Voltage Switcher, Voltage Guarder (surge protector).
Zhongshan Dianxing Electrical Appliance Industry Company Limited is the Factory name under the same shareholder. KEBO is the registered brand name.
We have strong R & D team up to 30 engineers and 500 experienced workers with more than 32,000 Square meters factory area equipped with most advanced manufacturing facilities including PCB assembly, Tooling, Plastic Injection, Metal sheet, Silkscreen workshops and 6 assembly lines. KEBO is an ISO 9001 certified factory by SGS, moreover, We established a complete quality system from sales order input to finish products quality approval, every step is strictly following the ISO procedures. We adopted the audit and responsibility policy in every procedure of the order processing. Because of the excellent management, we are able to supply the products with competitive prices, prompt delivery and top of all, reliable quality. Most of our products have been certified to meet international safety standards, such as CE, UL, CUL, FCC, CCC, CB.
We have direct business partners in 95 countries throughout the world. Successful partners including PZ Group, Monster Cable, Legend etc., Despite of the economic slump, KEBO achieved a US$42 Million Sales Turnover in 2008. And most important, we have been achieving a more than 20% growth annually for the past consecutive 4years.
We offer not only products under KEBO brand but also OEM and ODM solutions. We constantly aim at developing new products to keep up with the market pursuits and to satisfy our customer needs. lf you are looking for excellent quality products, competitive price, prompt delivery and comfortable cooperation, please contact us now.
WHY KEBO?
30yrs platinum supplier of UPS/AVR/Inverter:
6 Production lines
29 Years of expertise
90 Countries and market presence.
500 Experience Workers.
32,000Square meters Manufacture factory.
our website : www.kebopower.com
Our Competitive Advantages including
1) Full Range Power supply products, Worldwide market coverage.
2) Reliable Quality with 2 Years warranty.
3) Experienced and strong OEM capability.
4) Most Advanced technology Application in Circuit Designing and Display innovation.
5) Reasonable Prices
6) Possible Onsite Technical Support.
KEBO's new factory is in rush construction now. The 4 big buildings and staff dormitory have already finished, and it will be intended for use next year in 2014. Welcome to visit our new factory!
