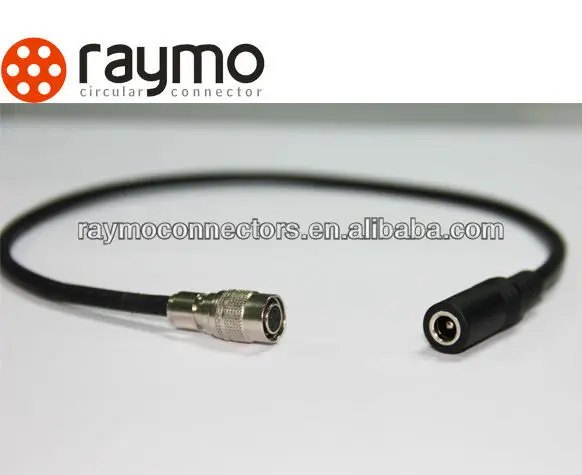

Hirose compatible connectors 6 pin hirose connector cable assemble

Product Overview

Description

1\\ Model no.:  Hirose series plug  HR10A-7P-7P(73)



can be used in many various areas, such as :

a. Medical

b.Testing and Measurement Instrumentation

c. Data and Telecom Systems

d. Audio & video Applications

e. Military & Aerospace

f.  Industrial camera



2\\ Tech list:



Model no.	HR10A-7P-7P(73)
model descritption	used in various areas, such as industrial camera, military testing equipments
Plug:	male contacts
shell material	Brass (chrome-plated) shell and collect nut, nickel-plated brass latch sleeve and mid pieces
pins/contacts:	All pins with gold plating
Shell size:	#1 , #2, HR25 series
Contacts no.	#1: 4, 6, 7pins
	#2: 7, 10, 12pins
	HR25 series: 8 , 12, 20pins
Contact type:	solder
Bend relief	with or without bend receptacle

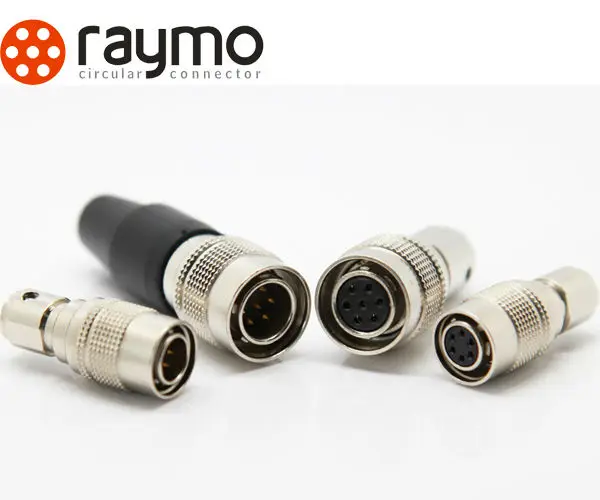

3\\ Photo detail:
