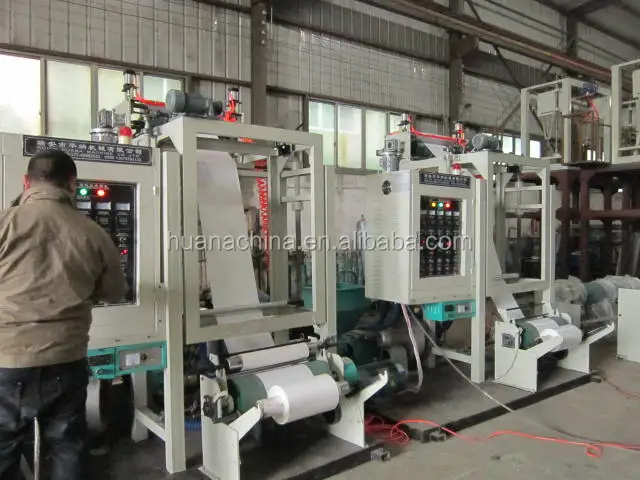

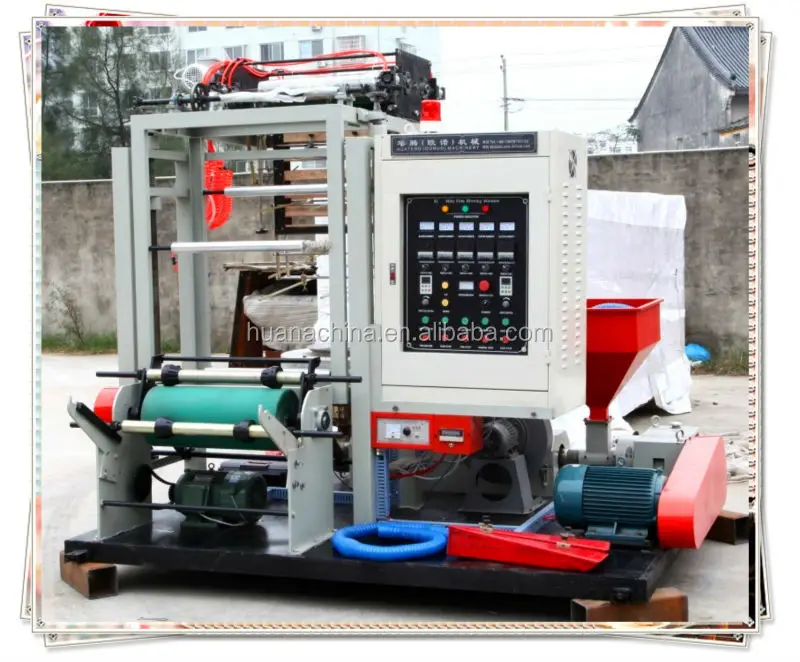

SJ45 Mini high output Film Blowing Machine

Product Overview

Description

SJ50 Mini high output Film Blowing Machine





1  Feeding, melting, and film blowing can be processed all in one machine.



2 The machine takes up little area of land.



3  It is characterized by simple structure and ease of operation.



4 The die head can be adjusted with convenience of replacing.



5  It is characterized by high efficient in production and low power consumption



 Main Technical Parameter

Type	SJ45-500
Applied material	LLDPE/LDPE/HDPE
Screw D/A	Ø45mm
Screw ratio L/D	28:1
Screwed speed	15-100r/min
Main motor power	7.5kw
Extrusion output(1 screw)	25kg/hour
Range of die	Ø50mm   Ø80mm
Single side thickness of film	0.010-0.10mm
Max folding width of film	400mm
Electric total capacity	18kw
Overall dimensions	2400X2100X2200mm(L X W X H)
Weight of machine	1.8T



Picture  Show

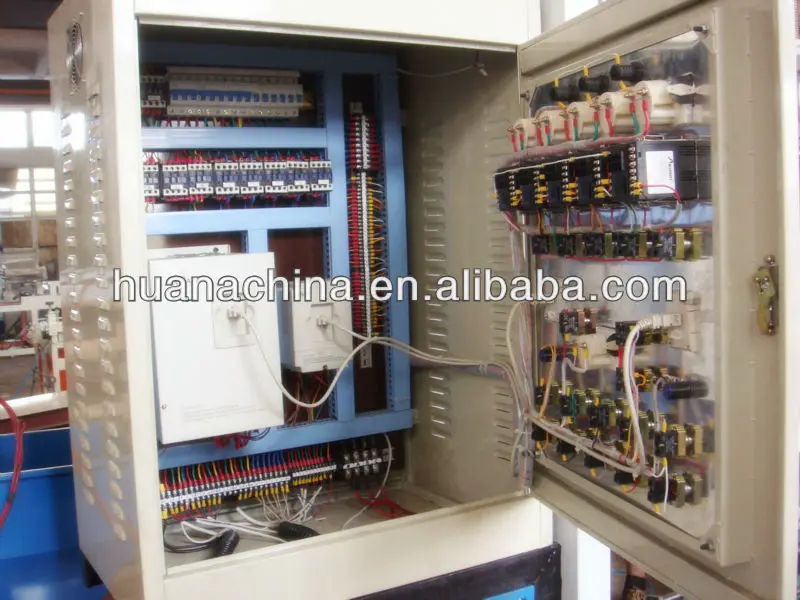

electric control box:

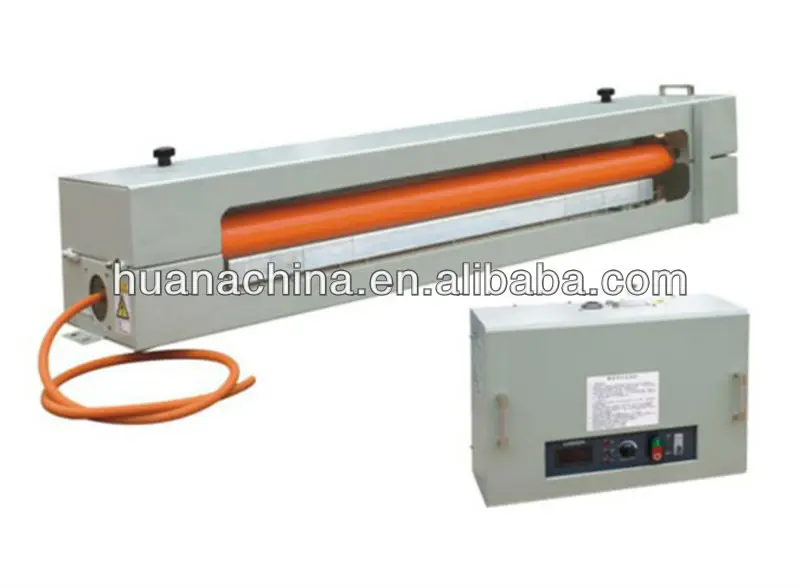

corona treament:













 screw:

bag sample :

loading&shipping :
