Factory Wholesale Plastic Wire Duct PVC Cable Tray Trunking Electrical Accessories
Material
GE - Rigid PVC. Self-extinguishing.UL94 V-0
GER - Lead Free PVC. Rohs.CE. Self-extinguishing. UL94 V-0
PVC provides a lightweight self extinguishing wiring duct with excellent rigidity and performance characteristics.
Features

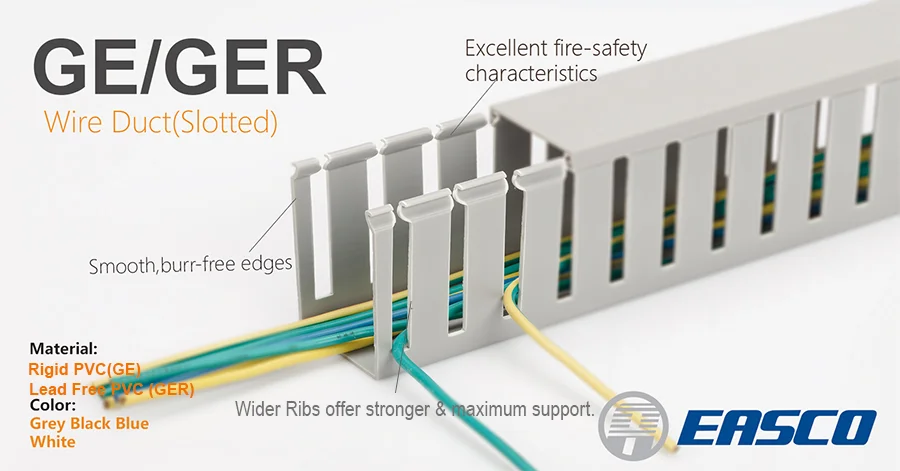

Aesthetics Open Slotted Wiring Duct Wide Slotted
1)Availabe in gray. RAL 7042. Other colors like blue.white.black is upon request of reasonable order.
2)Insulating, Shock-resistant and self-extinguishing thermoplastic in conformity with UL 94 VO
3)Dimensional stability from -40 to + 70 centigrade
4)CE or Rohs Complied.
5)The wider finger provides maximum supporting when filled with cables.
6)Different mounting holes to other types of EASCO wiring duct products. Easy mounting.
7)Smooth edges will not hurt you from burrs or sharp edges without abrasion
8)GE.GER Wiring Duct does completed with cover in the length of 2 Meter (~78") .Additional covers are sold separately.
UL94 V-0 Material Flame Rating
Self-extinguishing PVC provides a greater flame resistance enabling its use in more electrical applications
UL 94 is a plastics flammability standard released by Underwriters Laboratories of the USA.
V0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
The Wider Rib Slotted Wiring Duct is currently available in select sizes. Slot available in 8mm.

| GE - Rigid PVC. Self-extinguishing.UL94 V-0 | ||||
| Article-No. | Item No. | Slot 8mm Finger 18mm | WxHxL(mm) | Packing (pcs/pack) |
| 1101-00133 | GE2580 | L | 25x80x2000mm | 50 |
| 1101-00134 | GE3080 | L | 30x80x2000mm | 40 |
| 1101-00135 | GE3580 | L | 35x80x2000mm | 36 |
| 1101-00136 | GE4080 | L | 40x80x2000mm | 28 |
| 1101-00137 | GE4580 | L | 45x80x2000mm | 28 |
| 1101-00138 | GE5080 | L | 50x80x2000mm | 24 |
| 1101-00139 | GE5580 | L | 55x80x2000mm | 24 |
| 1101-00140 | GE6080 | L | 60x80x2000mm | 20 |
| 1101-00141 | GE8080 | L | 80x80x2000mm | 16 |
| 1101-00142 | GE10080 | L | 100x80x2000mm | 12 |
| 1101-00143 | GE12080 | L | 120x80x2000mm | 10 |
| 1101-00144 | GE14080 | L | 140x80x2000mm | 8 |
| 1101-00145 | GE33100 | L | 33x100x2000mm | 36 |
| 1101-00146 | GE40100 | L | 40x100x2000mm | 28 |
| 1101-00147 | GE48100 | L | 48x100x2000mm | 24 |
| 1101-00148 | GE50100 | L | 40x100x2000mm | 24 |
| 1101-00149 | GE60100 | L | 60x100x2000mm | 20 |
| 1101-00150 | GE70100 | L | 70x100x2000mm | 16 |
| 1101-00151 | GE80100 | L | 80x100x2000mm | 16 |
| 1101-00152 | GE100100 | L | 100x100x2000mm | 12 |
| 1101-00153 | GE120100 | L | 120x100x2000mm | 8 |
| 1101-00154 | GE160100 | L | 160x100x2000mm | 6 |
| GER - Lead Free PVC. Rohs.CE. Self-extinguishing. UL94 V-0 | ||||
| Article-No. | Item No. | Slot 8mm Finger 18mm | WxHxL(mm) | Packing (pcs/pack) |
| 1101-00155 | GER2580 | L | 25x80x2000mm | 50 |
| 1101-00156 | GER3080 | L | 30x80x2000mm | 40 |
| 1101-00157 | GER3580 | L | 35x80x2000mm | 36 |
| 1101-00158 | GER4080 | L | 40x80x2000mm | 28 |
| 1101-00159 | GER4580 | L | 45x80x2000mm | 28 |
| 1101-00160 | GER5080 | L | 50x80x2000mm | 24 |
| 1101-00161 | GER5580 | L | 55x80x2000mm | 24 |
| 1101-00162 | GER6080 | L | 60x80x2000mm | 20 |
| 1101-00163 | GER8080 | L | 80x80x2000mm | 16 |
| 1101-00164 | GER10080 | L | 100x80x2000mm | 12 |
| 1101-00165 | GER12080 | L | 120x80x2000mm | 10 |
| 1101-00166 | GER14080 | L | 140x80x2000mm | 8 |
| 1101-00167 | GER33100 | L | 33x100x2000mm | 36 |
| 1101-00168 | GER40100 | L | 40x100x2000mm | 28 |
| 1101-00169 | GER48100 | L | 48x100x2000mm | 24 |
| 1101-00170 | GER50100 | L | 40x100x2000mm | 24 |
| 1101-00171 | GER60100 | L | 60x100x2000mm | 20 |
| 1101-00172 | GER70100 | L | 70x100x2000mm | 16 |
| 1101-00173 | GER80100 | L | 80x100x2000mm | 16 |
| 1101-00174 | GER100100 | L | 100x100x2000mm | 12 |
| 1101-00175 | GER120100 | L | 120x100x2000mm | 8 |
| 1101-00176 | GER160100 | L | 160x100x2000mm | 6 |


Factory 26+ years manufacturing experience, Alibaba 7 yrs gold supplier -------- EASCO
EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, our product categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
