Stable alignment for buses/trucks,original truck wheel alignment laser type hot sale

Product Overview

Description



♦ Produce name:   Stable alignment for buses/trucks,original truck wheel alignment laser type hot sale ML-TAR-3

♦ Model No.: ML-TAR-3





♦ Product Details

√. Number of measurable axis: dual axis



√. Measurable vehicle length:   14m



√. Total toe-in of each axis: +10°~-10°(±0.02°)



√. Single toe-in of each axis: +5°~-5°(±0.01°)



√. Camber of each wheel:  +10°~-10°(±0.01°)



√. Caster of turning wheel: +25°~-25°(±0.03°)



√. K.P.I of turning wheel: +25°~-25°(±0.03°)



√. Nonperpendicular degree:  +10°~-10°(±0.02°)



√. Parallelism between main and vice turning wheels: +10°~-10°(±0.01°)



√. Parrallelism between main rear axle and vice rear axle: +10°~-10°(±0.01°)



√. Max. turning angle: +40°~-40°(±0.05°)



√. 20 degree anti toe-in: +5°~-5°(±0.03°)



♦ Standard Configure

Measuring Heads		4pc
Cabinet		1pc
Computer		1pc
Keyboard and Mouse		1set
Monitor(19")		1pc
Clamps		4pc
Turntables		2pc
Hanging target		2 sets

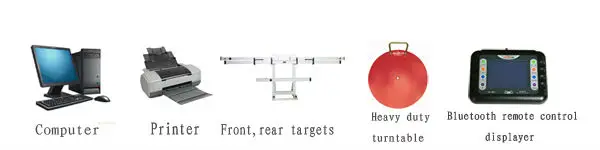

♦ Some Accessories Show

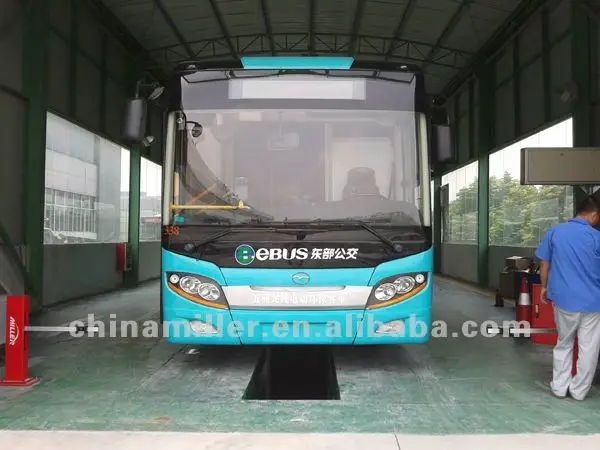

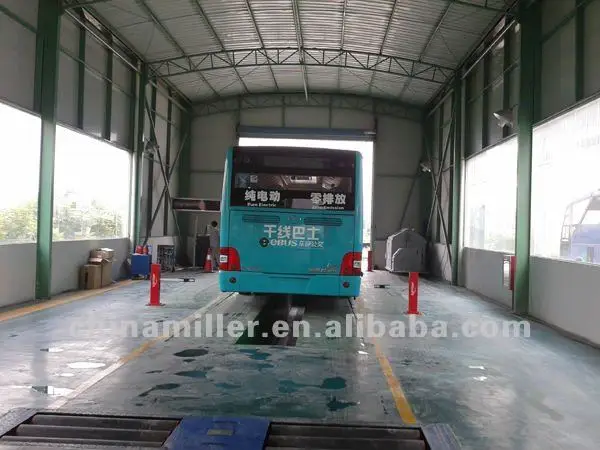

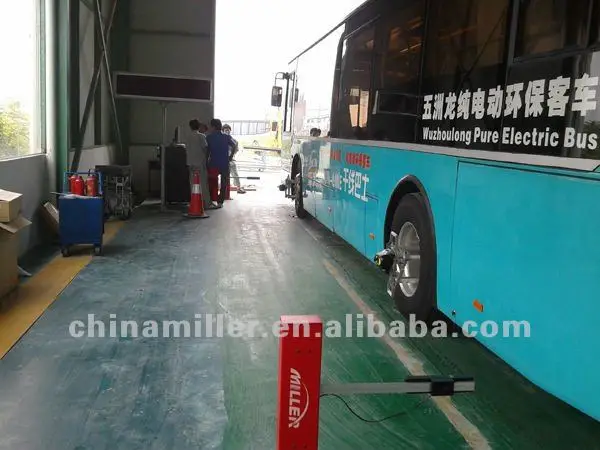

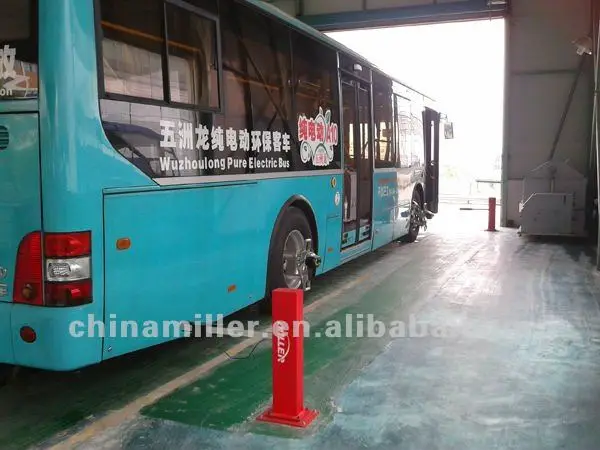

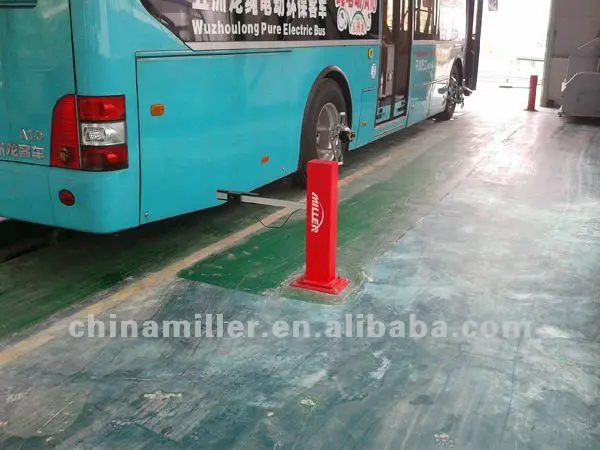

♦ Picture For Reference
