Tinned Copper Cable Machine offline tube wire annealing machine
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (1403197248):
Product Overview
Description

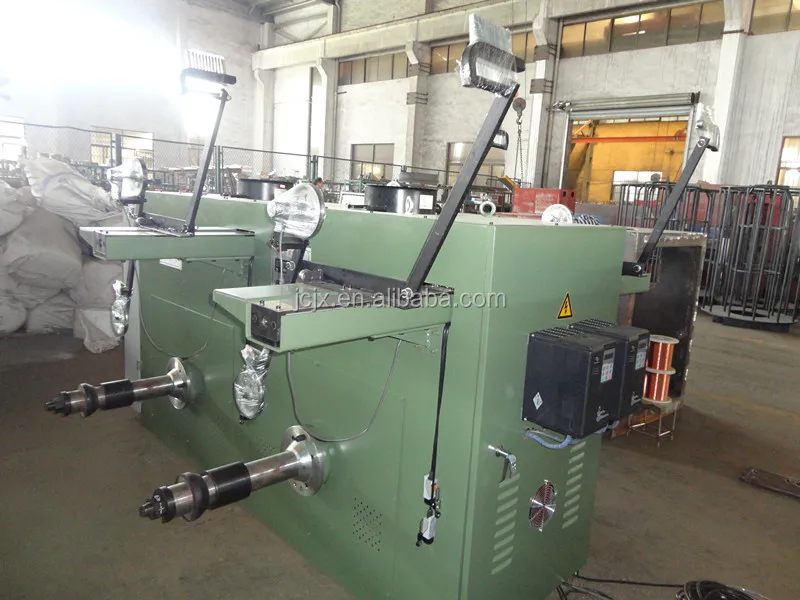

Offline Tube Wire Annealing Machine
Main Usage
It is used to annealing and tinning copper wire from 0.1mm-0.7mm.
Machine's advantage
(1) Add one room inside the annealer, can make the temperature impartial distribution.

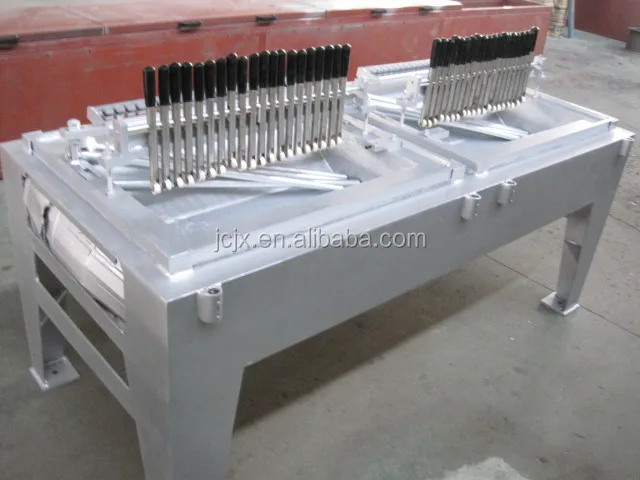

(2) Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
(3)Spooler arranged in double layer can save space.
(4)It is energy-saving(good heat preservation effect) and high efficiency(low maintenance rate).
Technical Parameter
Machine type | JCJX-40H/7.5 |
No.of wire | 40 |
Wire Dia.(mm) | 0.1~0.7 |
Pay-off Stand | Brush or overhead |
Max.speed(m/min) | 300 |
Annealing Type | Radiation heating |
Tinning type | Hot coating |
Pay-off Bobbin Size(mm) | 300 |
Take-up Type | Single spooler drive by torgue motor |
Traverse Type | Motor+inverter control |
Take-up Bobbin Size(mm) | 5″-10″ |
Total Power(KW) | 65 |
Key part brand
Japan NSK bearing
Switzerland belt
France Schneider electric
Shenzhen Inovance inverter
Our Services
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1) Correct operating mode
2) Correct maintenance way
3) Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part
2) 6 month for electrical part
Company Information
(1) We already have a history of 30 years.
(2) Attending a lot of exhibition at home and abroad.
FAQ
1.Q:Are you machinery factory or trading company?
A:We are machinery factory
2.Q:Where is your factory located?
A:We are located in Zhangjiagang City which is about 2 hours near Shanghai Airport
3.Q:How many years warranty?Can you teach us?
A: 12 months warranty. Oversea technician service is available. We can help you installation , debugging and training.
4.Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
5.Q:Can we order on alibaba.com?
A:Yes!Of course!We also we give you more discount if you order on alibaba.com.
Contact us
*Different of cable making equipment
*Wire drawing machine (multiple wire)
*Rod breakdown machine
* Offline annealing and tin-coating machine
* Rigid frame stranding machine
* Annealing machine
* Copper, Aluminum, Aluminum Alloy, Brass, Stainless Steel wire.
