Factory price fully automatic plastic bottle refined Canola oil filling machine and packing line
- Category: >>>
- Supplier: Shanghai Shouda Packaging Machinery & Material Co. Ltd.
Share on (1403663599):
Product Overview
Description
Factory price fully automatic plastic bottle refined Canola oil filling machine with CE,ISO
Product Description

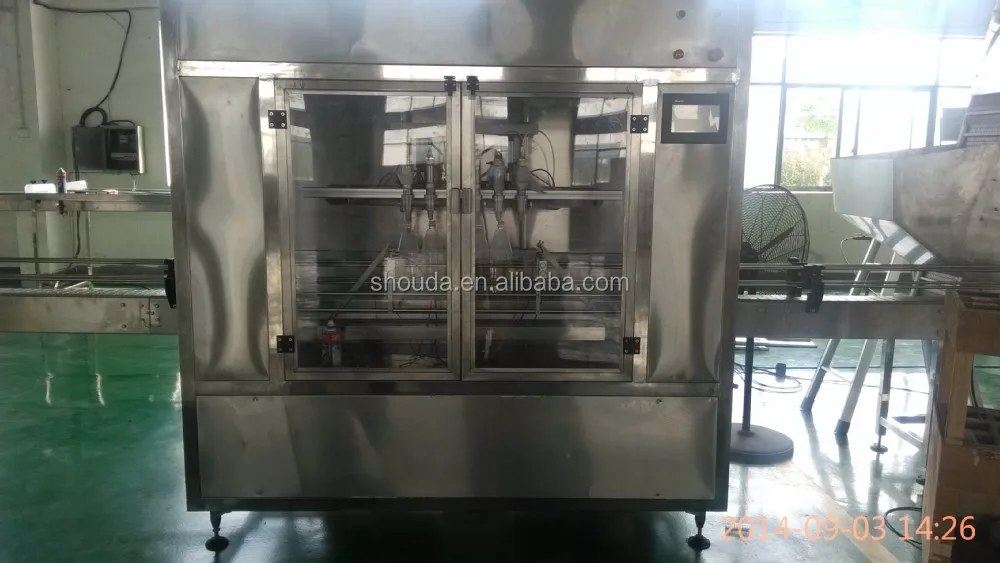

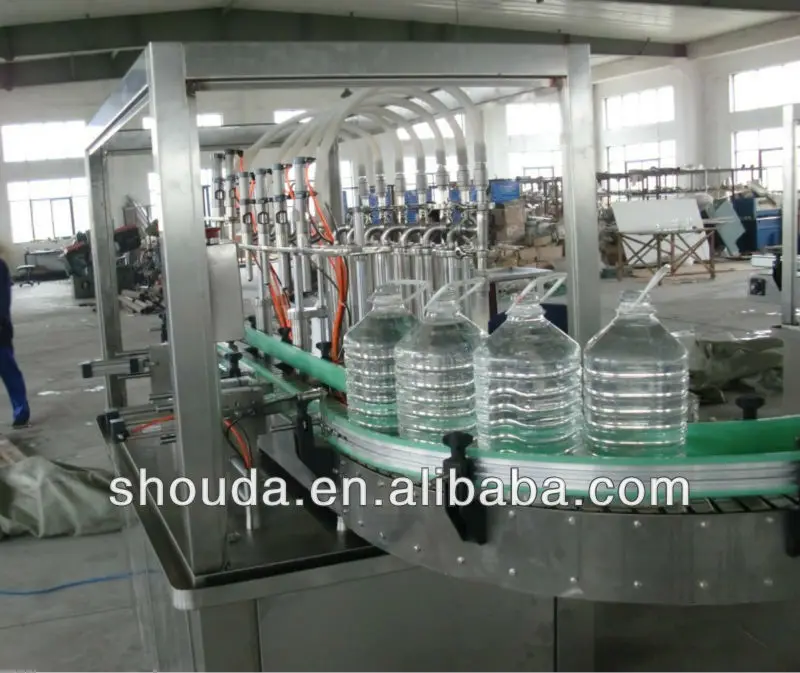

Introduction of oil bottling machine
This filling production line consists of GP turntable, XP rolling bottle rinser, viscosity filler, vacuumize jar capper, automatically finish the function of bottle infeeding, rinsing, hot filling, steam filling and capping. The filler equipped unique and particular non-return valve, sanitary, temperature, acid and alkaline resistance. Long life and high filling precious. The capper can fill steam, vacuumize the jar while the steam cooling to water, for good seal to keep the material fresh. Whole line fully meet to the requirement of GMP
Feature of oil filling machine
Adopts Piston pump/magenetic pump/weigher etc(depends on customers` material and filling quantity)
Filling nozzles with drip-proof
Conveyor with photo sensor
Machine cabinet
PLC and Human-computer touch screen. Etc no bottle, no filling
Using the rotating type pump and measuring the weight by Quantitative cylinder, filling quality is very accurate.
Main parameter of oil bottling machine :
Program | Automatic oil bottling Machine |
Filling head of oil bottling machine | 2, 4, 6, 8 , 10, 12 etc(based on the capacity) |
Filling volume of oil bottle machine | 0.5L, 1L, 1.5L ,2.5L, 5L,20L etc(customized) |
Filling speed of oil bottle machine | 1000-5000 BPH |
Filling precision of oil bottling machine | ≤±0.5% |
Power supply of oil bottling machine | 380V,220V 50-60HZ |
Power of oil bottling machine | ≤1.5kw |
Air pressure of oil bottling machine | 0.6-0.8MPa |
Net weight of oil bottling machine | 450kg |
Dimension of oil bottling machine (mm) | 1440*850*1600 |
1, Piston pump driven by Pnumetic cylinder/servo motor ( suitable for filling quantity that within 5L)
2, magenetic pump driven by servo motor (For filling quantity 0.1-1L)
3, weighing type with gear pump (For filling quantity of 5-200L)
3.1 Semi-automatic type(for small capacity or big filling quantity)

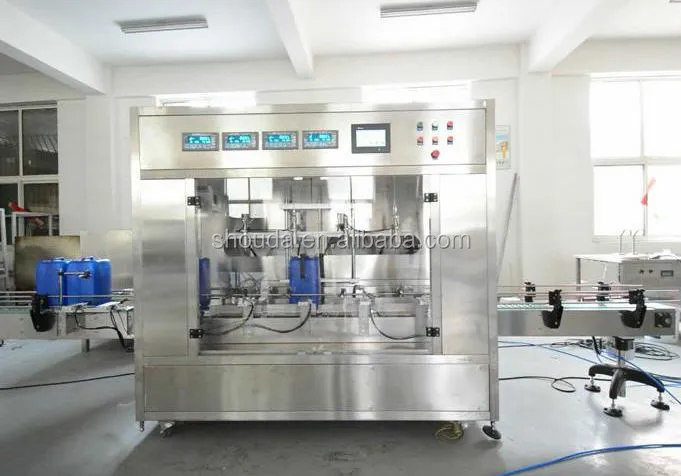

3.2 2/4/6/8/10 heads weighing and filling machine(suitable for filling quantity of 5-20L)
Product samples:
Packaging & Shipping
Standard Export Packing
1.Cover by PVC film + fumigated wooden case;
2.Wooden case suitable for long distance ocean shipping.
Our Services
After-sales service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.
Installation and Debugging
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
Company Information
Shanghai Shouda Packaging Machinery & Material Co., Ltd., which has over 15 YEARS' EXPERIENCE, is a professional manufacturer of automatic packaging machineries & automatic filling and packing production line for liquid, gel, aerosol product.
Shouda has passed CE certificate Standard of EU and meet the requirement of GMP. The company has gained wide reputation with the immediate and perfect round-the-clock service provided by senior engineers. Please bear in mind that Shouda will make you moved at the same time.
Samples show

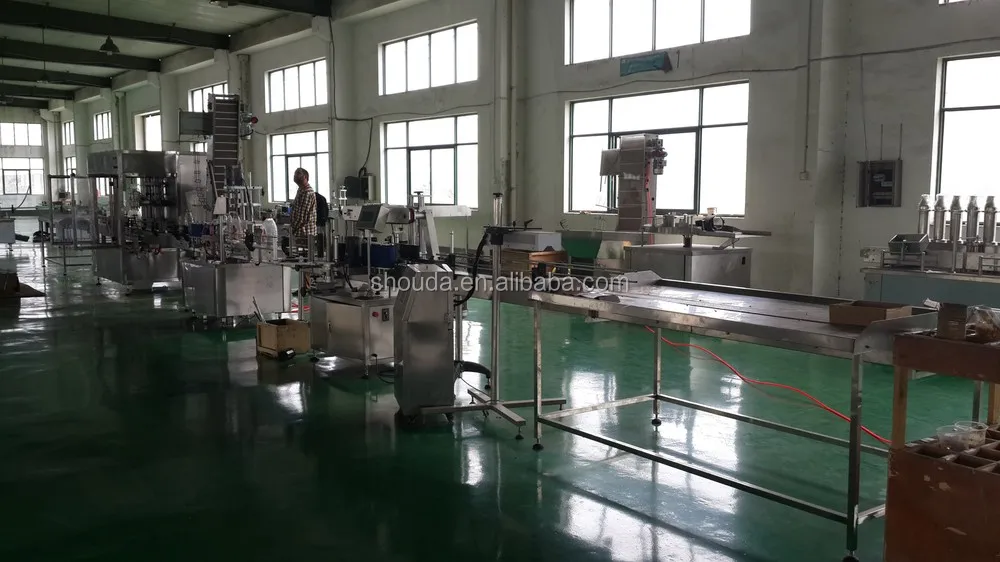

Photos of factory
Photos of warehouse
Certificate
FAQ
Our business involves various markets all over the world, in many fields with our excellent product performance.
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 15 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could confirm the details through emails or telephone.
4.Q:How much is the transportation freight?
A:The freight depends on the weight and size,also the destination port.
NOTE:When you send inquiry,please also included the capacity and bottles shape you need to work on the machine, it is easy and accurately for us to recommend a right machine! If any special,our manufacture also can design the machines according your requirement.
Enquiry information
When you send inquiry, please try to provide as much as possible information regarding to the target product. Such as, production capacity, bottle or sachet sizes and photos of target products so that we can provide the best proposal based on your details.
