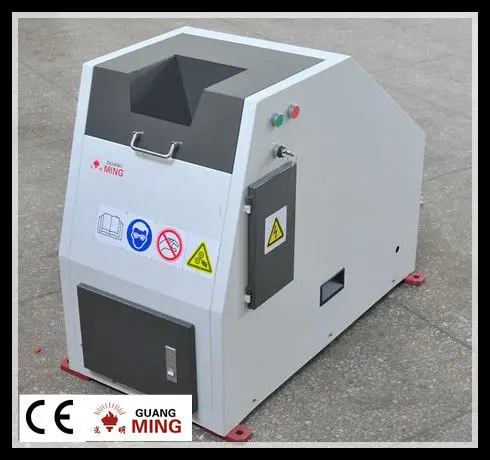

Geology laboratory equipment jaw crusher for component analysis

Product Overview

Description

The crusher is used for crushing high hardness ores or other solid material for component analysis. The kind of jaw crusher is especially suited for sample preparation work in the laboratory of nonferrous metal, metallurgy, chemic industry, environment protection, scientific research fields and so on.







Working principle:

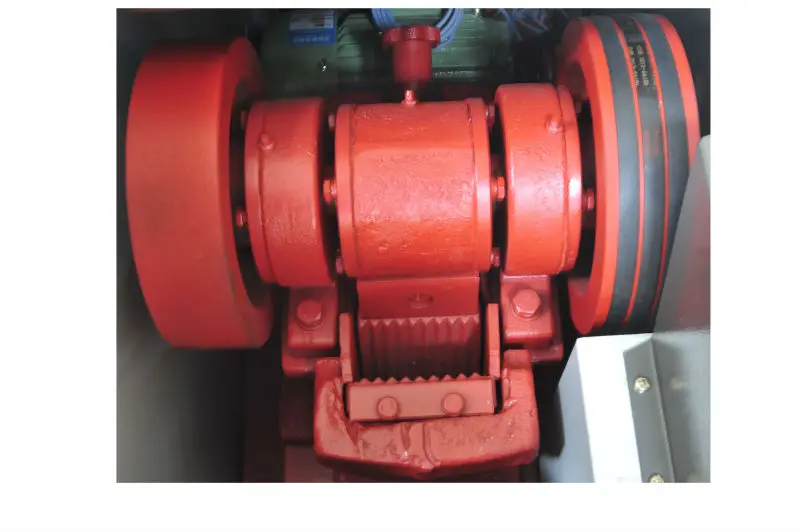

After starting the motor, triangle belt and motor belt wheel will drive the belt wheel and eccentric shaft to rotate, the movable jaw and movable jaw plate will do periodic movement, when the material passes through the no-rebound hopper and enters into crushing chamber, then the movable jaw plate and fixed jaw plate crush the material by friction.







Advantages:

1. The crusher is suited to crushing high hardness ore and nonferrous metal  and other high hardness solid.



2. The jaw plates are made of  high quality strength materials that make the crusher has good abrasive resistance and doesn't pollute the sample.



3. The jaw crusher has the advantages of discharging size equably, smooth operation, easy adjustment and long service life.



4. The frame of jaw crusher is made of the cast steel after heating treatment.

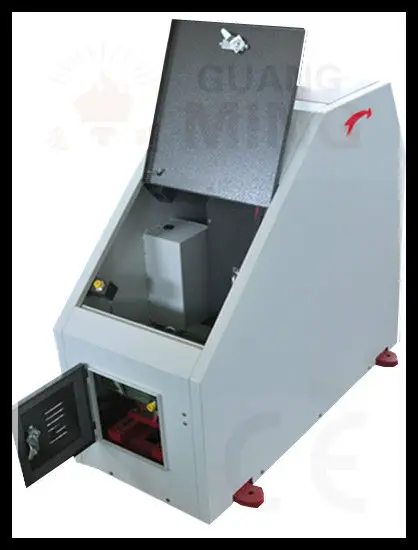

5. The dismountable door is very convenient for daily maintenance and inspection .



6. Mechanical-electrical integrated controlling and easy to operate.



7. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.



8. Total  static coating surface which makes the jaw crusher good appearance and easy to clean.



9. The jaw crusher can work normally on the flat ground without fixing any base.





Technical Parameters:



Environmental protection jaw crusher for high hardness material
Model No.	GM/SP-100×60H	GM/SP-100×100H	GM/EP-150×125H	GM/EP-250×125H
Feeding entrance size(mm)	100×60	100×100	150×125	250×125
Feeding size(mm)	≤48	≤80	≤100	≤200
Discharging size (mm)	0.2-15	0.2~20	6~38	10-40
Handling capacity(kg/h)	120-720	200-1030	500-1200	1000~3000
Working power supply (V)	380	380	380	380
Dimension (mm)	550×1000×750	570×1000×850	570×1140×850	800×670×1050
Motor power(kw)	2.2	3	5.5	11
Total weight (kg)	330	400	585	950





More details of the Jaw Crusher for high hardness material

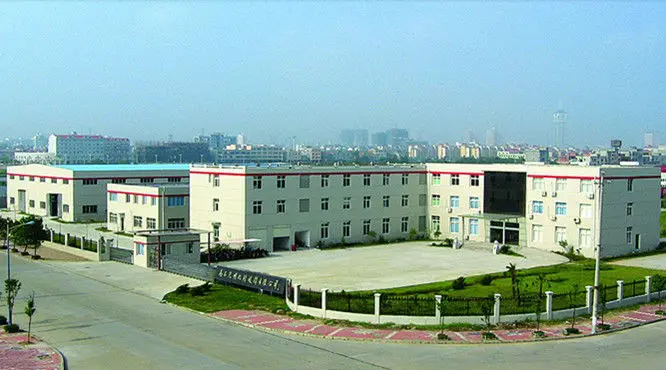

 Guangming Company View:
