4 color automatic keyboard pad printing machine with conveyor
- Category: >>>
- Supplier: Shenzhen Fu Fa Printer Industry Co. Ltd.
Share on (1404762844):
Product Overview
Description
Commodify Name : 4 color automatic keyboard pad printing machine with conveyor

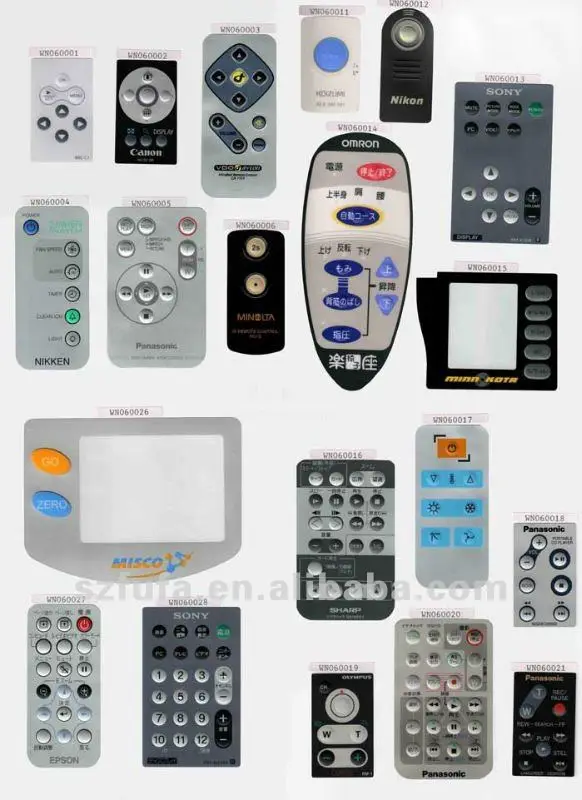

Application:It is widely used for many industrial products , including plastic, metal, ceramic, wood, glass, paper, rubber products, for example, mobile phone cover, panel of electric appliance, metal cup, ceramic tiles, wood door, perfume bottle, keyboard, remote-control unit and so on.
Parameters
Model No. | F-P200C4 |
Plate Size(mm) | 4"*8" (100x200mm) |
Printing Speed | 1200 cycles/hour |
Air Consumption | 5 bar |
Dimension | L1400 x W1500 x H1600mm |
Power | 220V 50/60Hz 60W |
Features:
1.Microprocessor control panel,simple and easy to use
2.Control panel with more than10 programs.
3.Adopting SMC pneumatic components, CNC process the mechanical parts precision, make sure machine reliable quality and have a good printing quality.
4.The stroke of pad moving forth/back, up and down can be adjusted.
5.Printing speed, worktable and ink cup base X-Y-R direction can be adjustable.
6.Pad, doctor blade, steel plate is easy to install, uninstall and clean.
7.Can install safety device which is complied with CE certificate according to the European security standard.
8.Machine frame made of alumium alloy, ensure machine running stable.
More options for you
One -stop service for you . also we can supply parts and consumbles
Packaging & Shipping
27 years exported experience to ensure safety arrive at your factory ( solid standard exported plywood case)
Our Services
24 hous online to serve you
Company Information
FUFA Industry Co.,Ltd was built in 1992 ,Professional on intelligent & automatic printing equipment ,Which have more than 27 years manufacturing experience ,We can supply standard and customized pad printer , screen printing machine . hot stamping machine .Mimaki UV printer etc
Our machine with CE ,ISO 9001 ,CO , SGS etc to ensure the quality and printing accuracy
FAQ
1. What is the pad printing process
Pad printing ,also called cliche printing ,uses silicone rubber pads transfer ink from the printing plate on the item
2. To finish pad printing product , Which spare part we need
To finish the printing , we need the ink and thinner ,pad(tampon),jig and cliche with logo
3.How to place order to your company?
Kindly send inquiry with the details product via alibaba or email ID to us
The skill sale will supply the profession guidance
4, Can I need to buy some parts for stock
We used SMC made in Japan pneumatic parts on machine . you can easy find it in local if need ,But we suggest you buy some easy damaged parts ,such as sensor ,PCB and power board etc
5. Can you make the sample to test the machine before order ?
Yes,we can print your sample with our current logo and ink If make the sample as you need . we will charge parts cost only ,Will re back it after you buy the machine
6. Can you supply the training ?
Yes , we can will supply the free training and make a video for you
7. What is the delivery time?
Standard machine : in stock and 4-8 days after confirm the order
Customized machine : According to exact product calculate
8. What is your after service ?
Details operation manual +Video support
1 year warranty
Lifelong technical support
What is pad printing ?
Pad printing is an indirect offset (gravure) printing process that involves an image being transferred from the printing plate (cliché) via a silicone pad onto a substrate (surface to be printed). There are two common methods used in inking the plates: the open inkwell system and the sealed ink cup (also known as closed cup) system.
Open ink well systems for pad printing (older technology) use a trough (ink well) for the ink supply,
located behind the printing plate. A flood bar pushes a pool of ink over the plate, and a doctor blade removes the ink from the plate surface, leaving ink on the etched artwork area ready for the padto pick up.
Sealed ink cup systems for pad printing (latest technology) employ a sealed container (ink cup), which
acts as the ink supply, flood bar and doctor blade all in one. A ceramic ring with a highly polished
working edge provides the seal against the printing plate
