food sterilizer retort for meat in glass jar sterilizer and tin can retort autoclave

Product Overview

Description

food sterilizer retort for meat in glass jar sterilizer and tin can retort



tin can retort tin can sterilizer retort sterilizer
glass jar sterilization equipment
meat in tin can sterilizer machine

food sterilizer retort for meat in glass jar sterilizer and tin can retort



tin can retort tin can sterilizer retort sterilizer
glass jar sterilization equipment


meat in tin can sterilizer machine



automatic sterilizer steam heating or hot water heating , used to sterilization of meat in glass bottle and glass jar

food sterilizer retort for meat in glass jar sterilizer and tin can retort



tin can retort tin can sterilizer retort sterilizer
glass jar sterilization equipment
meat in tin can sterilizer machine

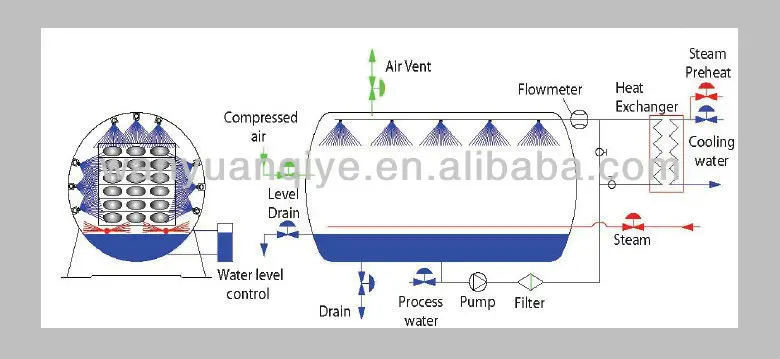

WATER SPRAY sterilizer autoclave WORKING PRINCIPLE

 FEATURES

•  sterilizer retort Excellent temperature distribution

• sterilizer retort Continuous process water

recirculation

• autoclave sterilizer retort Powerful steam and waterspray

heating

• sterilizer retort Efficient cooling

• sterilizer retort Top spray for cans or glass jars

• Side spray for trays or pouches

• sterilizer retort Continuous water level control and flow monitoring

• Programmable air-overpressure control

• Steam and water consumption minimal

how does the sterilizer retort autoclave work?



1.  WATER FILLING sterilizer retortautoclave







Prior to the start of the process, the retort is filled with a small volume of



process water (approx. 27 gallons/basket) such that the water level is below



the bottom of the baskets.  This water can be used for successive cycles if



desired, as it is sterilized with each cycle.







2.  HEATING sterilizer retortautoclave







Once the cycle is begins, the steam valve opens and the circulation pump is



switched on.  The mixture of steam and water spraying from the top and the



sides of the retort vessel creates highly turbulent convection currents that



rapidly homogenizes the temperature at every point in the retort and



between the containers.







3.  STERILIZATION sterilizer retortautoclave







Once the programmed sterilization temperature has been reached, it is held



for the programmed time within +/- 1º F.  Similarly, the pressure is kept



within +/- 1 psi by adding and venting compressed air as needed.







4.  COOLING sterilizer retortautoclave







At the end of the sterilization step, the retort switches into cooling mode.  As



the process water continues to be circulated through the system, a portion of



it is diverted through one side of a plate heat exchanger.  At the same time,



cold water passes through the other side of the plate heat exchanger.  This



results in the process water inside the retort chamber being cooled in a



controlled fashion.







5.   END OF CYCLE sterilizer retortautoclave







Once the retort is cooled to the programmed temperature setpoint, the cold



water inlet valve on the heat exchanger closes and the pressure inside the



retort is automatically relieved.  The water level is lowered from the

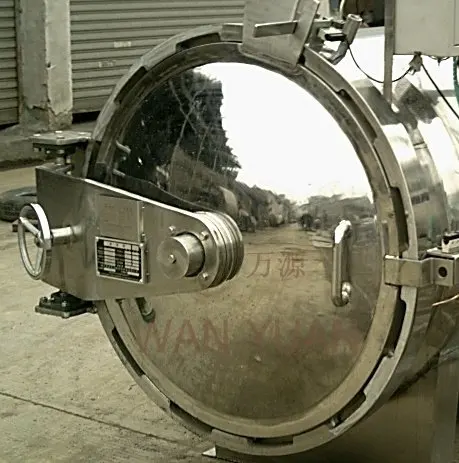

maximum down to the medium level.  The door is equipped with a safety



locking device which prevents the opening of the door in the case of residual



pressure or high water level.

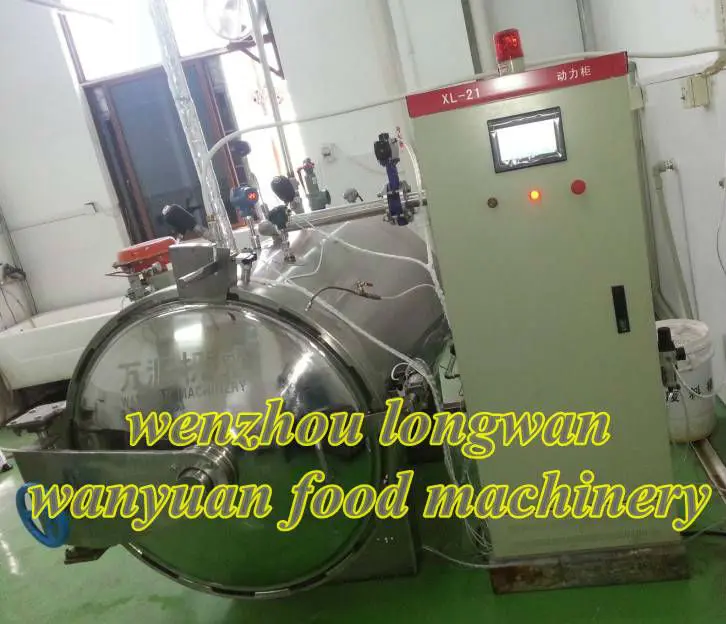

PLC control type automatic sterilizer retort autoclave

with CE certificate
