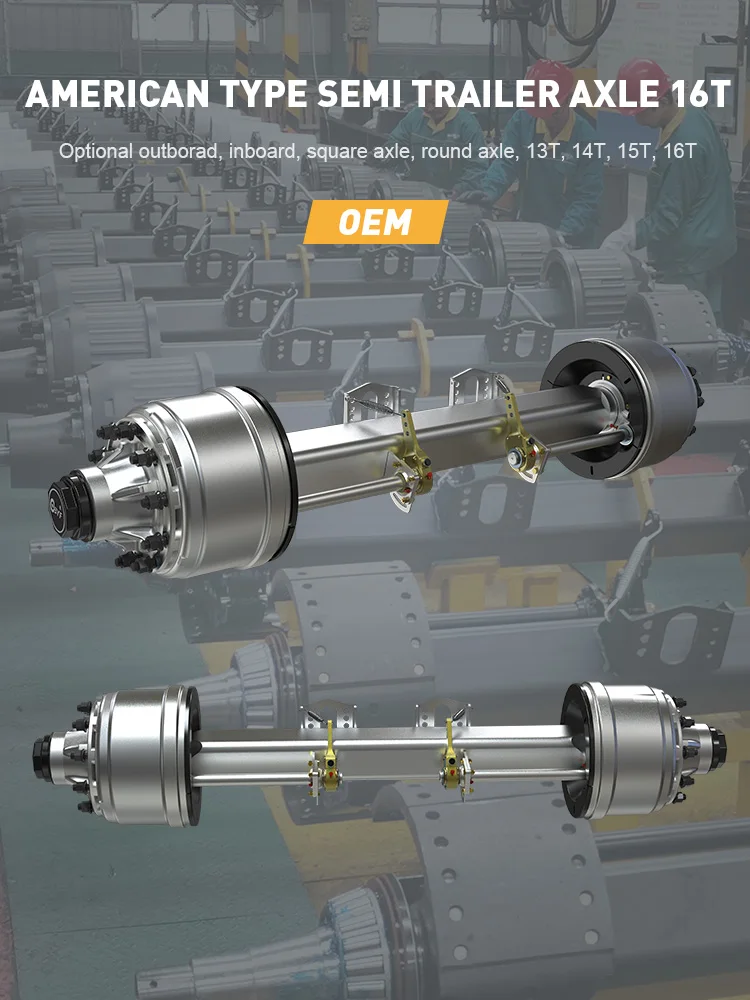

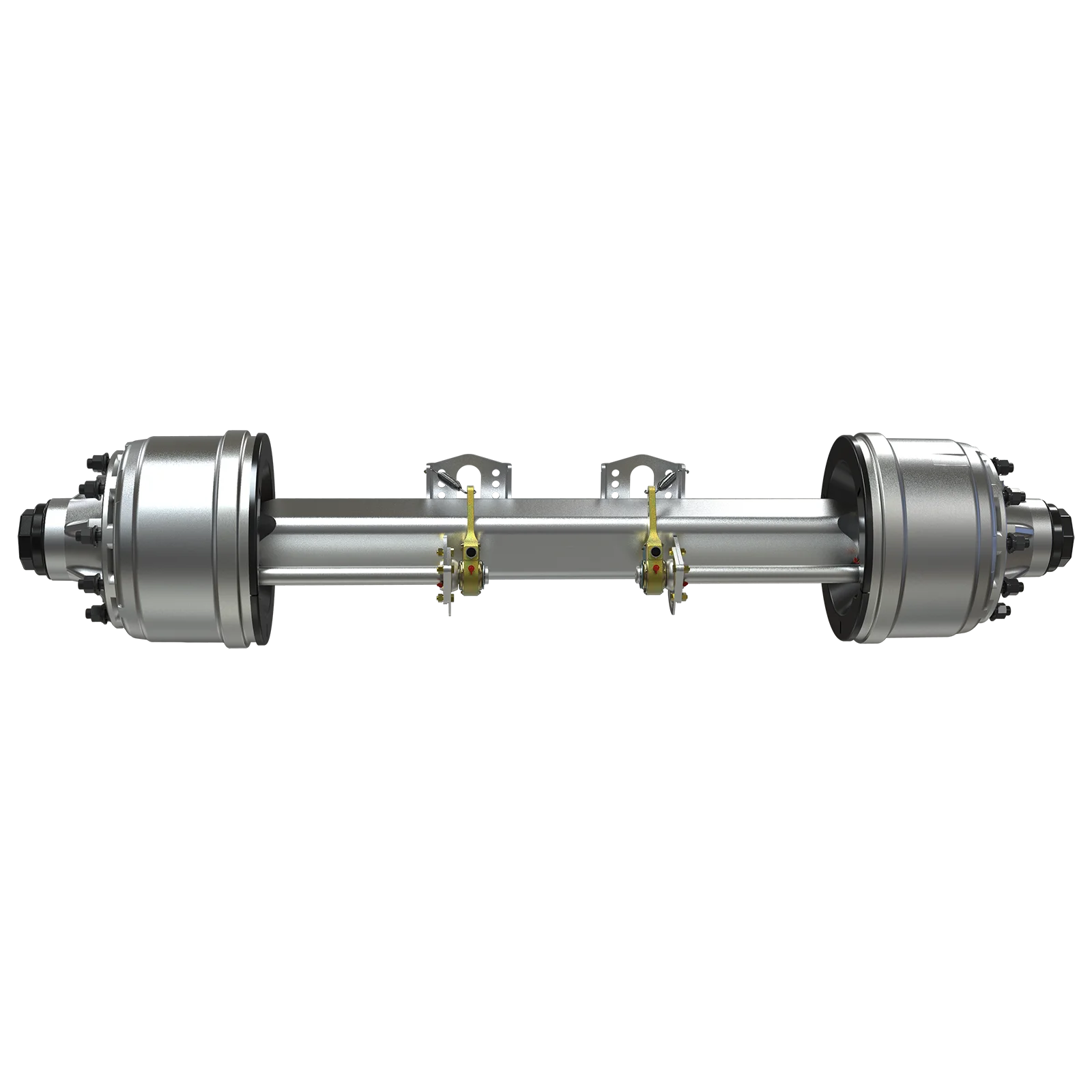

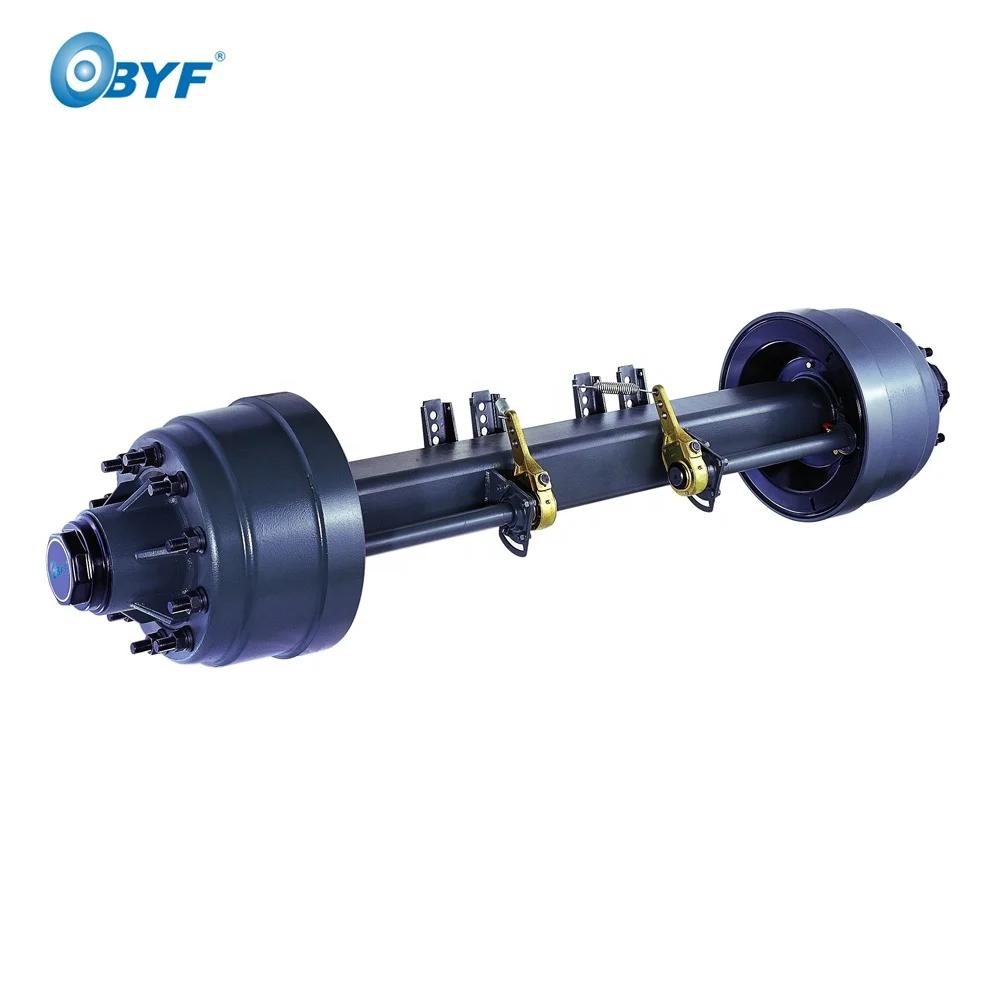

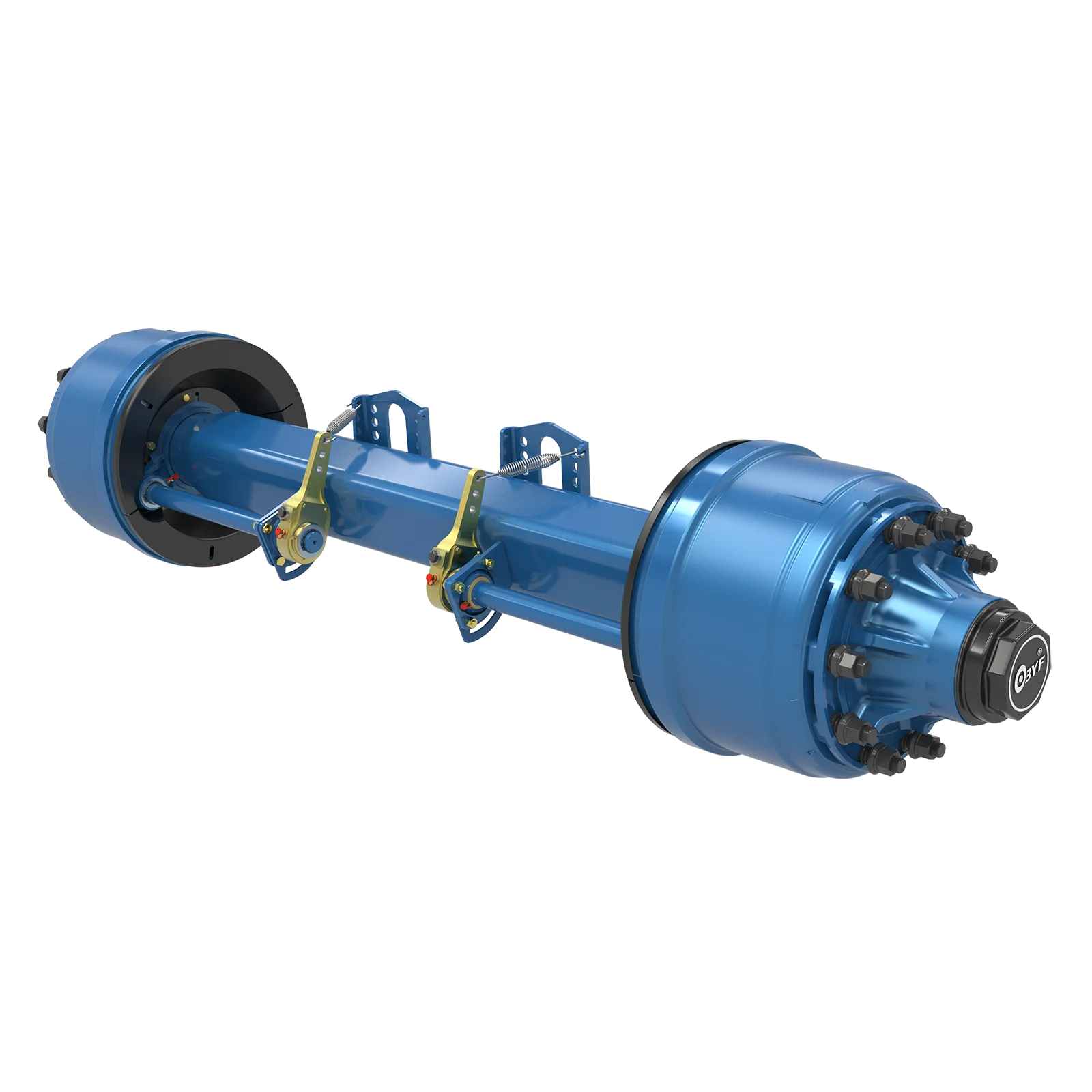

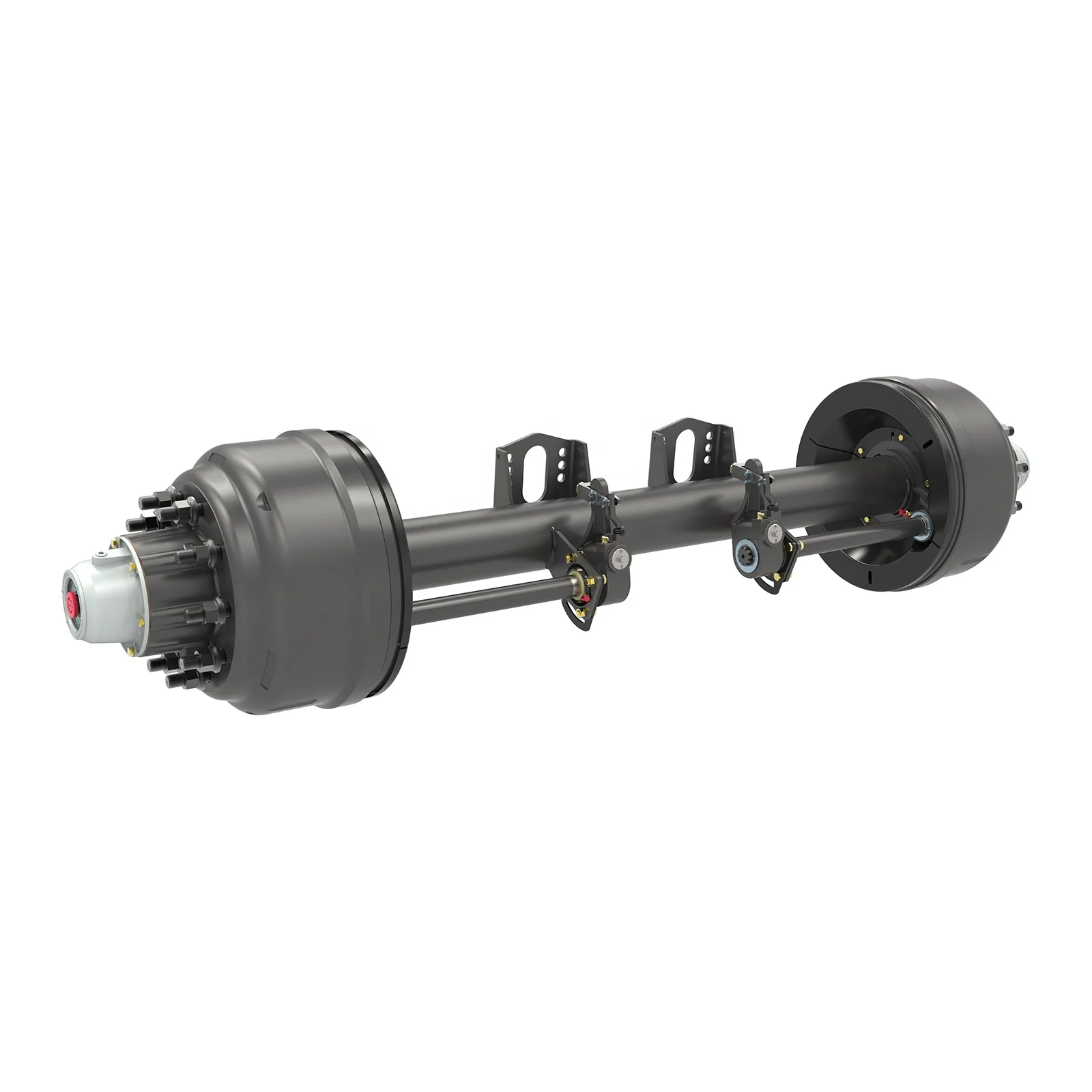

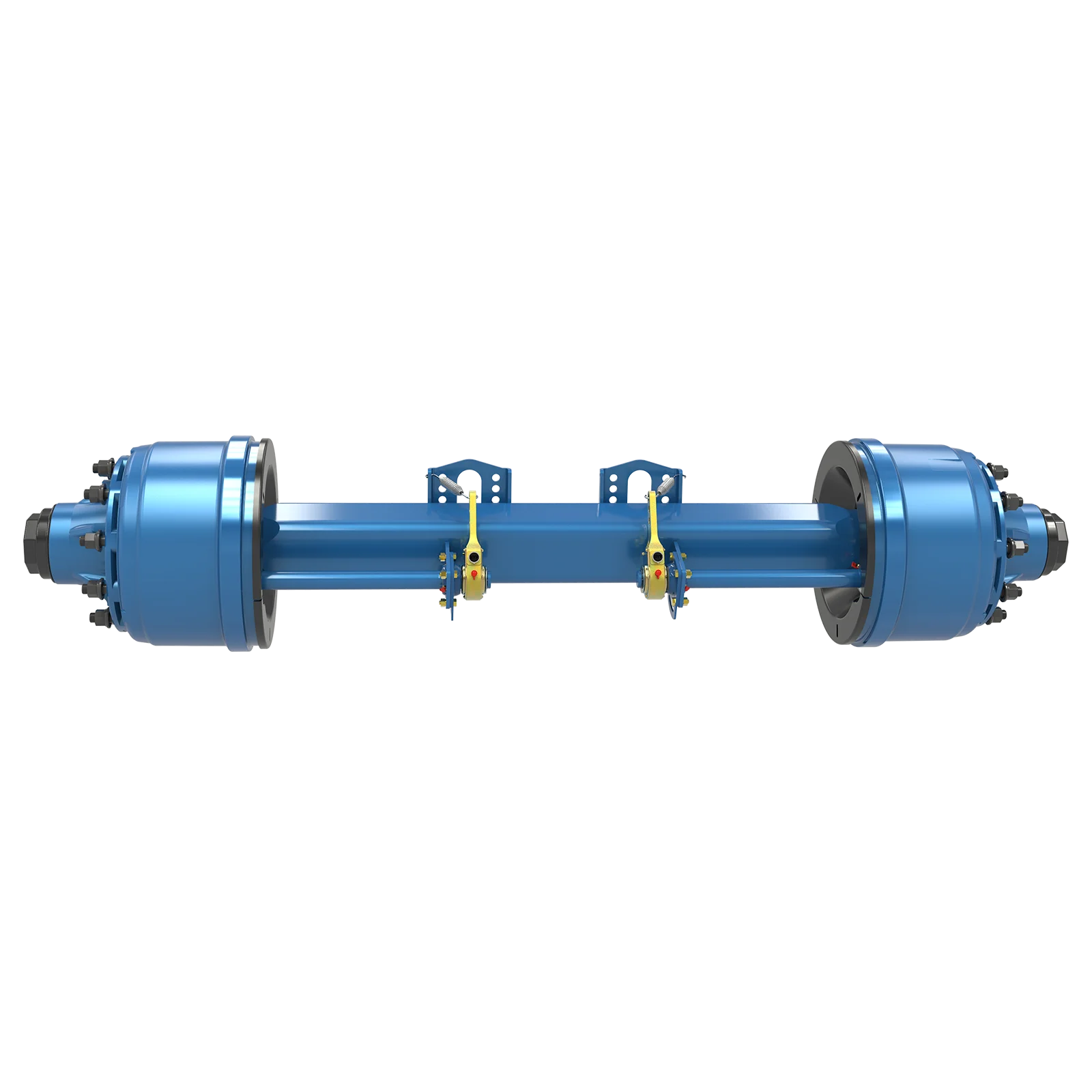

American Fuwa Type Axles 2205MM 16T Trailer Parts Square Inboard Drum Axle For Truck Semi Trailer
- Category: Trailer Parts & Accessories >>>
- Supplier: SHENZHEN BYF INTERNATIONAL LIMITED
Share on (1406008567):
Product Overview
Description

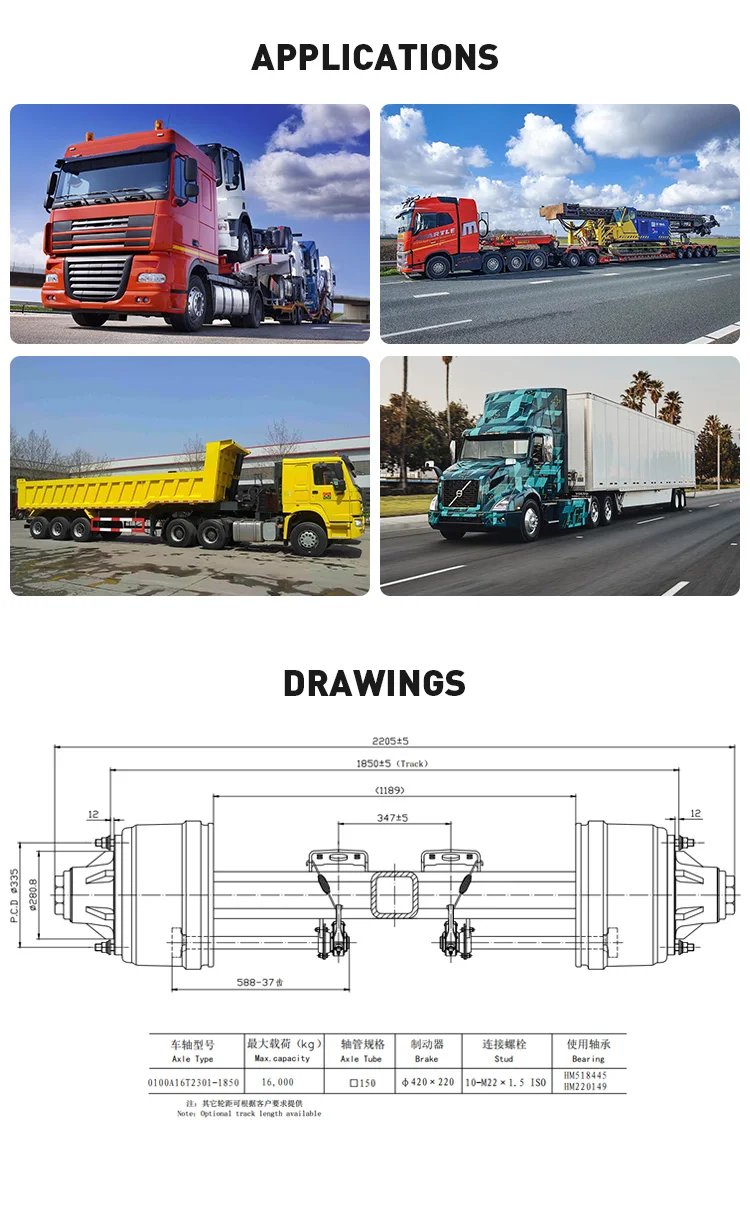

BYF Axle Drum Series Specification
| Max. Capacity | Track | Brake | Centre Distance Of Spring Seat | Axle Beam | Wheel Fixing | Total Length | ||
| Stud | P.C.D | Hole Diameter | ||||||
| 12 | 1820 | 420*180 | ≥950 | O127 | 10*M22*1.5 | 285.75 | 221 | ~2165 |
| 12 | 1820 | 420*180 | ≥950 | O127 | 10*M22*1.5 | 335 | 281 | ~2165 |
| 13 | 1840 | 420*180 | ≥930 | 150*150 | 10*M22*1.5 | 285.75 | 221 | ~2185 |
| 13 | 1840 | 420*180 | ≥930 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 15 | 1850 | 420*180 | ≥940 | O127 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 15 | 1850 | 420*180 | ≥940 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 16 | 1850 | 420*220 | ≥940 | O127 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 16 | 1850 | 420*220 | ≥940 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2205 |
Q: Are you trading company or manufacturer ?
A: We are professional factory with 20 years manufacturing history.
Q: How long is your delivery time?
A: Generally it is 3-7 days for the samples, 25-35 days for 1-3 container. it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: T/T in advance ,30% deposit, balance before shippment.
If you have another question, pls feel free to contact us as below.
