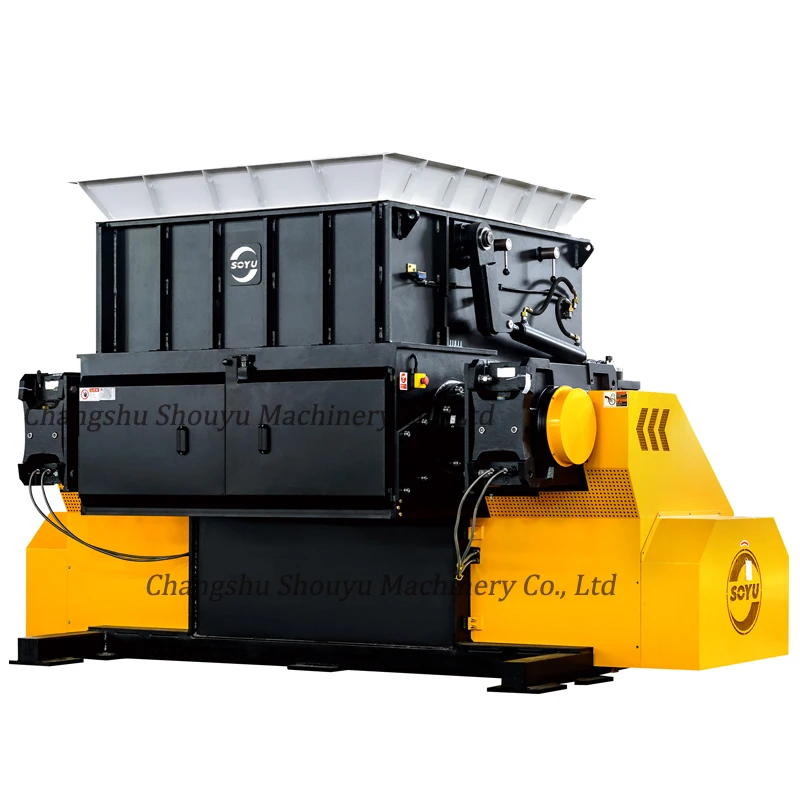

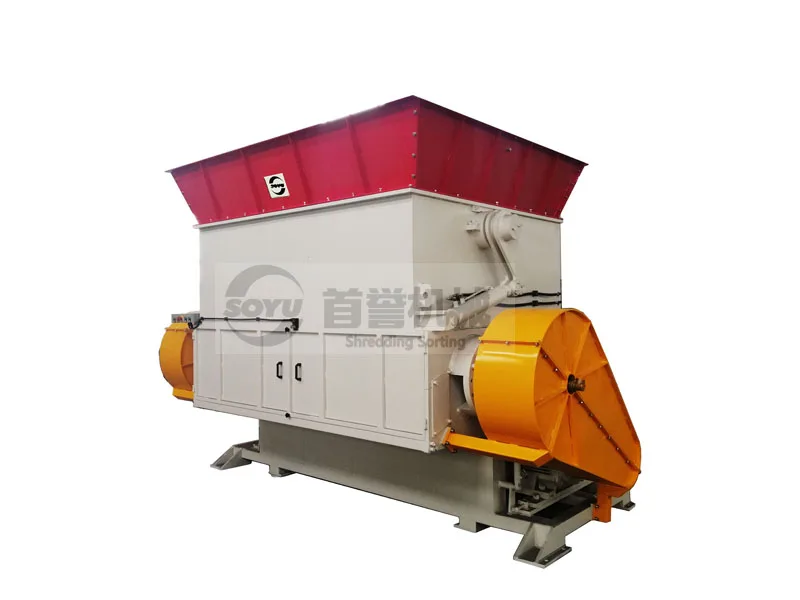

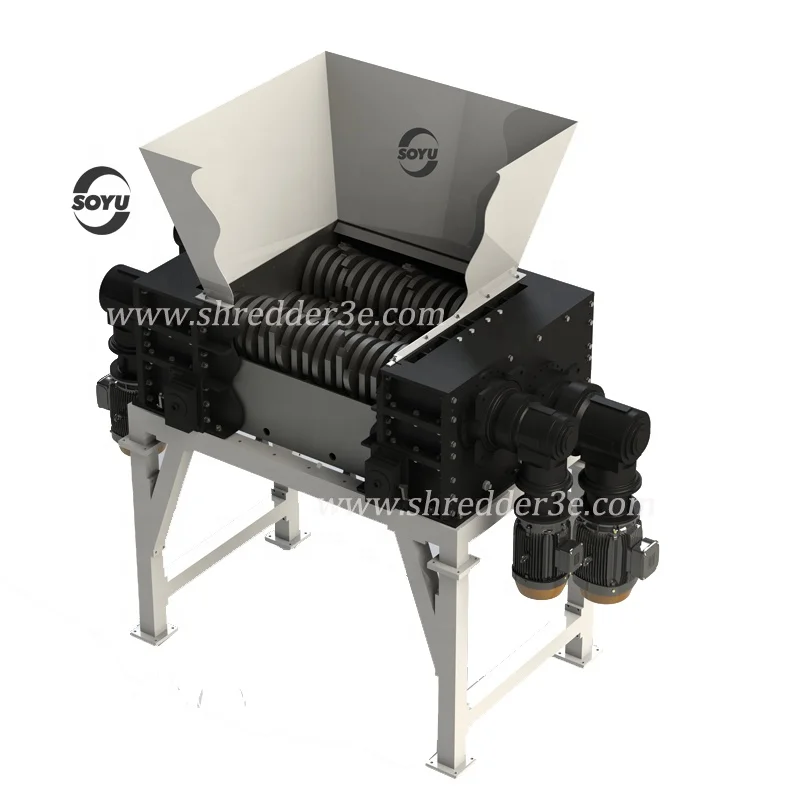

Custom Industrial Kitchen Food Waste Clothes Shredder And Shoes Shredder Machine For Sale
- Category: >>>
- Supplier: Changshu Shi Shouyu Machinery Co. Ltd.
Share on (1407365046):
Product Overview
Description
Product Overview

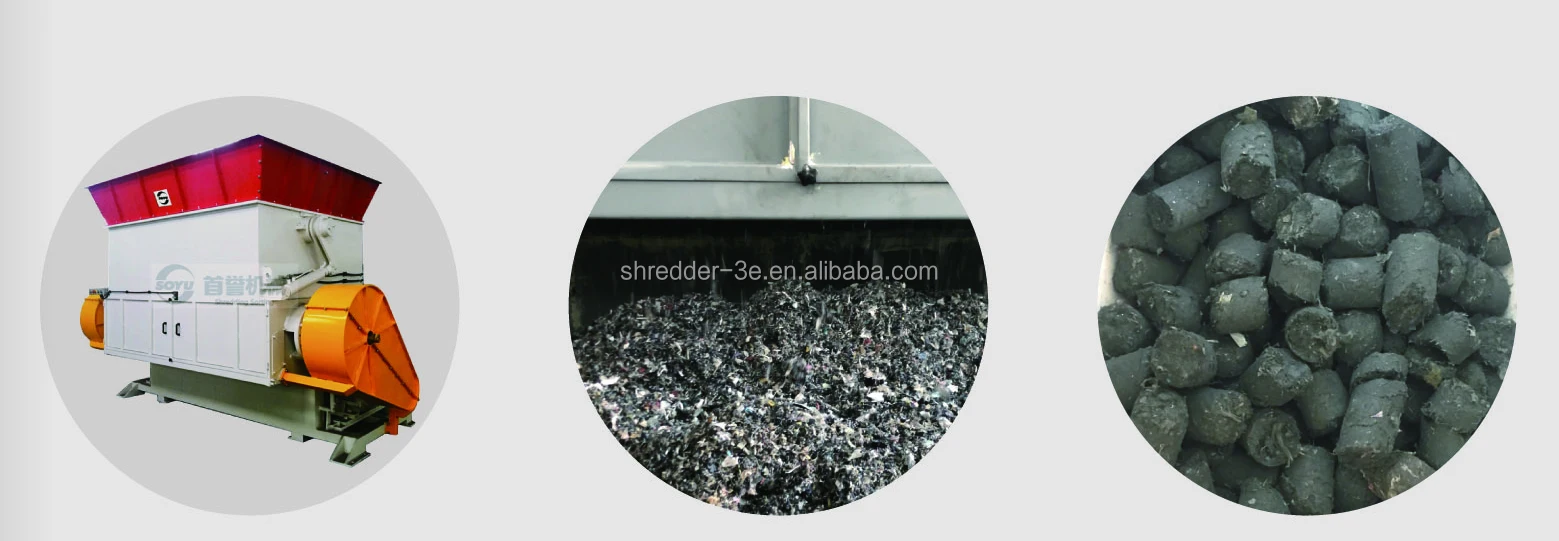

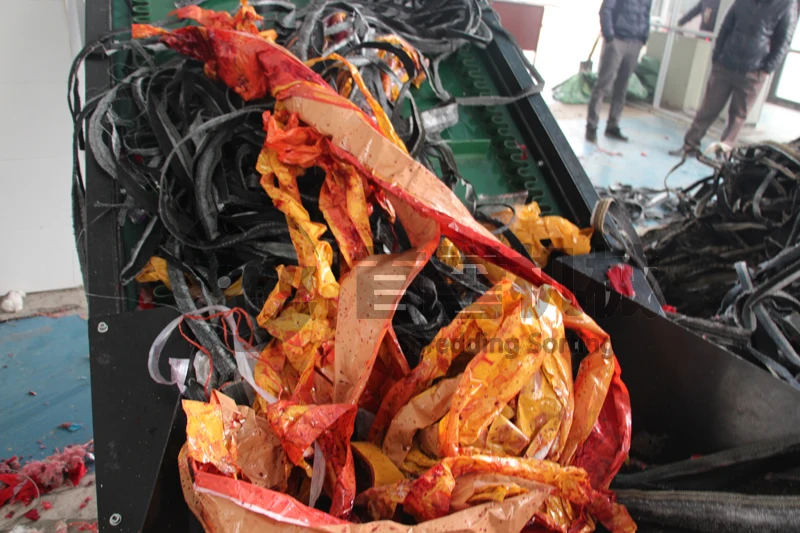

Refuse derived fuel (RDF) & Textiles shredding
RDF raw material is a mixture of many different materials ,so it has a strict request on machine long-term performance stability and blade anti-corrosion characteristics to shred both hard and soft materials such as metal ,plastic ,wood etc.Based on its many years ‘ professional crushing & manufacture experience ,SOYU absorbs advanced Italian technology and researches equipment suitable for RDF recycling filed .we can provide you with the complete solution project from pre-treatment to sorting and subsequently fine crushing steps
FEATURES AT A GLANCE
- Applications:
Textiles
System application
Straw power generation

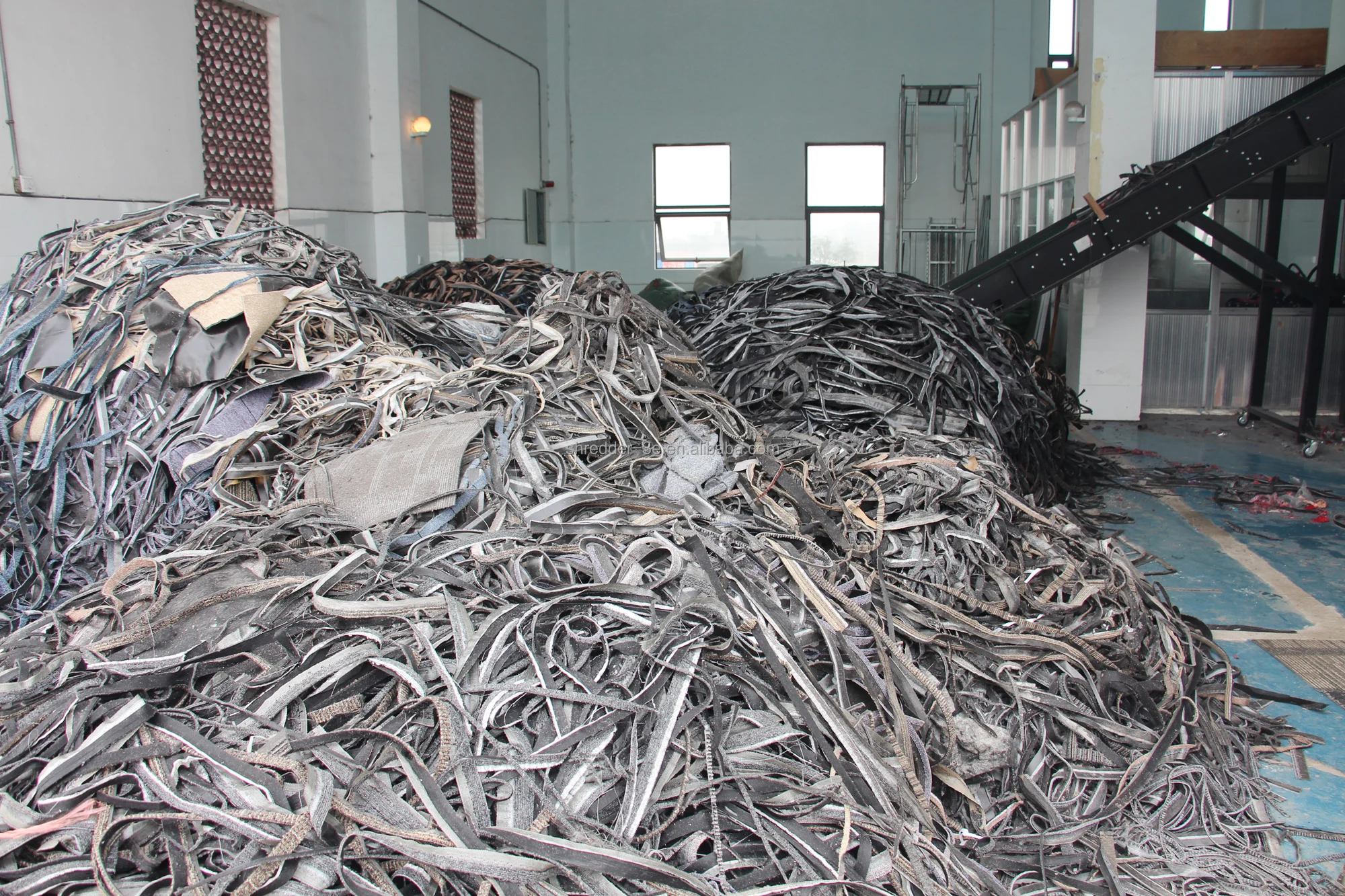

Waste clothes,shoes ,household refuse ,plastic
Cement plant matching power plant cogeneration
Paper mill matching power plant cogeneration
Rubbish incineration electricity generation
Household refuse landfill factory ( crushing before landfill )
Large and special industrial refuse disposal
Industrial boiler electricity generation
Household garbage compost
Straw power generation
Waste clothes,shoes ,household refuse ,plastic
Cement plant matching power plant cogeneration
Paper mill matching power plant cogeneration
Rubbish incineration electricity generation
Household refuse landfill factory ( crushing before landfill )
Large and special industrial refuse disposal
Industrial boiler electricity generation
Household garbage compost
PRODUCT CONFIGURATION
PRODUCT SPECIFICATIONS
Model | SR1400 | SR1600 | SR2100 |
Main shaft speed(rpm) | 73 | 73 | 73 |
Ram travel(mm) | 820 | 1000 | 1000 |
Rotor diameter(mm) | Φ400 | Φ480 | Φ480 |
Number of rotor blades(pcs) | 80 | 94 | 122 |
Number of fixed blades(pcs) | 10 | 12 | 16 |
Discharge height(mm) | 610 | 950 | 950 |
Screen holes diameter(mm) | 40 | 40 | 40 |
Motor power(kw) | 75~90 | 2x55~2x75 | 2x75~2x90 |
Hydraulic power(kw) | 5.5 | 7.5 | 7.5 |
Cutting chamber dimensions(mm) | 830x1302 | 1000x1533 | 1000x1995 |
Overall dimensions(LxWxH)(mm) | 2810x2890x2115 | 3475x4100x2700 | 3475x4900x2700 |
Weight(kg) | Approx 6200 | Approx 10800 | Approx 13000 |
Model | SRD1600 | SRD2100 | SRD2500 |
Main shaft speed(rpm) | 73-347 | 73-347 | 73-347 |
Ram travel(mm) | 470 | 470 | 470 |
Rotor diameter(mm) | Φ530 | Φ530 | Φ530 |
Number of rotor blades(pcs) | 54 | 69 | 72 |
Number of fixed blades(pcs) | 17+2 | 20+2 | 23+2 |
Discharge height(mm) | 792 | 792 | 792 |
Screen holes diameter(mm) | Φ40 | Φ40 | Φ40 |
Motor power(kw) | 2x75 | 2x90 | 2x110 |
Hydraulic power(kw) | 7.5 | 11 | 11 |
Cutting chamber dimensions(mm) | 1593x1626 | 2055x1626 | 2517x1626 |
Overall dimensions(LxWxH)(mm) | 2190x4100x2442 | 2190x4900x2442 | 2190x5400x2442 |
Weight(kg) | Approx 11000 | Approx 13500 | Approx 16000 |
SALES AND SERVICE NETWORK
Successful Project
Project in Russia
Project in Spain
Project in South Africa
Project in Italy
Project in India
Project in Japan
Project in South Korea
Project in UK
Project in Pakistan
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.

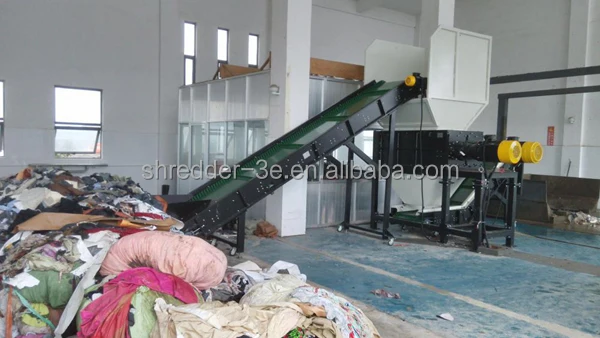

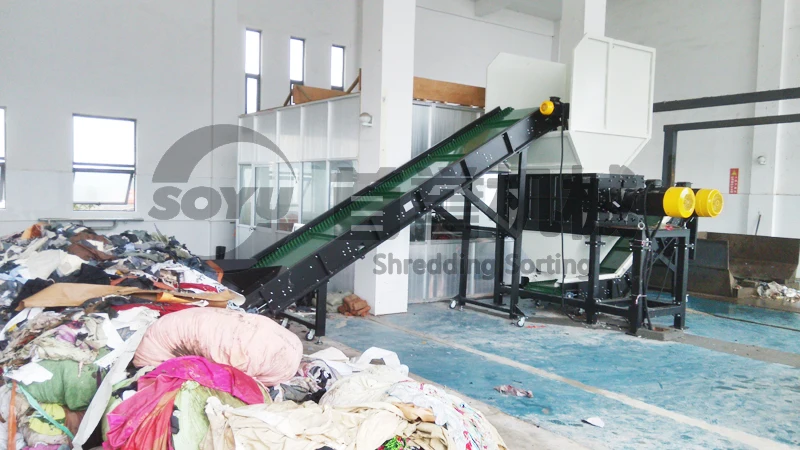

Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
SIMILAR PRODUCTS
Changshu Shouyu Machinery Co. (SOYU Machinery)
Changshu Shouyu Machinery Co. (SOYU Machinery) is a Chinese-Italian joint venture concentrated on the production of high-quality waste processing equipment. Relying on many years of experience in the production of shredders and crushers, SOYU Machinery is capable of providing our global customers with highly efficient, durable, and unparalleled crushing, separation, and recycling equipment. These products deliver a highly competitive price to performance ratio.
SOYU Machinery has passed ISO9001 quality management system certification and has obtained more than 10 national patents. We produce various types of crushing and separation machines in strict accordance with CE standards. Some of these products include single shaft shredders, two shaft shredders, and four shaft shredders. Our shredders and crushers are mainly used for materials recycling, waste shredding, and other applications for solid standard waste, hazardous waste, RDF, carcass disposal, medical waste, electronic scrap, plastic, paper, metal, and much more. We have established a globally spanning business network operating in over 50 countries and regions. Our products have been widely praised by our customers due to their high performance.For more than 10 years, Changshu SOYU has been involved in the Chinese recycling industry. We have assembled a well-trained, skillful, and dedicated R&D team who has made significant contributions to the industry, offering customers stable and energy saving waste size reduction machines. No matter your application, whether it be plastic shredding, materials recycling, or solid waste crushing,SOYU has what you need to provide you with a best fit solution including installation, adjustment, and maintenance, making us a perfect partner.
SOYU maintains a strict adherence to the business principles of professionalism, concentration, and quality. We have implemented a strong quality management control system that ensures raw materials purchasing, manufacturing, and after sales services are all carried out according to our strict standards. We employ a mature after sales service team and a technical staff that has the experience and skills to provide you with superior 24/7 services.
SOYU Machinery has passed ISO9001 quality management system certification and has obtained more than 10 national patents. We produce various types of crushing and separation machines in strict accordance with CE standards. Some of these products include single shaft shredders, two shaft shredders, and four shaft shredders. Our shredders and crushers are mainly used for materials recycling, waste shredding, and other applications for solid standard waste, hazardous waste, RDF, carcass disposal, medical waste, electronic scrap, plastic, paper, metal, and much more. We have established a globally spanning business network operating in over 50 countries and regions. Our products have been widely praised by our customers due to their high performance.For more than 10 years, Changshu SOYU has been involved in the Chinese recycling industry. We have assembled a well-trained, skillful, and dedicated R&D team who has made significant contributions to the industry, offering customers stable and energy saving waste size reduction machines. No matter your application, whether it be plastic shredding, materials recycling, or solid waste crushing,SOYU has what you need to provide you with a best fit solution including installation, adjustment, and maintenance, making us a perfect partner.
SOYU maintains a strict adherence to the business principles of professionalism, concentration, and quality. We have implemented a strong quality management control system that ensures raw materials purchasing, manufacturing, and after sales services are all carried out according to our strict standards. We employ a mature after sales service team and a technical staff that has the experience and skills to provide you with superior 24/7 services.
