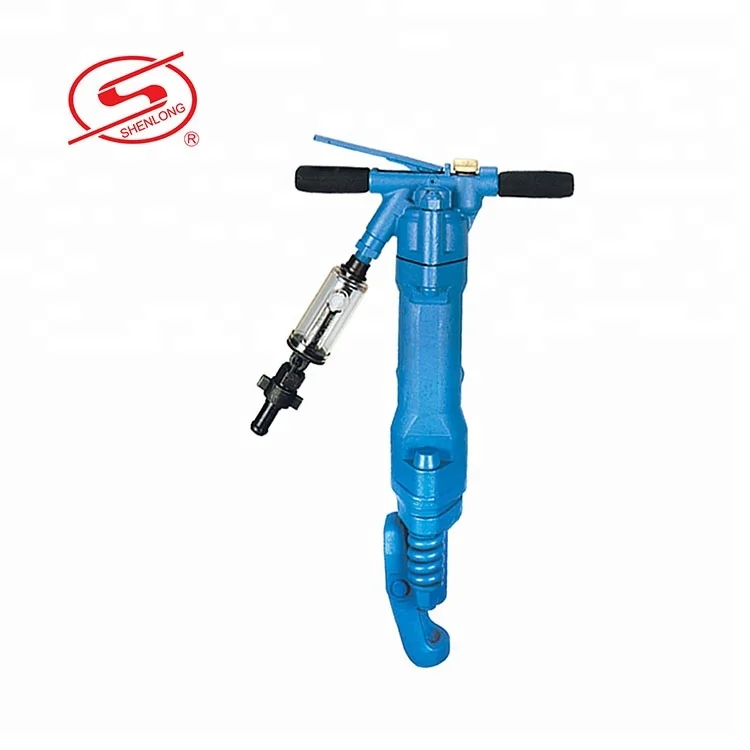

High Quality Mining Machinery Air hammer Pneumatic Breaker SL80 Hand held Pneumatic Jack Hammer

SL80 Jack hammer drill /paving breaker

The pneumatic pick is suitable for drilling in concrete and clay,destorying hard or frozen stratum and other functions. It has characteristic of reasonable structure,high efficiency and handy use .


Weight                                   37kg
Length                                   733mm
cylinder dia                          57mm
Piston stroke                       189mm
Air pressure                        0.63Mpa
Impact frequency             18.3Hz
Air consumption                34L/s
Air pipe inner dia              19mm
Lubrication capacity           30ml

Main Features

The pneumatic pick is suitable for drilling in concrete and clay, \t\t\t\t
destorying hard or frozen stratum and other functions. \t\t\t\t
It has characteristic of reasonable structure,high efficiency and handy use\t\t\t\t
Very high power to weight ratio\t\t\t\t
Takes standard size steels\t\t\t\t
Well balanced\t\t\t\t
Ease of maintenance\t\t\t\t

Usage:\t\t\t\t

Crashing in concrete and clay\t\t\t\t
Destorying hard rock\t\t\t\t
Blasting for railway construction ,\t\t\t\t
water conservancy construction and \t\t\t\t
defence project facility.\t\t\t\t

Advantage:\t

 \t\t\t
1. high efficiency\t\t\t\t
2.downward drilling \t\t\t\t
3.handly use\t\t\t\t
