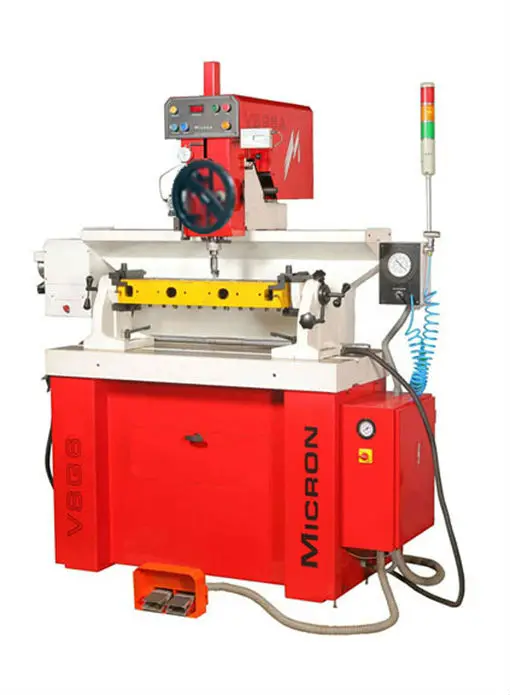

Valve Seat and Guide Machines

Product Overview

Description

Main Feature :



• Introduces  India’s First Double Air Float Centering System, Power Head And Work Head Air Floats Independently to insure Fast And Accurate Guide Centering
• Modern Modular Machine Bed Design For Improved Rigidity
• Machine is Made out of Quality Alloy of Graded Casting to Ensure Vibration Free Operation
• All Cast Parts Are Flame Hardened and Stress Relived, which Will lead to Repeated Accuracy  and Long Last
• Three angle Single Blades Inserts Cuts All three Angles at Once and Produce Accurate Finished Seat With” NO GRINDING” ” NO LAPPING”. They assure exact seat width from Head to Head plus Concentrically Between Seat and Guide
• Spindle Head Tilts to 20 degree on both Sides to accommodate any Guide Axi­­s For machining of All New Generation Imported and Indian Cylinder Head
• Quick Chill Half Turn Nut Offers fast Tooling Change from Modular Wide Selection range of  tooling and Spindle Adopters .Also Advance Design of Spindle Assembly Eliminates Bounce Spring that Other Use Over Their Pilots, The result is reduced time to complete job with less run out and Better Concentrically.
• Takes Minimum Floor Space to Handle the Complete Range Of Automotive and Industrial Cylinder Heads
• Dial In Any Spindle Speed 50 to 380 Rpm Without Stopping the Rotation
• User Friendly Ergonomic Design

S.no.	Technical Data	Specification
1	Valve Seat Diameter Std	25mm – 60mm
	Optional	18mm-120mm
2	Maximum Cylinder Head Length (with 360° rollover fixture)	( 42”)   1070mm
3	Maximum Cylinder Head Length (with Out fixture)	(  44”)  1118mm
4	Maximum Spindle Stroke	(  7 ”)     180mm
5	Maximum Tilt (either side of zero)	20 degrees
6	Distance from Table to Spindle	( 17.5”)   445 mm
7	Spindle Speed	50 to   380 rpm
8	Electrical Requirements	3 phase, 15 amp  1.0 HP
9	Air Requirements	( 7 Bar) 100 psi, 6cfm
10	Space Requirement	1460 X 710 X 2000 mm
11	Shipping Weight	1100 kg Approx.
