ATEX CE cordless LED Miner Cap Lamp, head lamp, mining lights

Share on (1407848405):


Price:RUB 5,574.54 - RUB 6,317.81

Quantity:


Product Overview

Description

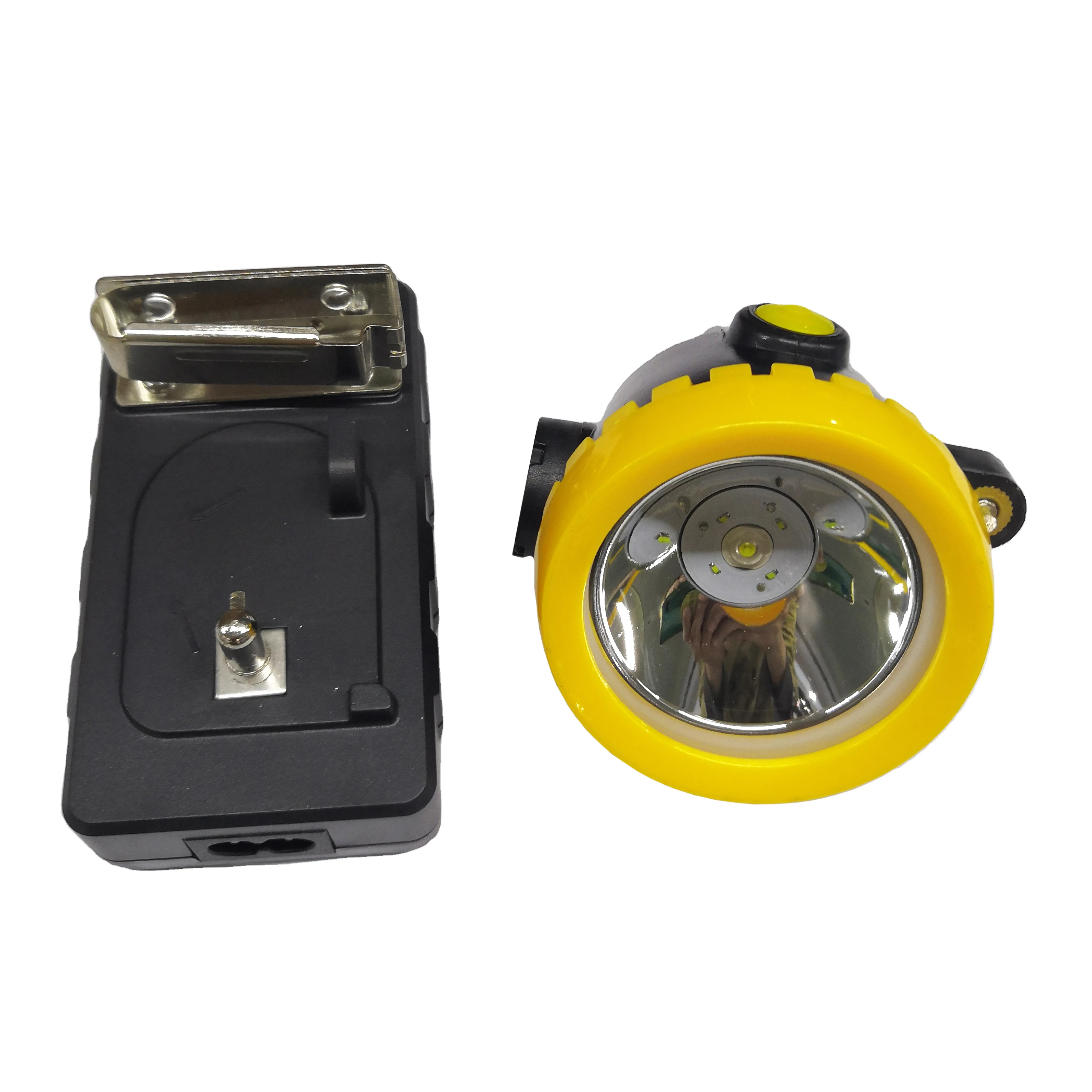

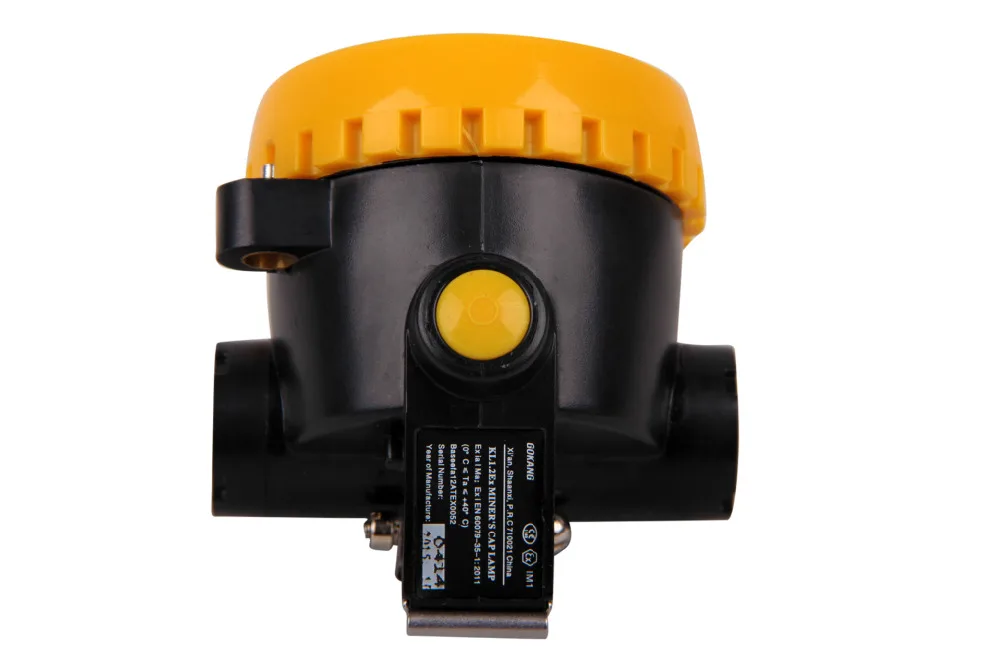

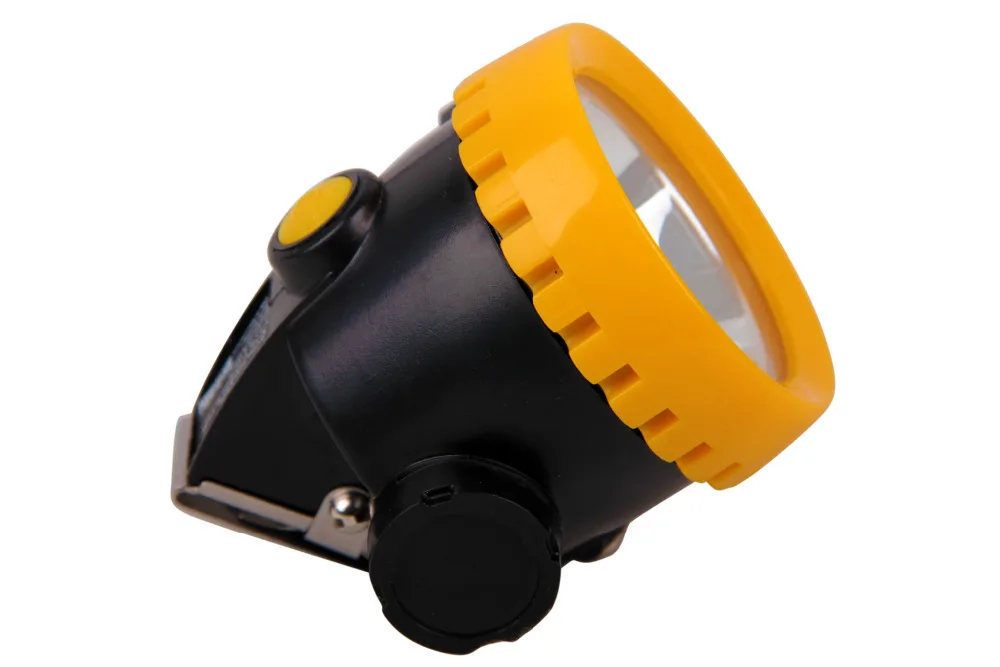

KL1.2Ex LED Miner’s cap lamp





•       ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard: EN 60079-0:2012, EN 60079-11:2012, EN 60079-35-1:2011, EN 50303:2000

•       It is specially designed for use in underground mining operations, tunneling.

•       Adopts 1400mAh capacity lithium-ion batteries and latest LED light source, with all-in-one design, very small and light.

•       The light source has1 main light for working and 4 auxiliary lights for emergency lighting, main light max illumination reaches to 3500Lux, working time more than 11 hours.

•       Built-in micro-controller and multiple safety protective circuit, intelligent management of charging & discharging process ensure the safety and reliability.

•       LED constant current driving mode ensures the light intensity of illumination basically remain unchanged after 11 hours' lighting.



Main specification

Item

KL1.2Ex

Battery style

                        Li-ion

Rated capacity

1.4Ah

Rated voltage

3.7V

Lighting time

11h

Main light source

Working current

0.12A

Max luminance

(1m away from the lamp)

When lighting begins

3500 lx

After lighting for 11h

2000 lx

Sub-light source rated power

0.2W

Life of cap lamp

2 years

Charging Voltage

(6-8)V

Charging time

8h

Explosion protection

Ex ia I Ma

Protection grade

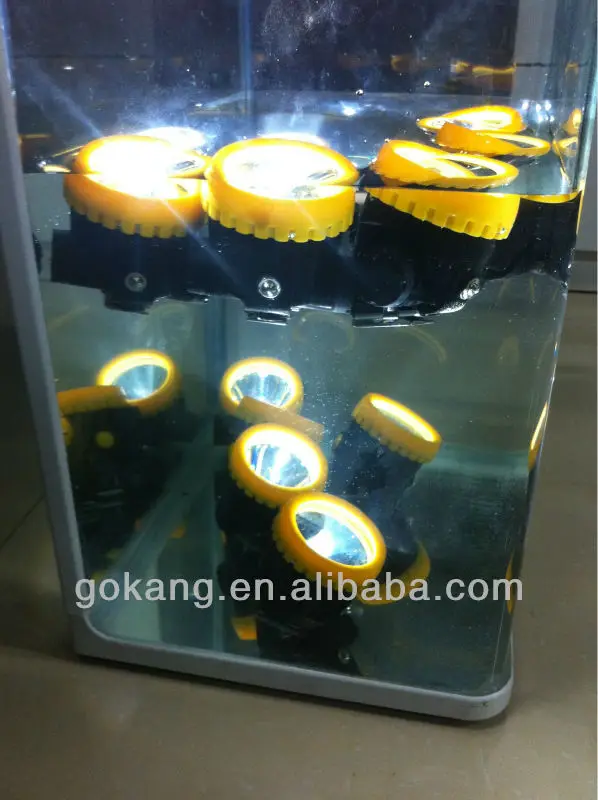

IP65

Exterior dimensions

Φ67x82x73mm

Weight

0.2kg



ali ps  (5)KL1.2Ex lamp miner

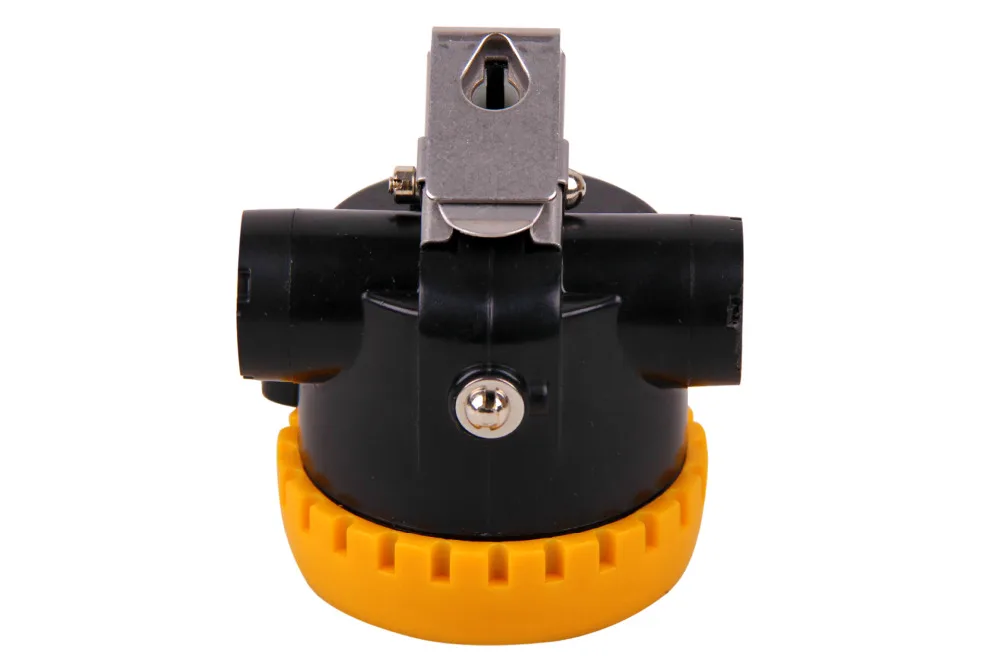

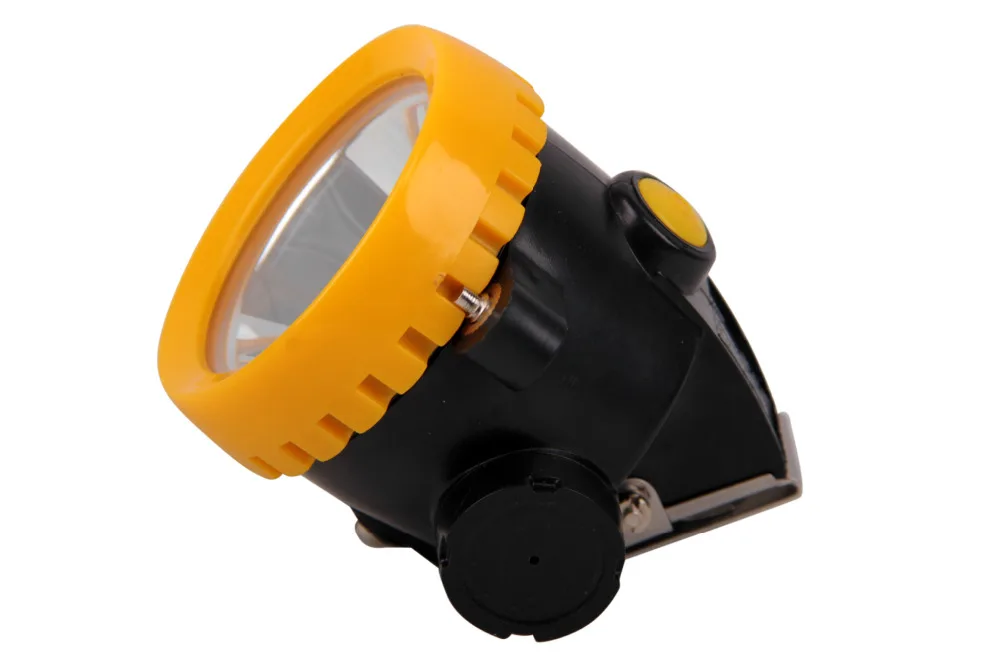

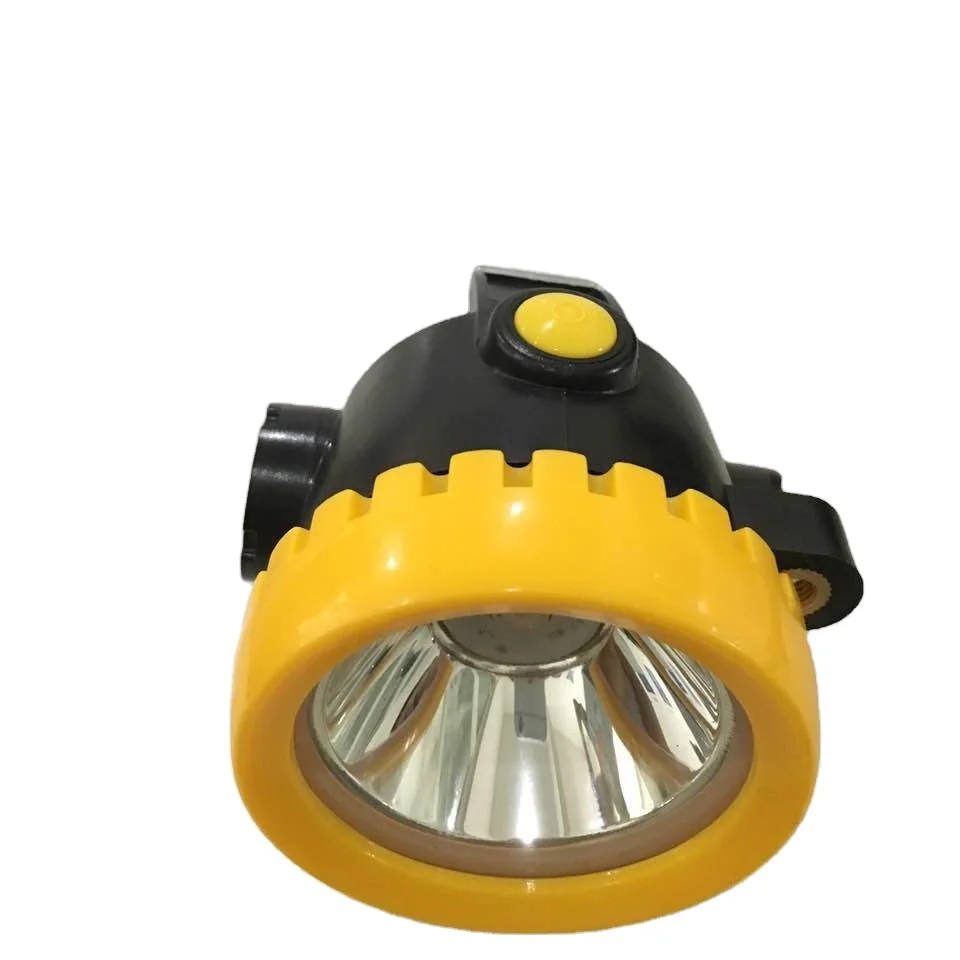

Hab8da51fb42b48b8a71b6736fe435366i.jpgIMG_0548IMG_0543IMG_0541IMG_0547

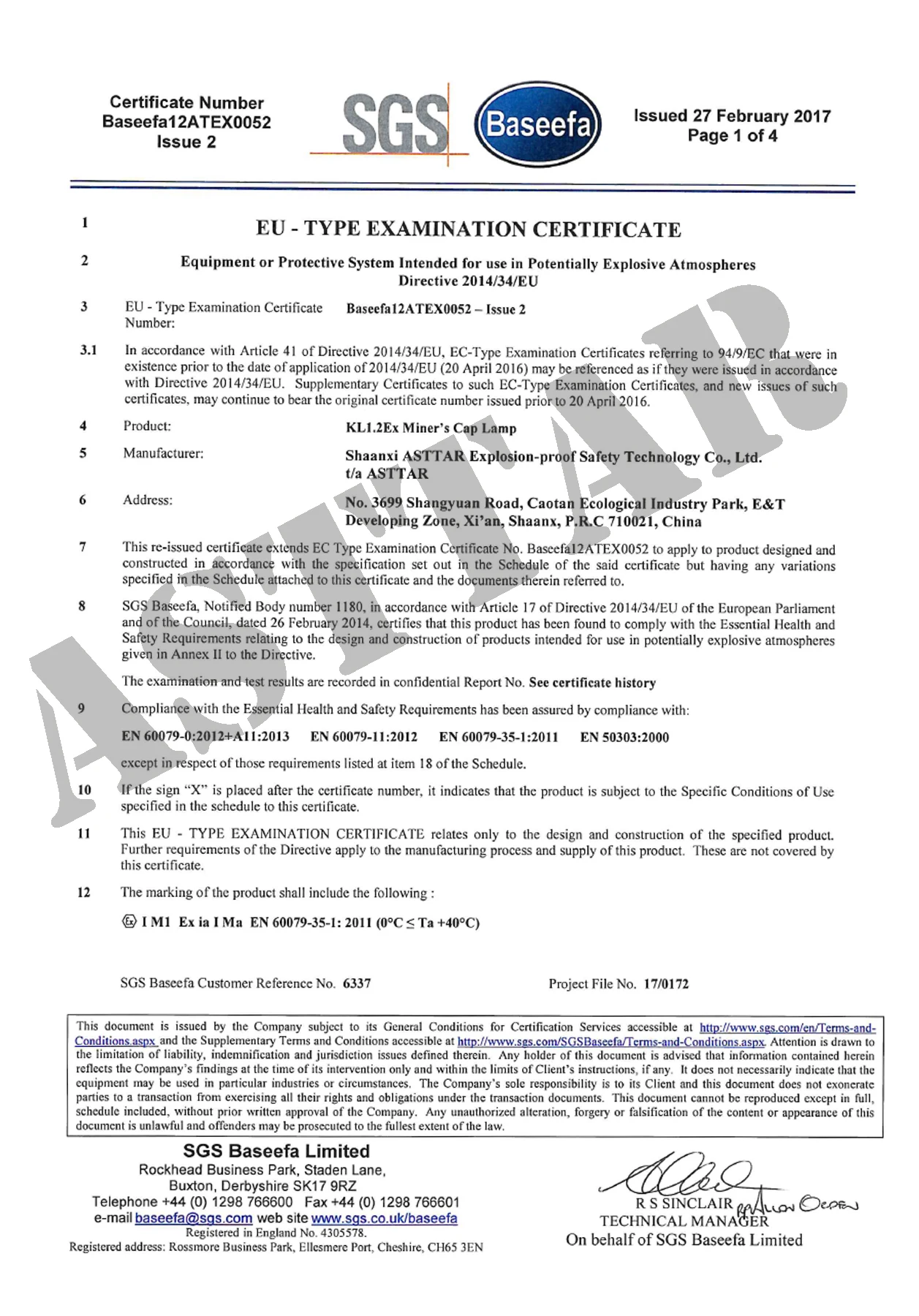

ATEX Certificate

KL1.2Ex cer
