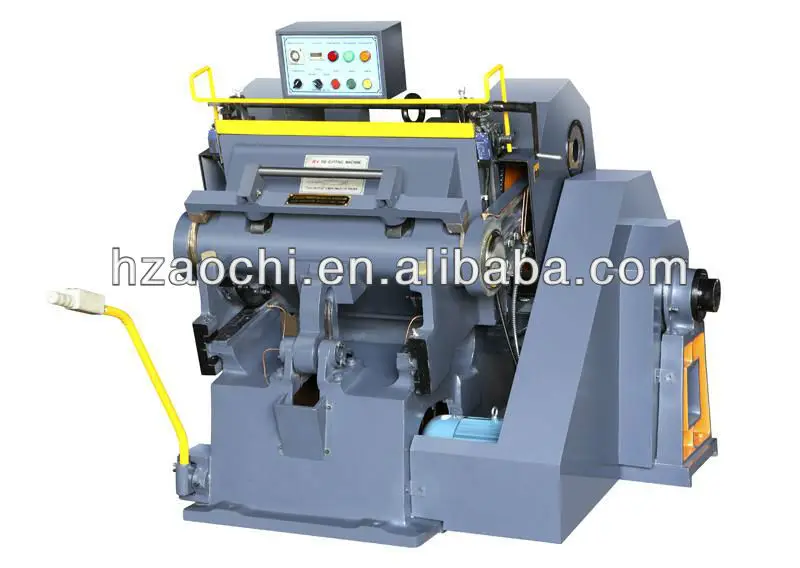

Semi automatic paper card roller die cutting machine with CE
- Category: >>>
- Supplier: Hangzhou Aochi International Co. Ltd.
Share on (1407855744):
Product Overview
Description
Product Description
Product Description
Application
The diecutting & creasing machines special equipments of diecutting and creasing a wide range of materials,such as cardboard,corrugated board,plastic and leather.They are applicable to the fields of printing,packaging,decoration and plastic industries.The machines have been acceptable for the customers from home and abroad,due to their outstanding features,high quality and good service.
| * Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing. |
| * Flywheel is with big moment of force and large pressure. |
| * High strength due to one piece casting by using top-ranking material for machine body. |
| * Single plate electromagnetic clutch is sensitive and reliable. |
| * With functions of single,continuous and opening dweel operation,dwell range is adjustable. |
| * Operating position is reasonably arranged,moving-bed can be opened to its optimum. |

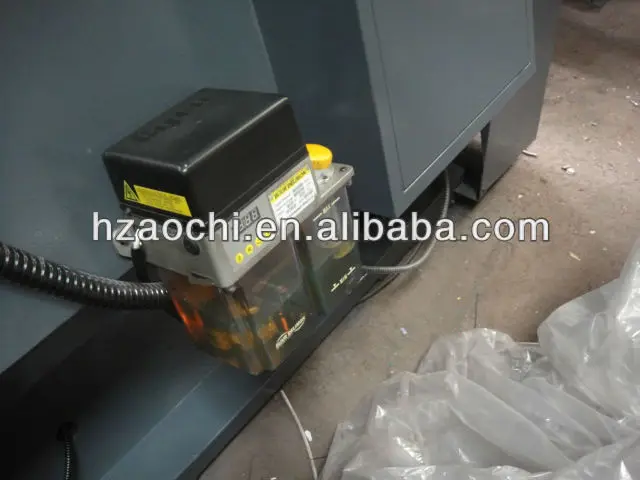

| * Central lubrication system guarantees fine lubrication and reduce friction. * Safety system is reliable. |
Technical Parameters:
|
Model |
Max.Rule Area |
Working speed |
Max Rule Length |
Motor power |
Weight |
Overall Dimension |
|
ML-930 |
930*670MM |
20±2 (strokes/min) |
<25m |
4kw |
3000kg |
1680*1680*1640mm |
|
ML750 |
750*520MM |
25±2 (strokes/min) |
<15m |
5.5kw |
1900kg |
1260*1400*1280mm |
|
ML1040 |
1040*720mm |
23±2 (strokes/min) |
<30m |
4Kw |
3500kg |
1760×2000×1750mm |
|
ML1100 |
1100*800MM |
20±2 (strokes/min) |
<35m |
5.5kw |
4500kg |
2020*2010*1900mm |
|
ML1200 |
1200*800MM |
18±2 (strokes/min) |
<35m |
4kw |
5000kg |
2050*2150*1900mm |
|
ML1300 |
1300*920mm |
15±2 (strokes/min) |
<40m |
7.5 |
6200kg |
2600*2100*1950mm |
|
ML1400 |
1400*1000MM |
15±2 (strokes/min) |
<45m |
7.5kw |
6500kg |
2600*2100*1950mm |
|
ML1500 |
1500*1050MM |
14±2 (strokes/min) |
<45m |
7.5kw |
7000kg |
2650*2100*2000mm |
|
ML1600 |
1600*1250MM |
16±2 (strokes/min) |
<43m |
11kw |
11800kg |
2170*2560*2080mm |
|
ML1800 |
1800*1280MM |
13±2 (strokes/min) |
<60m |
11kw |
14000kg |
2980*2300*2500mm |

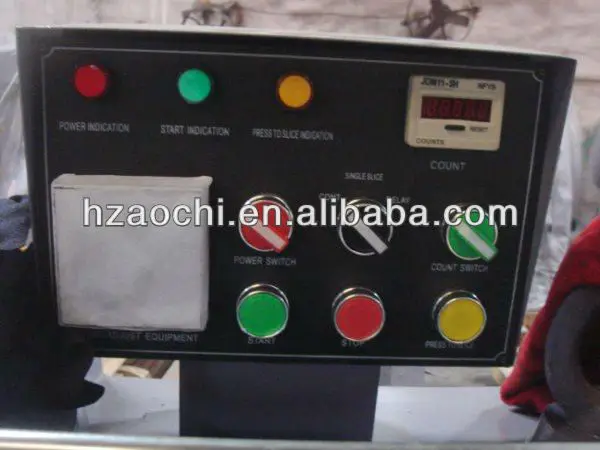

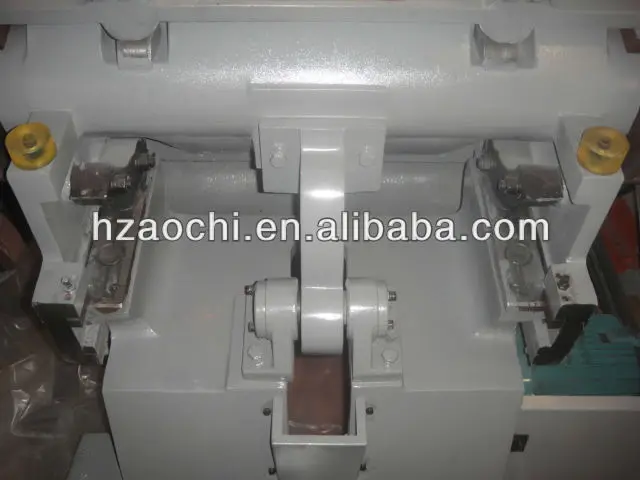

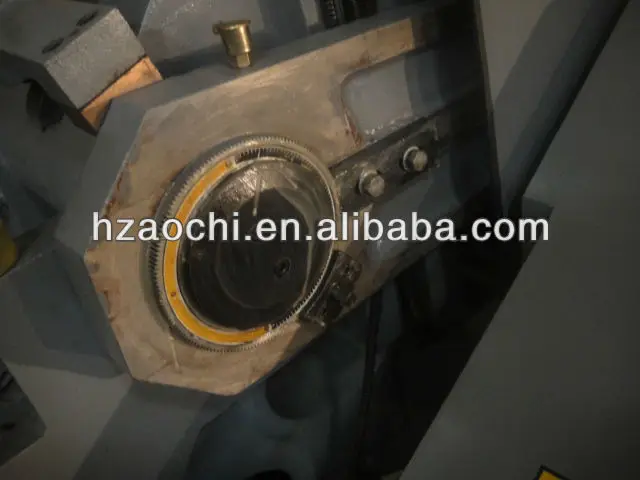

Detailed Images

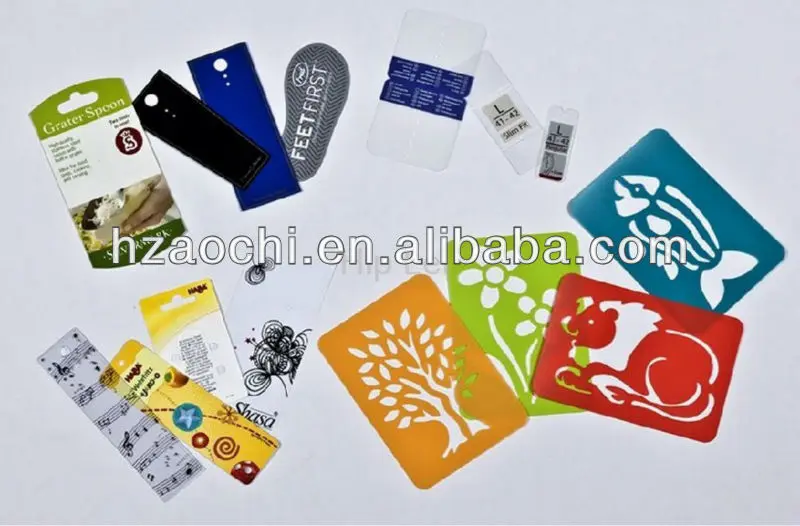

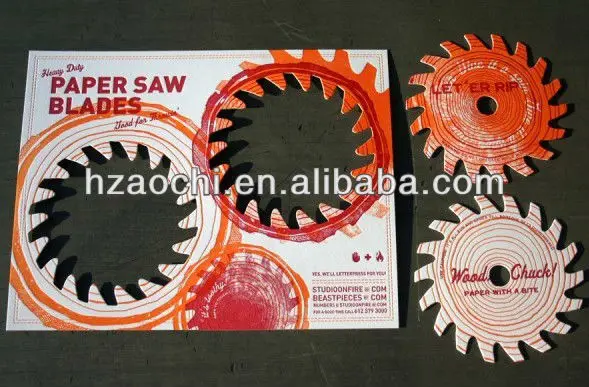

Sample Picture
