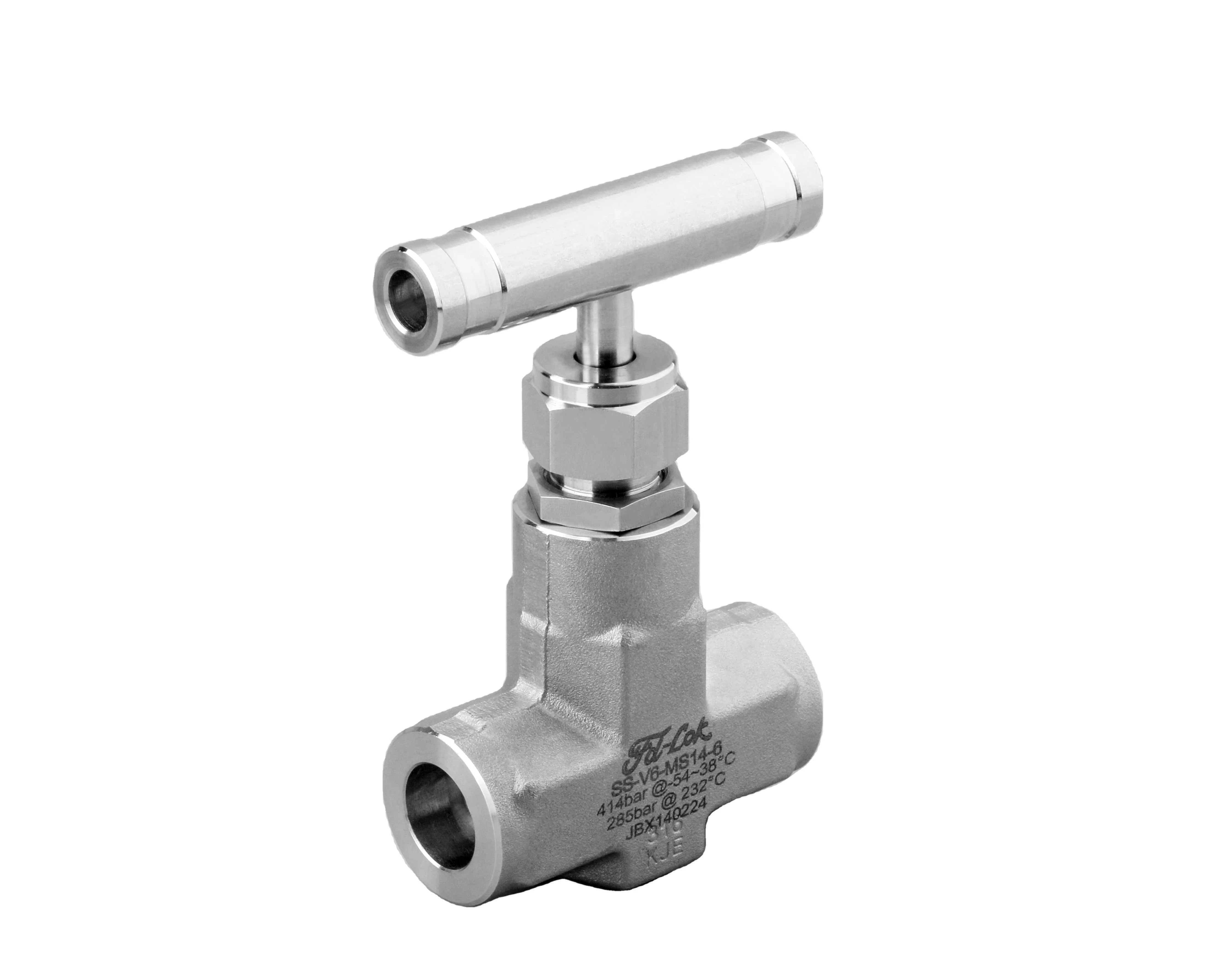

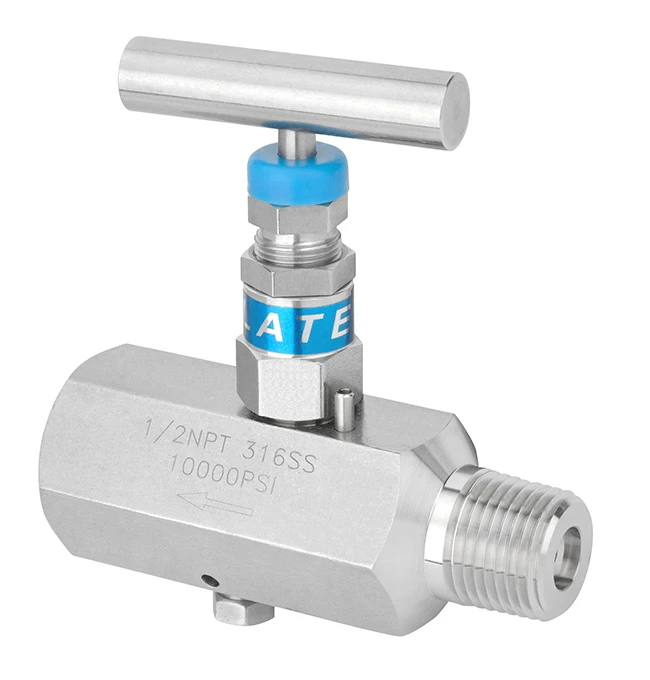

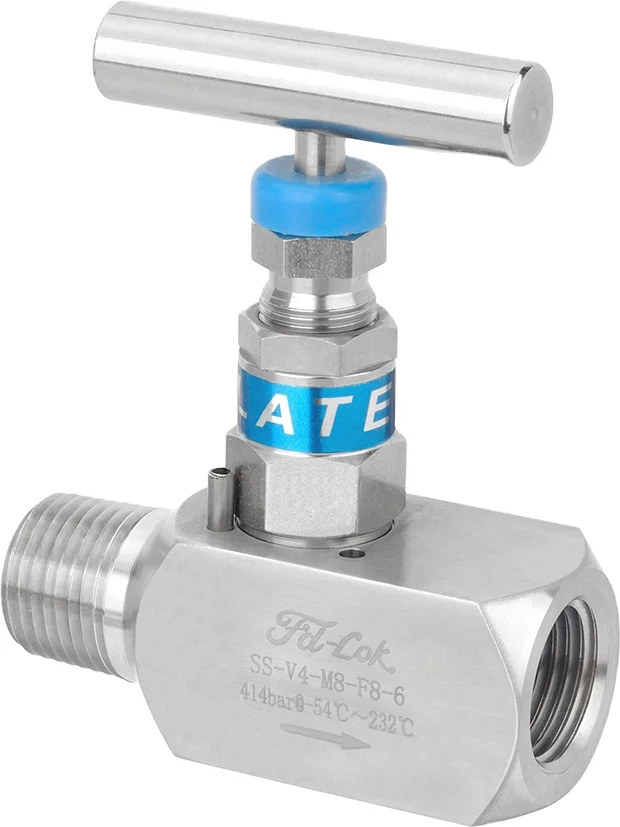

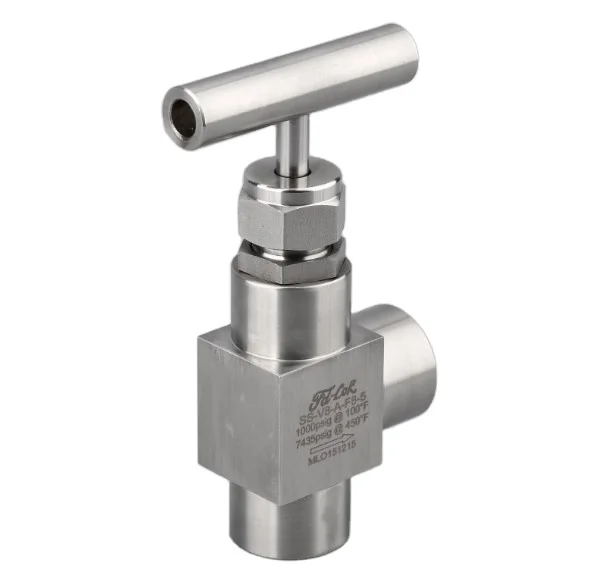

High pressure Needle Valves, Isolation Valve

Product name

High pressure needle valve isolation valve

Features

*Working pressure:
up to 10000psig(689 bar)
*Working temperature:
PTFE:-65°F to 450°F (-54°C to 232°C)
PEEK:-65°F to 500°F (-54°C to 260°C)

Details

*One-piece body construction
*Two-stem design:thread hardened upper stem and
smooth surface hardened lower stem
*Upper stem thread lubricant isolated from system media
*Linearly in stead of helical movement of the non-rotating lower stem,
avoiding galling damage to the seat and tip, as well as reducing the total
friction area between the packing and the lower stem
*Safety back seating seal in fully open position
*Panel mounting available as an option
*Steady and urable fastening of the handle by double lock-pins
*Handle of different colors available for option

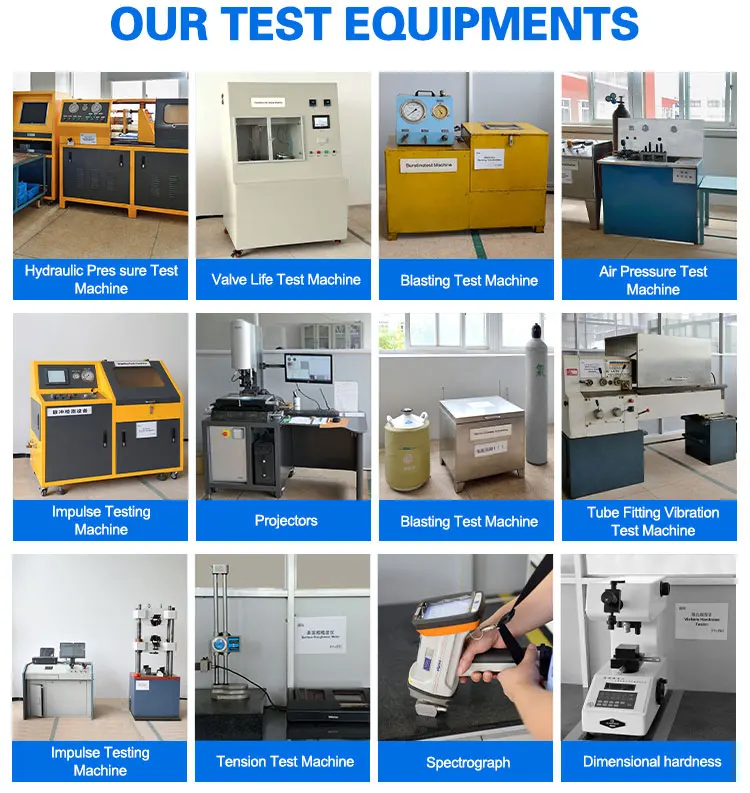

*Leak-tight performance testing for every valve with nitrogen at 6000psig

Delivery

5-30 days
