High performance 1 Pole Hanger Clamp for insulated busbar
- Category: >>>
- Supplier: Wuhan March Industrial Electric Co. Ltd.
Share on (1408534196):
Product Overview
Description
High performance 1-Pole Hanger Clamp for insulated busbar clmps for insulated
Product Description

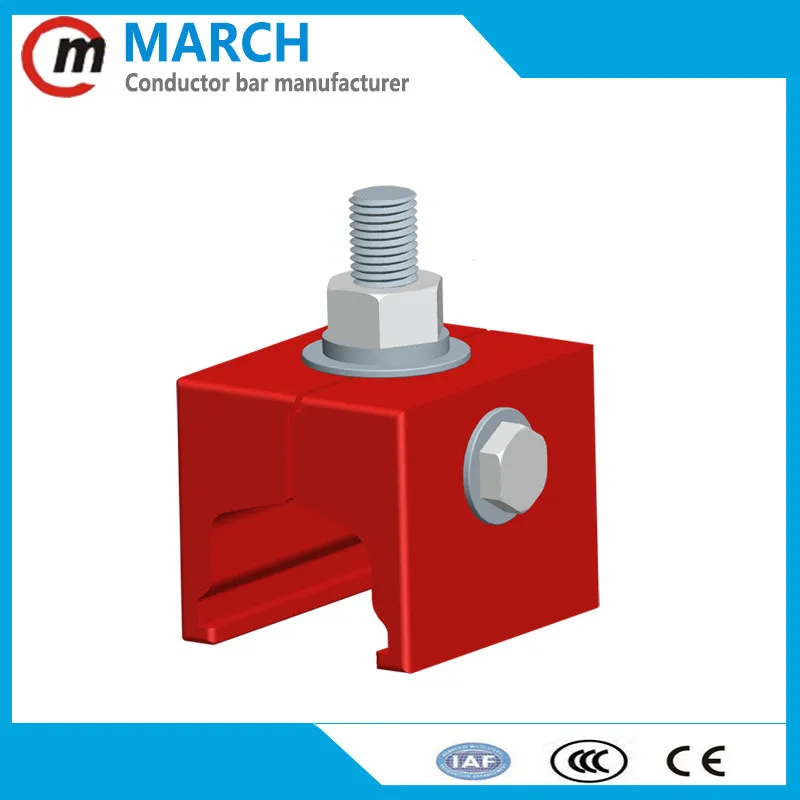

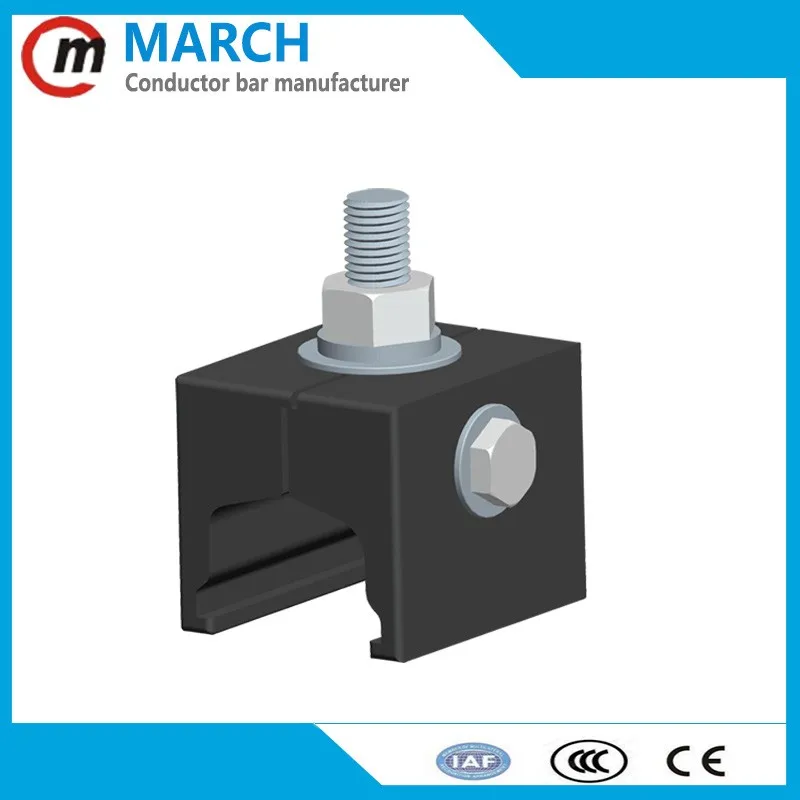

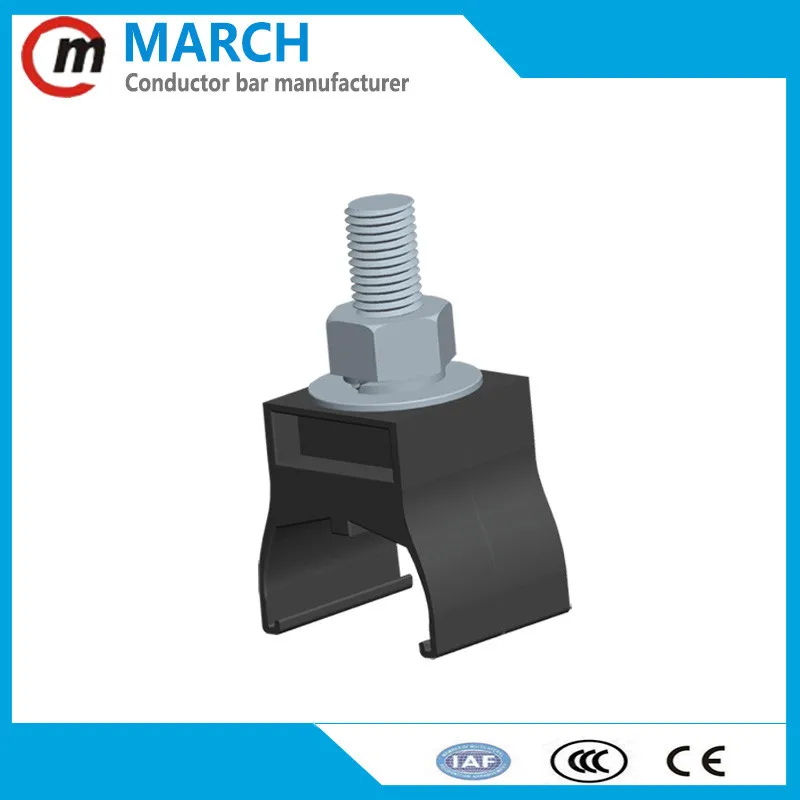

Hanger Clamps
| Item | Material | Largest Installation Distance | Weight (kg) | Parts NO. |
| Anchor Clamp | PVC | 1.5 m | 0.04 | 27104 |
| 1-Pole Hanger Clamp | 0.03 | 28101 | ||
| 3-Pole Hanger Clamp | 0.06 | 27103 | ||
| 4-Pole Hanger Clamp | 0.07 | 27101 | ||
| 2-Bolt 4 pole Hanger | 0.08 | 27102 |
Features:
1.Light Weight but Strong Stability
2.Used for High-Temperature,High-Dust Environment
3.Max Installation Spacing:1.5m
Descriptions:
1.Hanger Clamps are Designed to Grip Conductor Bars for Stable Support.
2.They are Required every 1.5m for Vertical Entry and 1.125m for Lateral Entry.
3.Wuhan March Provide 5 Different Hangers for Safe-II Systems(60~500A),this is 4-Pole Hanger Clamp.

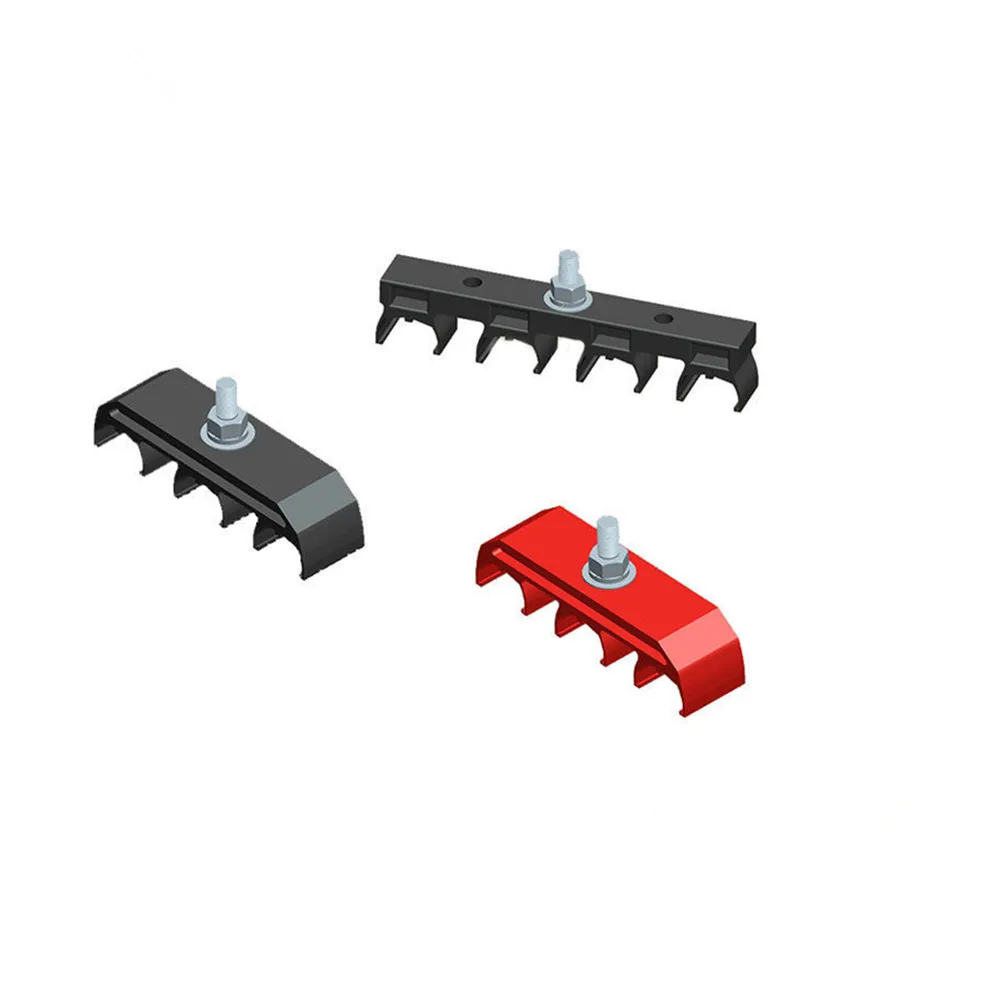

4 Pole hanger
is the part of the conductor bar system.
We nave 5 different hanger for the system,this is the 4 pole hanger.
Light weight but strong stability.
Competive price and best service,plastic is pvc.
Standard hangers are acety1.
Maximum support spacing is 1.5m.
Lateral mount hangers are supplied with 20mm spacers to provide clearance for joint covers.
Maximum support spacing is 1.125m.
Insulated system
Safety insulated conductor bubsar accessories
| Type | Rated current(A) | Material |
| Glavanzied steel condcutor busbars | 60A/100A /125A | Glavanzied steel |
| Aluminum conductor busbars | 160A/200A/315A/400A/500A/ 630A/800A/1000A/1250A/1600A/2000A/2500A | Aluminum |
| Copper conductor busbars | 160A/250A/400A | Copper |
| Expansion sections | 60A-400A , 630A-2500A | |
| Power feed assembiles | 60A-500A , 630A-2500A | |
| Joint | Copper/Aluminum /Glavanzied steel | |
| Joint covers | PVC | |
| Hanger | Anchor clamp/ 1 pole/3 pole/4 pole | PVC |
| End caps | Steel /copper/Aluminum | |
| Current collector | 50A /100A/200A/250A/500A | Copper&Graphite |
MCCBII Accessories
1. Expansion Sections
| Rated Current (A) | Material | Weight(kg) | Standard Length |
| 60A | Galvanized steel | 3.22 | 4.5 M |
| 100A | 3.48 | ||
| 125A | 4.37 | ||
| 160A | Aluminum &Stainless steel | 3.19 | |
| 200A | 3.30 | ||
| 250A | 3.49 | ||
| 315A | 3.61 | ||
| 400A | 3.69 | ||
| 500A | 4.01 | ||
| 160A | Copper | 3.39 | |
| 250A | 3.97 | ||
| 400A | 4.9 |
Application Environment :
The expansion sections are required to compensate for therma expansion
MCCBII System can run for 150m without an expansion section
2.Power feed
| Item | Weight | Parts No. |
| < 100A End Power Feed | 0.041 | 27105 |
| <250A End power Feed | 0.18 | 26105 |
| >250A End power Feed | 0.25 | 26106 |
3.Joints and Cover
| Items | Material | Weight | Parts No |
| Joints | Galvanized steel | 0.049 | 28111 |
| Copper | 0.031 | 28112 | |
| Aluminum | 0.082 | 28113 | |
| Joint Covers | PVC | 0.028 | 26104 |
5. End Caps
| Material | Weight(kg) | Parts No. |
| Steel | 0.042 | 28107 |
| Copper | 0.04 | 28106 |
| Aluminum | 0.22 | 28105 |
| Transition Cover | 0.11 | 28104 |
Company Information
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
FAQ
1. Are you a trading company or factory?
We're factory. We maufacture products ourself and we source from other collaborative factories too which guarantees a competitve price and product variety.
2. How do I know your quality.
High solution detailed photos and free sample will be able to verify our quality.
3. Can I get a sample first? And how does it charge?
Yes, free sample is available with freight collect or prepaid.
4. What's the benefit for long term importers or distributors?
For those regular customers, we offer incredible discount, sample free shipping, free sample for custom design, custom packaging and QC as per custom requirements.
5. Can you make products from our designs?
Yes, we do OEM and OBM.
6. How do I make payment?
We received paypal western union and directly bank transfer to our company account. If above are all unavailable, we will issue you a paypal invoice and you simply pay by credit card.
