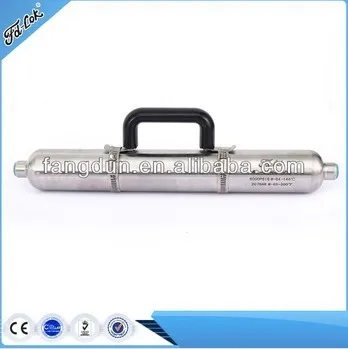

Hiqh Quality Supplier Sample Gas cylinder

Product Overview

Description

Specifications

Sample Cylinders
1.Standards:NPT,BSP,ISO,DIN
2.Material:ss304,316,316L,carbon steel,alloy
3.Certificates:ISO9001:2008, CE

Hiqh Quality Supplier Sample Gas cylinder





Feature:



1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
3.Material:ss304,316,316L, carbon steel, alloy,monel.
4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)



Detailed parameters:



1.Body made of seamless tubing provides consistent wall thickness,size,and capacity.



2.Cold-formed female NPT threads provide greater strength.

   Cylinder ends come in 1/8",1/4",and 1/2" NPT female connections.



3.Heavy-wall end connections provide strength and resist flaring.



4.Full-penetration gas tungsten arc-weld construction provides leak-tight sample containment



5.Size from 40 cm3 to 3785 cm3 (1 gal)



6.Working pressures up to 5000 psig (344 bar)



7.304L and 316L and Alloy 400 stainless steel material resist intergranular corrosion



8.Each cylinder is hydrostatically tested to at least 5/3 the working pressure.



9.FD-LOK sample cylinders conform to requirements of the "STG"







Our product is high quality,ensure safe,trouble-free performance.
