HLG-120H-48A











Product Pictures

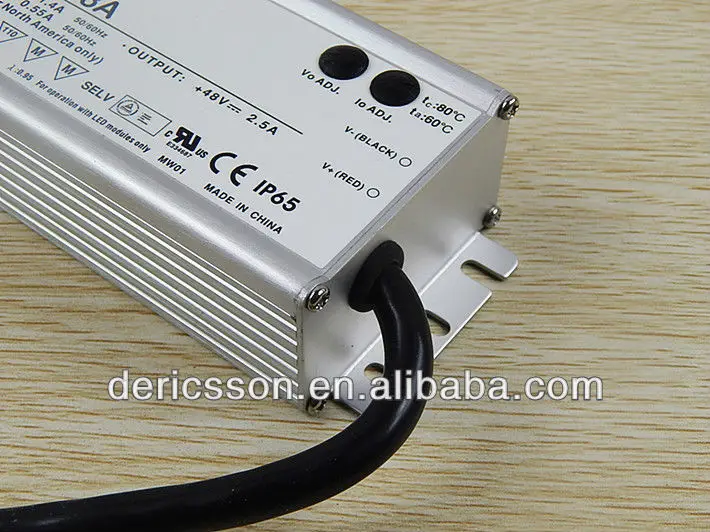

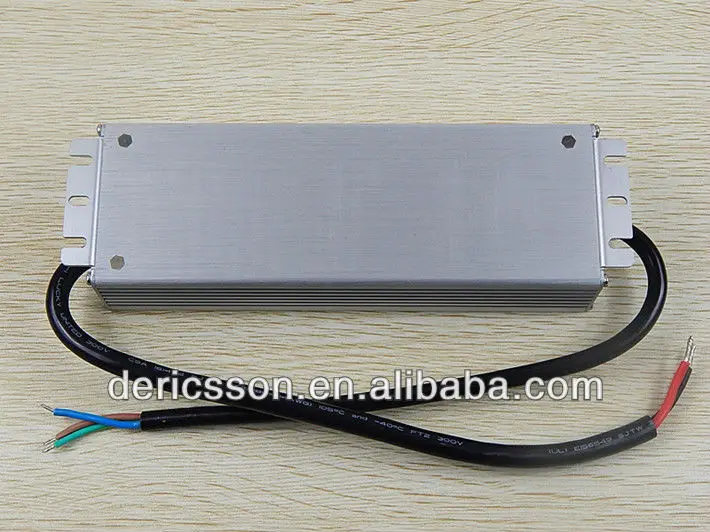

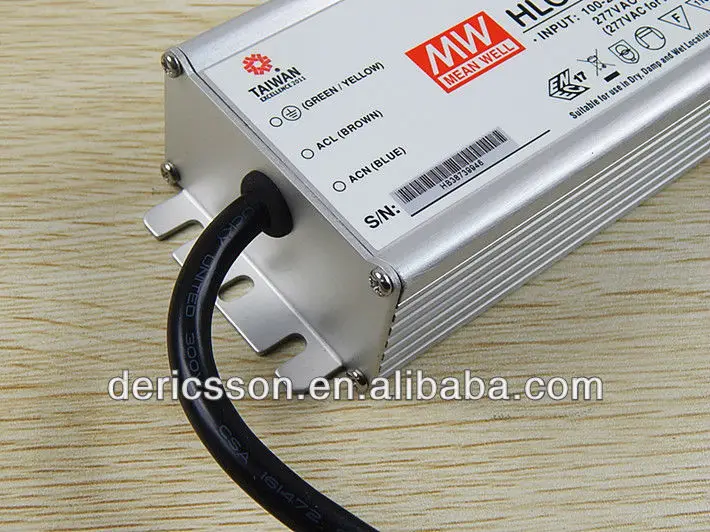

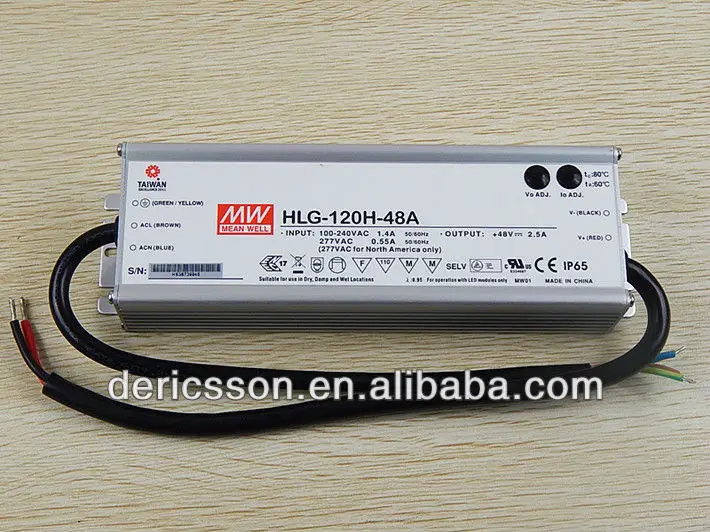

Here is the detailed info for my mean well 120w 48v class 2 led driver HLG-120H-48A. Hope you like it.



































Product Information





Features :

• Universal AC input / Full range (up to 305VAC)


• Built-in active PFC function


• High efficiency up to 93.5%


• Protections: Short circuit /Over current /Over voltage /Over temperature


• Cooling by free air convection


• OCP point adjustable through internal potentiometer


• IP67 / IP65 design for indoor or outdoor installations


• Three in one dimming function(1~10Vdc or PWM signal or resistance)


• Suitable for LED lighting and moving sign applications


• Compliance to worldwide safety regulations for lighting


• Suitable for dry / damp / wet locations


• 5 years warranty



MODEL		HLG-120H-48A
OUTPUT	DC VOLTAGE	48V
	RATED CURRENT	2.5A
	RATED POWER	120W
	RIPPLE & NOISE (max.) Note.2	200mVp-p
	VOLTAGE ADJ. RANGE Note.5	43 ~ 53V
	CURRENT ADJ. RANGE	1.2 ~ 2.5A Can be adjusted by internal potentiometer A type only
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP, RISE TIME Note.7	2500ms, 50ms at full load 230VAC / 115VAC ; B type 2500ms, 200ms at 95% load 230VAC / 115VAC
	HOLD UP TIME (Typ.)	12ms at full load 230VAC / 115VAC
INPUT	VOLTAGE RANGE Note.4	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.98/115VAC, PF>0.95/230 VAC, PF>0.93/277VAC at full load (Please refer to "Pow er Factor Characteristic" curve)
	TOTAL HARMONIC DISTORTION	THD< 20% when output loading>=50% at 115VAC/230VAC input and output loading>=75% at 277VAC input
	EFFICIENCY (Typ.)	93.5%
	AC CURRENT (Typ.)	1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 60A(twidth=375μs measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT	95 ~ 108%  Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	54 ~ 63V Protection type : Shut down o/p voltage with auto-recovery or re-p ower on to recover y
	OVER TEMPERATURE	85°C±10°C (RTH2) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-40 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C(0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS Note.7	UL8750, CSA C22.2 No. 250.0-08, ENEC, TUV EN61347-1, EN61347-2-13 independent IP 65 or IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG :2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I /P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
OTHERS	MTBF	192.2K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	220*68*3 8.8mm (L*W*H)
	PACKING	1.12Kg; 12pcs/14.4Kg/0.8CUFT
