Sparkling Carbonated Soda Water Pet Bottle Filling Machine Equipment Plant

Product Overview

Description

Sparkling Carbonated Soda Water Pet Bottle Filling Machine Equipment Plant



1.It is suitable for packing Drink  containing gas,soda water ect

2.PLC control
3.Output:2000-30000b/h







Soda PET bottle filling Machine  performance as following:

1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conform to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature.

3. Soda PET bottle filling Machine Using programmable controller to realize fully automatic control from bottles entering to finishing packing.



4. Soda PET bottle filling Machine Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure beverage quality.

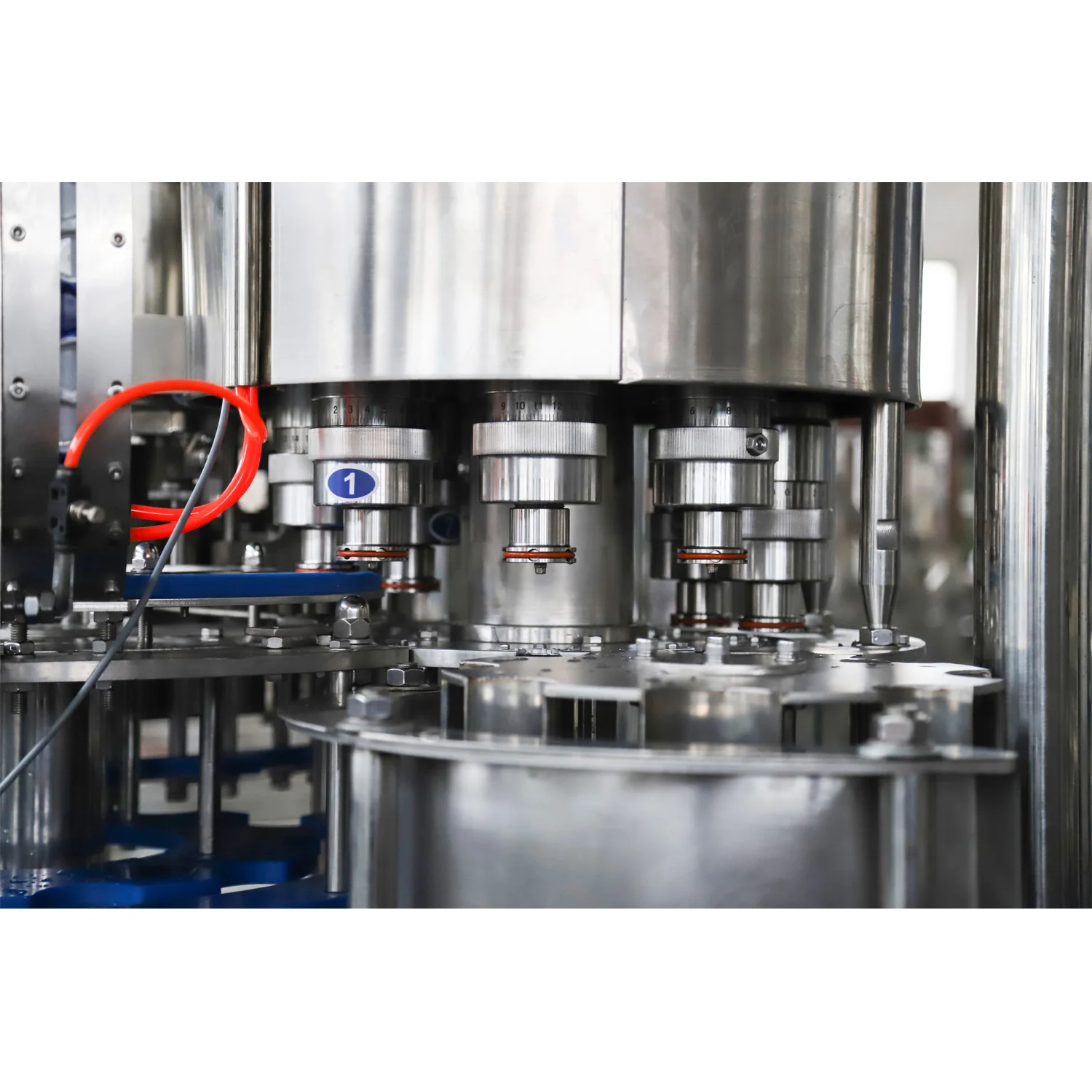

5.  Soda PET bottle filling Machine Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.





Soda PET bottle filling Machine technical parameter

Model	DCGF14125	DCGF18186	DCGF24248	DCGF32328	DCGF404010	DCGF505012	DCGF606015	DCGF808020
Filler/Capper heads	14-12-5	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Bottle diameter(mm)	Diameter=50-100 H=170 330-1500ml			Diameter= 50-110   H= 160-340
Production capacity (b/h) 350ml	2000-3000	4000-5000	7000-8000	10000-11000	14000-15000	18000-19000	20000-24000	26000-32000
Filling temperature (Celsius)	0-5
Filler type	Balanced pressure filler, counter pressure filling
Spraying pressure	0.2-0.25			0.2-0.25
Filling pressure	0.15-0.35	0.15-0.35	0.15-0.35	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Motor power	2.2+0.55+0.12	2.2+0.55+0.18	3+0.55+0.18	5.5+0.55+0.18	7.5	11	15	19
Overall dimension(L*W*H)mm	2300*1600*2500	2600*1920*2550	3100*2200*2800	3850*3000*2850	4850*3800*2750	5750*3550*2750	6500*5500*2750	7680*6640*2650
Weight (kg)	2800	3650	4800	6800	8650	10500	12800	15000
