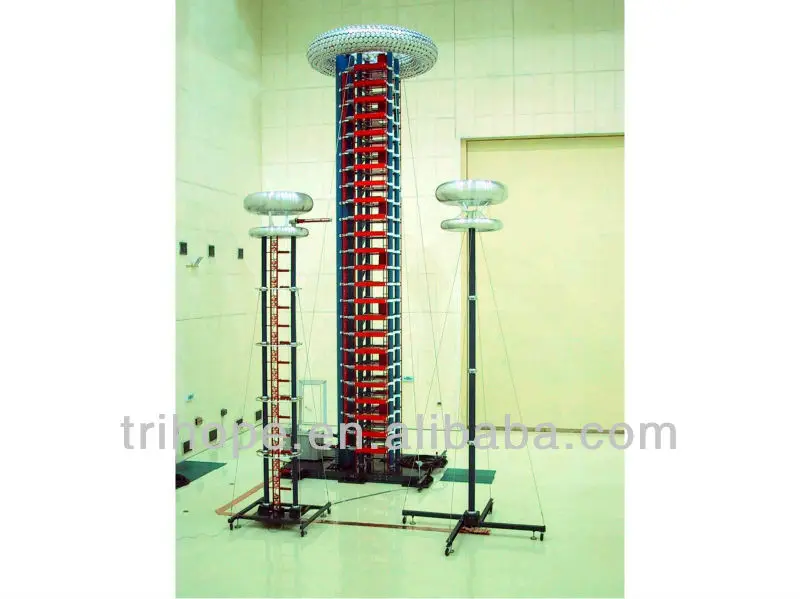

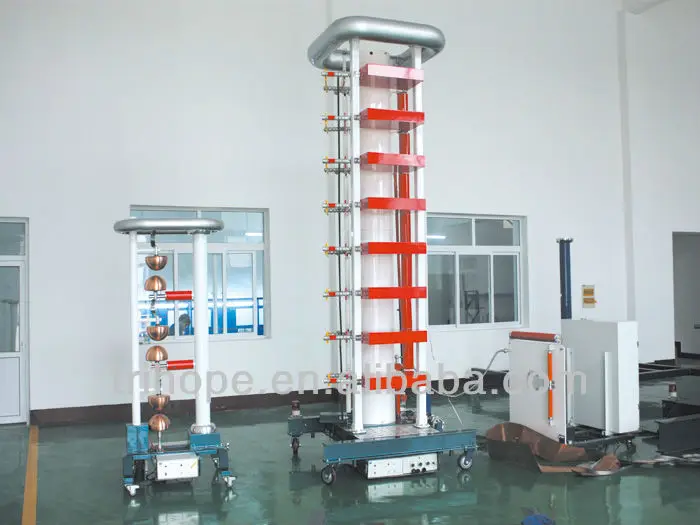

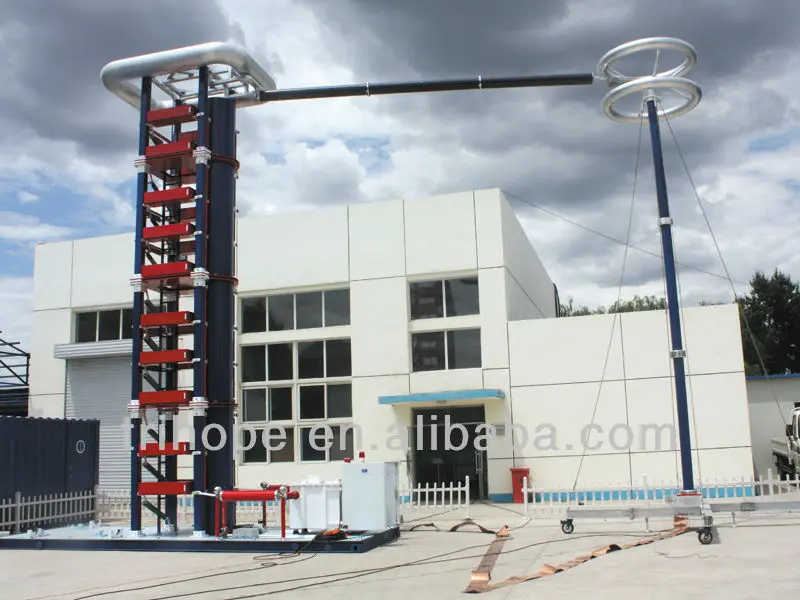

BHT 120KV Impulse high voltage generator For Transformer

BHT 120KV Impulse high voltage electrostatic generator For Transfromer and Swicth Gear

1.Introduction

1)Type L impulse voltage generator With its features of compact structure, low loop inductance and easy-to-modulate wave, Applicable to the impulse insulation withstanding test of high-voltage electrical products such as low-voltage transformers, switches, cables, reactors, insulators etc. and The test of high voltage equipment manufacturers.

2) Type H (quick erect) impulse voltage generatorWith its features of convenient transportation and rapid assembly,It is applicable to the impulse insulation withstand test and the air gap research test of high-voltage electrical products on site or in field and The test of high voltage equipment manufacturers.

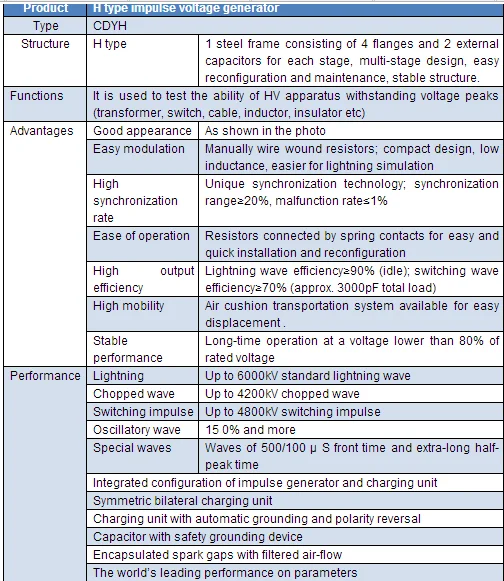

3) Type H impulse voltage generatorWith its features of high voltage grade, high capacity and strong load ability,Applicable to the impulse insulation withstand test of high-voltage electrical products such as high-voltage transformers, switches, cables, reactors, insulators etc.and The test of high voltage equipment manufacturers.
