High quality Stainless Steel Lap Joint Flange
- Category: >>>
- Supplier: RAVIRATAN METAL INDUSTRIES
Share on (141217482):
Product Overview
Description

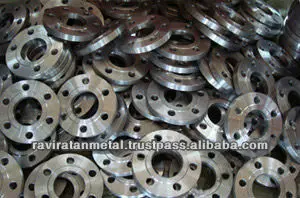

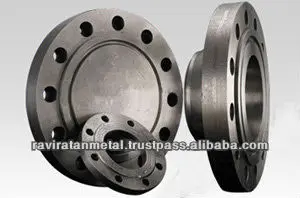

High quality Stainless Steel Lap Joint Flange
Lap joint flanges are used in those piping, which are fitted with the lapped pipe or with the stub end lap joint flanges. The lap joint flanges are highly suitable for those systems, which require dismantling for inspection and cleaning.
Specification of Stainless Steel Lap Joint Flanges:
1. Stainless Steel: | ASTM A 182, A 240 |
2. Grade: | F 304, 304L, 304H, 316, 316L, 316Ti, etc |
3. Size: | ANSI B 16.5 from 1/2" to 24" and classes150 to 2500 (complete range) |
4.Standards: | API, ANSI, BS, JIS, UNI, MSS and SP |
5. Pressure: | ANSI class 150 to 600 |
The scope of European system for stainless steel flanges
Sealing surface type | Nominal pressure PN / MPa | ||||
(Bar) | |||||
0.6 | 1.0 | 1.6 | 2.5 | 4.0 | |
-6 | -10 | -16 | -25 | -40 | |
Raised face (RF) | DN10-600 | ||||
The scope of American system for stainless steel flanges
Sealing surface type | Nominal pressure PN (MPa) | |||||
(Class) | ||||||
2.0 | 5.0 | 11.0 | 15.0 | 26.0 | 42.0 | |
Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | Class 2500 | |
Raised face (RF) | DN15-600 | DN15-300 | ||||
Ring joint face (RJ) | (1/2 "to 24") | (1/2 "-12") | ||||
Applications of Stainless Steel Lap Joint Flanges:
These are primarily used when quick assembly and disassembly of pipe line section is required under limited working pressure. The lap joint flange with the stub end assembly are normally used in systems requiring frequent dismantling for inspection and cleaning and where the ability to swivel flanges and to align bolt holes materially eases the erection of large diameter or unusually stiff piping. These flanges are also used in applications where there is a need to facilitate bolt alignment. Their use at points where severe bending stress occurs should be avoided.

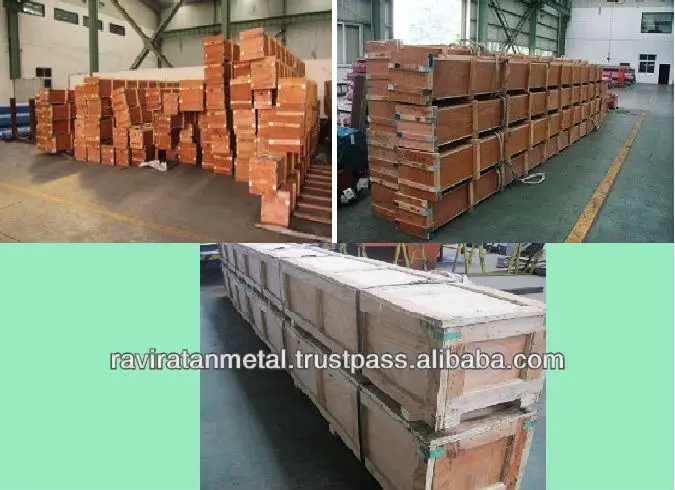

Packaging :
All our materials shall carry test certificates , except those of non ferrous metals & the testing shall be done in govt.approved laboratory.We can also supply under Third Party Inspections.
For more details about our company & product welcome to visit our website wwwdotraviratanmetalindustriesdotcom or please feel free to contact us.
