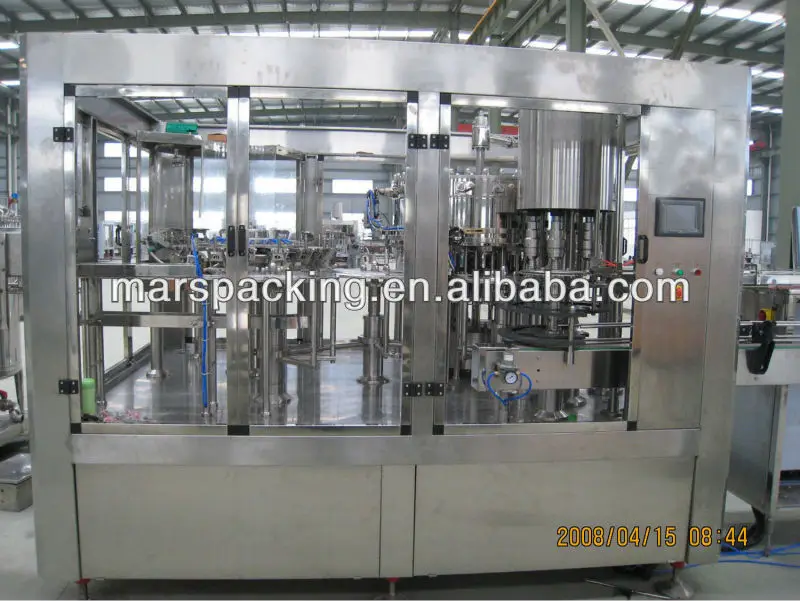

PET Bottle Sparkling Water Soft Drink Integrated Monoblock Combi Filling Bottling Packaging Machine

Product Overview

Description

PET Bottle Sparkling Water Soft Drink Integrated Monoblock Combi Filling Bottling Packaging Machine

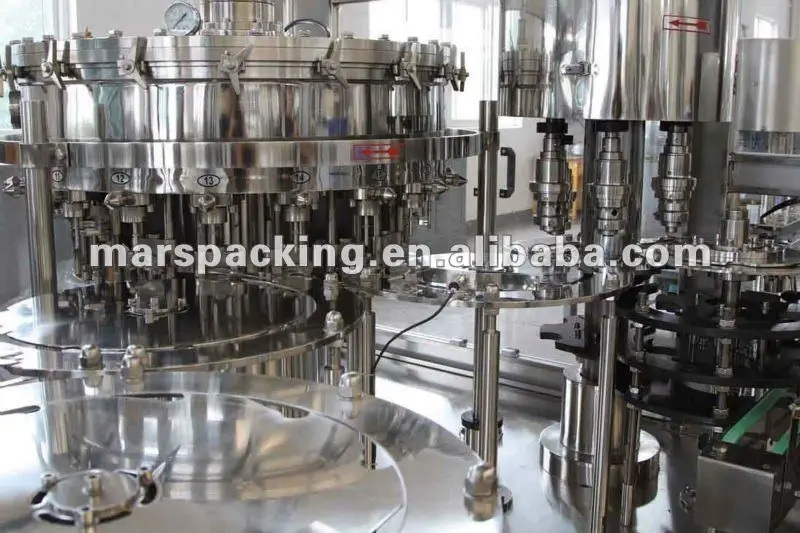

Bottle soft drink packaging machine combines washing/ filling /capping in one machine with complete automation. The filling process adopts the micro-pressure technology, which makes filling process faster and more stable.





Characteristic for Soft Drink Bottles Packaging Machine:

1. Bottle soft drink packaging machine carrys out bottle washing filling and capping in one machine.

2. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.



3. Bottle soft drink packaging machine adopts bottle neck blocking type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
4. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products.





Main Parameter for Soft Drink Bottles Packaging Machine

Model	DCGF14-12-5	DCGF18-18-6	DCGF24-24-8	DCGF32-32-8	DCGF40-40-10	DCGF50-50-12	DCGF60-60-15	DCGF80-80-20
Filler/Capper heads	14-12-5	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Bottle diameter(mm)	Diameter=50-100 H=170 330-1500ml			Diameter= 50-110   H= 160-340
Production capacity (b/h) 350ml	2000-3000	4000-5000	8000-9000	10000-12000	14000-15000	16000-18000	20000-24000	26000-32000
Filling temperature(Celsius)	0-5
Filler type	Balanced pressure filler
Spraying pressure	0.2-0.25			0.2-0.25
Filling pressure	0.15-0.35	0.15-0.35	0.15-0.35	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Motor power	2.2+0.55+0.12	2.2+0.55+0.18	3+0.55+0.18	5.5+0.55+0.18	7.5	11	15	19
Overall dimension(L*W*H)mm	2300*1600*2500	2600*1920*2550	3100*2200*2800	3850*3000*2850	4850*3800*2750	5750*3550*2750	6500*5500*2750	7680*6640*2650
Weight (kg)	2800	3650	4800	6800	8650	10500	12800	15000





Soft Drink Bottles Packaging Machine
