BS 912B TTMC ленточная пила для резки металла
- Category: Other Metal Cutting Machinery >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1413550273):
Product Overview
Description
Product Overview

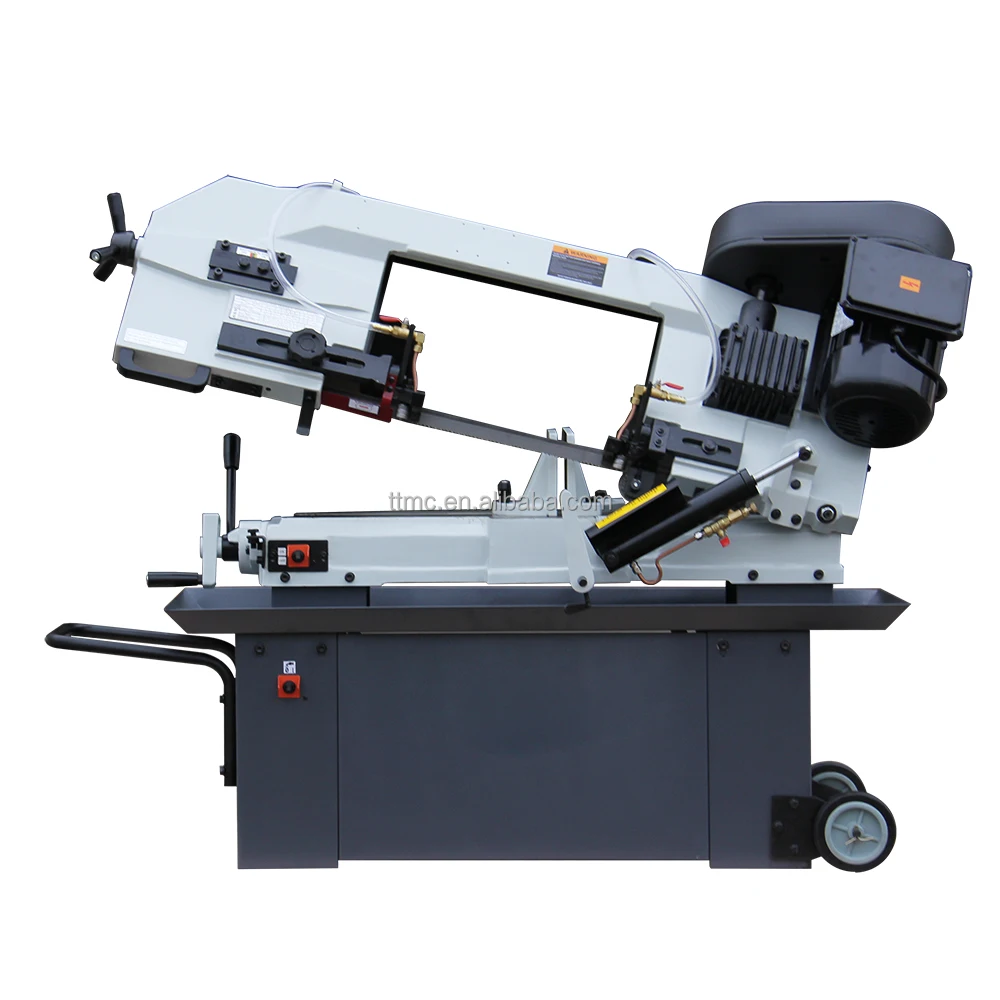

Swivel Saw Frame Saw Machine BS-912B
The miter cut saw machine, quick clamp vice, ideal for home use or small workshop
Single Phase motor , you can use it almost anywhere.
Cutting capacity of 9” OD round and 7’ x 12” rectangle at 90°.
Miters up to 45°; simply loosen the vise and rotate it to the proper angle.
Cast iron saw head and bow minimize vibrations, ensuring clean, accurate cuts.
Adjustable blade guides attached to the saw head, with 8 sealed ball bearings, help align the blade and increase its lifetime of use.
Head and bow are made from heavy cast iron, precisely machined to exacting tolerances, maintaining proper alignment during the cutting process.
Moves on wheels for portability.
Includes chip removal brush and flood coolant system to keep the saw running smoothly for many years.
Cutting capacity of 9” OD round and 7’ x 12” rectangle at 90°.
Miters up to 45°; simply loosen the vise and rotate it to the proper angle.
Cast iron saw head and bow minimize vibrations, ensuring clean, accurate cuts.
Adjustable blade guides attached to the saw head, with 8 sealed ball bearings, help align the blade and increase its lifetime of use.
Head and bow are made from heavy cast iron, precisely machined to exacting tolerances, maintaining proper alignment during the cutting process.
Moves on wheels for portability.
Includes chip removal brush and flood coolant system to keep the saw running smoothly for many years.
PRODUCT SPECIFICATIONS
TTMC 9" Bandsaw, Belt Drive and Gear Drive
Item No. | 388010 | 388011 | 388012 | 388113 | |||
Model | BS-912B | BS-912G | BS-912GR | BS-912GDR | |||
Cut circular @90° | 229mm 9" | 229mm 9" | 229mm 9" | 229mm 9" | |||
Cut rectangular @90° | 178x305mm 7"x12" | 178x305mm 7"x12" | 178x305mm 7"x12" | 178x305mm 7"x12" | |||
Cut circular @45° | 150mm 6" | 150mm 6" | 150mm 6" | 150mm 6" | |||
Cut rectangular @45° | 127x150mm 5"x6" | 127x150mm 5"x6" | 127x150mm 5"x6" | 127x150mm 5"x6" | |||
Blade speed @50HZ | 26,50,73,95 MPM | 31,65,95 MPM | 31,65,95 MPM | 31,65,95 MPM | |||
Blade speed @60HZ | 32,60,88,115 MPM | 38,78,115 MPM | 38,78,115 MPM | 38,78,115 MPM | |||
Motor power | 1.1kW 1.5HP (3PH), 1.1kW 1.5HP (1PH) | ||||||
Drive | Belt | Gear | Gear | Gear | |||
Packing size | 154x59x115 cm | 155x60x115 cm | 160x76x125 cm | 147x74x132 cm | |||
N.W./G.W. | 190/252 kg | 183/248 kg | 220/290 kg | 242/318 kg | |||
