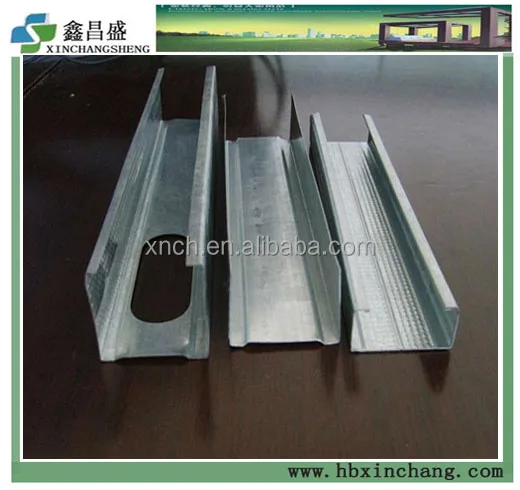

Furring channel for ceiling / drywall metal stud

Product Overview

Description

                         Furring channel for ceiling and drywall metal stud



MAIN DATE

Item name	materials	zinc coating	size	thickness	lenght	standard	package
stud	hot dip galvanized strip	60-140g/sq.m	100*35mm	0.4-1.2mm	customized	GB11981-2001	10 pcs/bundle
track			100*25mm	0.4-1.2mm	customized		10 pcs/bundle



FEATURE AND ADVANTAGE

 1.Good materials and high zinc content, cauterization-resistance.

 2.Strong bearing capacity, ametabolic.

 3.Easy to cutting and installation.

 4.Fireproof, waterproof, earthquake-resistance.

 5.Beautiful appearance, environmental friendly.



SPECIFICATION FOR CEILING GRID COMPONENTS

commodity	spec. (mm)	thickness (mm)	length (mm)	package (pcs/bundle)
main channel	38*10	0.45, 0.50, 0.60, 0.70, 0.80, 1.0	customized	20
	50*19	0.45, 0.50, 0.60, 0.70, 0.80, 1.0	customized	12
furring channel	68*35*22	0.40, 0.45, 0.50, 0.55, 0.60	customized	25
	30*15*7	0.40, 0.45, 0.50, 0.55, 0.60	customized	25
CD	60*27	0.35, 0.40, 0.45, 0.50	customized	12
UD	28*27	0.35, 0.40, 0.45, 0.50	customized	20

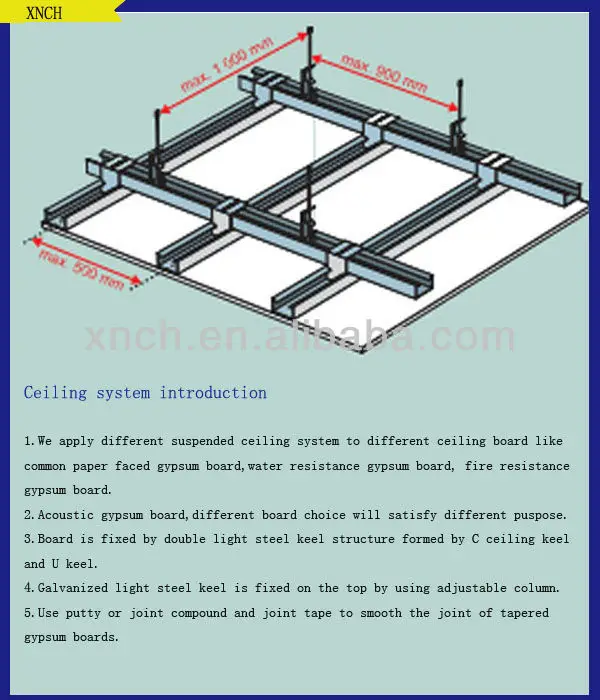

APPLICATION



Galvanized metal steel profile is used for suspended ceiling system and gypsum board drywall in such place, hotel, terminal buildings, bus stations, railway, theaters, shopping malls, factories, office buildings, reconstruction of old buildings, etc. It is form steel framing, good construction materials.



SPECIFICATION FOR DRYWALL COMPONENTS



commodity	spec. (mm)	thickness (mm)	length (mm)	package (pcs/bundle)
stud	41*22	0.3	customized	20
	48*22	0.33	customized	20
	40*34.5	0.40, 0.45, 0.50	customized	10
	50*34.5	0.40, 0.45, 0.50	customized	10
	70*34.5	0.45, 0.50, 0.60	customized	10
	75*34.5	0.45, 0.50, 0.60, 0.70	customized	10
	100*35	0.50, 0.60, 0.70, 0.80, 1.0	customized	10
track	42*25	0.40, 0.45, 0.50	customized	10
	52*25	0.40, 0.45, 0.50	customized	10
	72*25	0.45, 0.50, 0.60	customized	10
	75*25	0.45, 0.50, 0.60, 0.70	customized	10
	100*25	0.50, 0.60, 0.70, 0.80, 1.0	customized	10









ABOUT US

a. Advanced production technology and processing equipment.

b. More than 10 years export experience.

c. Quality As the Root and Customer First is company principle.

d. 21 production lines, 3200 tons per month.

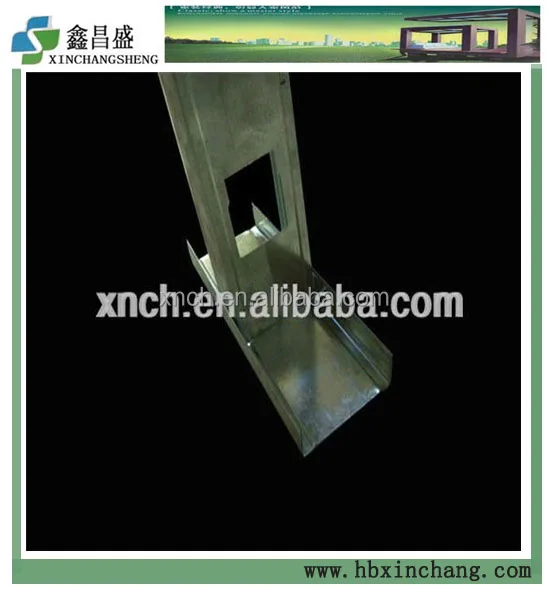

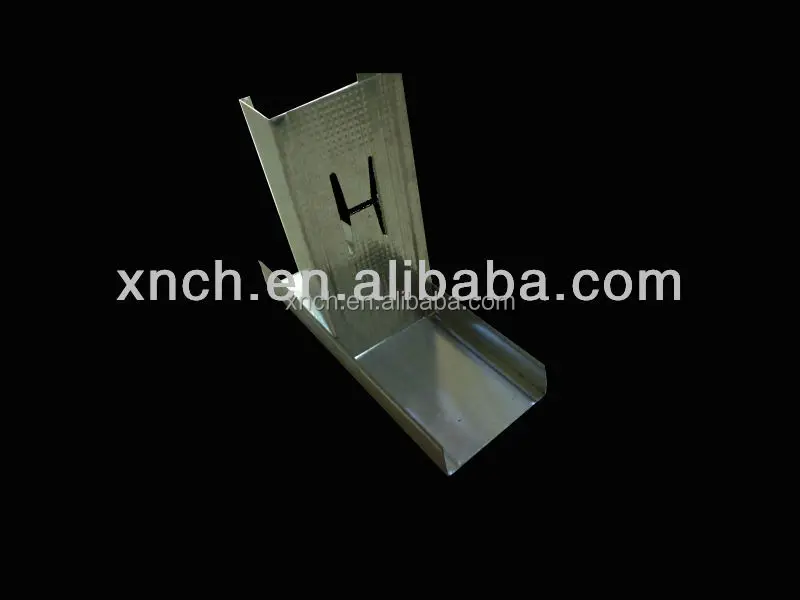

Product Picture

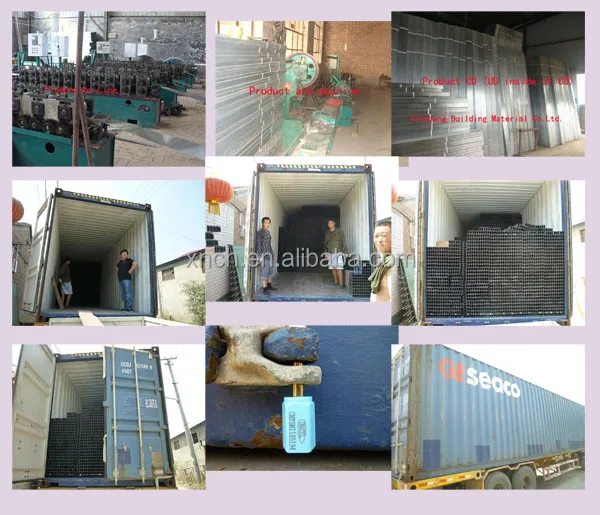

Package
