150kg 300kg 500kg Hydraulic lift table scissor lift table lifting table

Product Overview

Description

Lifting Table         Model: SPA150 300 500



1. Product details





High quality hydraulic ensures reliable long life

Designed as per CE rquirements

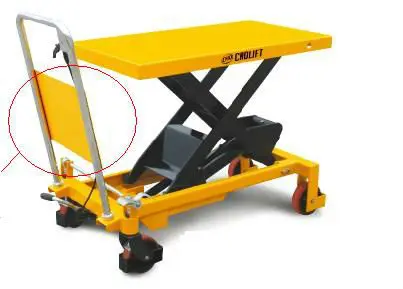

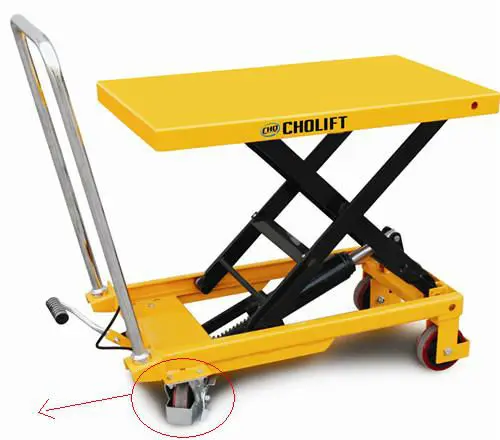

With protection braket and brakes on rear wheel







Optional for the board





2. Technical Parameter



Model (single sissor)		SPA150	SPA300	SPA500
Load capacity/rated load	kg	150	300	500
Max.lift height	h12 (mm)	740	900	900
Min.height of table	h13 (mm)	225	340	340
Lifting height	h3 (mm)	515	560	560
Table size	lxb5xs(mm)	740*450*35	855*500*50	855*500*50
Foot pedal cycles to max height		≤25	≤32	≤45
Service weight	kg	44	82	87
Carton size	mm	860*485*300	985*510*350	985*510*350

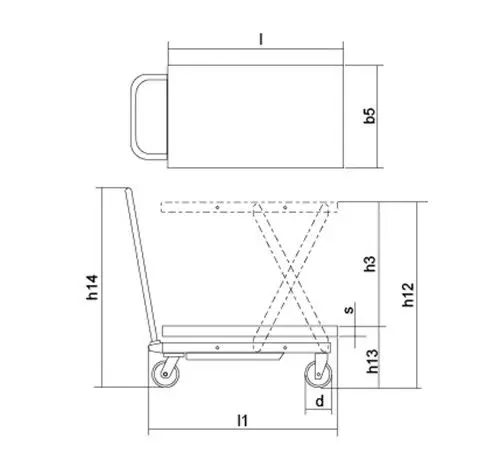

3. Diagram



 4. Certificates

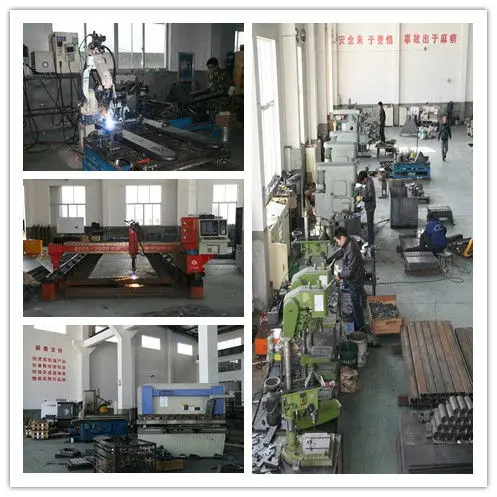

5.Factory:



We have a professional team spacialized in Handling material area for 22-years.





We have the top equipment to ensure the production.

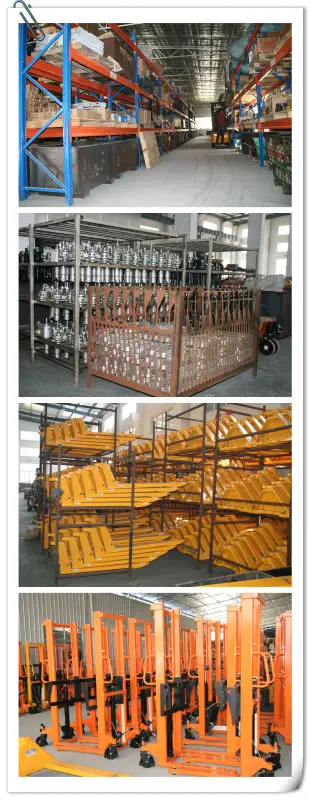

Adequate  Stocks
