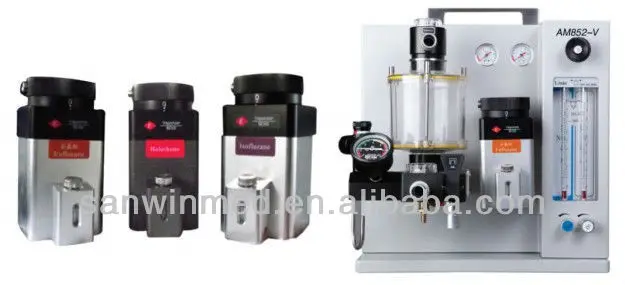

Portable Veterinary and Human Anesthesia Machine AM852 V

Product Overview

Description

Portable Anesthesia Machine AM852-V

Specifications

Physical and Environmental Specification

♥Demension: L450xW405xH330mm

♥ Weight: 22kg

♥ Storage temperature: -22°c~+55°c

♥ Working temperature: +10°c~+40°c

♥ Storage humidity: ≤93°c



Vaporizer

♥ Agent type:Halothane

♥ Flow range: 0.2~10L/min

♥ Concentration: 0~5%

♥ Work temperature: 15~30°c

Main unit

♥ Mode: Semi-open, semi-closed, or closed system

♥ APL valve: ≤6KPa

♥ Gas supply: O2/N2O 0.28MPa~0.6MPa

♥ Flowmeter: O2/N2O two tube flowmeter 0~10L/min

(with interlock protection devices ensuring the oxygen concentration ≥21%)

♥ O2 flush: 25~75L/min

♥ O2 deficiency: Audible alarm for at least 7 seconds alarm
