Swimming &pool & spa filter cartridge equipment,water filtration system for water filter

Product Overview

Description

Swimming &pool & spa filter cartridge equipment,water filtration system







High-flux Folded Filter Element, which is made of polythylene terephthalate (PET) nonwovens, has the speciality of durability.High Water Flow means less shells, low turnover rate and larger sewage capacity.
It is much faster, easier and safer for renewal with the handmade design.
O-ring insures the complete filtration.
The filter element can be used in both aqueous and non-aqueous medium by using the material of PET.
The large folded area can reduce much pressure than other filter elements do and gain the longer working life.



Features of Swimming pool water filter cartridge

1) Pleated design maximizes dirt-bolding capacity
2) Increased filter area longer filtration runs
3) Able to clean and reuse most applications
4) Designed for general water filtration purposes
5) Economicaly priced





Specifications of swimming pool water filter cartridge

1) Material: resin-impregnated cellulose, Reemay&polyester fabrc,etc.
2) Core: PP
3) Filteration rate: 1-50 micron
4) Outer diameter: 2.5",2-3/4"
5) Inner diameter: 1-1/9"
6) Length: 5"-40"

This is our standard dimension , we can manufacture accoriding you need.



Model Number	OD	Top	Bottom	Media	Length	Sq.ft	Pleat Count	Manufacturer	Replaces
20035	2-3/4"	1-1/16" open	1-1/16" open	3	5-1/8"	3.5	76	3.5 sq.ft. Spa-In-A-Box	C-2305
20041	2-3/4"	1-1/16" open	closed	3	6"	3.7	75	3.7 sq.ft. Skim Filter	C-2304
20042	2-7/8"	1-1/16" open	1-1/16" open	6	9-3/4"	4	41	4 sq.ft.Rainbow, Pac-Fab	C-2604
20043	2-7/8"	Hose Fitting	closed	6	9-3/4"	4	41	4 sq.ft. fill filter	C-2699
20044	2-5/8"	1-1/16" open	1-1/16" open	3	14-11/16"	6	41	6 sq.ft filter	NA
20061	2-5/8"	1-1/16" open	1-1/16" open	6	14-11/16"	6	41	6 sq.ft. Wet Institute	C-2601
20062	2-3/4"	1-1/16" open	1-1/16" open	4	9-3/4"	6	75	6 sq.ft. Harmsco ST/6,American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite	T-380R
20062	2-3/4"	1-1/16" open	1-1/16" open	4	9-3/4"	6	75	6 sq.ft. Harmsco ST/6,American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite	T-380
20063	2-3/4"	1-1/16" open	1-1/16" open	3	9-3/4"	6	75	6 sq.ft. Harmsco OTC/6-4	C-2306
20065	2-7/8"	1-1/16" open	1-1/16" open	6	9-3/4"	6	62	6 sq.ft.American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite	C-2606
20066	2-7/8"	1-1/16" open	1-1/16" open	4	14-11/16"	6	41	6sq.ft. Wet Institute	C-2607
20081	2-7/8"	1-1/16" open	1-1/16" open	3	9-3/4"	8	84	8sq.ft. American, Rainbow	C-2308
20082	2-7/8"	1-1/16" open	1-1/16" open	4	19-1/2"	8	41	8 sq.ft. Rainbow 19	C-2608
PP6903	2-3/4"	Hose Fitting	Closed	PP	10"	n/a	n/a	Disposable filter with hose adapter	FC-3128
20101	2-5/8"	1-1/16" open	1-1/16" open	6	19-15/16"	10	62	10 sq.ft. Encon Spa	C-2610
20131	2-7/8"	1-1/16" open	1-1/16" open	3	14-11/16"	12	84	12 sq.ft. Rainbow	C-2912
20132	2-7/8"	1-1/16" open	1-1/16" open	4	19-1/2"	12	62	12 sq.ft. Rainbow 19X	C-2612
20133	2-7/8"	1-1/16" open	1-1/16" open	4	29-1/4"	12	41	12 sq.ft. Rainbow 29	C-2613
20151	2-7/8"	1-1/16" open	1-1/16" open	3	17-1/16"	14.5	84	14.5 sq.ft.Rainbow-Hi Flow	C-2302
20181	2-7/8"	1-1/16" open	1-1/16" open	4	29-1/4"	18	62	18 sq.ft. Rainbow 29X	C-2618
20191	2-7/8"	2-1/8" open	2-1/8" open	3	17-1/16"	8.5	150	8.5 sq.ft. Rainbow-Chloro

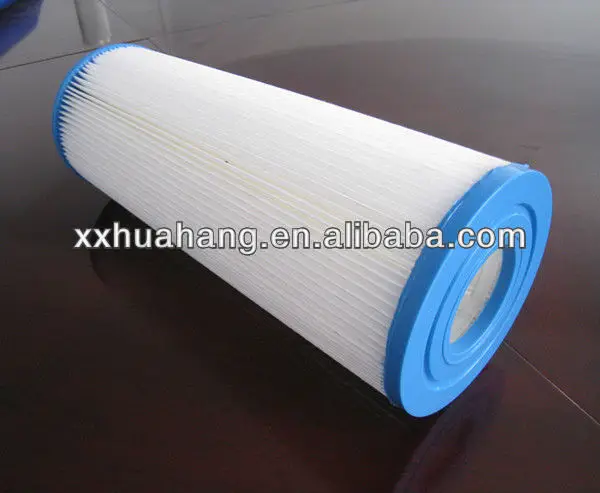

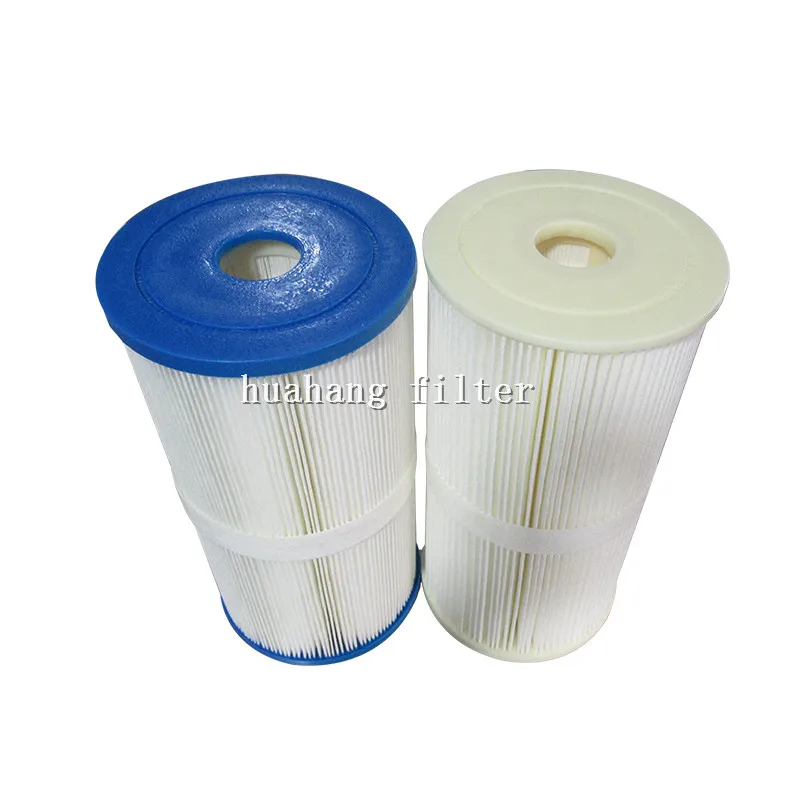

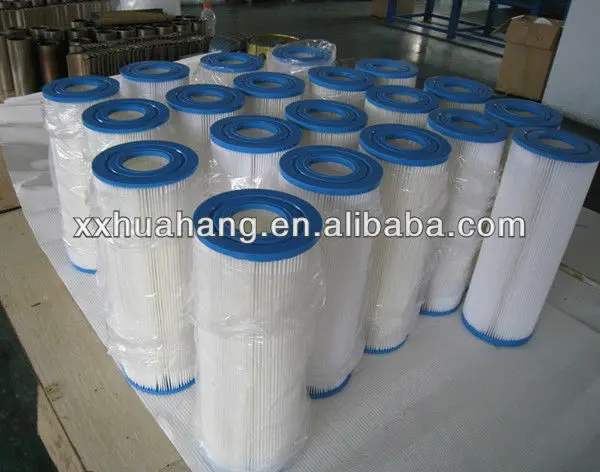

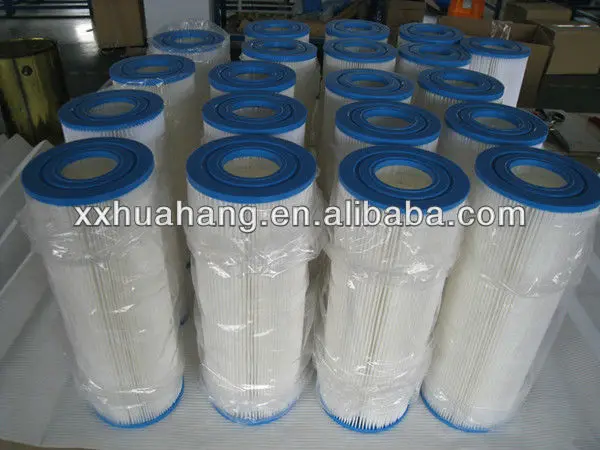

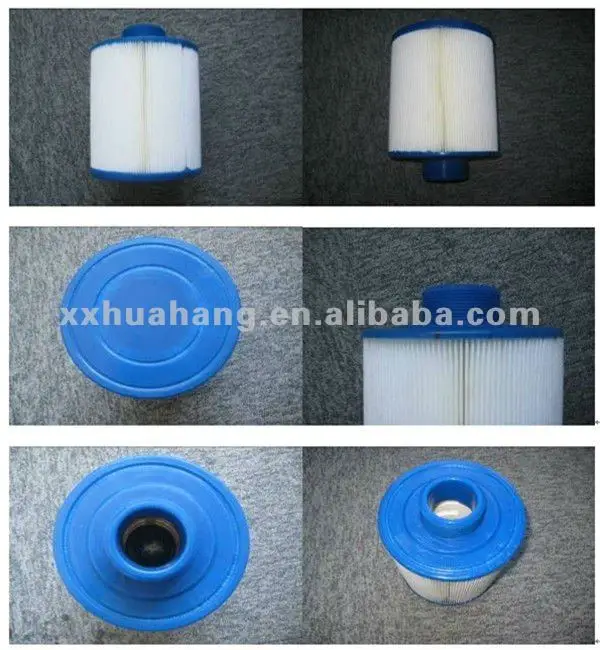

Pictures of simming pool water filter cartridge for your choices
